MPO 12-Port Type A Fiber Panel | FAP-12MPOA
Catalog reference: Fiber Adapter Panel, OS2/OM3/OM4/OM5, 12xMTP/MPO-8/12/24 Key Up to Key Down Adapter, Type A
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
FAP-12MPOA pre-loads 12 MTP/MPO adapters (Type A, Key Up to Key Down) for OS2/OM3/OM4/OM5. Featuring a durable black powder-coated steel panel, tool-less push-lock rivets, and clear port numbering, four panels fit in 1U for up to 1152 fibers—ideal for structured cabling, backbone connectivity, and quick MACs in high-density data center environments.
Family fap-12mpoa-104159Model FAP-12MPOA1 SKU option
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 104159 - Model FAP-12MPOA

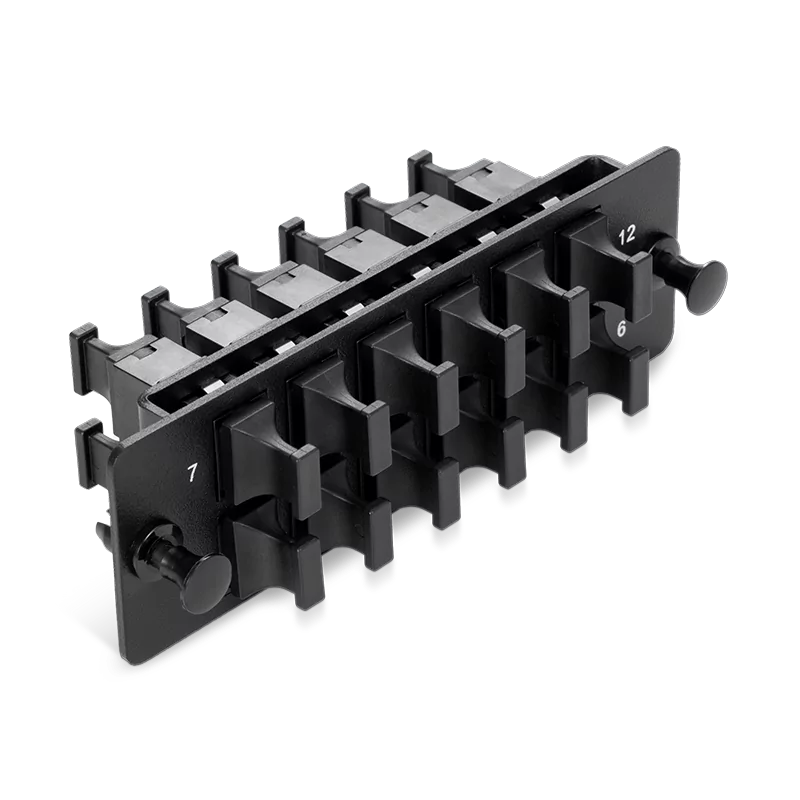

FAP-12MPOA 12-port MTP/MPO adapter panel (Type A, Key Up to Key Down)
FAP-12MPOA pre-loads 12 MTP/MPO adapters (Type A, Key Up to Key Down) for OS2/OM3/OM4/OM5. Featuring a durable black powder-coated steel panel, tool-less push-lock rivets, and clear port numbering, four panels fit in 1U for up to 1152 fibers—ideal for structured cabling, backbone connectivity, and quick MACs in high-density data center environments.
BrandSUNFULL
Confirm passive fiber construction
- Polarity
- Type A
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.

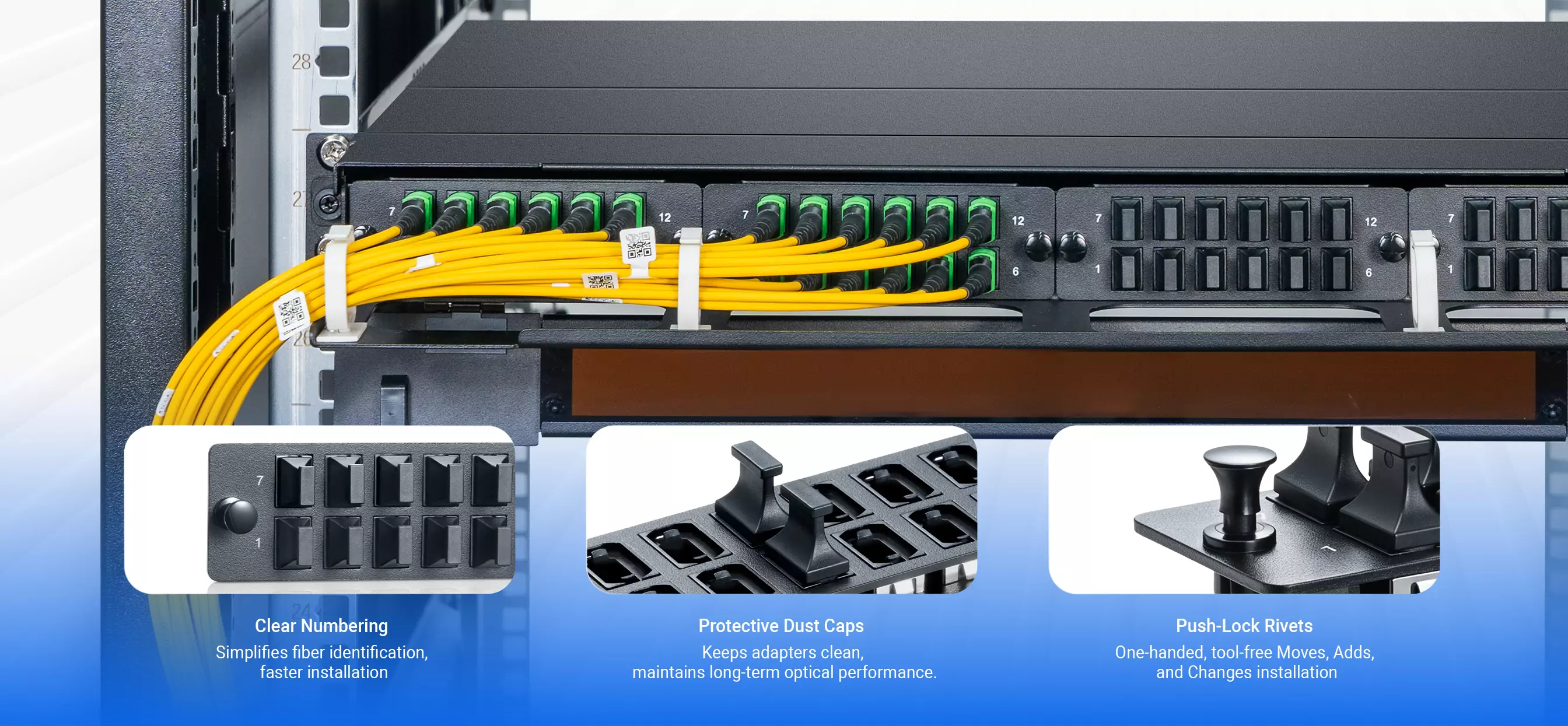

- 4 Adapter Panels Fit into 1U, Up to 1152 Fibers (MTP/MPO-8/12/24)

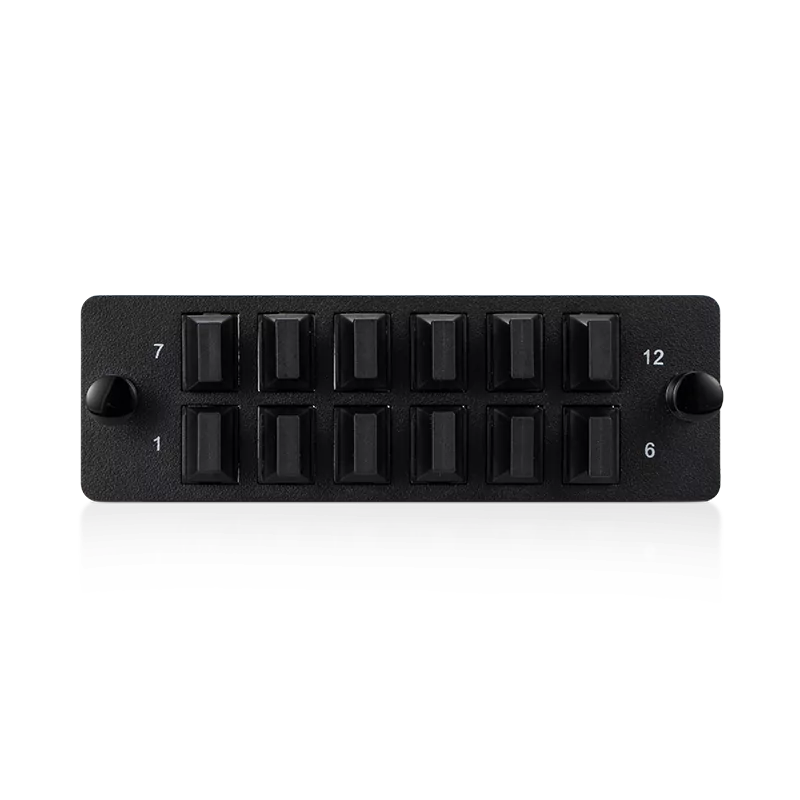

- Clear Numbering for Quick Fiber Identification

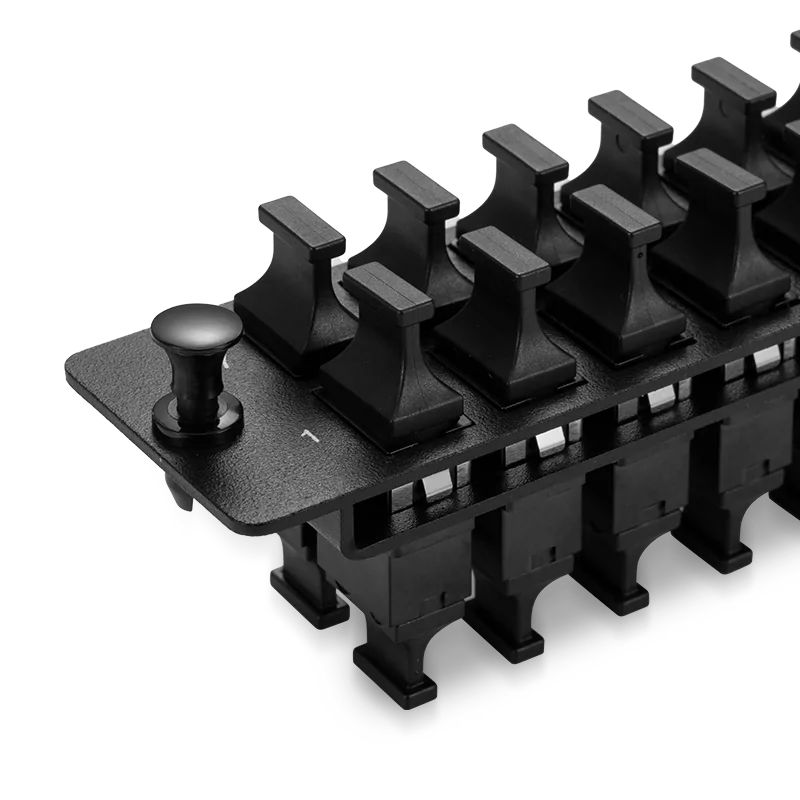

- Push-lock Rivets Tool-less Installation for One-handed Insertion and Removal and Easier MACs
- Protective Dust Caps Keep Adapter's Interior Clean from Dust
- Powder-coated Black Steel Material Panel with Excellent Durability and Abrasion Resistance
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Number of Ports
- 12
- Adapter Type
- MPO
- Fiber Mode
- OS2/OM3/OM4/OM5
- Key Orientation
- Opposed (Up-Down)
- Adapter Color
- Black
- Material of Plate
- SPCC, Black powder Coat
- Polarity
- Type A
- Dimensions (HxW)
- 1.38''x4.29'' (35x109mm)
- Durability
- ≤500 mating cycles
- Application
- Matching for Fiber Enclosures
- Operating Temperature
- 25 ℃ to 50 ℃
Technical detail
Construction and application notes for FAP-12MPOA
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction
Fiber Adapter Panel enables tool-free, high-density deployment. Clear port numbering simplifies fiber identification and speeds up installation.
Polarity and routing

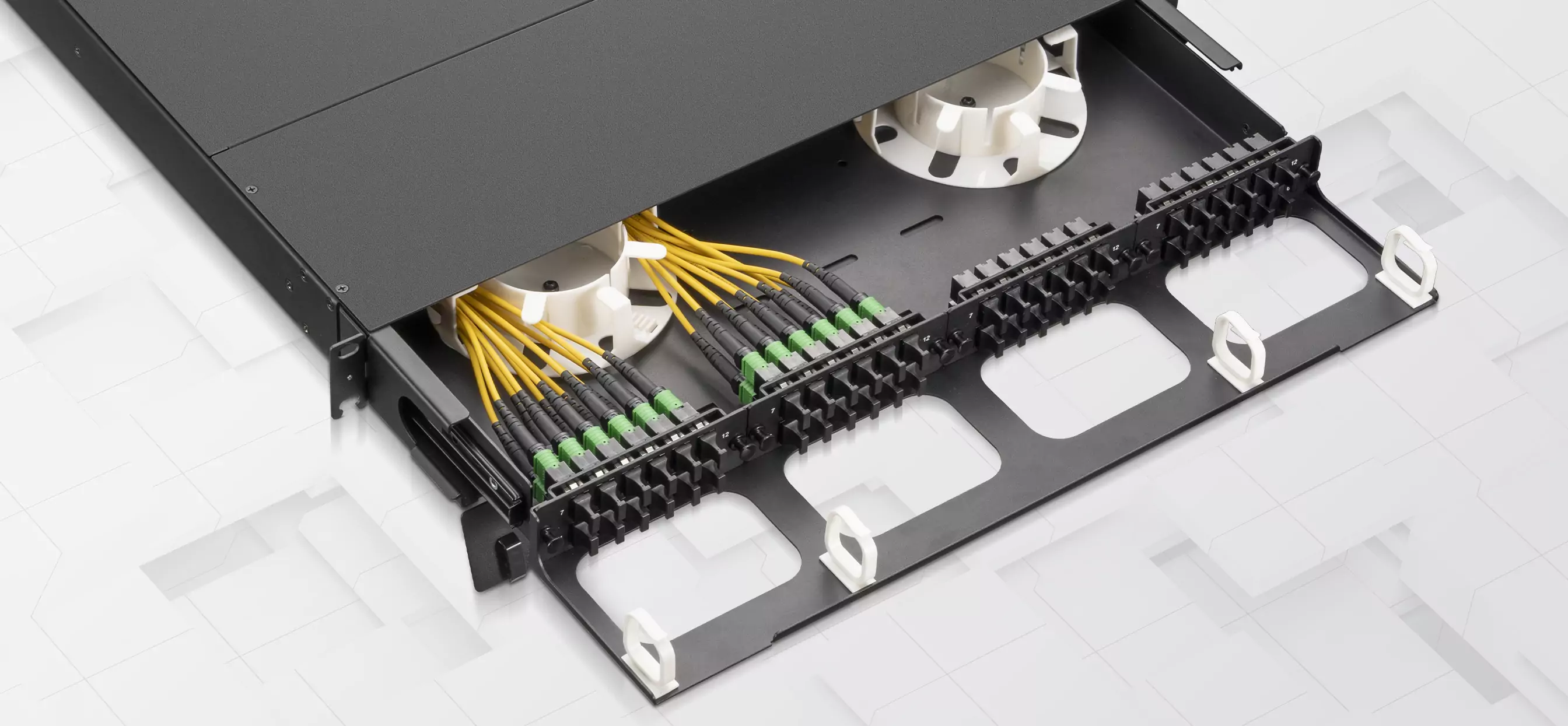

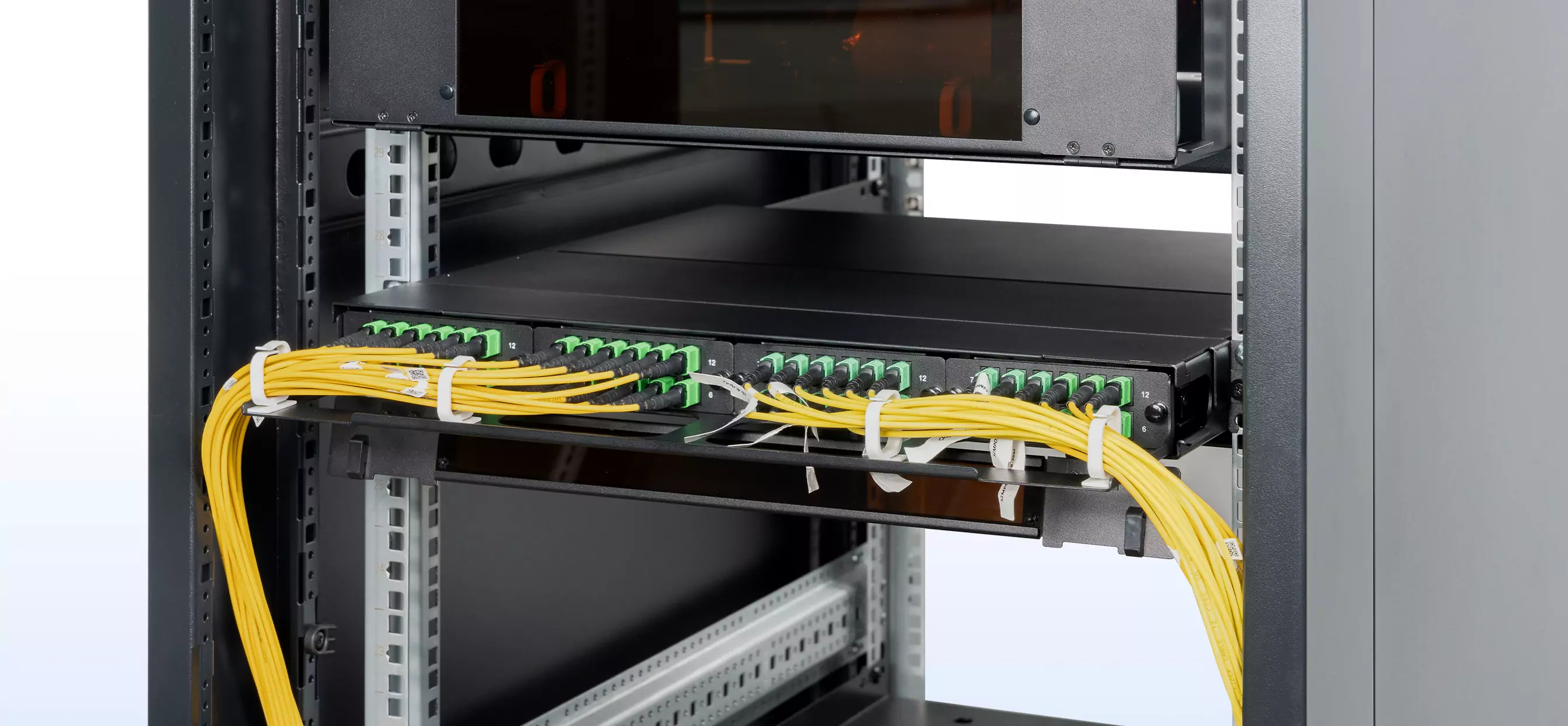

MTP/MPO trunks terminate at the rear, while front ports support flexible connection extended trunks, harnesses, or jumpers, providing a stable structured platform for network link expansion. This back-to-front architecture enables seamless fiber link extension across racks and zones.
Inspection and installation
Fiber Adapter Panel enables deployment of parallel optics in data centers without modifying existing hardware. MTP /MPO trunks connect at the rear and remain fixed, while the front ports flexibly accommodate extended trunks, harnesses, or jumpers based on equipment needs. This clear separation allows front-end links to be added, moved, or replaced at any time without disturbing the backbone infrastructure, protecting trunk cabling investment and eliminating re-cabling complexity.
