1m (3ft) 200G QSFP56 to 4X50G SFP56 Passive DAC Breakout Cable for NVIDIA/Mellanox 30AWG

RoCE Ethernet Interconnects

200G QSFP56 to 4xSFP56 1–3m DAC | Q4S56-200G-CU1

Catalog reference: 1m (3ft) NVIDIA/Mellanox Coding Target MCP7H70-V001R30 Compatible 200G DAC QSFP56 4x50G PAM4 to 4x50G SFP56 50G PAM4 Passive Direct Attach Copper Breakout Cable

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Compatible 1m (3ft) 200G QSFP56 to 4X50G SFP56 DAC cables deliver high-speed, low-latency connectivity for SATA, RADI systems, and 200G Ethernet. Each cable passes stringent signal integrity and performance tests before shipment.

Family q4s56-200g-cu1-32635Model Q4S56-200G-CU112 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102734 - Model Q4S56-200G-CU1

1m (3ft) 200G QSFP56 to 4X50G SFP56 Passive DAC Breakout Cable for NVIDIA/Mellanox 30AWG

NVIDIA/Mellanox Compatible 1m (3ft) 200G QSFP56 to 4X50G SFP56 DAC cables deliver high-speed, low-latency connectivity for SATA, RADI systems, and 200G Ethernet. Each cable passes stringent signal integrity and performance tests before shipment.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Length1m (3ft)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Compliant with Hot Pluggable QSFP56/SFP56 MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • Supports 200G to 4x 50G Ethernet Interoperability.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP56 to 4xSFP56
Cable Length
1–3m (SKU-dependent)
Wire AWG
26~30AWG
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Jacket Material
PVC
Power Consumption
<0.1W
Minimum Bend Radius
37mm~47mm
Application
200G/50G Ethernet Compliant

Technical detail

Construction and application notes for Q4S56-200G-CU1

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

200G Q4S56 breakout DAC can provide high-efficiency connection for short-distance interconnection of 200G and 50G equipment. It is cost and power efficient while achieving high bandwidth, high density and flexible configuration.

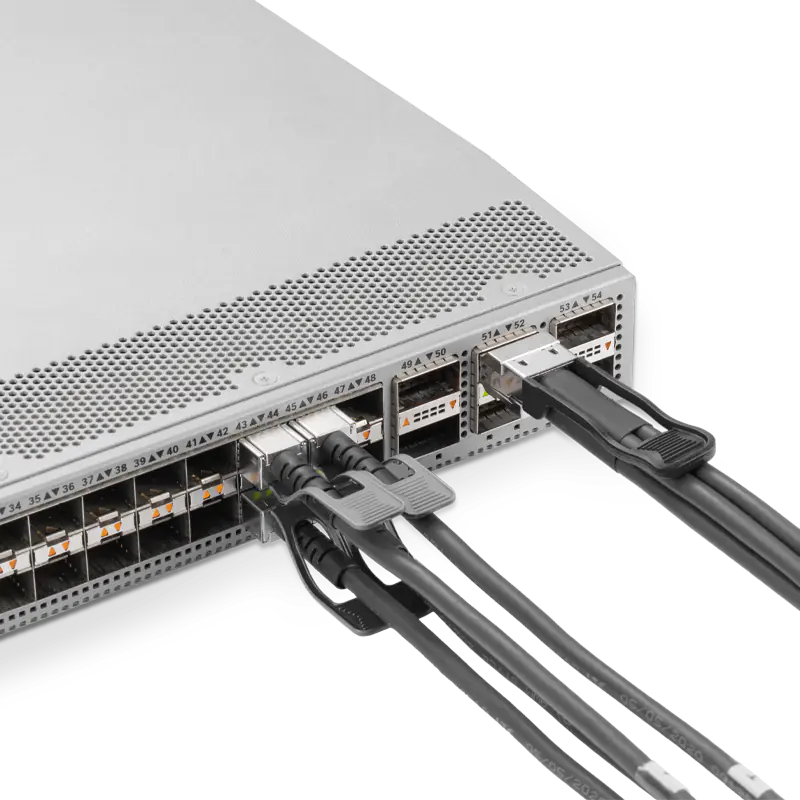

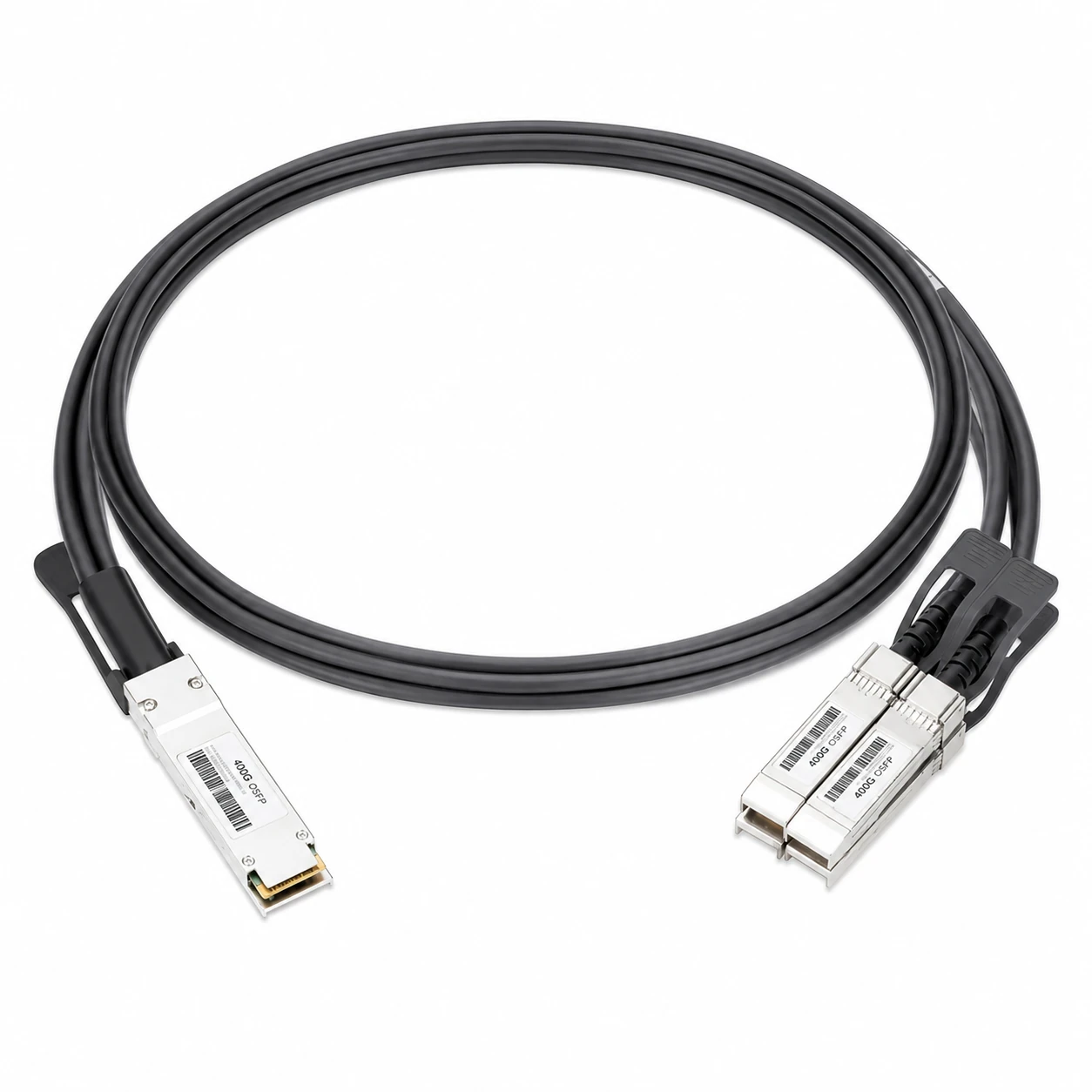

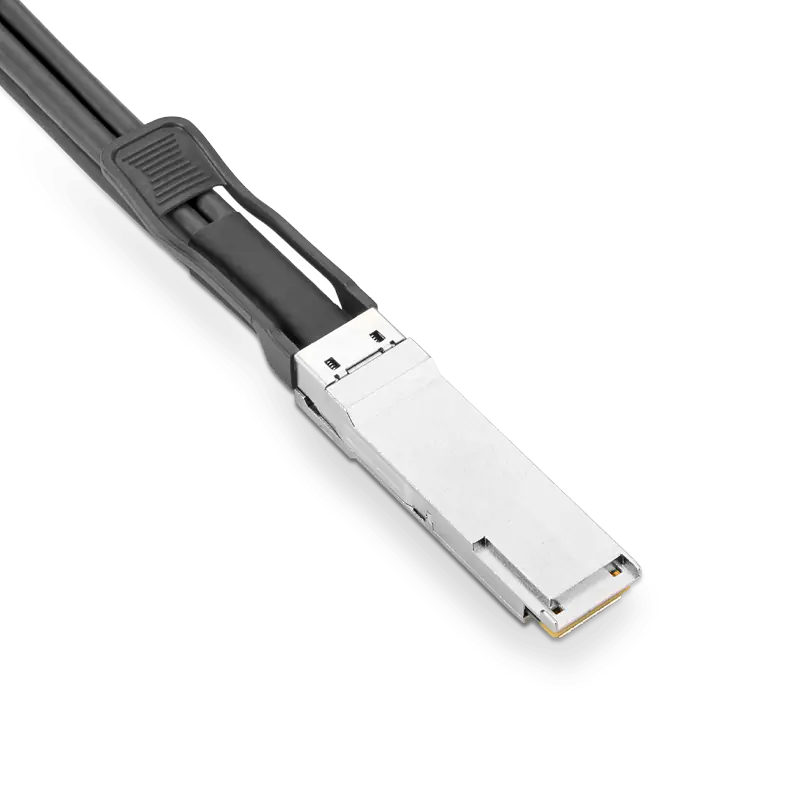

1m (3ft) 200G QSFP56 to 4X50G SFP56 Passive DAC Breakout Cable for NVIDIA/Mellanox 30AWG detail

Application and routing

1m (3ft) 200G QSFP56 to 4X50G SFP56 Passive DAC Breakout Cable for NVIDIA/Mellanox 30AWG detail

Installation and validation

has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.

1m (3ft) 200G QSFP56 to 4X50G SFP56 Passive DAC Breakout Cable for NVIDIA/Mellanox 30AWG detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Q4S56 200G Dac Datasheet
