Cisco | QSFP-100G-AC3 | DAC
100G QSFP28 3–7m DAC with 5 exact SKU options. Confirm the host, port and firmware before quotation.
High-Speed Cables
100G QSFP28 to 4xSFP28 1–5m DAC | Q4SFP-100G-CU1
Catalog reference: Cisco Coding Target QSFP-4SFP25G-CU1M Compatible 1m (3ft) 100G QSFP28 to 4X25G SFP28 Passive Direct Attach Copper Breakout Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
Cisco Coding Target QSFP-4SFP25-CU1M Compatible 1m 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable (QSFP28 to SFP28 DAC Breakout Cable, Passive AWG30 1m)
Family q4sfp-100g-cu1-13870Model Q4SFP-100G-CU144 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32193 - Model Q4SFP-100G-CU1

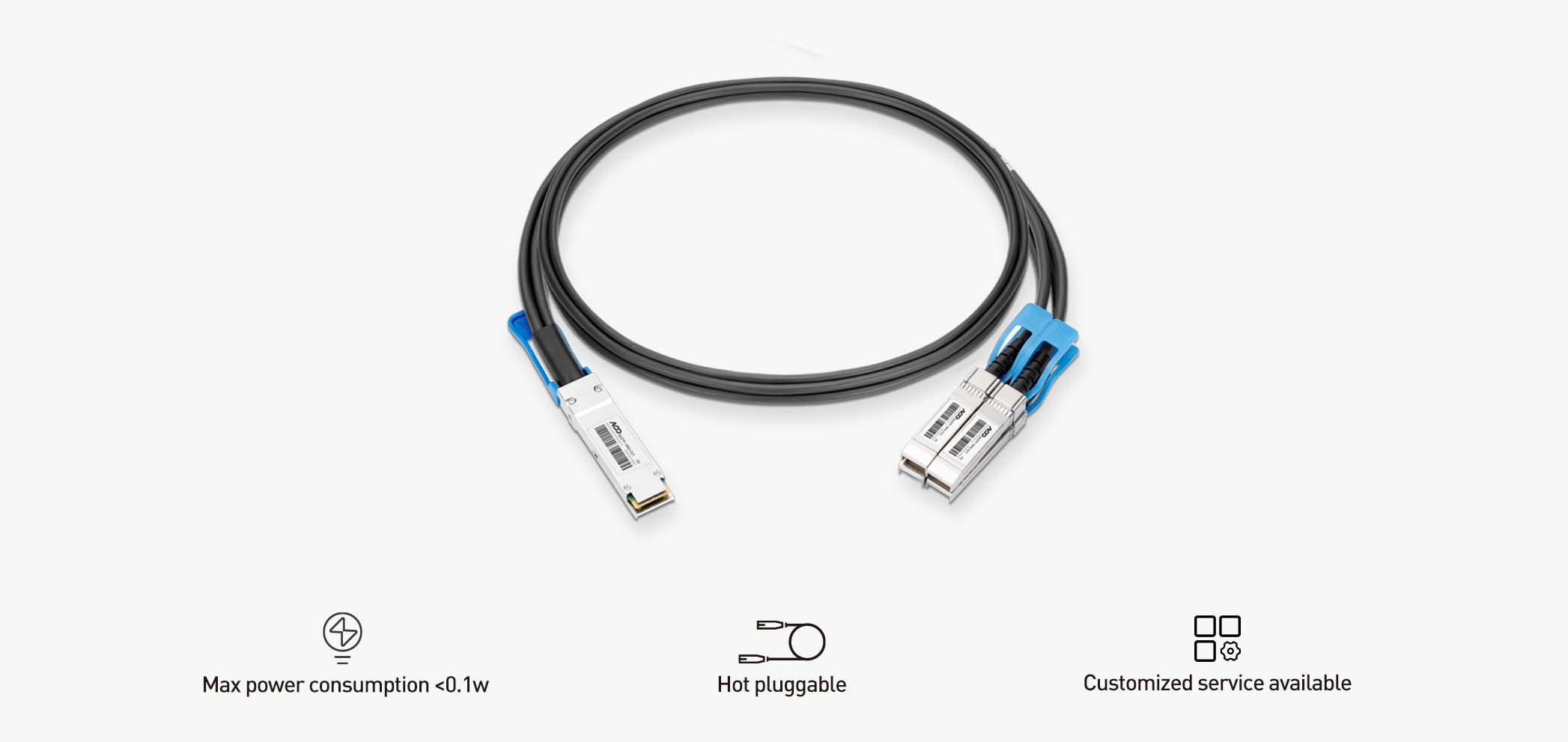

1m (3ft) 100G QSFP28 to 4X25G SFP28 Passive Direct Attach Copper Breakout Cable for Cisco 30AWG
Cisco Coding Target QSFP-4SFP25-CU1M Compatible 1m 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable (QSFP28 to SFP28 DAC Breakout Cable, Passive AWG30 1m)
BrandSUNFULL
Compatible brand / platformCisco
Length1m (3ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption <0.1W.
- Minimum Bend Radius 25mm.
- Compliant with Hot Pluggable QSFP28 MSA Standard.
- Compliant with RoHS Environmental Standard (Lead-free).
- Supports 100G to 4x 25G Ethernet Interoperability.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP28 to 4xSFP28
- Cable Length
- 1–5m (SKU-dependent)
- Wire AWG
- 26~30AWG
- Commercial Temperature Range
- 0 to 70°C (32 to 158°F)
- Jacket Material
- PVC
- Power Consumption
- <0.1W
- Minimum Bend Radius
- 37mm~47mm
- Application
- 100G/25G Ethernet Compliant
Technical detail
Construction and application notes for Q4SFP-100G-CU1
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Cable construction
100G Q4SFP breakout DAC consists of one QSFP28 transceiver and four SFP28 transceivers, it's used for interconnection between 100G and 25G equipment in cabinets. In short-distance cabling, it can effectively save costs and reduce power consumption.
Routing and bend requirements
Endpoint validation
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
