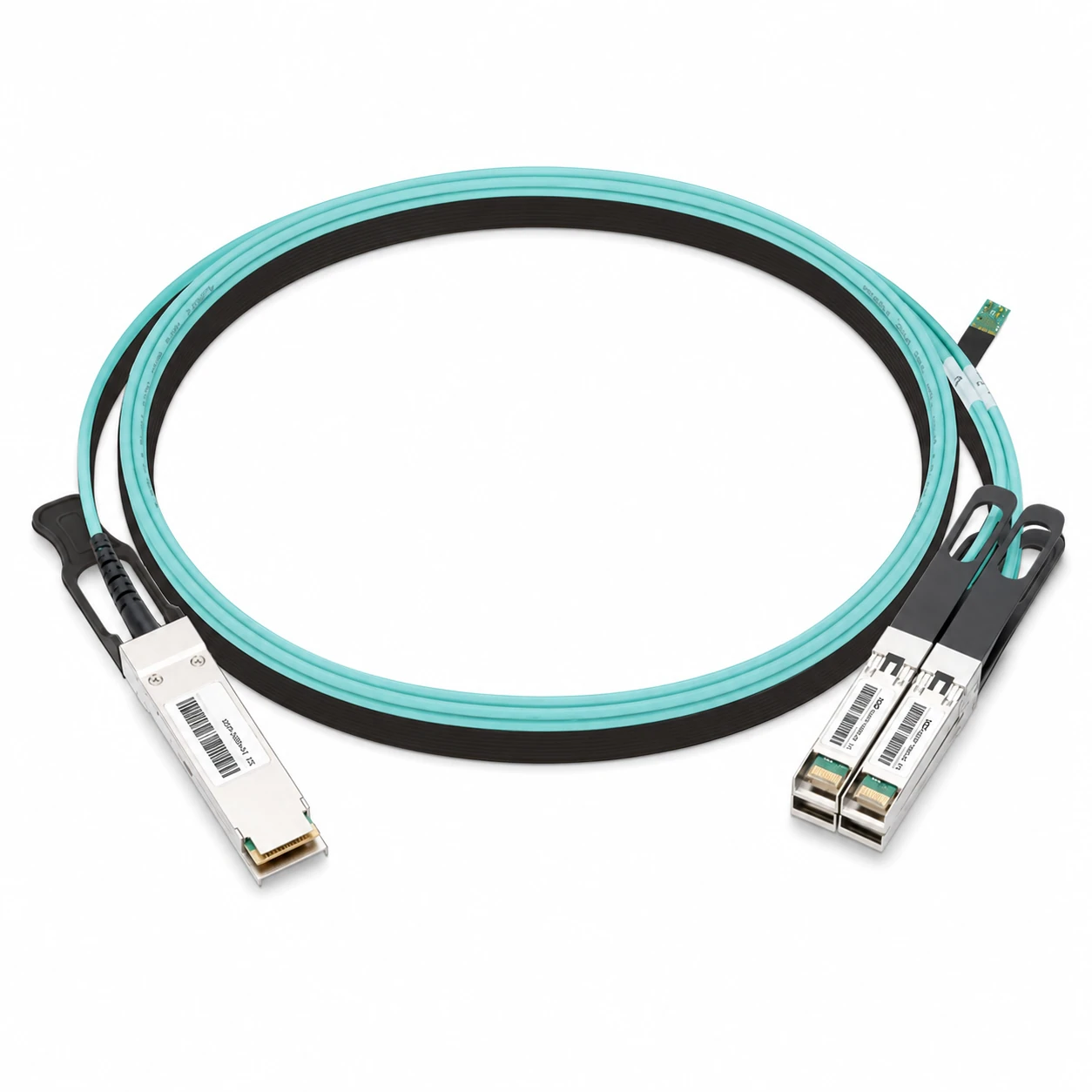

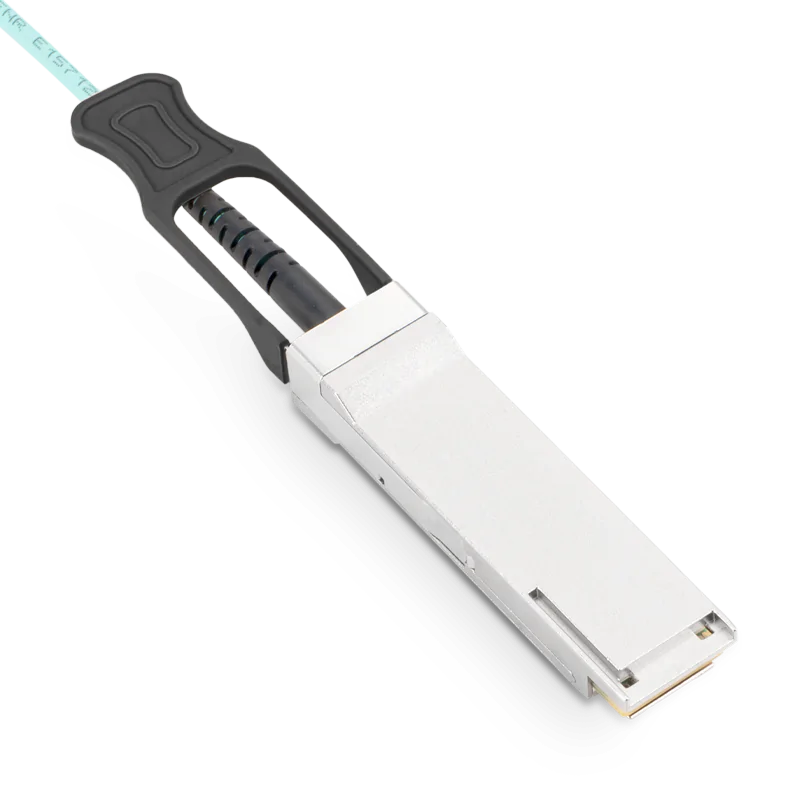

Mellanox Coding Target MFA7A50-C003 3m (10ft) 100G QSFP28 to 4X25G SFP28 Ethernet Active Optical Breakout Cable

High-Speed Cables

100G QSFP28 to 4xSFP28 1–30m AOC | Q4SFP-100G-A3 / MFA7A50-C003

Catalog reference: Mellanox Coding Target MFA7A50-C003 Compatible 3m (10ft) 100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

100G AOC uses fiber optic technology for data transmission, which can replace copper cables to some extent due to its stability and flexibility, reducing the density and power consumption of cabling. It can also be used for data center and high performance computing network cabling.

Family q4sfp-100g-a3-13877Model Q4SFP-100G-A314 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MFA7A50-C003

Part-number identifiers and aliases available for matching:

  • MFA7A50-C003
  • MFA7A50-C005
  • MFA7A50-C010
  • MFA7A50-C015
  • MFA7A50-C020
  • MFA7A50-C030

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 13877 - Model Q4SFP-100G-A3

Mellanox Coding Target MFA7A50-C003 3m (10ft) 100G QSFP28 to 4X25G SFP28 Ethernet Active Optical Breakout Cable

100G AOC uses fiber optic technology for data transmission, which can replace copper cables to some extent due to its stability and flexibility, reducing the density and power consumption of cabling. It can also be used for data center and high performance computing network cabling.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Length3m (10ft)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email

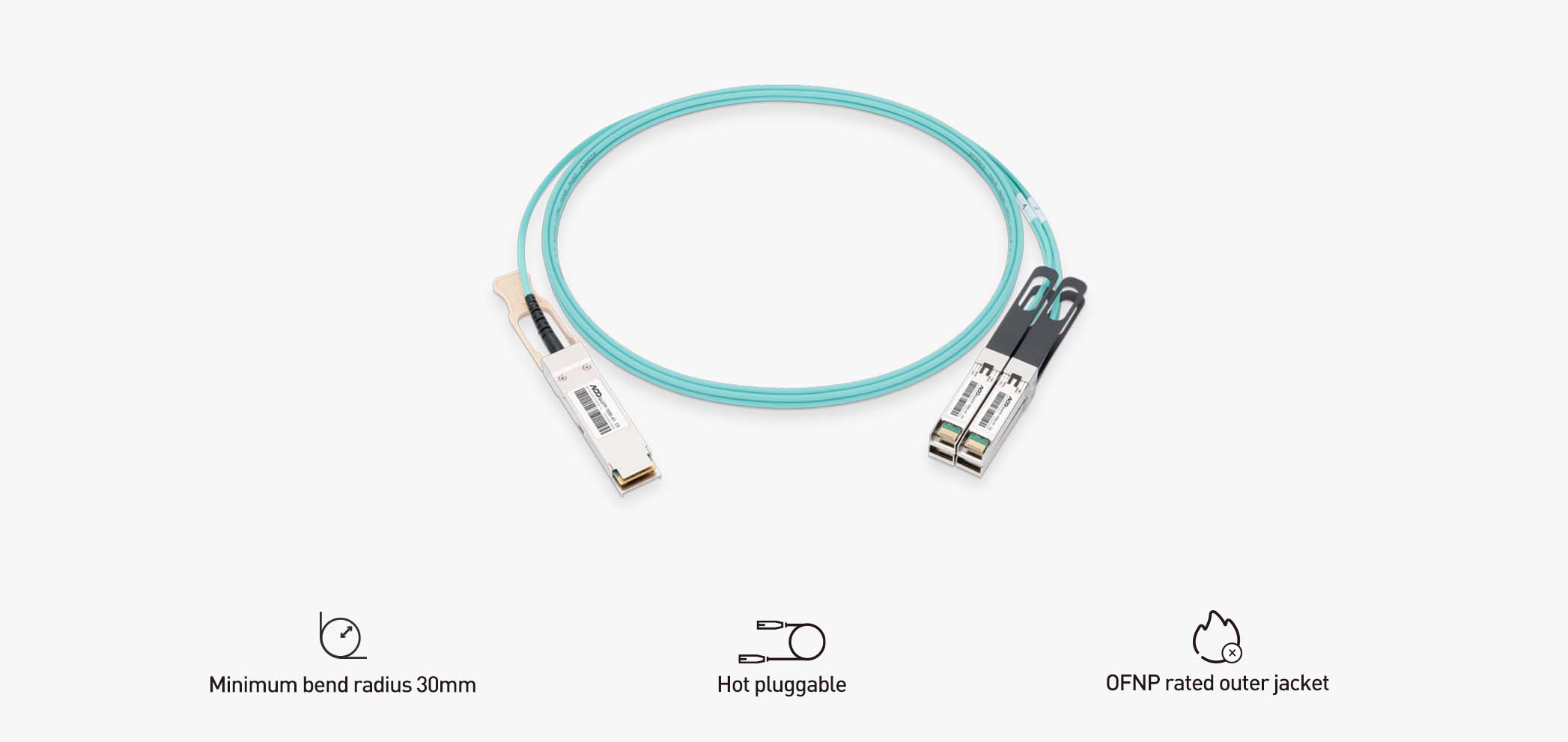

  • Minimum Bend Radius 30mm.
  • Compliant with Hot Pluggable QSFP28/SFP28 MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Supports 100G to 4x 25G Ethernet Interoperability.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP28 to 4xSFP28
Cable Length
1–30m (SKU-dependent)
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Wavelength
850nm
Jacket Material
LSZH
Power Consumption
≤2.5W(QSFP28) ≤1W(SFP28)
Minimum Bend Radius
30mm
Application
100G/25G Ethernet Compliant

Technical detail

Construction and application notes for Q4SFP-100G-A3

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Cable construction

With multimode fiber, 100G Q4SFP breakout AOC can achieve a transmission distances up to 70m (OM3) or 100m (OM4), which provides a cost-effective solution for interconnection between data center equipment with 100G QSFP28 ports and 25G SFP28 ports.

Mellanox Coding Target MFA7A50-C003 3m (10ft) 100G QSFP28 to 4X25G SFP28 Ethernet Active Optical Breakout Cable detail

Routing and bend requirements

Mellanox Coding Target MFA7A50-C003 3m (10ft) 100G QSFP28 to 4X25G SFP28 Ethernet Active Optical Breakout Cable detail

Endpoint validation

has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Mellanox Coding Target MFA7A50-C003 3m (10ft) 100G QSFP28 to 4X25G SFP28 Ethernet Active Optical Breakout Cable detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Q4Sfp 100G Aoc Datasheet
