400G OSFP to QSFP-DD 1–3m DAC | OSFP-QDD-CU1 / NVIDIA/Mellanox
Catalog reference: 1m (3ft) NVIDIA/Mellanox Compatible 400G DAC OSFP RHS/Flat Top 8x50G PAM4 to QSFP-DD 8x50G PAM4 Passive Direct Attach Copper Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target 1m (3ft)400G OSFP Flat Top to QSFP-DD Passive Direct Attach Copper Twinax Cable features sixteen differential copper pairs, supporting eight 56Gbps (PAM4) transmission channels to meet 400G Ethernet requirements.
Family osfp-qdd-cu1-102576Model OSFP-QDD-CU130 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102591 - Model OSFP-QDD-CU1

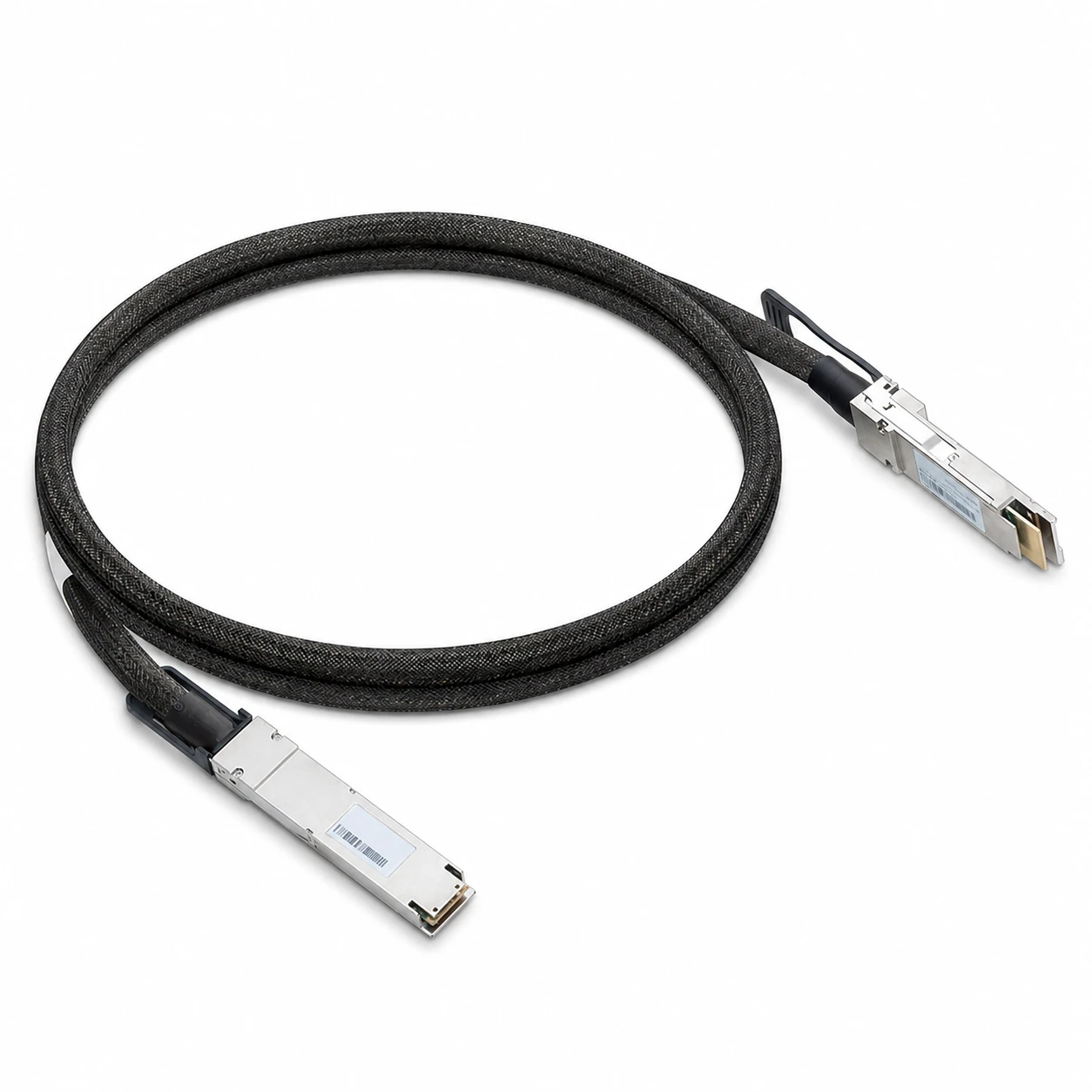

NVIDIA/Mellanox Coding Target 1m (3ft) 400G OSFP Flat Top to QSFP-DD DAC
NVIDIA/Mellanox Coding Target 1m (3ft)400G OSFP Flat Top to QSFP-DD Passive Direct Attach Copper Twinax Cable features sixteen differential copper pairs, supporting eight 56Gbps (PAM4) transmission channels to meet 400G Ethernet requirements.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Length1m (3ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption <0.1W
- Applied between 400G QSFP-DD switch and OSFP network card
- Compliant with Hot Pluggable OSFP MSA and QSFP-DD MSA
- Compliant with RoHS Environmental Standard (Lead-free)
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP to QSFP-DD
- Cable Length
- 1–3m (SKU-dependent)
- Wire AWG
- 26AWG~30AWG
- Commercial Temperature Range
- 0 to 70°C (32 to 158°F)
- Jacket Material
- ≤16.5W
- Power Consumption
- <0.1W
- Minimum Bend Radius
- 10x OD
- Application
- 400G Ethernet Compliant
Technical detail
Construction and application notes for OSFP-QDD-CU1
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Cable construction
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
