0.5U Rack Mount Enclosure with 32x8F MPO Adapters (128F, OS2 SM, Type 4, 0.35dB) Single Mode Shuffle Box for Scalable AI...

Fiber Cabling

128 Fibers Type 4 Fiber Panel | FEN-05US2MPO32x8M4

Catalog reference: 0.5U Rack Mount Enclosure Loaded with 32x8F MPO Adapters, Male to Male, 128 Fibers, OS2 Single Mode, Type 4, 0.35dB Max

Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.

0.5U Rack Mount MPO Shuffle Box (128F, OS2) simplifies fiber routing through centralized management, reducing installation errors and ensuring accurate high-density mapping. Its compact design maximizes rack space efficiency, while pre-organized cabling accelerates deployment. Ideal for AI data centers and large-scale GPU cluster networks.

Family fen-05us2mpo32x8m4-103924Model FEN-05US2MPO32x8M41 SKU option

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 103924 - Model FEN-05US2MPO32x8M4

0.5U Rack Mount Enclosure with 32x8F MPO Adapters (128F, OS2 SM, Type 4, 0.35dB) Single Mode Shuffle Box for Scalable AI Data Center Cabling

BrandSUNFULL

Confirm passive fiber construction

Fiber Count: 128 Fibers
Polarity: Type 4

Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.

Get Datasheet & Quote Construction Review WhatsApp Technical Documents

Optimized for large-scale AIDC multi-plane structured cabling to simplify deployment and scalability
Ultra-low insertion loss ≤0.35dB ensures stable high-speed optical performance
Push-pull design enables fast, tool-free installation and removal
Compatible with dedicated enclosures for installation in standard EIA 19" racks, supporting up to 1,024 fibers in 4U
Base-8 architecture ensures 100% fiber utilization for improved efficiency and cost savings

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Fiber Count: 128 Fibers
Fiber Mode: OS2
Adapter Type: MPO APC (Pinned)
Fiber Grade: G.657.A1
Number of Rack Spaces: 0.5U
Number of Front MPO Port: 32 Ports
Insertion Loss: ≤0.35dB
Return Loss: ≥60dB
Polarity: Type 4
Dimensions (WxHxD): 16.35"x0.787"x11.91"(415.2*20*302.4mm)
MPO Adapter: Key Up to Key Down
Material: Aluminium (AL5052)
Operating Temperature: 10 °C to +60 °C
Storage Temperature: 40 °C to +80 °C

Technical detail

Construction and application notes for FEN-05US2MPO32x8M4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Connector and fiber construction

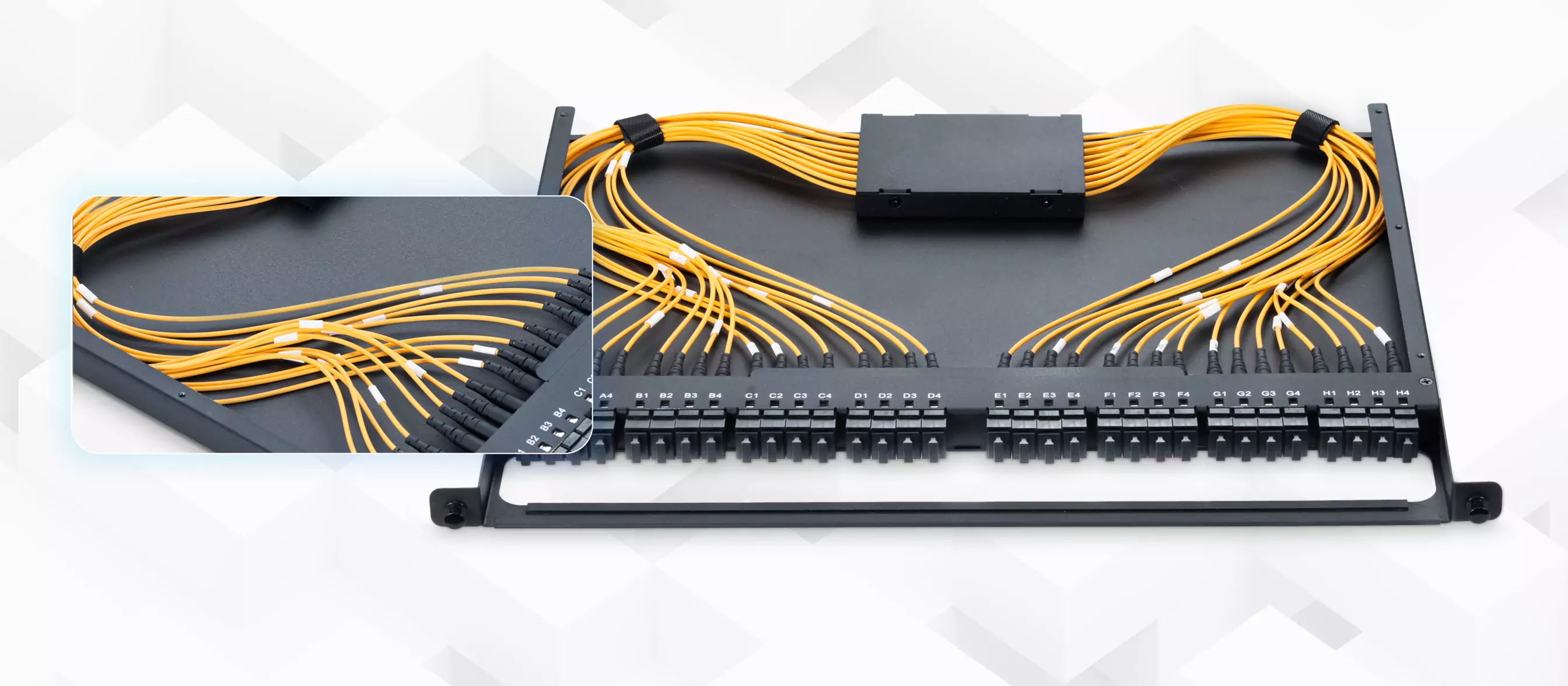

High-Efficiency Fiber Routing Shuffle Box redefines structured cabling for high-density AI and HPC environments. Designed for centralized fiber organization and redistribution within the rack, it reduces installation complexity, minimizes deployment errors, and ensures accurate fiber mapping in high-density architectures.

Polarity and routing

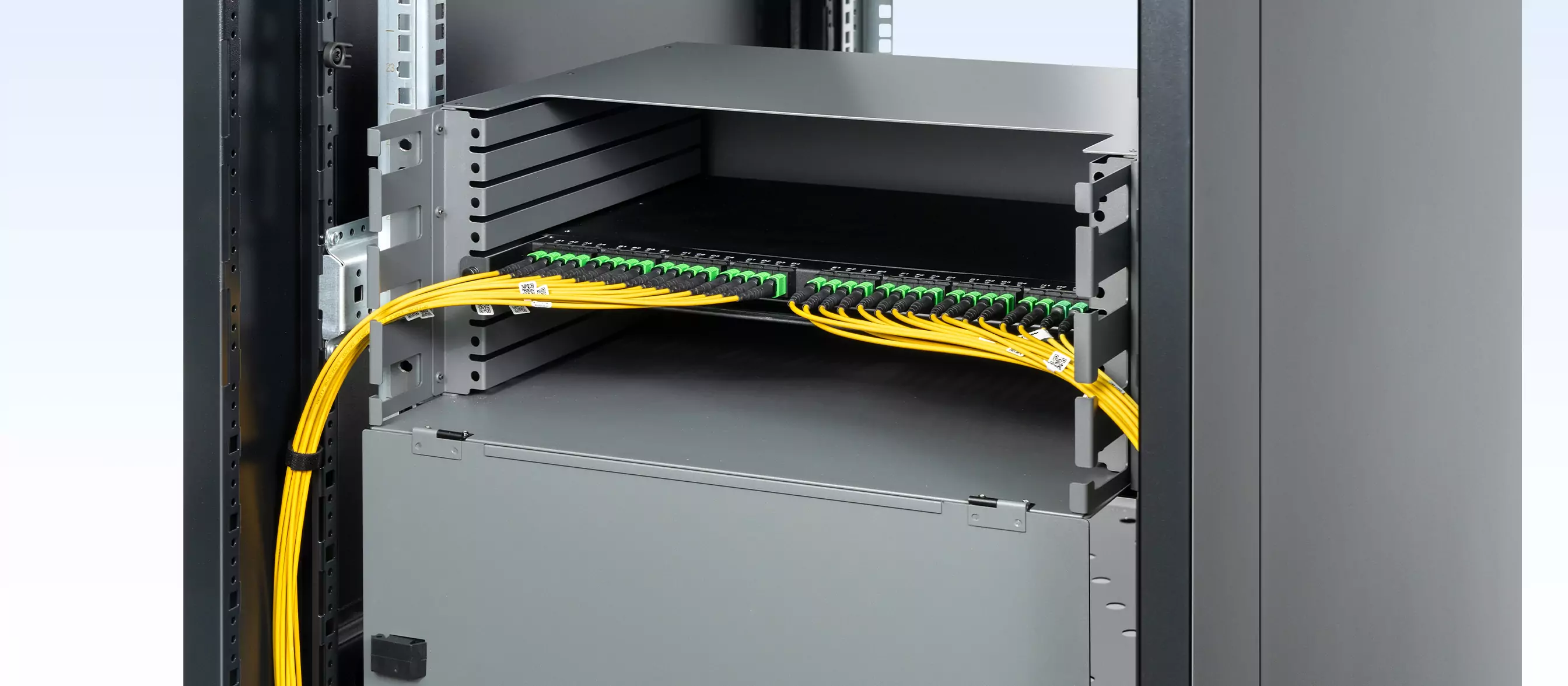

Compact Space Utilization Shuffle Box revolutionizes rack-scale infrastructure planning. With a slim, lightweight modular design delivering up to 256 fibers in 1U, it consolidates massive cross-connects into a streamlined chassis. This frees critical rack space for power and cooling systems, ensuring unobstructed airflow and peak thermal efficiency for demanding AI workloads.

0.5U Rack Mount Enclosure with 32x8F MPO Adapters (128F, OS2 SM, Type 4, 0.35dB) Single Mode Shuffle Box for Scalable AI... detail

Inspection and installation

Unlike ordinary fiber cables that require full assembly replacement for a single fiber failure, its modular and independent port design allows for quick replacement of the affected internal jumper without replacing the entire unit. Combined with pre-organized factory assemblies, this plug-and-play solution accelerates initial deployment while drastically reducing long-term spare parts inventory and maintenance costs.
