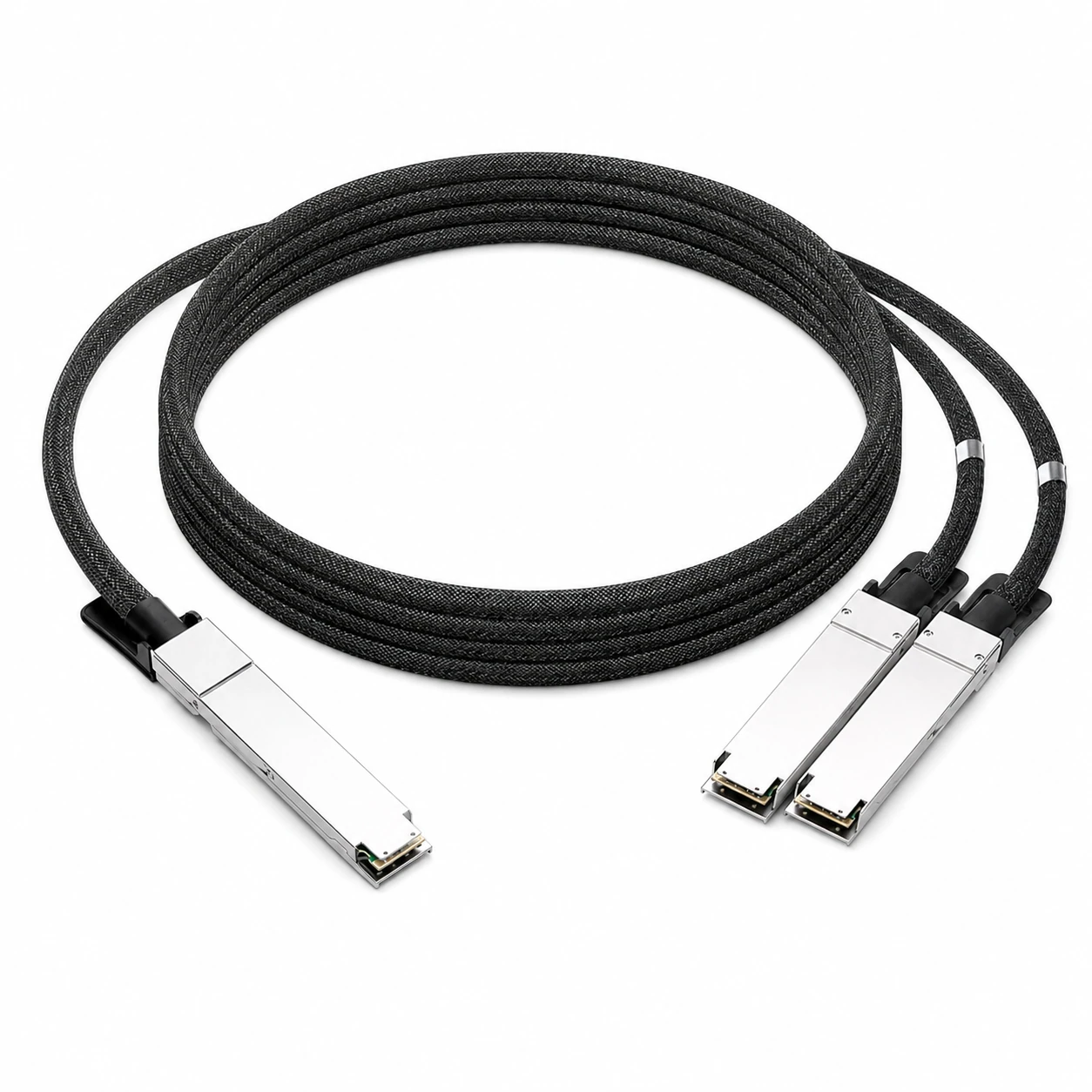

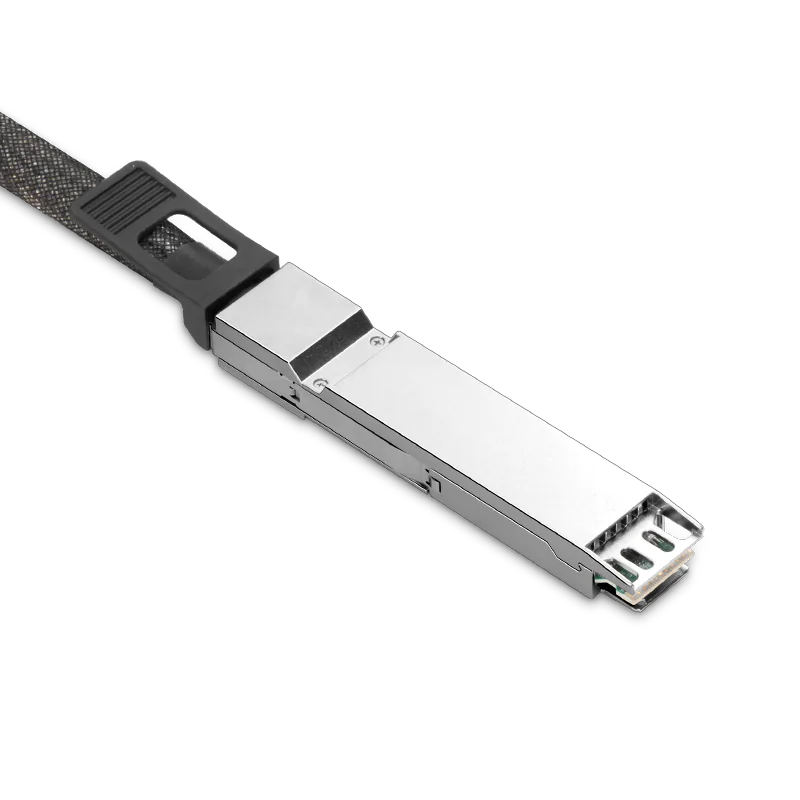

2.5m (8.2ft) NVIDIA Coding Target MCA7K10-X02A Compatible 1.6T OSFP224 to 2x800G OSFP224 Connected with NVIDIA GB300...

InfiniBand Interconnects

1.6T OSFP224 to 2xOSFP224 1–2.5m Copper Cable | O2O224-1.6T-ACCH / MCA7K10-X001

Catalog reference: 2.5m (8.2ft) NVIDIA/Mellanox Coding Target MCA7K10-X02A (980-9IAO5-00X02A) Compatible 1.6T ACC OSFP224 IHS/Closed Finned Top 8x200G PAM4 to 2x800G OSFP224 RHS/ Flat Top 4x200G PAM4 InfiniBand XDR Active Copper Splitter Cable

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

High-performance 2.5m InfiniBand twin port XDR 1.6T to 2x800G active copper splitter cable with OSFP224 finned to flat top (Integrated Heat Sink to Riding Heat Sink) connectors, for NVIDIA GB300 connectivity review, which is intended for AI data-center connectivity.

Family o2o224-1-6t-acch-102715Model O2O224-1.6T-ACCH4 SKU options

Requested part-number references

Requested coding target
NVIDIA
Primary reference identifier
MCA7K10-X001

Part-number identifiers and aliases available for matching:

  • MCA7K10-X001
  • MCA7K10-X002
  • MCA7K10-X01A
  • MCA7K10-X02A

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102715 - Model O2O224-1.6T-ACCH

2.5m (8.2ft) NVIDIA Coding Target MCA7K10-X02A Compatible 1.6T OSFP224 to 2x800G OSFP224 Connected with NVIDIA GB300 InfiniBand XDR Active Copper Splitter Cable, Integrated Heat Sink to Riding Heat Sink

High-performance 2.5m InfiniBand twin port XDR 1.6T to 2x800G active copper splitter cable with OSFP224 finned to flat top (Integrated Heat Sink to Riding Heat Sink) connectors, for NVIDIA GB300 connectivity review, which is intended for AI data-center connectivity.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length2.5m (8.2ft)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Compatible with NVIDIA DGX B300, GB300 GPU clusters.
  • Maximum power consumption 2.5W.
  • 8x 200G-PAM4 Electrical Modulation.
  • Ultra-low insertion loss ensures no bandwidth bottlenecks in AI clusters.
  • High-shielded copper structure ensures extreme crosstalk & EMI resistance.
  • Compliant with OSFP MSA.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP224 to 2xOSFP224
Cable Length
1–2.5m (SKU-dependent)
Wire AWG
26 AWG
Commercial Temperature Range
0~70°C (32 to 158°F)
Jacket Material
PET
Power Consumption
2.5W
Minimum Bend Radius
10xOD
Application
IB XDR, 1.6T/800G Ethernet Compliant

Technical detail

Construction and application notes for O2O224-1.6T-ACCH

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

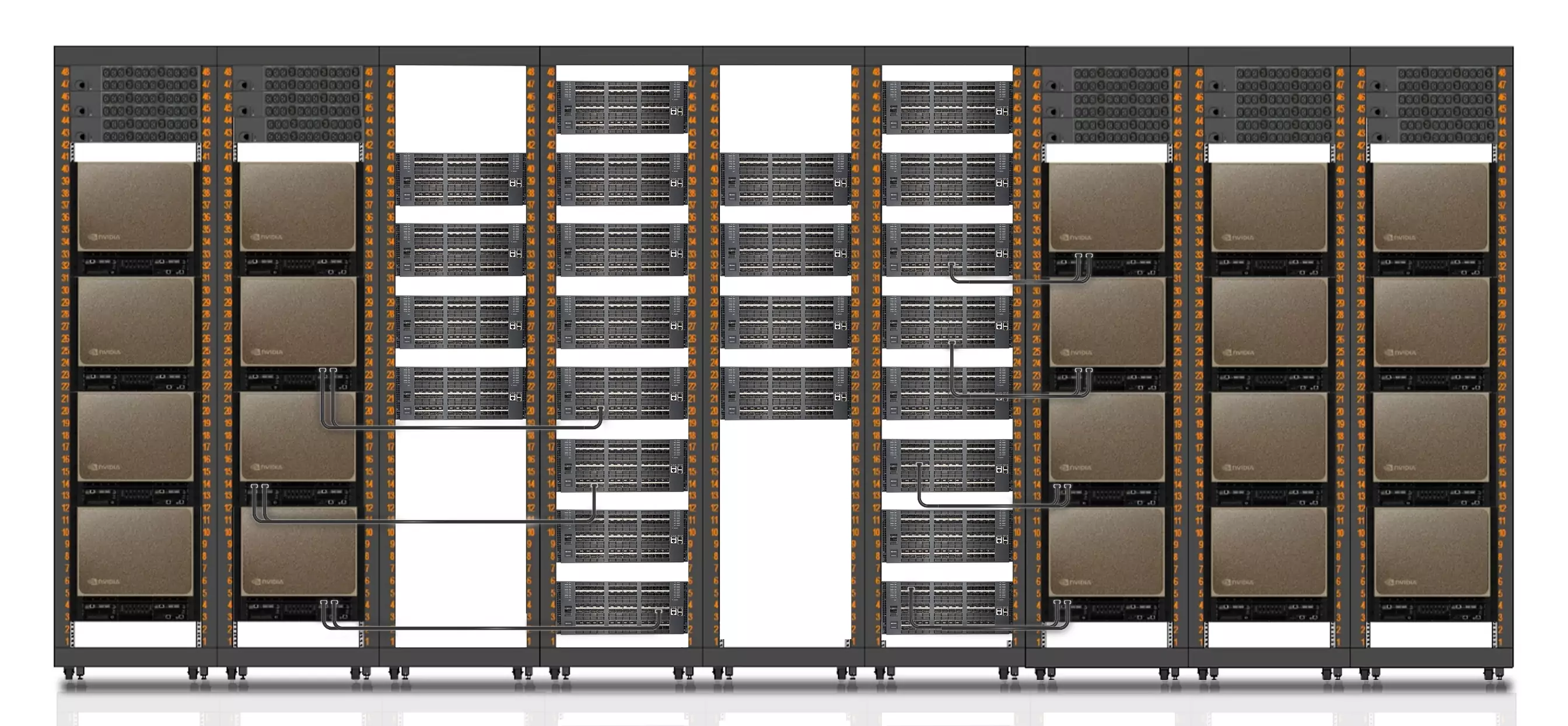

In next-generation high-density AI cluster architectures, such as B300/GB300, the increasing connection density between GPU servers and leaf-layer switches places greater demands on link stability and deployment efficiency for short-reach interconnects. 1.6T ACC splitter cable is designed for these environments. It delivers stable performance with ultra-low latency. Its breakout design reduces cable count and simplifies rack cabling, helping improve deployment efficiency and port utilization. It enables stable and efficient short-reach interconnects for next-generation AI clusters.

2.5m (8.2ft) NVIDIA Coding Target MCA7K10-X02A Compatible 1.6T OSFP224 to 2x800G OSFP224 Connected with NVIDIA GB300... detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

O2O224 1 6T Acch Datasheet
