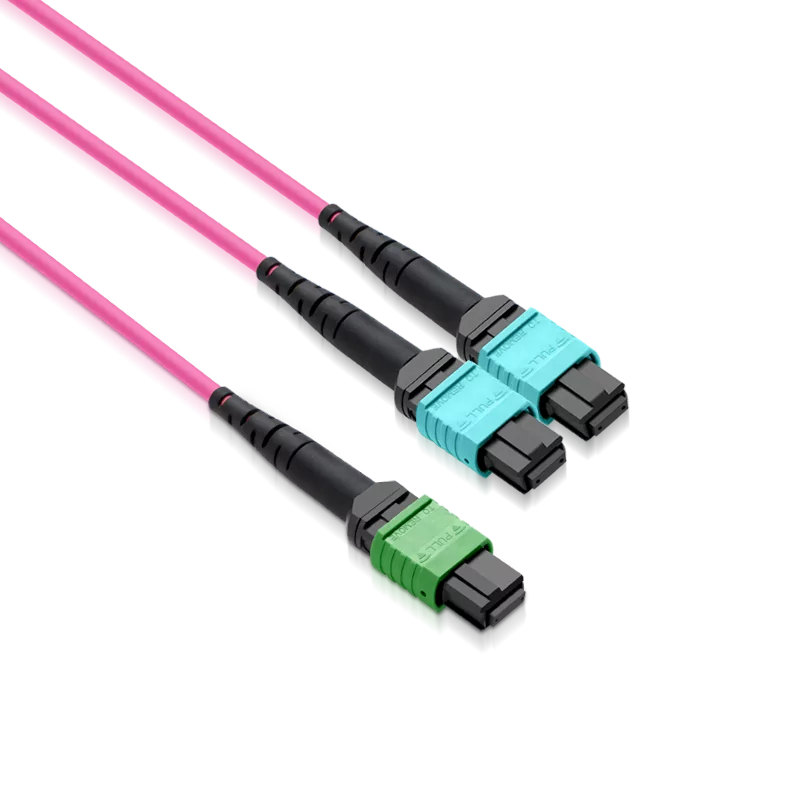

10m (33ft) MPO-16 APC Female to 2 MPO-8 UPC Female Multimode Passive Splitter Fiber Cable

InfiniBand Interconnects

Fiber Cable M4MPOA2x8F | M4MPOA2x8F

Catalog reference: 10m (33ft) MPO-16 APC (Female) to 2xMPO-8 UPC (Female) Multimode (OM4) Breakout, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

10m (33ft) M4MPOA2x8F is designed for 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics direct connection and supporting 800G transmission for Hyperscale Data Center.

Family m4mpoa2x8f-101798Model M4MPOA2x8F8 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101801 - Model M4MPOA2x8F

10m (33ft) MPO-16 APC Female to 2 MPO-8 UPC Female Multimode Passive Splitter Fiber Cable

10m (33ft) M4MPOA2x8F is designed for 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics direct connection and supporting 800G transmission for Hyperscale Data Center.

BrandSUNFULL

Compatible brand / platformInfiniBand platform (vendor not specified)

Length10m (33ft)

Select compatibility target

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents

On-site "plug and play", fast installation, improve deployment efficiency
Ultra-low insertion loss, achieve 100G/400G/800G performance
LSZH/OFNR sheath, ensure safe indoor deployment
Flexible adaptation to various network architectures
Widely compatible with various optical modules
Suitable for high-density wiring systems such as data centers, racks, panels, backplanes, etc.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

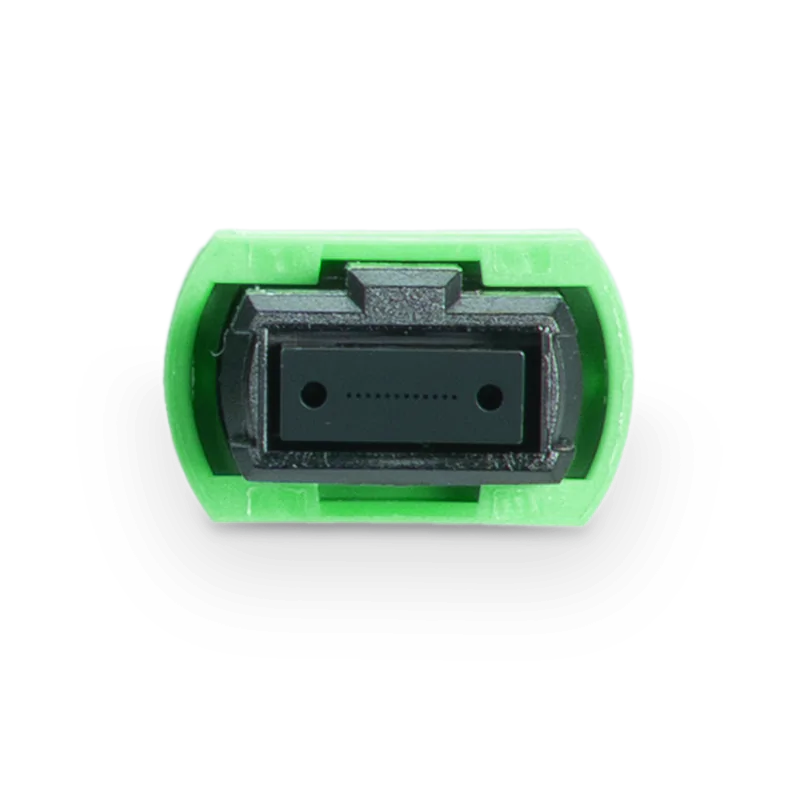

Connector Type: MPO Female to Female
Fiber Grade: Bend Insensitive

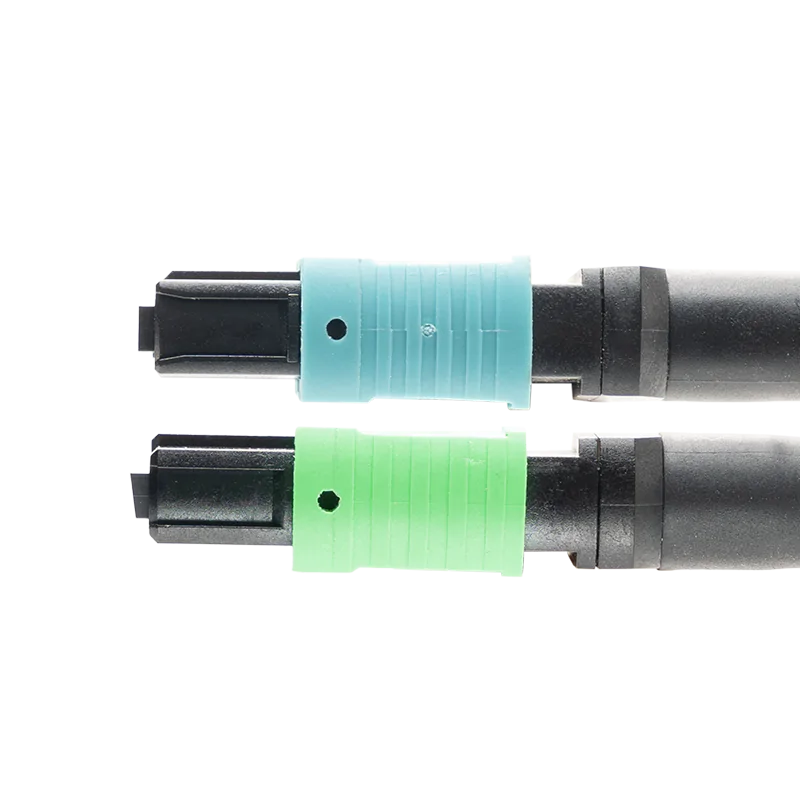

Polish Type: APC to UPC
Polarity: Type B
Fiber Mode: OM4 50/125μm
Fiber Count: 16F to 2x8F
Wavelength: 850/1300nm
Cable Jacket/Flame Rating: LSZH/OFNR
Insertion Loss: ≤0.35dB
Return Loss: ≥35dB(APC) ≥25dB(UPC)
Attenuation at 850 nm: ≤2.3 dB/km
Attenuation at 1300 nm: ≤1.0dB/km
Min. Bend Radius(Fiber Core): 7.5mm
Min. Bend Radius(Fiber Cable): 10/5D (Dynamic/Static)
Cable Diameter: 3.0mm
Tensile Strength: 80/150N (Long/Short Term)
Connector Durability: ≥ 500 - 1000 times
Operating Temperature: 20~70°C

Technical detail

Construction and application notes for M4MPOA2x8F

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

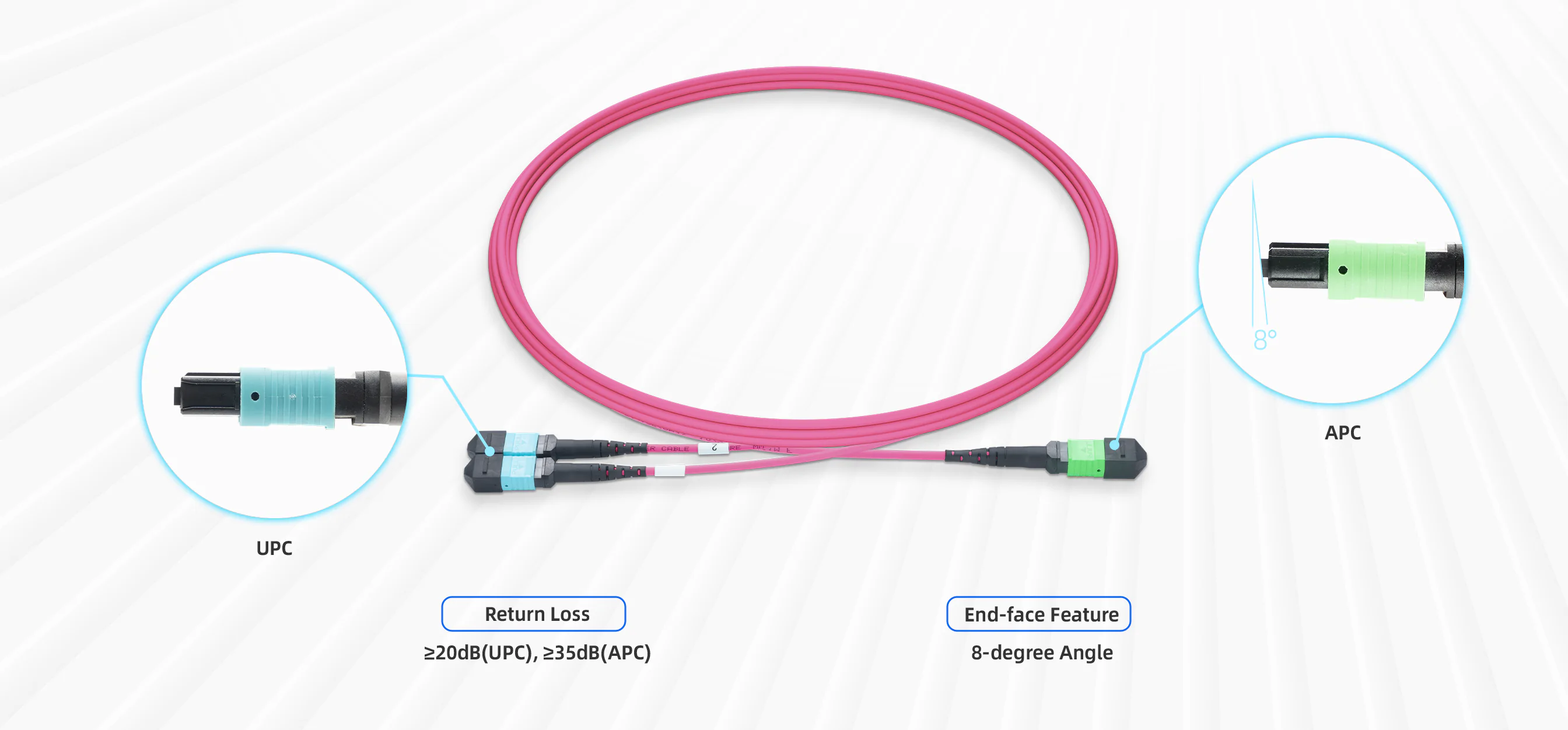

APC fiber patch cord features a precisely polished end face angled at 8 degrees to the fiber cladding. This design minimizes reflection by directing most of the return loss into the cladding, which preventing interference with the transmission signal and protecting the laser source. This type of patch cord ensures high-quality signal transmission and is highly reliable.
