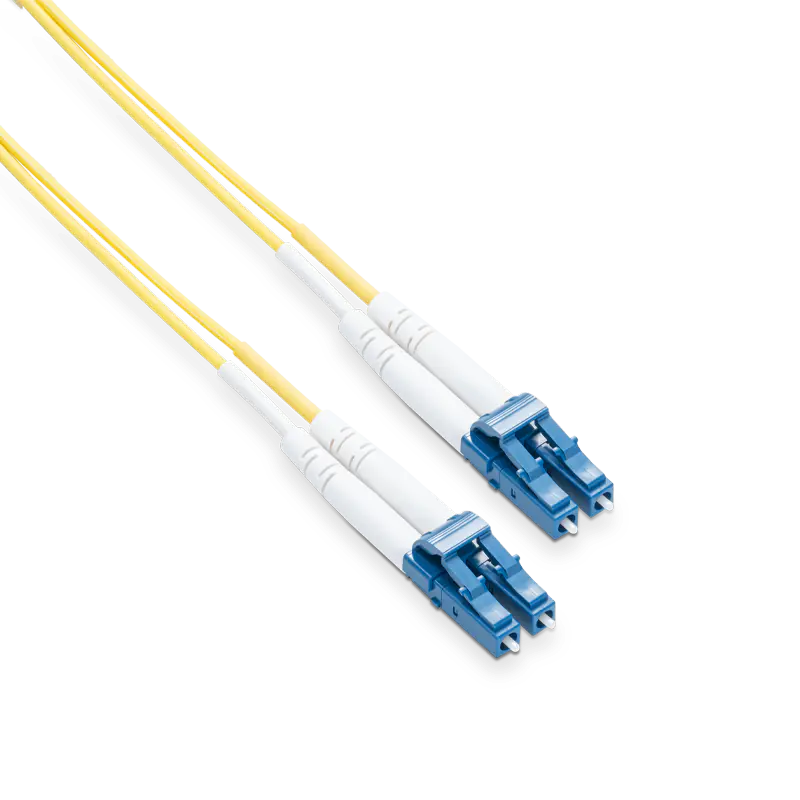

1m (3ft) OS2 LC UPC to LC UPC Duplex PVC (OFNR) 2.0mm Fiber Patch Cable

InfiniBand Interconnects

Fiber Cable S2LCUD | S2LCUD

Catalog reference: 1m (3ft) LC UPC to LC UPC Duplex OS2 Single Mode LSZH 2.0mm Fiber Optic Patch Cable

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

Durable single-mode and multimode LC/SC/FC/ST fiber patch cables are applicable to various high-density scenarios such as data center, cloud storage, communications rooms and server farms.

Family s2lcud-35000Model S2LCUD14 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 35001 - Model S2LCUD

1m (3ft) OS2 LC UPC to LC UPC Duplex PVC (OFNR) 2.0mm Fiber Patch Cable

Durable single-mode and multimode LC/SC/FC/ST fiber patch cables are applicable to various high-density scenarios such as data center, cloud storage, communications rooms and server farms.

BrandSUNFULL
Length1m (3ft)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Connector with Optimal 0.25dB Low IL
  • Bend Insensitive Fiber with 10mm Min. Bend Radius
  • LSZH/OFNR Rated Jacket With Low Smoke, Halogen Free andFire Safe Performance
  • Supports End-to-End Fiber Solutions for Both Ethernet and InfiniBand
  • Perfectly tailored for high-density, long-reach backbone and inter-building optical interconnects
  • Compliant to IEC 61754-20, ANSI/TIA-604-10, ANSI/TIA-568.3-D and IEC 61300

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Connector Type
LC UPC to LC UPC
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Fiber Mode
OS2 9/125μm
Fiber Count
2F
Wavelength
1310/1550nm
Cable Jacket/Flame Rating
LSZH/OFNR
Insertion Loss
≤0.25dB
Return Loss
≥50dB
Attenuation at 1310 nm
0.4 dB/km
Attenuation at 1550 nm
0.3 dB/km
Min. Bend Radius(Fiber Core)
10mm
Min. Bend Radius(Fiber Cable)
10/5D (Dynamic/Static)
Cable Diameter
2.0mm
Polarity
A (Tx) to B (Rx)
Connector Durability
≥ 500 - 1000 times
Operating Temperature
20~70°C

Technical detail

Construction and application notes for S2LCUD

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

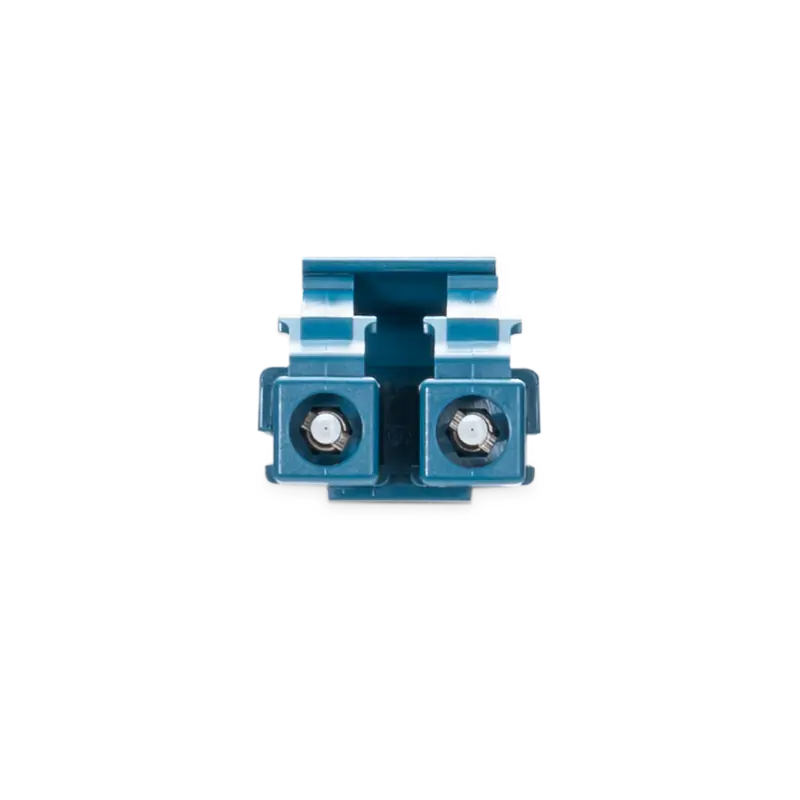

Interface and construction

1m (3ft) OS2 LC UPC to LC UPC Duplex PVC (OFNR) 2.0mm Fiber Patch Cable detail

Application and routing

1m (3ft) OS2 LC UPC to LC UPC Duplex PVC (OFNR) 2.0mm Fiber Patch Cable detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Standard Fiber Patch Cables Datasheet
