MFA7A50-C003 | Q4SFP-100G-A3 | AOC
100G QSFP28 to 4xSFP28 1–30m AOC with 14 exact SKU options. Confirm the host, port and firmware before quotation.
High-Speed Cables
100G QSFP28 1–100m AOC | QSFP-100G-A1
Catalog reference: 1m (3ft) Cisco Coding Target QSFP-100G-AOC1M Compatible 100G AOC QSFP28 4x25G NRZ to QSFP28 4x25G NRZ Active Optical Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
100G AOC uses fiber optic technology for data transmission, which can replace copper cables to some extent due to its stability and flexibility, reducing the density and power consumption of cabling. It can also be used for data center and high performance computing network cabling.
Family qsfp-100g-a1-13847Model QSFP-100G-A182 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32281 - Model QSFP-100G-A1

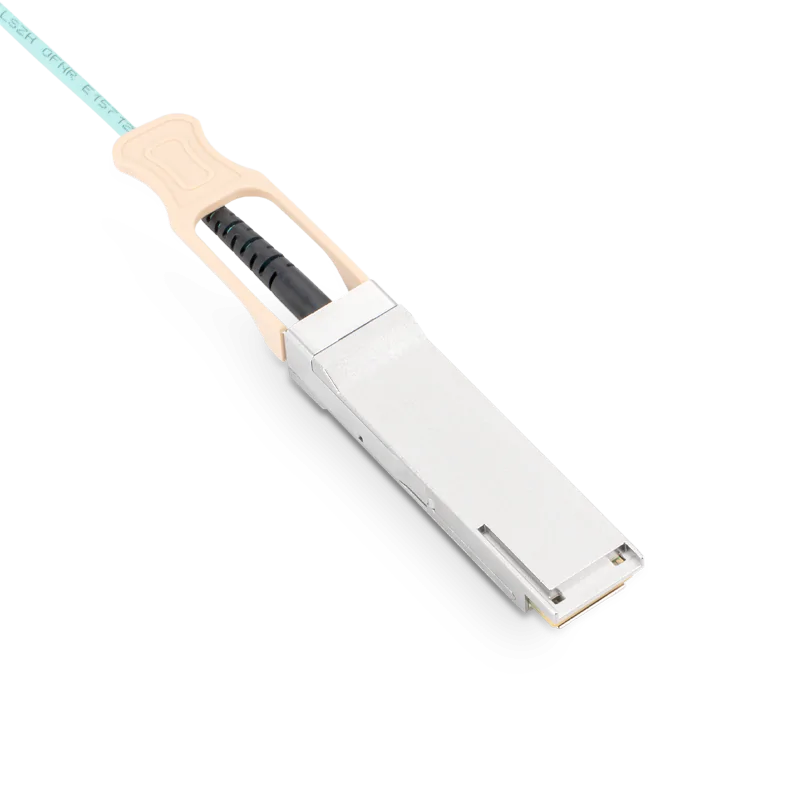

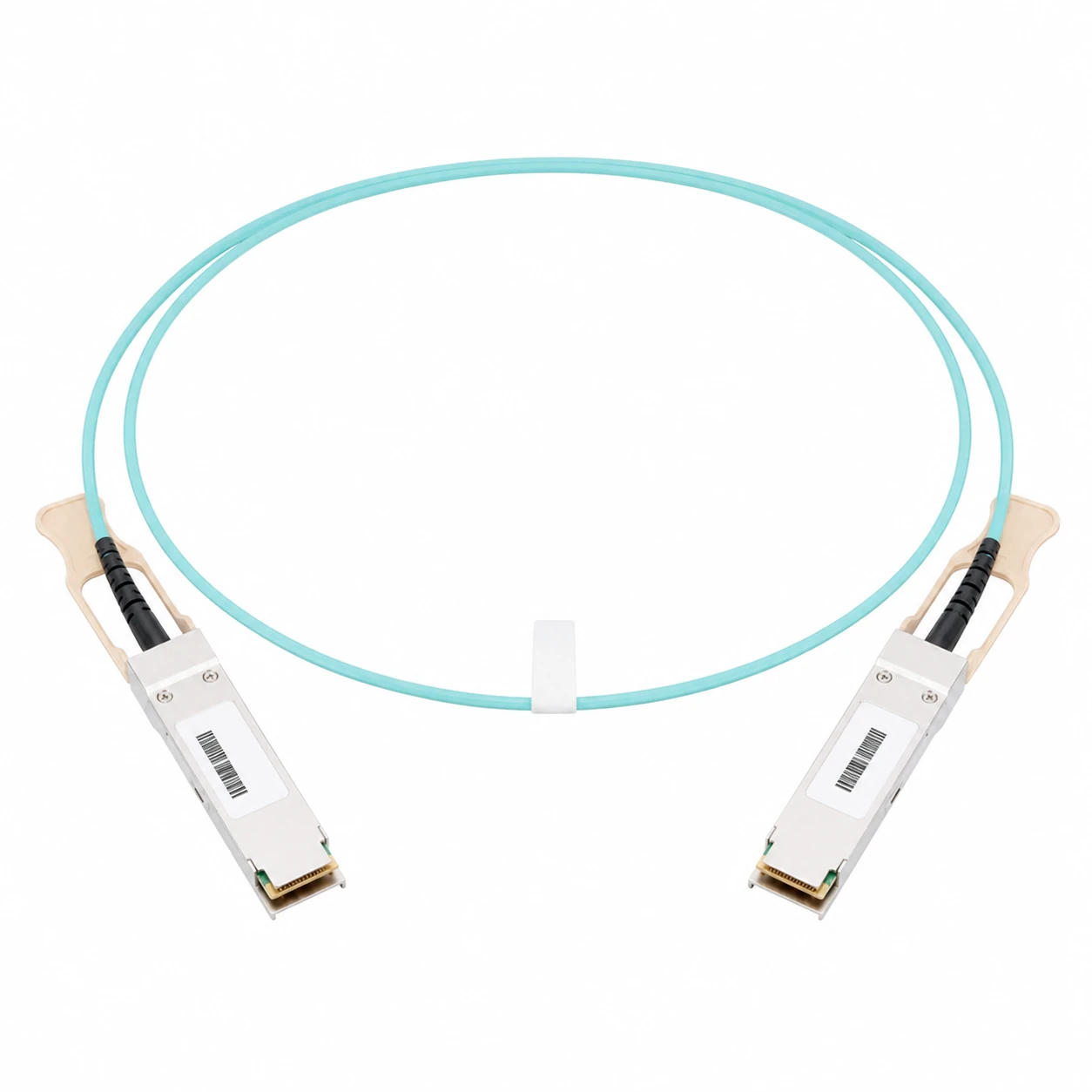

1m (3ft) 100G QSFP28 Active Optical Cable for Cisco
100G AOC uses fiber optic technology for data transmission, which can replace copper cables to some extent due to its stability and flexibility, reducing the density and power consumption of cabling. It can also be used for data center and high performance computing network cabling.
BrandSUNFULL
Compatible brand / platformCisco
Length1m (3ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Minimum Bend Radius 30mm.
- Compliant with Hot Pluggable QSFP28 MSA Standard.
- Compliant with RoHS Environmental Standard (Lead-free).
- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP28
- Cable Length
- 1–100m (SKU-dependent)
- Commercial Temperature Range
- 0 to 70°C (32 to 158°F)
- Wavelength
- 850nm
- Jacket Material
- LSZH
- Power Consumption
- ≤2.5W
- Minimum Bend Radius
- 30mm
- Application
- 100G Ethernet Compliant
Technical detail
Construction and application notes for QSFP-100G-A1
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Cable construction
100G QSFP28 AOC achieves 100Gbps transmission rate through 4 channels (4x25.78Gbps). It is a reliable, cost and power efficient integrated solution, ideal for high-density signal transmission with fiber optic cable length up to 100 meters.
Routing and bend requirements
Endpoint validation
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
