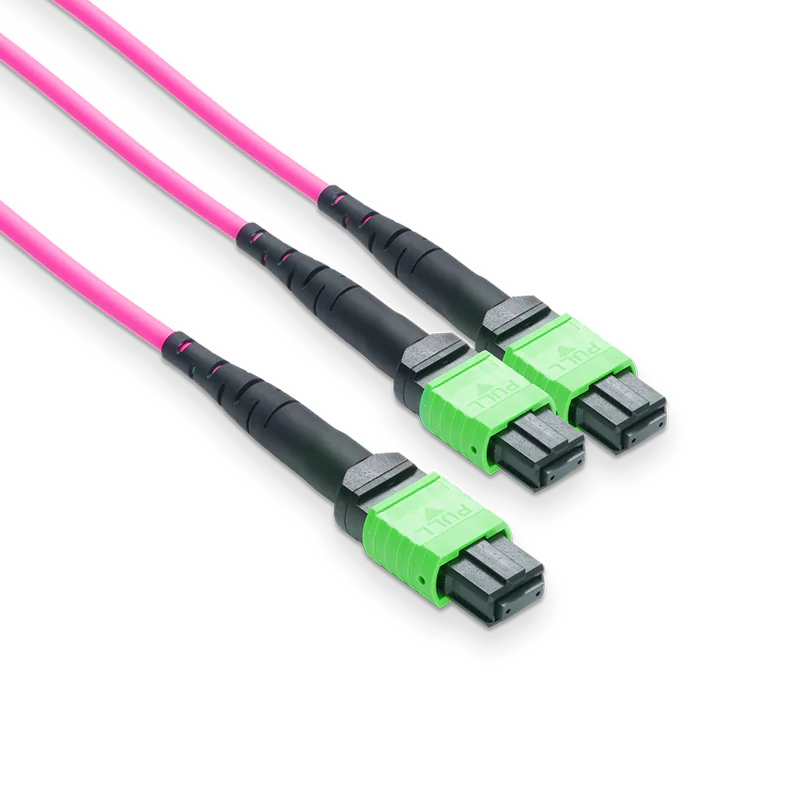

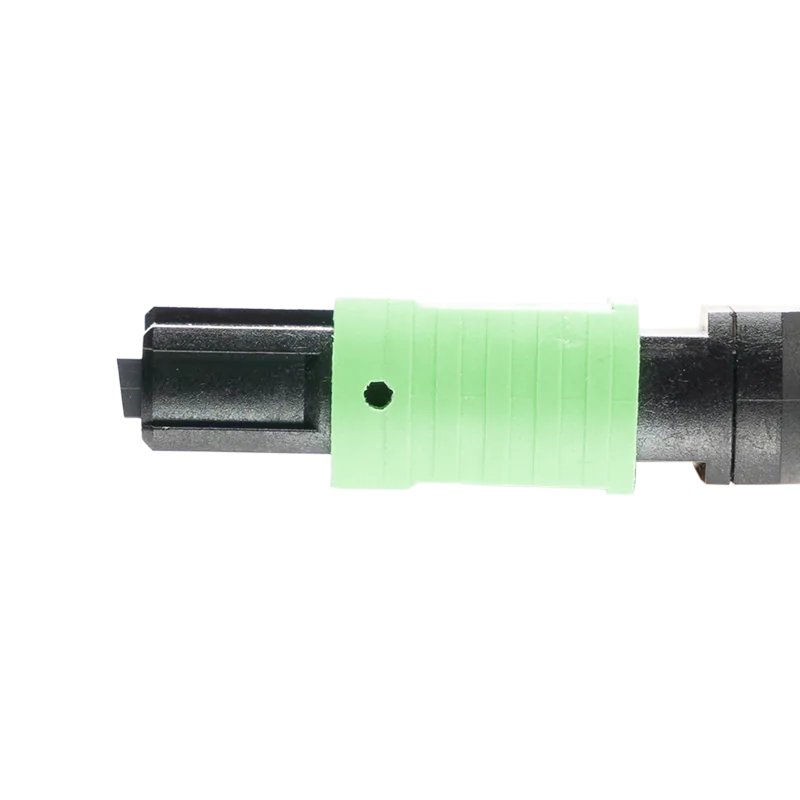

50m (164ft) MFP7E20-N050 MPO-8 APC to 2 MPO-4 APC Multimode Passive Splitter Fiber Cable

InfiniBand Interconnects

Fiber Cable M4MPOA2x4F | M4MPOA2x4F

Catalog reference: NVIDIA/Mellanox Coding Target MFP7E20-N050 Compatible 50m (164ft) MPO-8 APC (Female) to 2xMPO-4 APC (Female) Multimode (OM4) Breakout, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MFP7E20-N050 (980-9I55Z-00N050) Compatible M4MPOA2x4F is a multimode, 4-channel to two 2-channel splitter fiber cable.The typical usecase is linking OSFP switch ports to ConnectX-7 adapters network adapters and/or BlueField-3DataProcessing Units (DPUs) in compute and storage servers.

Family m4mpoa2x4f-101789Model M4MPOA2x4F9 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101797 - Model M4MPOA2x4F

50m (164ft) MFP7E20-N050 MPO-8 APC to 2 MPO-4 APC Multimode Passive Splitter Fiber Cable

NVIDIA/Mellanox Coding Target MFP7E20-N050 (980-9I55Z-00N050) Compatible M4MPOA2x4F is a multimode, 4-channel to two 2-channel splitter fiber cable.The typical usecase is linking OSFP switch ports to ConnectX-7 adapters network adapters and/or BlueField-3DataProcessing Units (DPUs) in compute and storage servers.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length50m (164ft)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • On-site "plug and play", fast installation, improve deployment efficiency
  • Ultra-low insertion loss, achieve 100G/400G/800G performance
  • LSZH/OFNR sheath, ensure safe indoor deployment
  • Flexible adaptation to various network architectures
  • Widely compatible with various optical modules
  • Suitable for high-density wiring systems such as data centers, racks, panels, backplanes, etc.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Connector Type
MPO Female to Female
Fiber Grade
Bend Insensitive
Polish Type
APC to APC
Polarity
Type B
Fiber Mode
OM4 50/125μm
Fiber Count
8F to 2x4F
Wavelength
850/1300nm
Cable Jacket/Flame Rating
LSZH/OFNR
Insertion Loss
≤0.35dB
Return Loss
≥35dB
Attenuation at 850 nm
≤2.5 dB/km
Attenuation at 850 nm
≤2.3dB/km
Min. Bend Radius(Fiber Core)
7.5mm
Min. Bend Radius(Fiber Cable)
10/5D (Dynamic/Static)
Cable Diameter
3.0mm
Tensile Strength
80/150N (Long/Short Term)
Connector Durability
≥ 500 - 1000 times
Operating Temperature
20~70°C

Technical detail

Construction and application notes for M4MPOA2x4F

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

The M4MPOA2x4F serves as a universal physical interconnect for both InfiniBand NDR and 800G RoCE networks, providing high-density, low-loss MPO-8 short-reach links between Leaf switches, compute nodes, and high-bandwidth servers. Whether operating under UFM‑managed NDR fabrics or high‑bandwidth RoCE environments, it ensures lossless signal transmission, meeting the extreme performance demands of AI, exascale computing, and cloud platforms.

50m (164ft) MFP7E20-N050 MPO-8 APC to 2 MPO-4 APC Multimode Passive Splitter Fiber Cable detail

Application and routing

With a minimum bend radius of just 7.5 mm, this highly flexible MPO jumper routes effortlessly through congested high‑density cabinets — eliminating slack, freeing up space, and boosting overall cabling efficiency. Low insertion loss keeps signal transmission rock‑solid, even when the fiber is under tight bends.

50m (164ft) MFP7E20-N050 MPO-8 APC to 2 MPO-4 APC Multimode Passive Splitter Fiber Cable detail

Installation and validation

Featuring a plenum-rated OFNP jacket, the cable effectively limits flame propagation in air-handling spaces without requiring additional metal conduit. Compliant with UL 910 standards, it is designed for backbone cabling deployments in data centers with stringent fire safety requirements. The LSZH jacket further reduces smoke and toxic fume emissions, providing a safer and cost-effective solution for high-density IDC environments.

50m (164ft) MFP7E20-N050 MPO-8 APC to 2 MPO-4 APC Multimode Passive Splitter Fiber Cable detail

Installation and validation

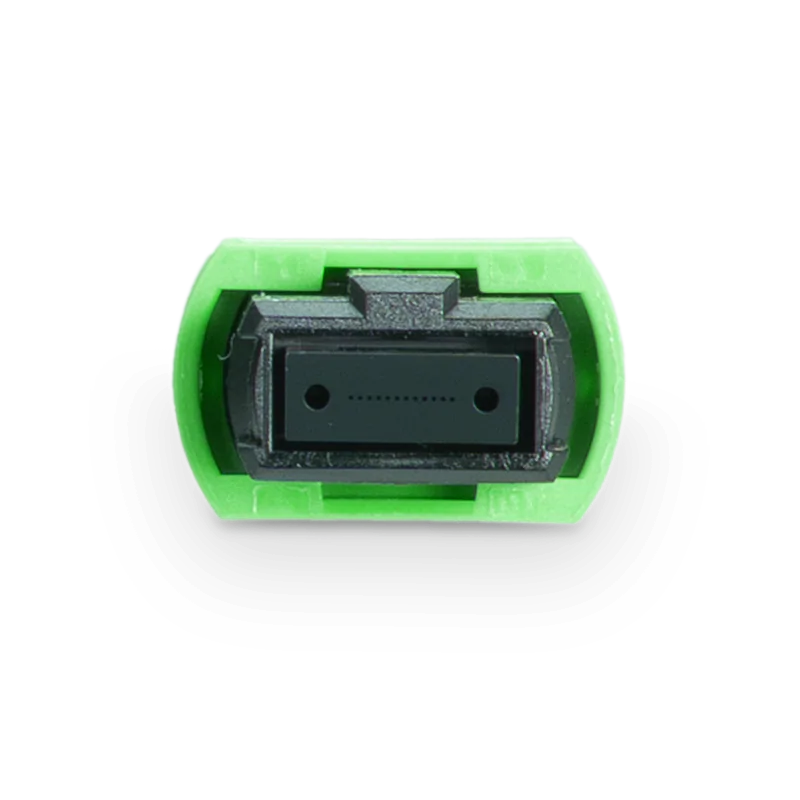

The APC endface features an 8° angled polish that significantly reduces back reflection and signal distortion, ensuring stable optical performance.

50m (164ft) MFP7E20-N050 MPO-8 APC to 2 MPO-4 APC Multimode Passive Splitter Fiber Cable detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Mpo Mtp Breatout Cables Datasheet 2
