Fiber Cable M4MPOA12FB | M4MPOA12FB
Catalog reference: NVIDIA/Mellanox Coding Target MFP7E10-N020 Compatible 20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) 12 Fibers Multimode (OM4) Jumper, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA Coding Target MFP7E10-N020 (980-9I57Z-000020) Compatible MPO-12/APC to MPO-12/APC passive optical Multimode cable, is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together.
Family m4mpoa12fb-15023Model M4MPOA12FB13 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 101436 - Model M4MPOA12FB

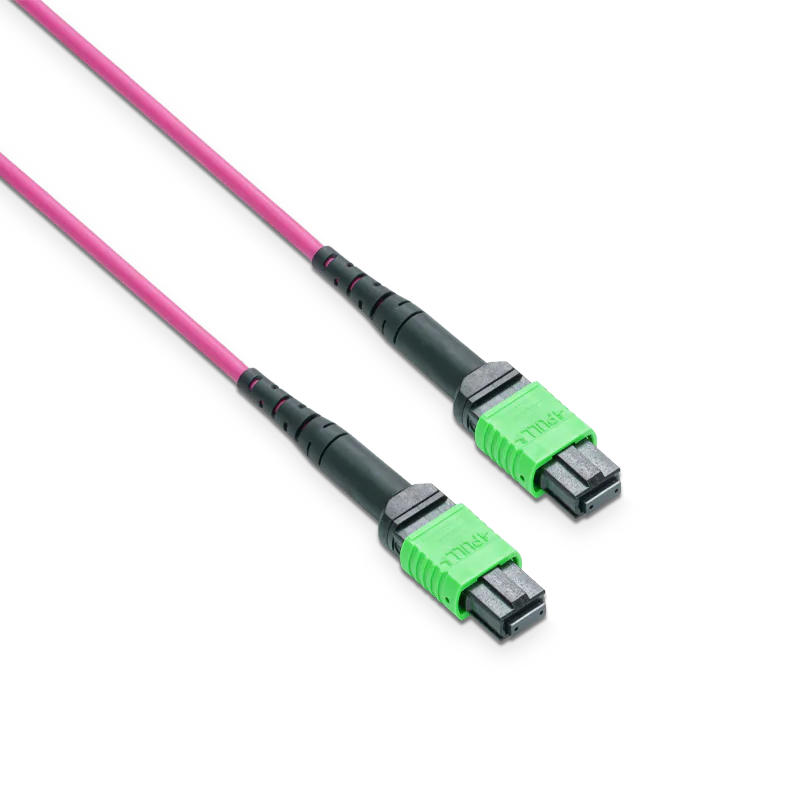

MFP7E10-N020 20m (66ft) MPO to MPO APC Female 12 Fibers Type B Trunk Cable
NVIDIA Coding Target MFP7E10-N020 (980-9I57Z-000020) Compatible MPO-12/APC to MPO-12/APC passive optical Multimode cable, is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length20m (66ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Ultra-Low 0.35dB Insertion Loss for stable 100G/400G/800G transmission, maximizing link budget
- Bend-Insensitive Fiber with 7.5mm minimum bend radius
- Supports End-to-End Fiber Solutions for Both Ethernet and InfiniBand
- Broad Compatibility with major optical transceivers and flexible adaptation to various network architectures
- Suited for High-Density Environments including data centers, server racks, patch panels, and backplane interconnect
- LSZH/OFNR-Rated Jacket – low smoke, halogen-free, and fire-safe for reliable indoor deployment
- Industry Compliance with IEC 61754-7, ANSI/TIA-604-5, and ANSI/TIA-568.3-D
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- MPO Female to Female
- Fiber Grade
- Bend Insensitive
- Polish Type
- APC to APC
- Polarity
- Type B
- Fiber Mode
- OM4 50/125μm
- Fiber Count
- 12F
- Wavelength
- 850/1300nm
- Cable Jacket/Flame Rating
- LSZH/OFNR
- Insertion Loss
- ≤0.35dB
- Return Loss
- ≥35dB
- Attenuation at 850 nm
- ≤2.3 dB/km
- Attenuation at 1300 nm
- ≤1.0dB/km
- Min. Bend Radius(Fiber Core)
- 7.5mm
- Min. Bend Radius(Fiber Cable)
- 10/5D (Dynamic/Static)
- Cable Diameter
- 3.0mm
- Tensile Strength
- 80/150N (Long/Short Term)
- Connector Durability
- ≥ 500 - 1000 times
- Operating Temperature
- 20~70°C
Technical detail
Construction and application notes for M4MPOA12FB
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction

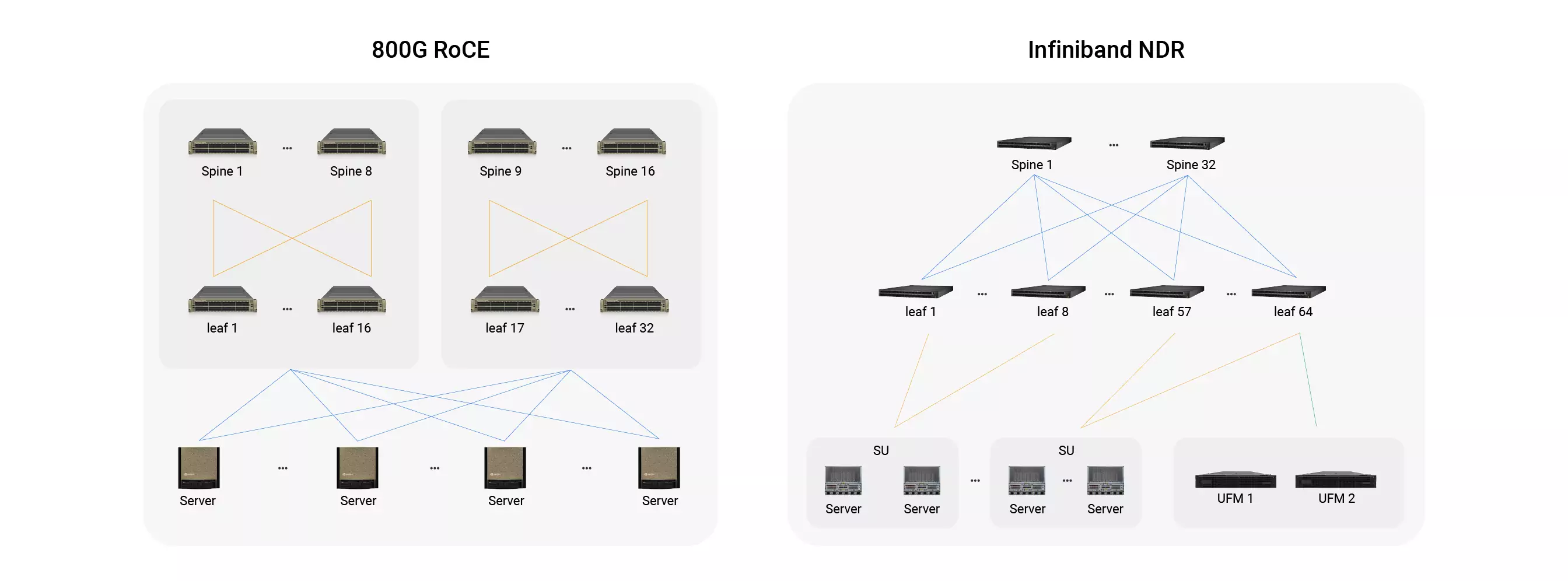

The M4MPOA12FB serves as a universal physical interconnect for both InfiniBand NDR and 800G RoCE networks, providing high-density, low-loss MPO-12 short-reach links between Leaf switches, compute nodes, and high-bandwidth servers. Whether operating under UFM‑managed NDR fabrics or high‑bandwidth RoCE environments, it ensures lossless signal transmission, meeting the extreme performance demands of AI, exascale computing, and cloud platforms.
Application and routing
With a minimum bend radius of just 7.5 mm, this highly flexible MPO jumper routes effortlessly through congested high‑density cabinets — eliminating slack, freeing up space, and boosting overall cabling efficiency. Low insertion loss keeps signal transmission rock‑solid, even when the fiber is under tight bends.
Installation and validation
Featuring a plenum-rated OFNP jacket, the cable effectively limits flame propagation in air-handling spaces without requiring additional metal conduit. Compliant with UL 910 standards, it is designed for backbone cabling deployments in data centers with stringent fire safety requirements. The LSZH jacket further reduces smoke and toxic fume emissions, providing a safer and cost-effective solution for high-density IDC environments.
Installation and validation
The APC endface features an 8° angled polish that significantly reduces back reflection and signal distortion, ensuring stable optical performance.
