400G QSFP-DD to QSFP-DD 0.5–3m DAC | QDD-400G-CU1 / MCP1660-W001E30
Catalog reference: 1m (3ft) NVIDIA/Mellanox Coding Target MCP1660-W001E30 Compatible 400G DAC QSFP-DD 8x50G PAM4 to QSFP-DD 8x50G PAM4 Passive Direct Attach Copper Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

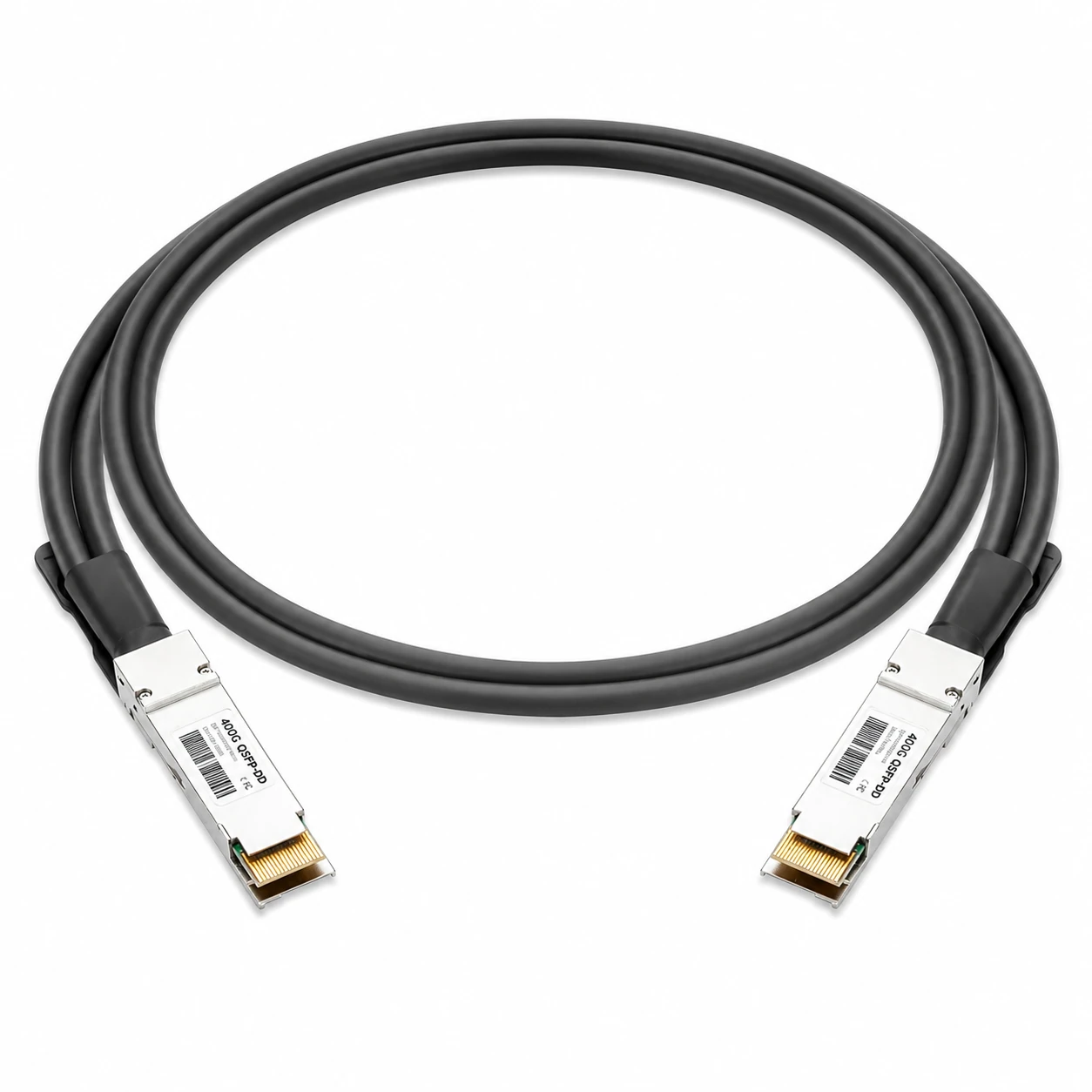

QDD-400G-CU1 is a NVIDIA/Mellanox MCP1660-W001E30 Compatible 1m (3ft) 400G QSFP-DD Passive Direct Attach Copper Twinax Cable
Family qdd-400g-cu1-13867Model QDD-400G-CU124 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- MCP1660-W001E30
Part-number identifiers and aliases available for matching:
- MCP1660-W001E30
- MCP1660-W002E26
- MCP1660-W003E26
- MCP1660-W00AE30
- MCP1660-W01AE30
- MCP1660-W02AE26
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32750 - Model QDD-400G-CU1
NVIDIA/Mellanox Coding Target MCP1660-W001E30 Passive DAC Cable
QDD-400G-CU1 is a NVIDIA/Mellanox MCP1660-W001E30 Compatible 1m (3ft) 400G QSFP-DD Passive Direct Attach Copper Twinax Cable
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Length1m (3ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption <0.1W
- Minimum Bend Radius 33.5mm.
- Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bj, IEEE 802.3cd Standard.
- Compliant with RoHS Environmental Standard (Lead-free).
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP-DD to QSFP-DD
- Cable Length
- 0.5–3m (SKU-dependent)
- Wire AWG
- 28~30AWG
- Commercial Temperature Range
- 0 to 70°C (32 to 158°F)
- Jacket Material
- PVC
- Power Consumption
- <0.1W
- Minimum Bend Radius
- 37mm~42mm
- Application
- 400G Ethernet Compliant
Technical detail
Construction and application notes for QDD-400G-CU1
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction
DAC is suitable for short links, with the advantages of low cost, low power consumption, interchangeability, etc. It is an ideal solution for short distance transmission between data center racks, and can effectively save costs compared to the combination form of modules plus patch cords. high-speed cables are widely used in SATA storage devices, RADI system scenarios, core routers, 10G or 40G Ethernet and other data center interconnection scenarios, and the high-speed cables will pass several professional tests before leaving the factory and gradually become the preferred supplier for users with high quality service.
Application and routing
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Installation and validation
