400G QSFP-DD DR4 500m Transceiver | QDD-400G-DR4 / 980-9I16Y-00W000
Catalog reference: NVIDIA/Mellanox Coding Target MMS1V00-WM (980-9I16Y-00W000) Compatible 400GBASE-DR4 QSFP-DD 8x50G PAM4 1310nm 500m SMF DOM MPO-12/APC Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

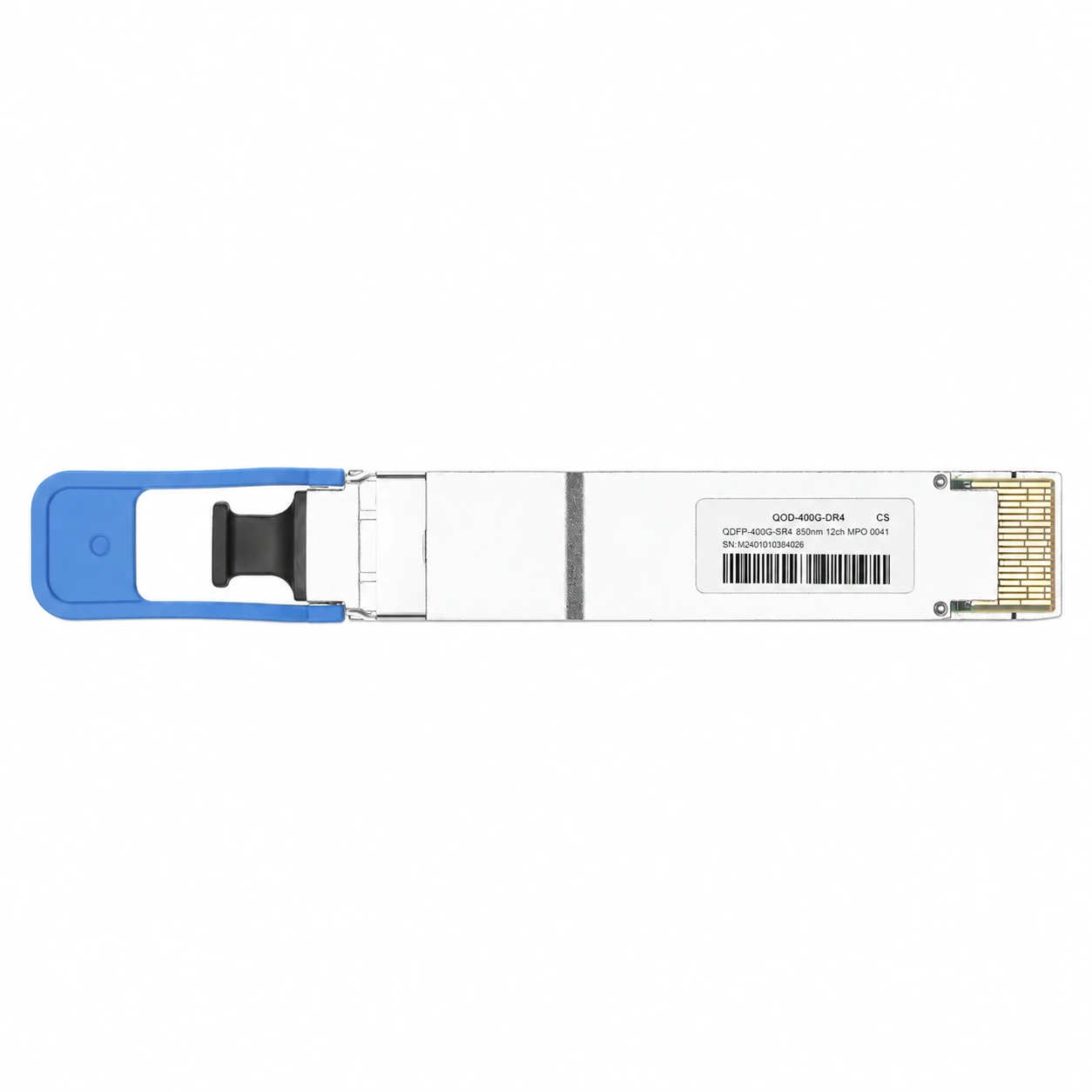

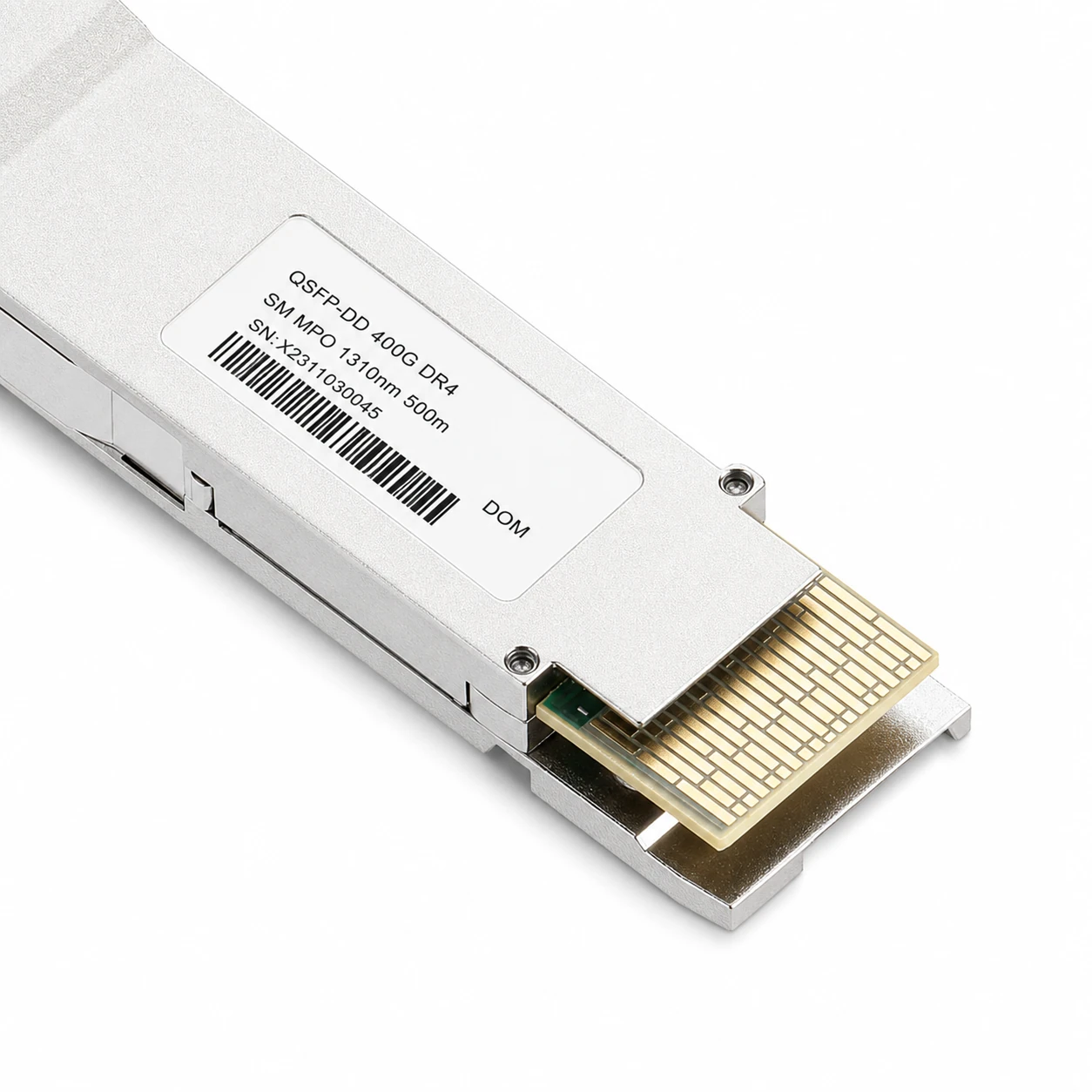

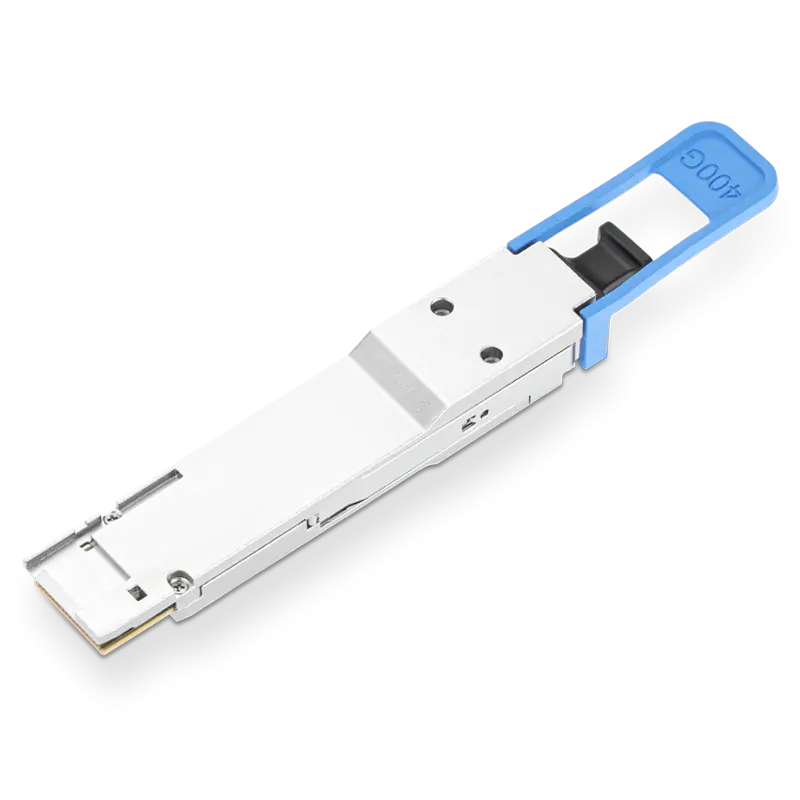

NVIDIA/Mellanox Coding Target MMS1V00-WM Compatible 400GBASE-DR4 QSFP-DD is a transceiver designed for 400G Ethernet links on up to 500m of single mode fiber.
Family qdd-400g-dr4-14019Model QDD-400G-DR46 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9I16Y-00W000
Part-number identifiers and aliases available for matching:
- 980-9I16Y-00W000
- MMS1V00-WM
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32774 - Model QDD-400G-DR4
NVIDIA/Mellanox Coding Target MMS1V00-WM Compatible 400GBASE-DR4 QSFP-DD 500m Optical Transceiver
NVIDIA/Mellanox Coding Target MMS1V00-WM Compatible 400GBASE-DR4 QSFP-DD is a transceiver designed for 400G Ethernet links on up to 500m of single mode fiber.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Built-in Marvell DSP Chip, Max Power Consumption ≤10.5W.
- Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM (Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP-DD
- Distance
- 500m
- Wavelength
- 1310nm
- Connector
- MTP/MPO-12 APC
- Power Consumption
- ≤10.5W
- Transmitter
- EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 8x53.125Gb/s PAM4
- Modulation (Optical )
- 4x106.25Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 400G Ethernet Compliant
Technical detail
Construction and application notes for QDD-400G-DR4
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction

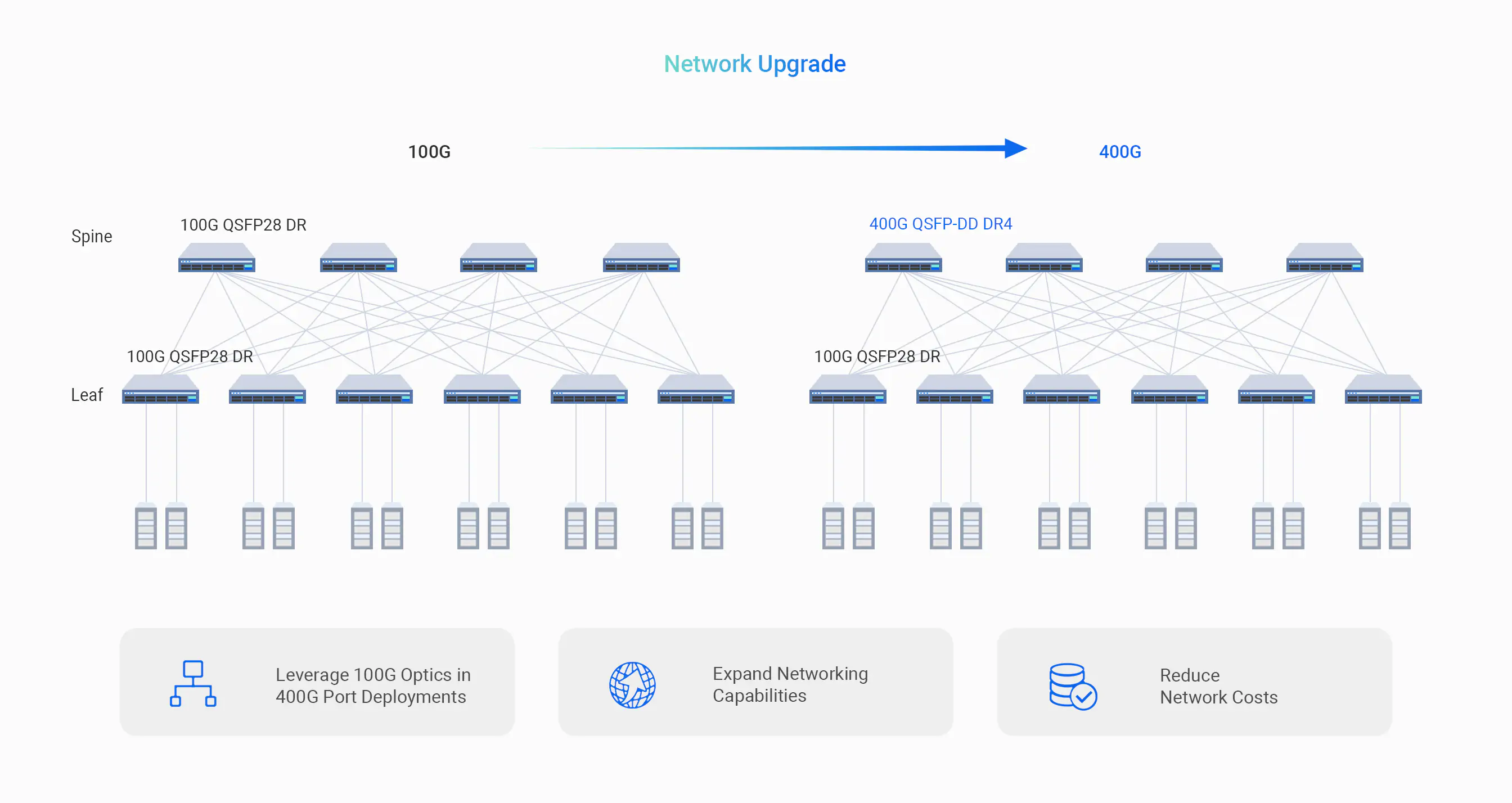

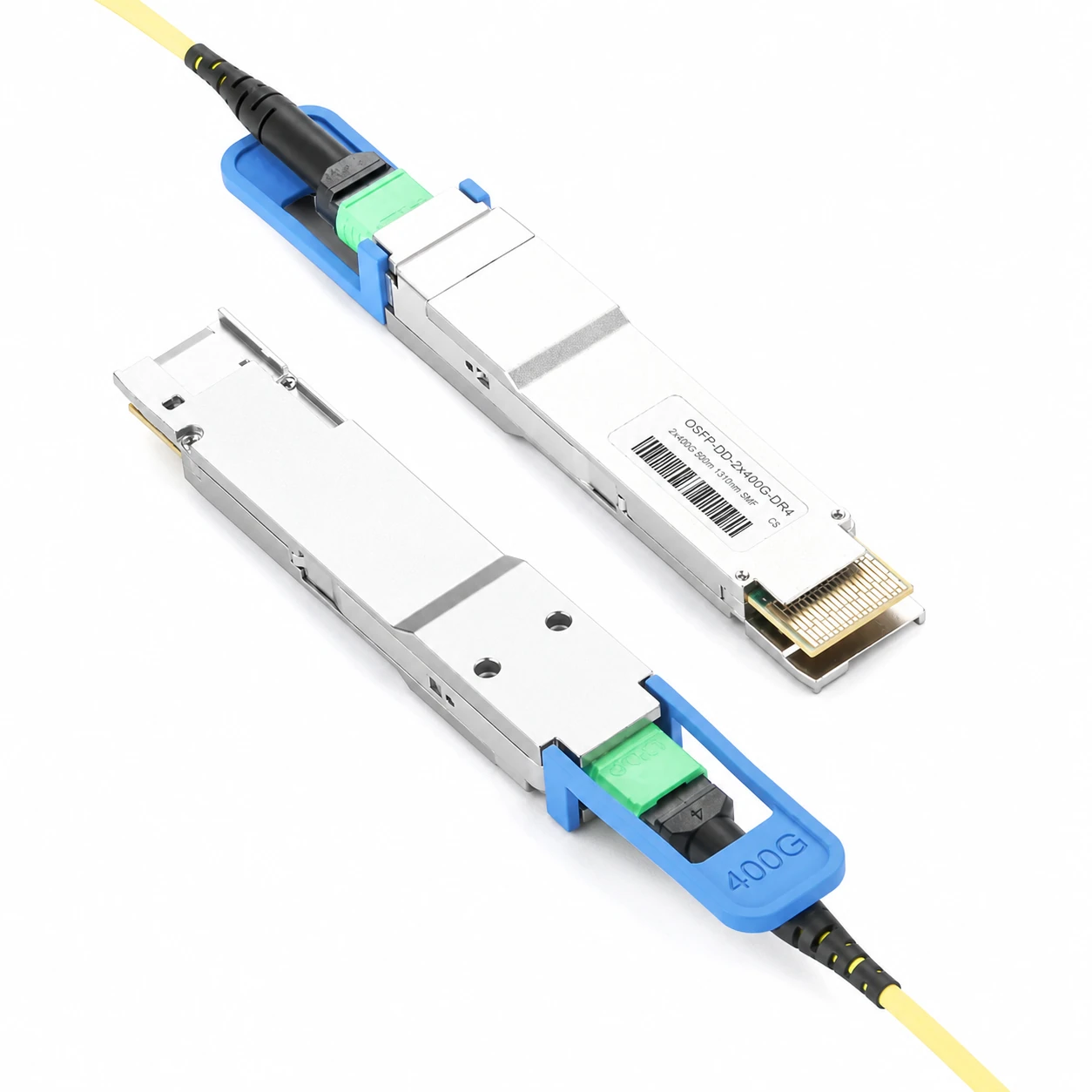

Leveraging Marvell DSP and advanced PAM4 signal processing, 400G QDD DR4 delivers high bandwidth, low bit error rate, and low power consumption, ensuring high-speed and stable data transmission. With flexible link configurations, it can interconnect with 100G QSFP28 DR and 800G OSFP DR8, enabling to achieve 100G-400G and 400G-800G network upgrades seamlessly.
Application and routing

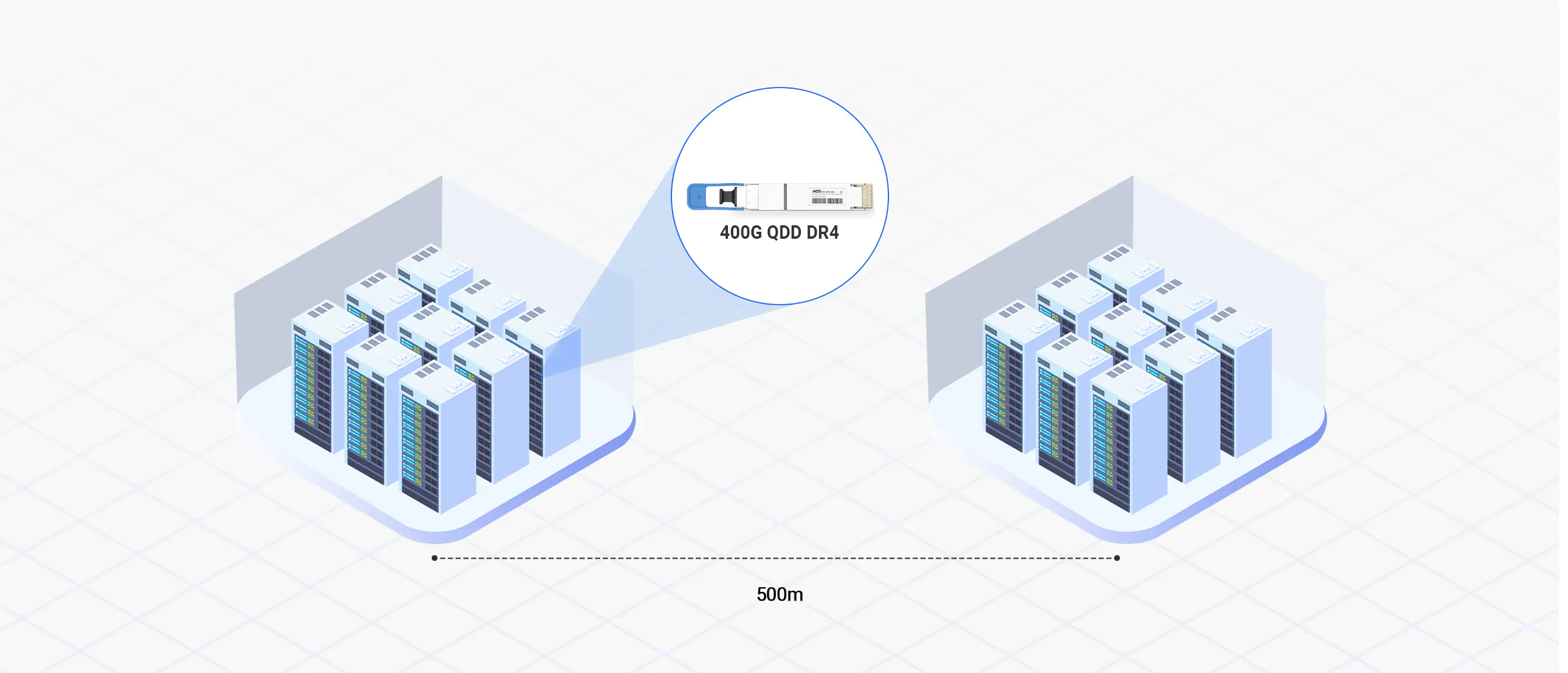

400G QDD DR4 delivers up to 500m transmission distance, supporting cross-cabinet and cross-floor connectivity for AIDC (AI Data Center) /DCN (Data Center Network) horizontal expansion.
Installation and validation
400G optical transceiver has great advantages in increasing data throughput and maximizing data center bandwidth and port density. 400G QSFP-DD has been tested and recognized by the global market as the manufacturer are the first brand to complete the commercial order delivery of 400G data center optical modules.
Installation and validation
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
