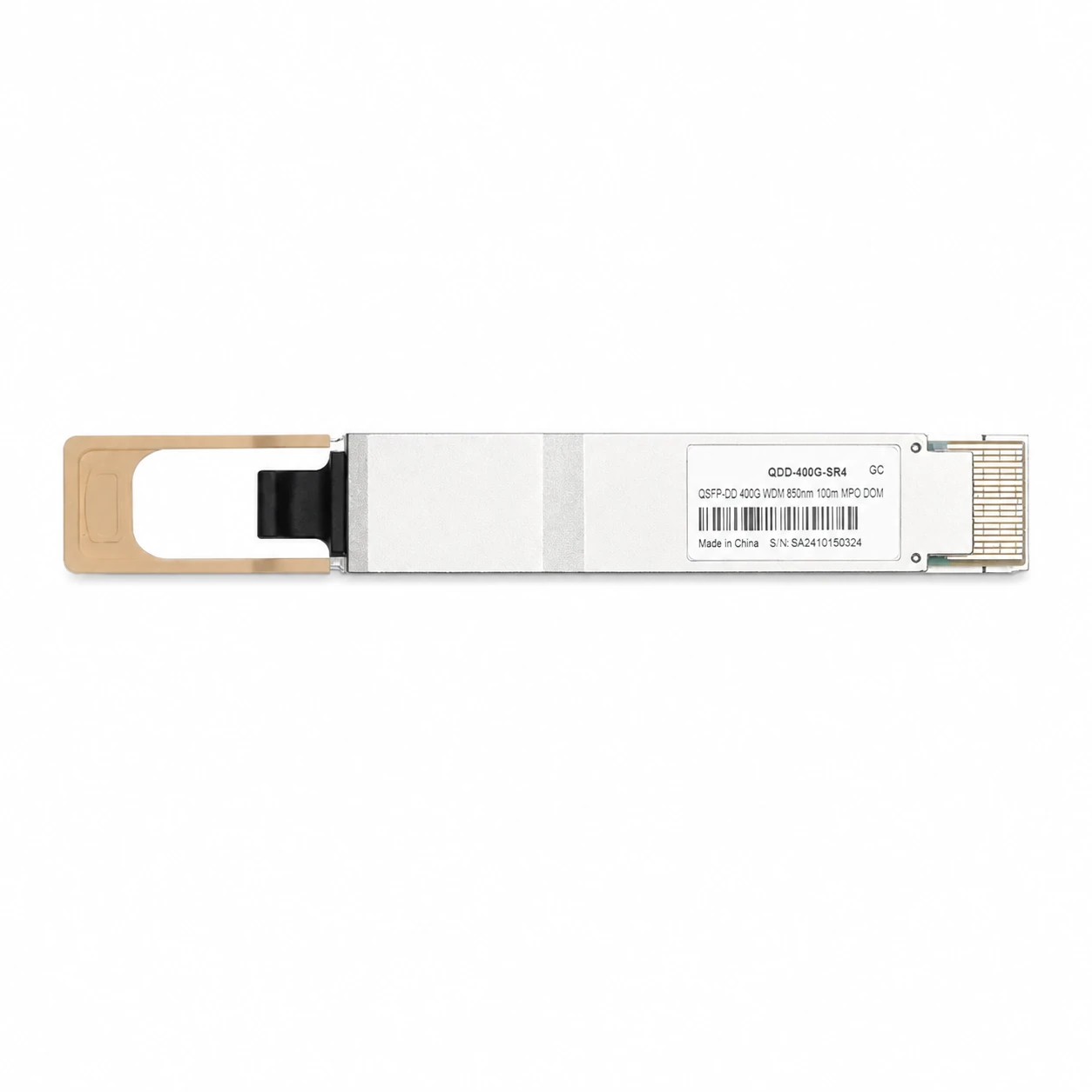

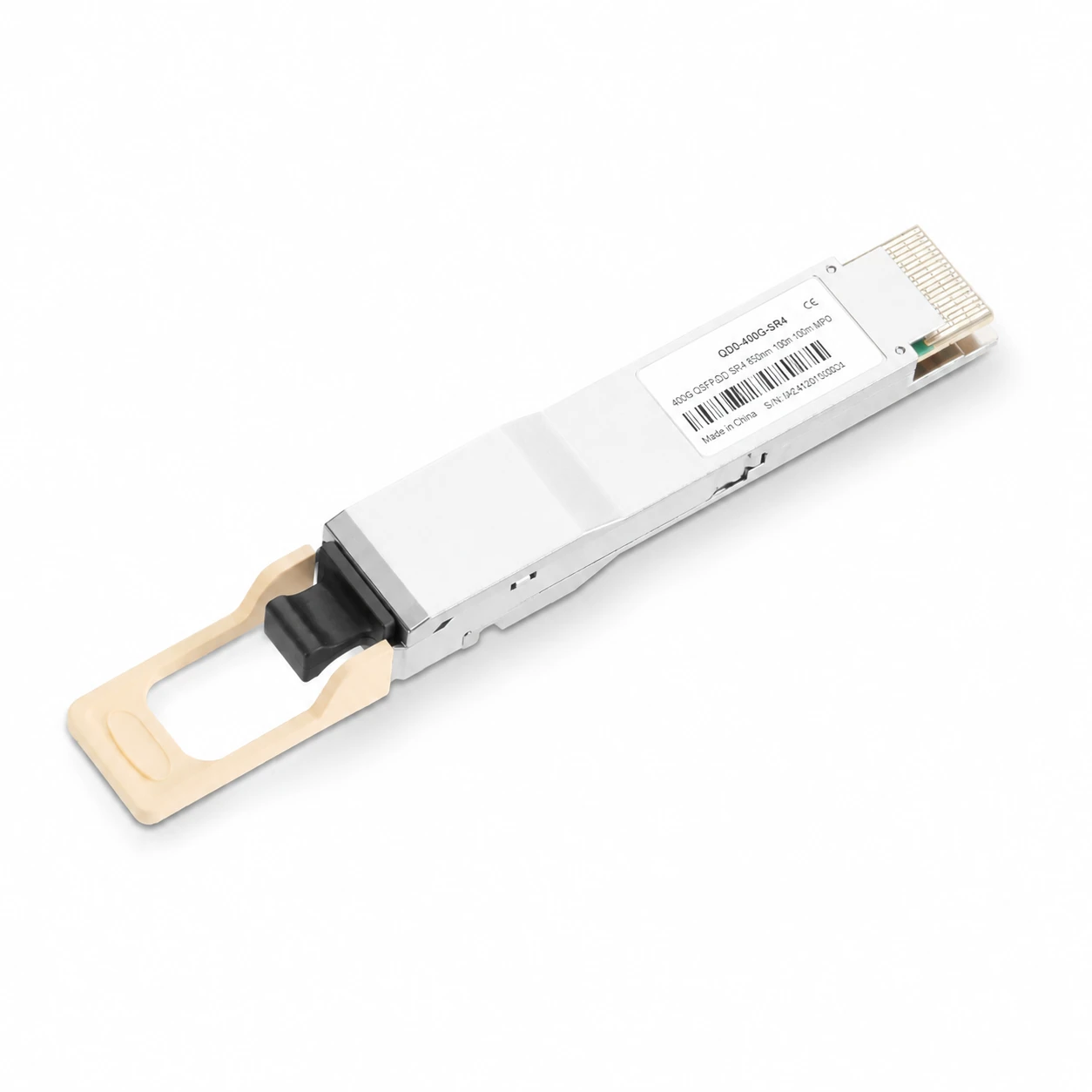

400G QSFP-DD SR4 100m Transceiver | QDD-400G-SR4 / NVIDIA/Mellanox
Catalog reference: NVIDIA/Mellanox Compatible 400GBASE-SR4 QSFP-DD 8x50G PAM4 Coherent VCSEL & Broadcom DSP 850nm 100m MMF DOM MPO-12/APC Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox compatible QDD-400G-SR4 transceiver is designed for short-distance 400 Gigabit Ethernet (GbE) links on up to 100m of OM4 multimode fiber.
Family qdd-400g-sr4-101487Model QDD-400G-SR46 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 101636 - Model QDD-400G-SR4
NVIDIA/Mellanox Compatible Coherent VCSEL & Broadcom DSP 400GBASE-SR4 QSFP-DD PAM4 850nm 100m Optical Transceiver
NVIDIA/Mellanox compatible QDD-400G-SR4 transceiver is designed for short-distance 400 Gigabit Ethernet (GbE) links on up to 100m of OM4 multimode fiber.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Chip SolutionsCoherent VCSEL & Broadcom DSP
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Built-in Broadcom DSP & Coherent VCSEL, Max Power Consumption ≤8W.
- Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs, SFF-8679 Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Significantly Improve the Flexibility, Economy and Reliability of Networking.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP-DD
- Distance
- 100m
- Wavelength
- 850nm
- Connector
- MTP/MPO-12 APC
- Power Consumption
- ≤8W
- Transmitter
- VCSEL
- Receiver
- PIN
- Media
- MMF
- Modulation (electrical )
- 8x53.125Gb/s PAM4
- Modulation (Optical )
- 4x106.25Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 400G Ethernet Compliant
