400G QSFP-DD FR4 2km Transceiver | QDD-400G-FR4 / MMS1V50-WM
Catalog reference: NVIDIA/Mellanox Coding Target MMS1V50-WM Compatible 400GBASE-FR4 QSFP-DD 8x50G PAM4 1310nm 2km SMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target MMS1V50-WM Compatible 400GBASE-FR4 QSFP-DD transceiver is mainly used for interconnecting data centers, 400G Ethernet. Supports link lengths up to 2km via duplex LC connectors.
Family qdd-400g-fr4-14018Model QDD-400G-FR46 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- MMS1V50-WM
Part-number identifiers and aliases available for matching:
- MMS1V50-WM
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32770 - Model QDD-400G-FR4
NVIDIA/Mellanox Coding Target MMS1V50-WM Compatible 400GBASE-FR4 QSFP-DD PAM4 1310nm 2km Optical Transceiver
NVIDIA/Mellanox Coding Target MMS1V50-WM Compatible 400GBASE-FR4 QSFP-DD transceiver is mainly used for interconnecting data centers, 400G Ethernet. Supports link lengths up to 2km via duplex LC connectors.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Built-in Marvell DSP Chip, Max Power Consumption ≤12W.
- Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP-DD
- Distance
- 2km
- Wavelength
- 1310nm
- Connector
- Duplex LC
- Power Consumption
- ≤12W
- Transmitter
- EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 8x53.125Gb/s PAM4
- Modulation (Optical )
- 4x106.25Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 400G Ethernet Compliant
Technical detail
Construction and application notes for QDD-400G-FR4
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction

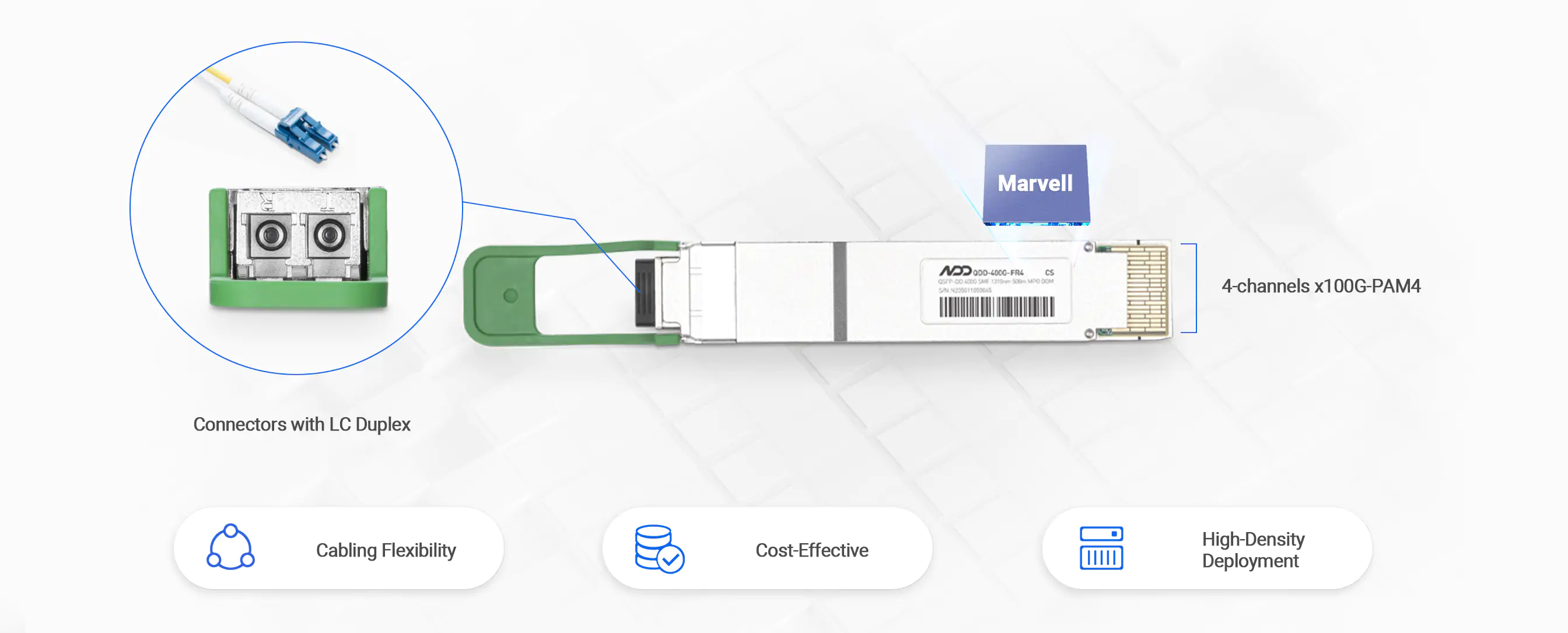

400G QDD FR4 leverages CWDM4 and LC interface design, requiring only one pair of single-mode fibers for efficient 2km transmission. This solution maximizes cabling flexibility while minimizing costs, achieving an optimal balance between performance and affordability.
Application and routing

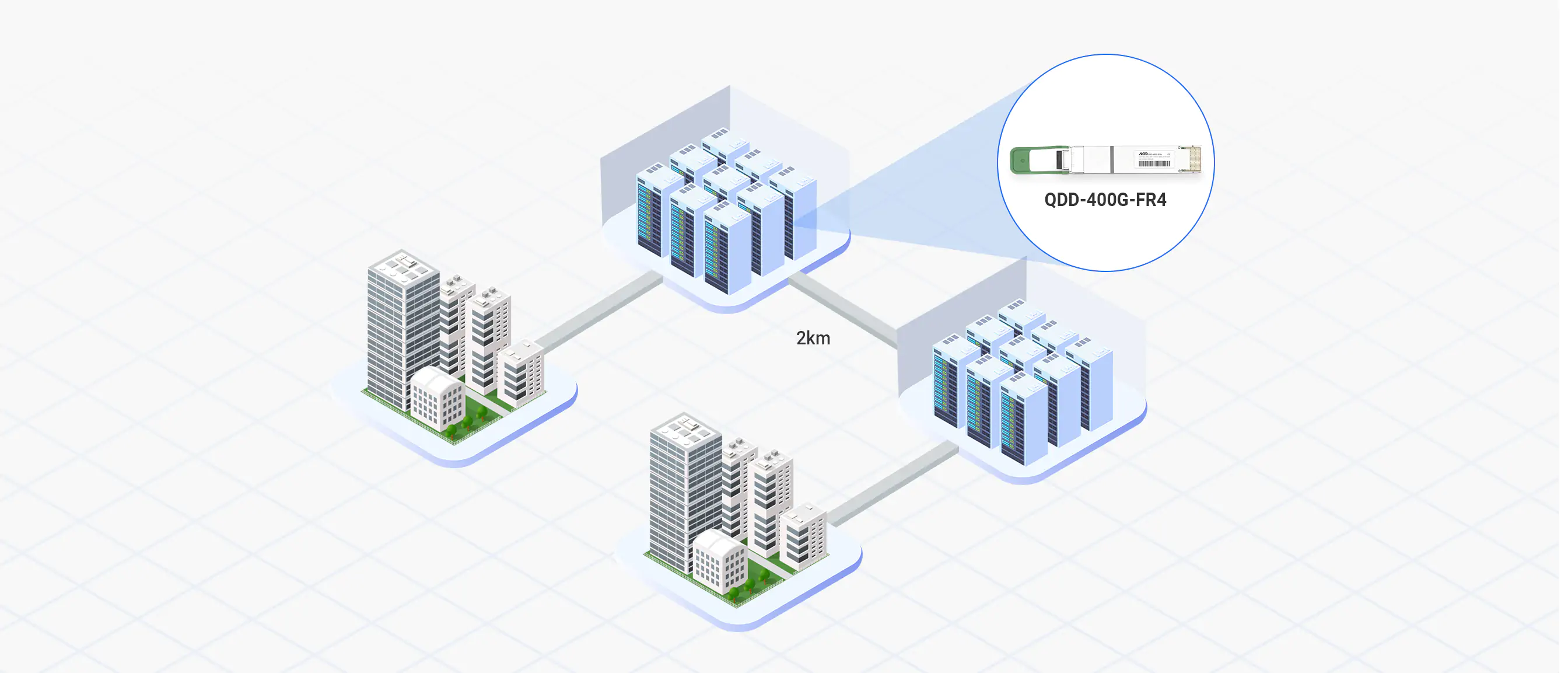

400G QDD FR4 delivers up to 2km transmission distance, enabling campus-wide and cross-building interconnects for AIDC (AI Data Center) /DCN (Data Center Network) horizontal scaling.
Installation and validation
400G optical transceiver has great advantages in increasing data throughput and maximizing data center bandwidth and port density. 400G QSFP-DD has been tested and recognized by the global market as the manufacturer are the first brand to complete the commercial order delivery of 400G data center optical modules.
Installation and validation
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
