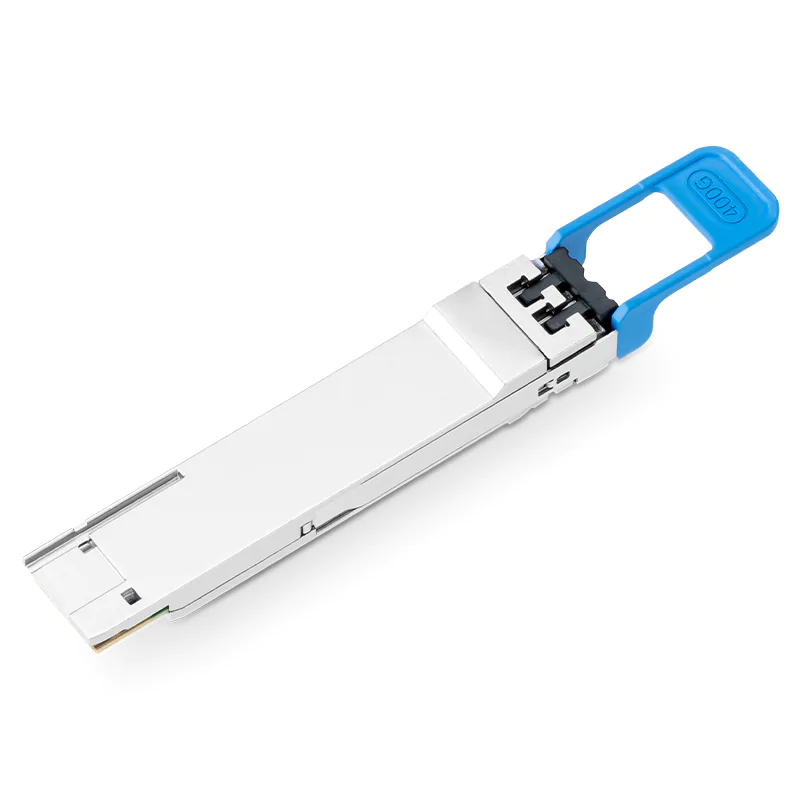

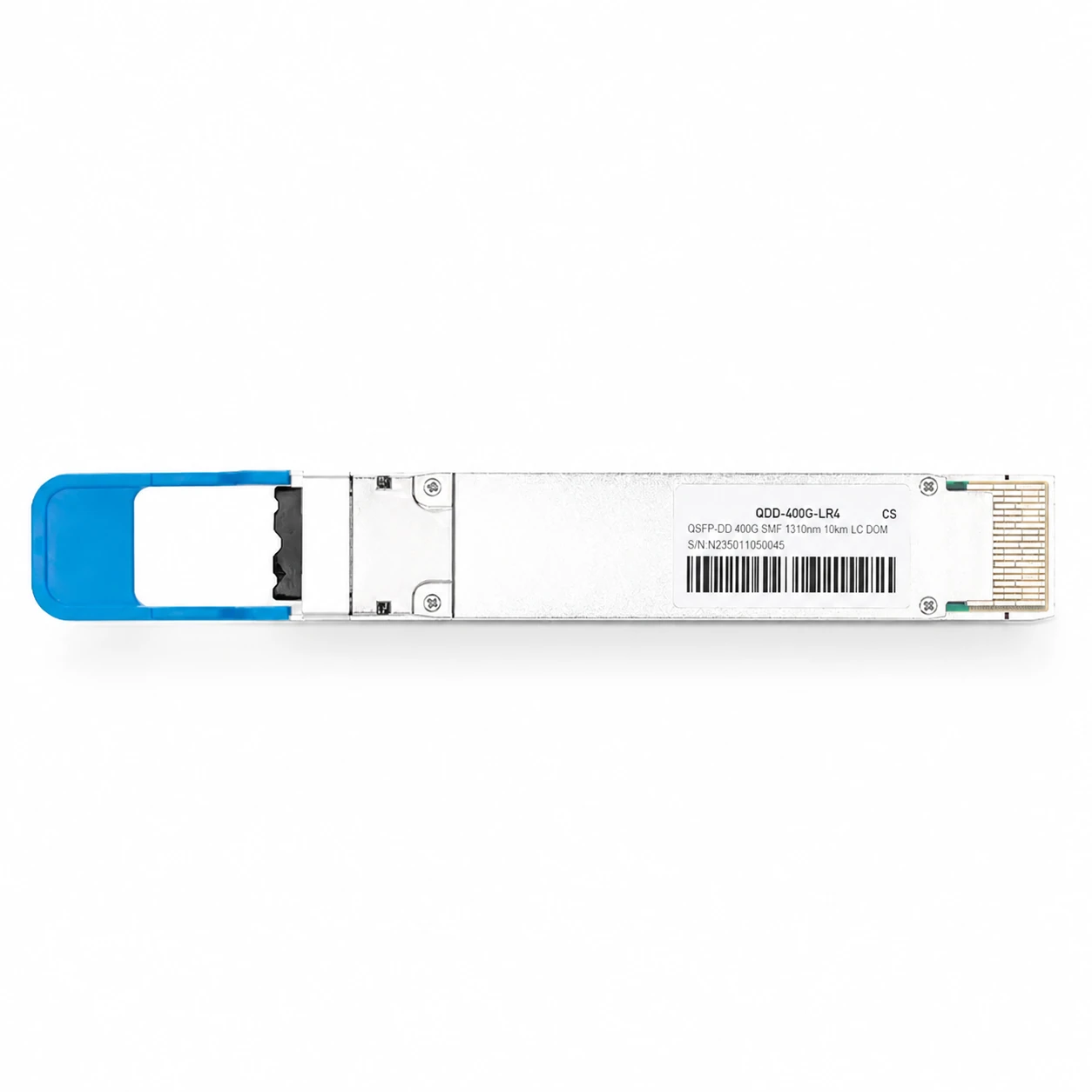

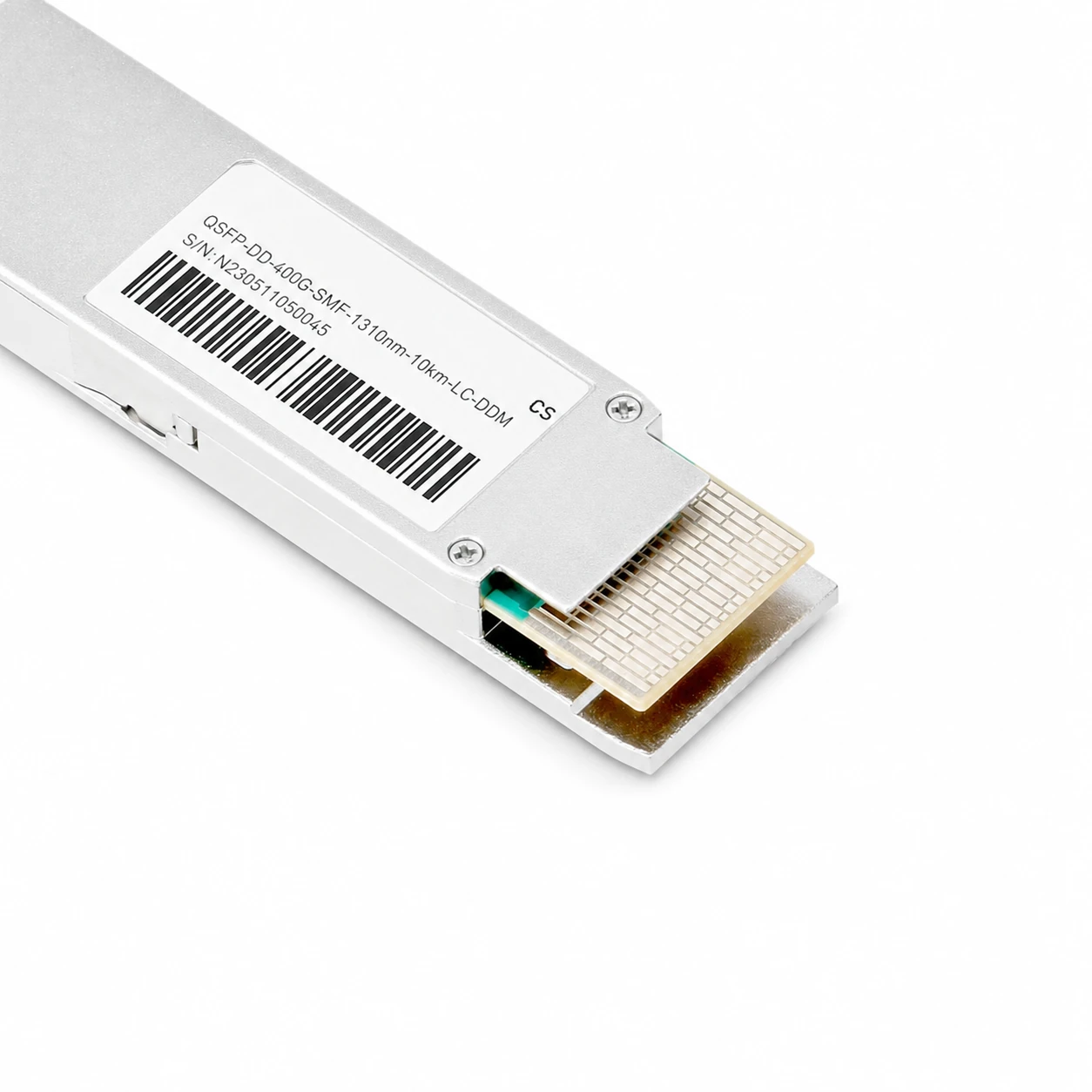

NVIDIA/Mellanox Coding Target MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD 10km Optical Transceiver

RoCE Ethernet Interconnects

400G QSFP-DD LR4 10km Transceiver | QDD-400G-LR4 / MMS1V90-WR

Catalog reference: NVIDIA/Mellanox Coding Target MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD 8x50G PAM4 1310nm 10km SMF DOM LC Duplex Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD transceiver is designed for 400G Ethernet, supporting up to 400G of bandwidth over a single channel with up to 10km reach.

Family qdd-400g-lr4-14020Model QDD-400G-LR46 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MMS1V90-WR

Part-number identifiers and aliases available for matching:

  • MMS1V90-WR

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 32779 - Model QDD-400G-LR4

NVIDIA/Mellanox Coding Target MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD 10km Optical Transceiver

NVIDIA/Mellanox Coding Target MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD transceiver is designed for 400G Ethernet, supporting up to 400G of bandwidth over a single channel with up to 10km reach.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption ≤10W.
  • Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP-DD
Distance
10km
Wavelength
1310nm
Connector
Duplex LC
Power Consumption
≤10W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical )
8x53.125Gb/s PAM4
Modulation (Optical )
4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
400G Ethernet Compliant

Technical detail

Construction and application notes for QDD-400G-LR4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

400G optical transceiver has great advantages in increasing data throughput and maximizing data center bandwidth and port density. 400G QSFP-DD has been tested and recognized by the global market as the manufacturer are the first brand to complete the commercial order delivery of 400G data center optical modules.

NVIDIA/Mellanox Coding Target MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD 10km Optical Transceiver detail

Application and routing

has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.

NVIDIA/Mellanox Coding Target MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD 10km Optical Transceiver detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Qdd 400G Lr4 Datasheet
