NVIDIA/Mellanox | OSFP-QDD-A3 | AOC
400G OSFP to QSFP-DD 3–30m AOC with 42 exact SKU options. Confirm the host, port and firmware before quotation.
RoCE Ethernet Interconnects
400G QSFP-DD to 2xQSFP56 1–30m AOC | Q2Q56-400G-A1 / NVIDIA/Mellanox
Catalog reference: 1m (3ft) NVIDIA/Mellanox Compatible 400G AOC QSFP-DD 8x50G PAM4 to 2x200G QSFP56 4x50G PAM4 Active Optical Breakout Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

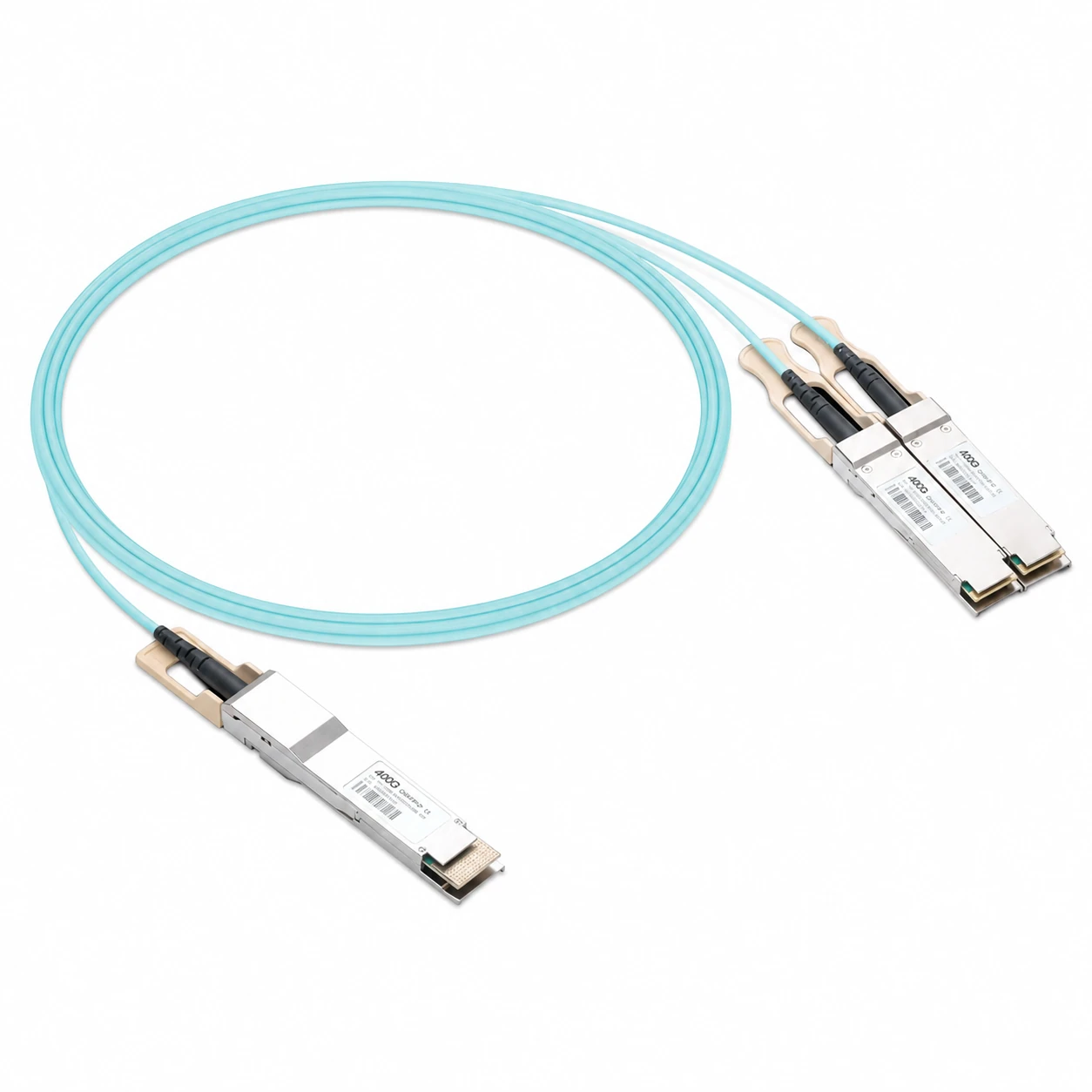

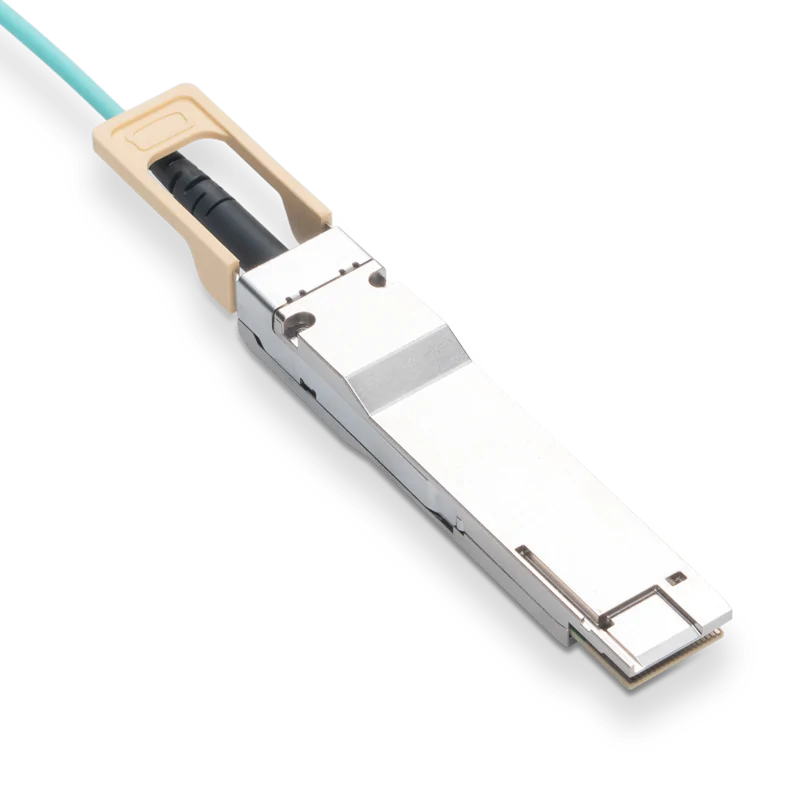

Q2Q56-400G-A1 is a NVIDIA/Mellanox Compatible 1m (3ft) 400G QSFP-DD to 2X200G QSFP56 Breakout Active Optical Cable
Family q2q56-400g-a1-14954Model Q2Q56-400G-A150 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 14955 - Model Q2Q56-400G-A1
NVIDIA/Mellanox Compatible 1m 400G QSFP-DD to 2X200G QSFP56 Breakout AOC
Q2Q56-400G-A1 is a NVIDIA/Mellanox Compatible 1m (3ft) 400G QSFP-DD to 2X200G QSFP56 Breakout Active Optical Cable
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Length1m (3ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Minimum Bend Radius 30mm.
- Compliant with Hot Pluggable QSFP-DD/QSFP56 MSA Standard.
- Compliant with RoHS Environmental Standard (Lead-free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Supports 400G to 2x 200G Ethernet Interoperability
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP-DD to 2xQSFP56
- Cable Length
- 1–30m (SKU-dependent)
- Commercial Temperature Range
- 0 to 70°C (32 to 158°F)
- Wavelength
- 850nm
- Jacket Material
- LSZH
- Power Consumption
- ≤8W(QSFP-DD) ≤4.5W(QSFP56)
- Minimum Bend Radius
- 30mm
- Application
- 400G/200G Ethernet Compliant
Technical detail
Construction and application notes for Q2Q56-400G-A1
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction
AOC uses fiber optic technology for data transmission, which can replace copper cables to some extent due to its stability and flexibility, reducing the density and power consumption of cabling. It can also be used for data center and high performance computing network cabling. AOC can be compatible with more than ten kinds of mainstream compatible brands such as Cisco, Huawei, etc., and also provides humanized customization services that can meet different needs.
Application and routing
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
