100G QSFP28 CWDM4H 2km Transceiver | QSFP-100G-CWDM4H / 980-9I17Q-00CM00
Catalog reference: NVIDIA/Mellanox Coding Target MMA1L30-CM (980-9I17Q-00CM00) Compatible 100G CWDM4 QSFP28 4x25G NRZ 1310nm 2km SMF DOM LC Duplex InfiniBand EDR Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
Mellanox Coding Target MMA1L30-CM 100GBase LR4 1310nm 2km Transceiver for InfiniBand EDR SB8790, for cloud-computing, data-center and HPC links.
Family qsfp-100g-cwdm4h-32246Model QSFP-100G-CWDM4H1 SKU option
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9I17Q-00CM00
Part-number identifiers and aliases available for matching:
- 980-9I17Q-00CM00
- MMA1L10-CR
- MMA1L30-CM
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32246 - Model QSFP-100G-CWDM4H

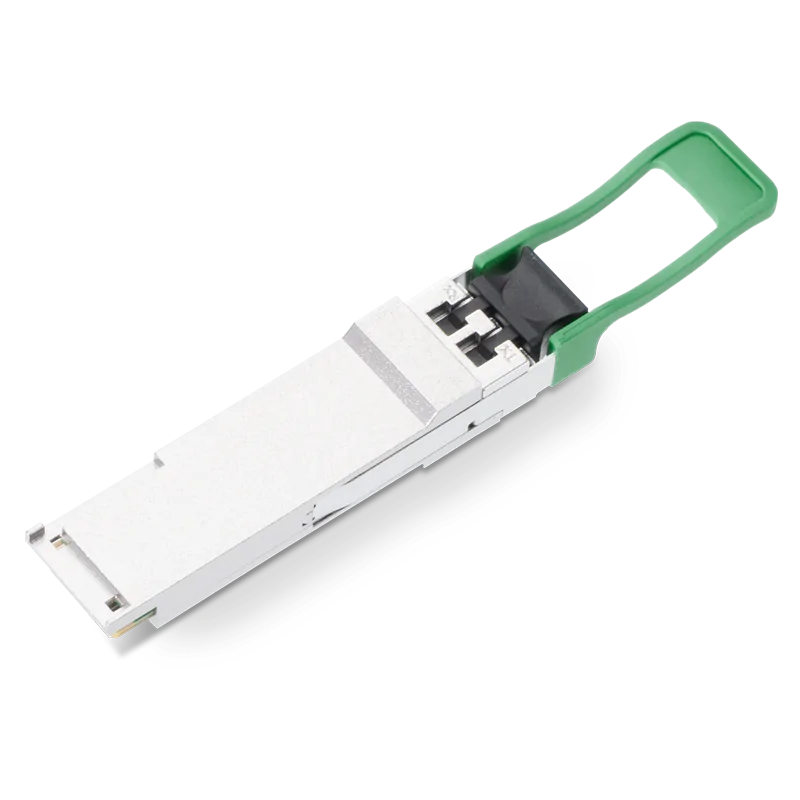

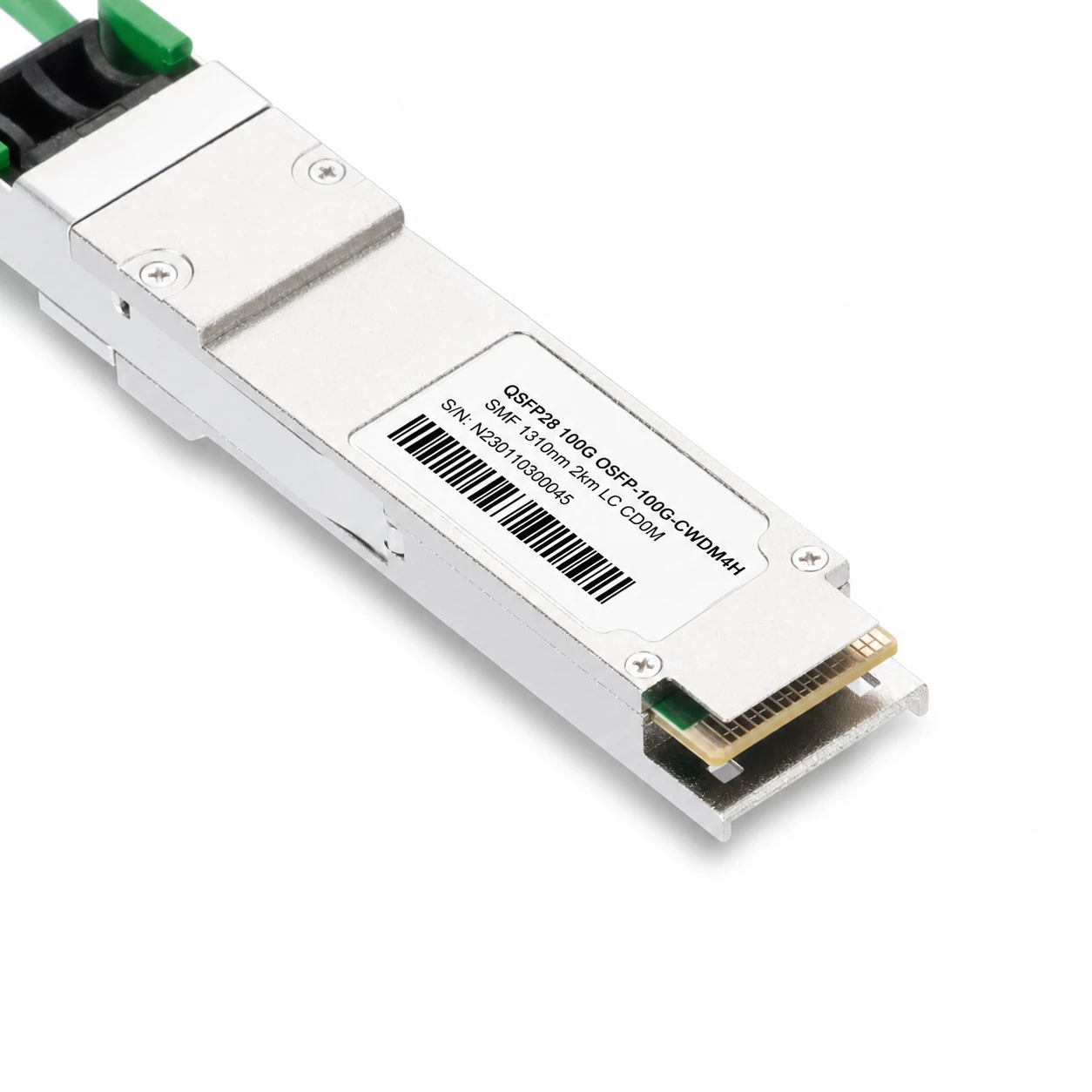

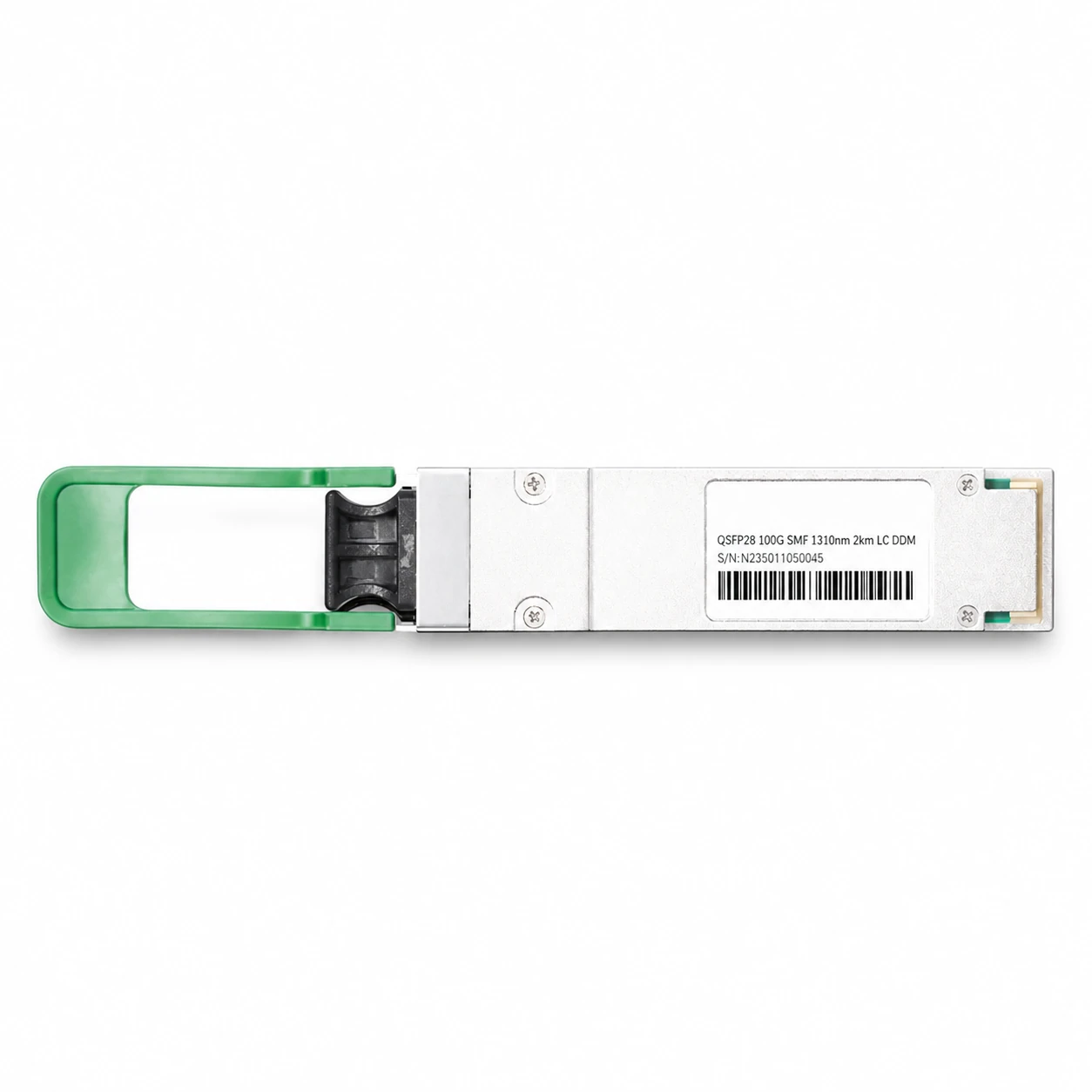

Mellanox Coding Target MMA1L10-CR InfiniBand EDR 100GBase CWDM4 2km QSFP56 Transceiver
Mellanox Coding Target MMA1L30-CM 100GBase LR4 1310nm 2km Transceiver for InfiniBand EDR SB8790, for cloud-computing, data-center and HPC links.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Complies with QSFP28 MSA and RoHS protocols, providing a reliable and sustainable solution.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP28
- Distance
- 2km
- Wavelength
- 1310nm

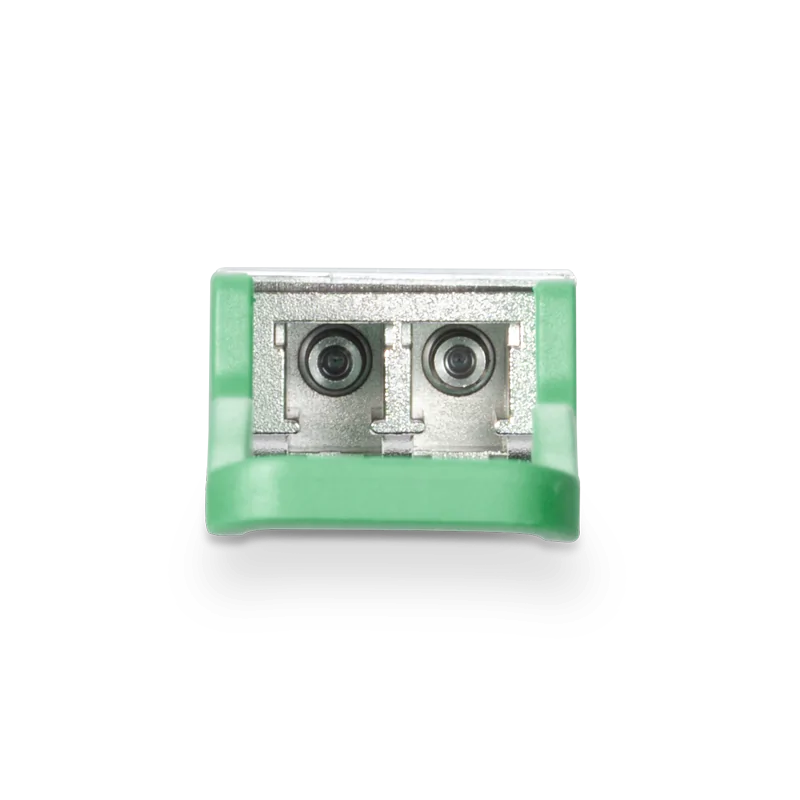

- Connector
- Duplex LC
- Power Consumption
- ≤3.5W
- Transmitter
- CWDM EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical)
- 4x25.781Gb/s NRZ
- Modulation (Optical )
- 4x25.781Gb/s NRZ
- Case Temperature(℃)
- 0~70°C(32 to 158°F)
- Protocol
- IB EDR,100G Ethernet Compliant
Technical detail
Construction and application notes for QSFP-100G-CWDM4H
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction
100G InfiniBand EDR QSFP28 transceiver, is designed for use in high-performance application scenarios, features high port density, low power consumption, very high throughput and very low latency. It is suitable for InfiniBand, data centers, high-performance computing, cloud computing, machine learning, AI, etc.
Application and routing
InfiniBand, supported by all major OEM server vendors, is a high-performance, versatile network architecture based on a switched fabric. As a way to extend and create the next generation of server I/O interconnect standards. It has become a leading standard for high performance computing.
Installation and validation
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
