2x8F to 2x8F Type 2 Fiber Assembly | M4MPOA2x8F2
Catalog reference: 10m (33ft) MPO 2x2 Shuffle Breakout Cable, 16 Fibers, 2xMPO-8 APC Female to 2xMPO-8 APC Female, Multimode (OM4), Type 2, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
10m (33ft) MPO 2x2 shuffle breakout cable features 16 fibers with 2xMPO-8 APC female to 2xMPO-8 APC female connectors, OM4 multimode fiber, Type 2 polarity and LSZH jacket. It is used to connect plug-and-play modules or MPO connector panels, enabling multi-level connections and extension of pre-terminated trunk cables through MPO panels, while supporting site-specific optical routing to reduce installation and reconfiguration time in high-density data center networks.
Family m4mpoa2x8f2-103268Model M4MPOA2x8F216 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103271 - Model M4MPOA2x8F2

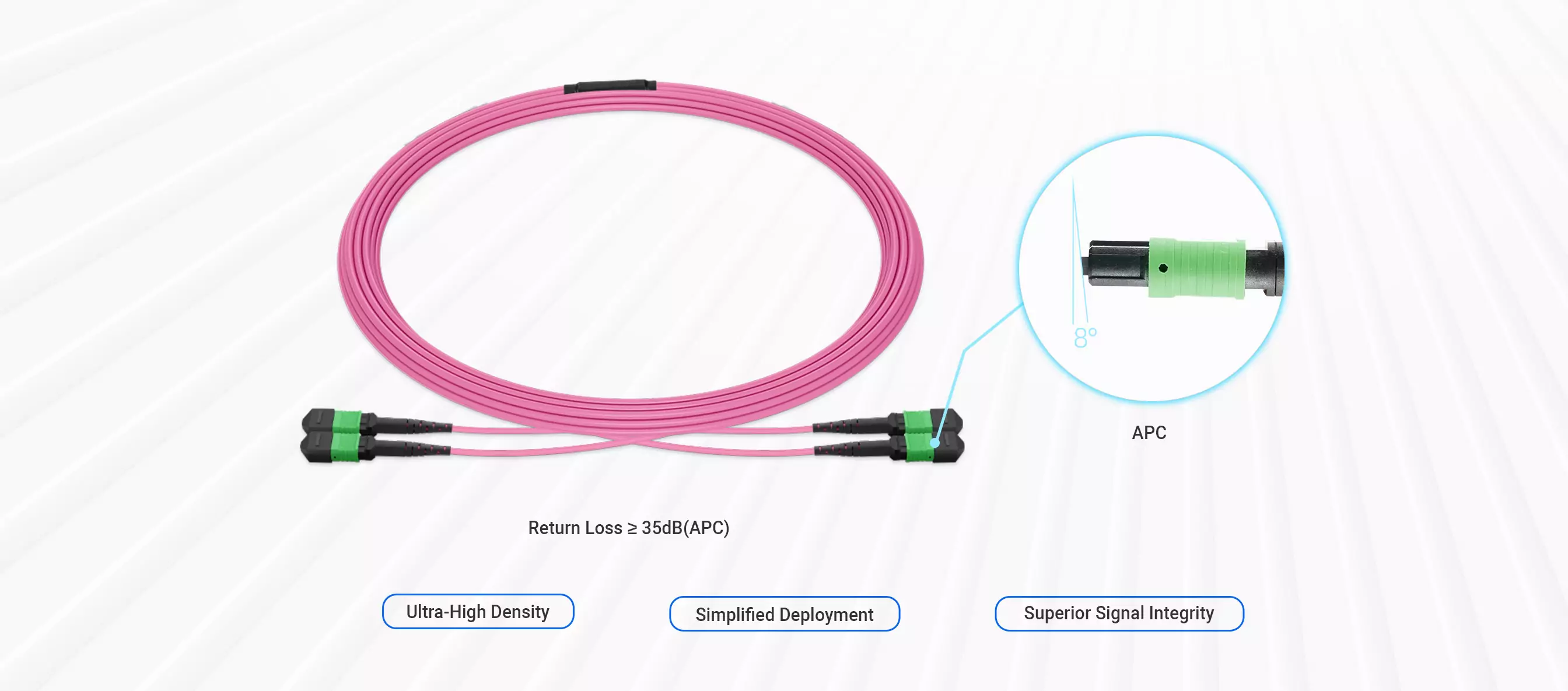

10m (33ft) 2xMPO-8 APC Female to 2xMPO-8 APC Female OM4 Multimode Type 2 Shuffle Breakout Cable (16 Fibers, LSZH)
10m (33ft) MPO 2x2 shuffle breakout cable features 16 fibers with 2xMPO-8 APC female to 2xMPO-8 APC female connectors, OM4 multimode fiber, Type 2 polarity and LSZH jacket. It is used to connect plug-and-play modules or MPO connector panels, enabling multi-level connections and extension of pre-terminated trunk cables through MPO panels, while supporting site-specific optical routing to reduce installation and reconfiguration time in high-density data center networks.
BrandSUNFULL
Cable Jacket/Flame RatingLSZH
Length10m (33ft)
Confirm passive fiber construction
- Connector Type
- MPO Female to MPO Female
- Fiber Count
- 2x8F to 2x8F
- Polarity
- Type 2
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- Ultra-low insertion loss and high return loss ensure link consistency
- Bend Insensitive Fiber with 7.5mm Min. Bend Radius
- 8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
- LSZH sheath, ensure safe indoor deployment and OFNP Fire Safety-Rated for use in Plenum Air Spaces
- Preorganized Shuffle Assemblies reduce installation time, streamlining deployment in large-scale GPU clusters
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- MPO Female to MPO Female
- Return Loss
- ≥35dB
- Fiber Grade
- Bend Insensitive
- Attenuation at 850 nm
- ≤2.3 dB/km
- Polish Type
- APC to APC
- Attenuation at 1300 nm
- ≤1.0dB/km
- Polarity
- Type 2
- Min. Bend Radius
- 7.5mm
- Fiber Mode
- OM4 50/125μm
- Cable Diameter
- 3.0mm
- Fiber Count
- 2x8F to 2x8F
- Tensile Strength
- 80/150N (Long/Short Term)
- Wavelength
- 850/1300nm
- Connector Durability
- ≥ 500 - 1000 times
- Cable Jacket/Flame Rating
- LSZH / OFNP (SKU-dependent)
- Operating Temperature
- LSZH:-20~70°C OFNP:0~70°C
- Insertion Loss
- ≤0.35dB
- Cable Structure
- Single Jacket
Technical detail
Construction and application notes for M4MPOA2x8F2
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction
Multimode Shuffle Fiber Cables are tailored for high-density network architectures. Boasting a revolutionary shuffle design, they enable flexible routing, space-saving installation and reduced cable clutter. Combined with 8° APC connectors for minimized interference, they deliver consistent high-performance transmission, simplified maintenance and enhanced scalability—empowering data centers to keep pace with explosive traffic growth.
Polarity and routing
Shuffle Cables provide a structured way to redistribute NIC traffic across multiple switches and network planes, transforming traditionally complex cross-connections into organized, high-density fiber assemblies. In large-scale AI and HPC clusters, where multi-plane architectures multiply physical-layer complexity, Shuffle technology ensures that traffic flows remain balanced, scalable, and logically structured. By predefining fiber mappings and enabling multi-path connectivity, it reduces cabling disorder and operational risk while preserving high performance for latency-sensitive workloads
