15m OM4 MPO PRO-8 APC fiber jumper with Type B polarity and low insertion loss for AI and storage networks, HPC.

Fiber Cabling

8 Fibers Type B Fiber Assembly | M4MPOA8FBP

Catalog reference: 15m (49ft) MPO PRO-8 APC (Female) to MPO PRO-8 APC (Female), 8 Fibers, Multimode (OM4) Push-Pull Boot Jumper, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta

Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.

MPO Push Pull Boot Jumpers feature a push-pull boot design for easy insertion and removal, simplifying operation in dense port environments. They also boast ultra-low insertion loss and bend‑insensitive performance, simplifying internal cable management and improving operational efficiency. It is suitable for high-density AI cluster networks and supports end-to-end fiber optic interconnect deployments of Ethernet and InfiniBand.

Family m4mpoa8fbp-104408Model M4MPOA8FBP26 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 104414 - Model M4MPOA8FBP

15m OM4 MPO PRO-8 APC fiber jumper with Type B polarity and low insertion loss for AI and storage networks, HPC.

BrandSUNFULL

Cable Jacket/Flame RatingLSZH

Length15m (49ft)

Confirm passive fiber construction

Connector Type: MPO PRO Female to Female
Fiber Count: 8 Fibers
Polarity: Type B

Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.

Get Datasheet & Quote Construction Review WhatsApp Technical Documents

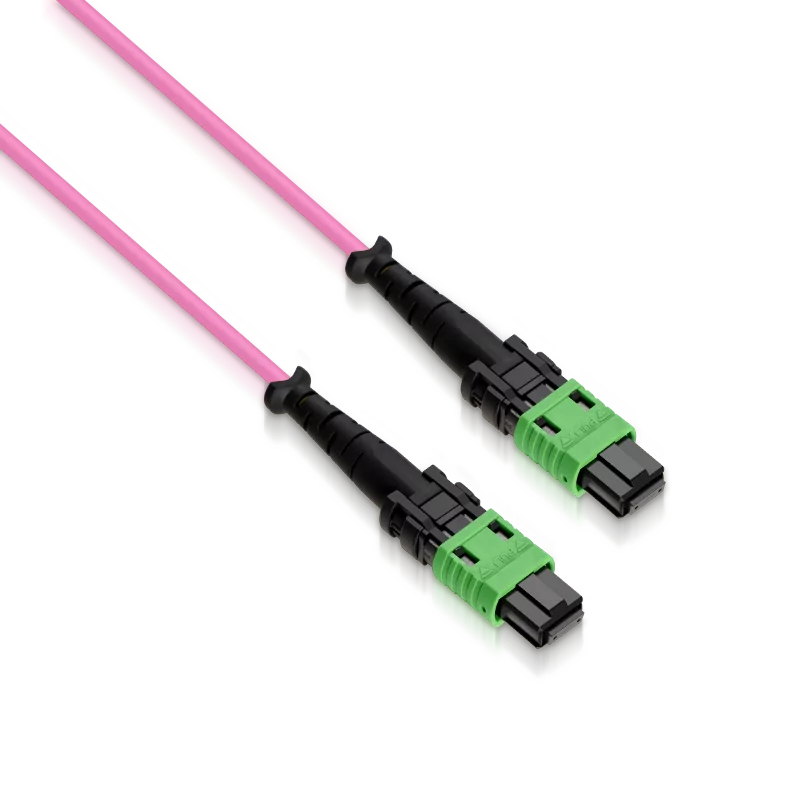

Push-Pull Boot enables precise, seamless patching in high-density environments with space constraints.
MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
LSZH sheath, ensure safe indoor deployment and OFNP fire safety-rated for use in plenum air spaces
Supports end-to-end fiber solutions for both Ethernet and InfiniBand
Provide scalable and manageable fiber cabling in High-Density AI Cluster Networks
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Connector Type: MPO PRO Female to Female
Polish Type: APC to APC
Polarity: Type B
Fiber Mode: OM4 50/125μm
Fiber Count: 8 Fibers
Wavelength: 850/1300nm
Cable Jacket/Flame Rating: LSZH / OFNP (SKU-dependent)
Insertion Loss: ≤0.35dB
Return Loss: ≥35dB
Attenuation at 850 nm: ≤2.3 dB/km
Attenuation at 1300 nm: ≤1.0 dB/km
Tensile Strength: 80/150N (Long/Short Term)
Cable Diameter: 3.0mm
Fiber Grade: Bend Insensitive
Min. Bend Radius(Fiber Core): 7.5mm
Min. Bend Radius(Fiber Cable): 10/5D (Dynamic/Static)
Connector Durability: ≥ 500 - 1000 times
Operating Temperature: LSZH: -20~70°C OFNP: 0~70°C

Technical detail

Construction and application notes for M4MPOA8FBP

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Connector and fiber construction

Featuring a high flame-retardant OFNP jacket, it effectively restricts flame spread within air-handling spaces, eliminating the need for additional metal conduit. Compliant with UL 910 standards, it meets the highest fire protection requirements for ventilation duct spaces, and is suitable for data center backbones with stringent fire safety regulations.For non-Plenum applications scenarios,LSZH material greatly reduces smoke density and toxic gas emissions, delivering a cost-effective safety solution for IDC high-density data centers.

15m OM4 MPO PRO-8 APC fiber jumper with Type B polarity and low insertion loss for AI and storage networks, HPC. detail

Polarity and routing

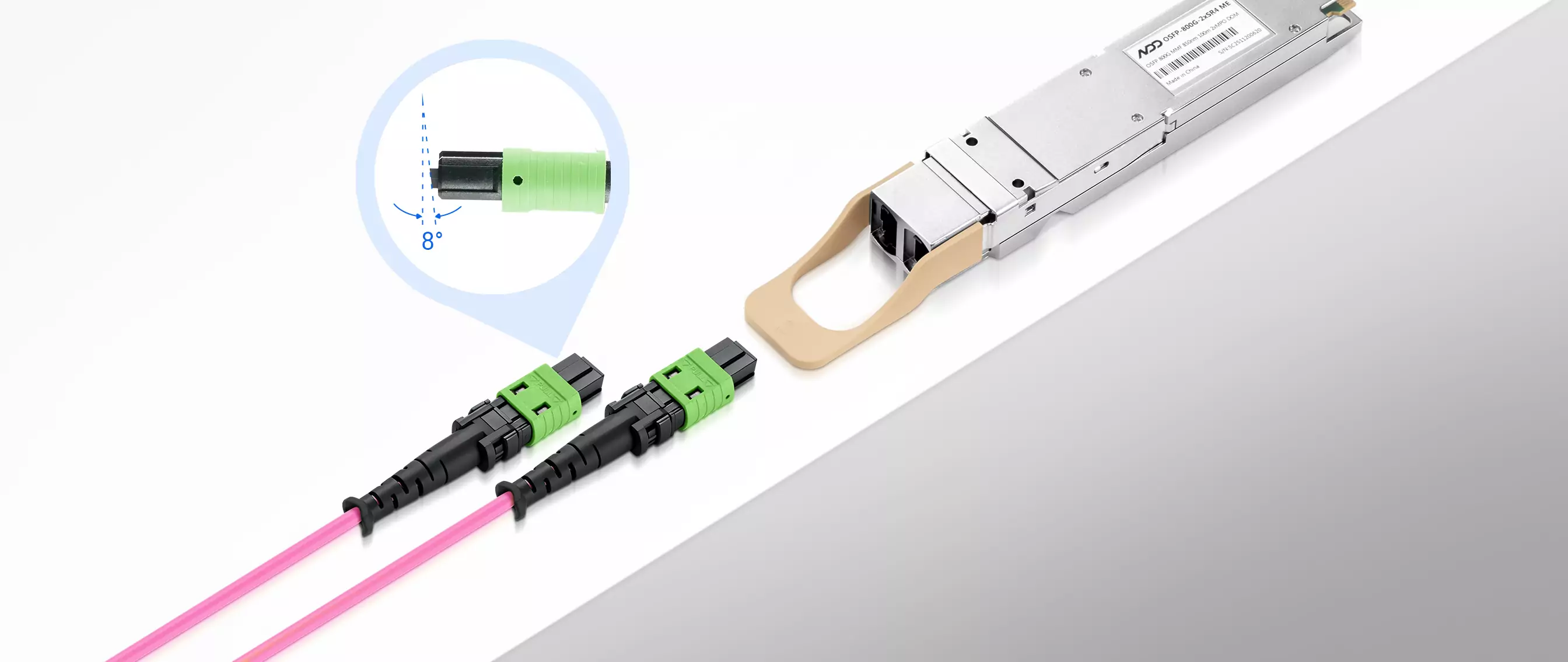

The APC endface features an 8-degree polished angle, which effectively reduces back reflection and signal distortion, ensuring stable optical performance, while also being highly compatible with IB and RoCE transceivers.
