B-M4LCUD | LC UPC to LC UPC 2 Fibers Fiber Assembly
LC UPC to LC UPC 2 Fibers Fiber Assembly with 14 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
Fiber Cabling
LC UPC to LC UPC 2 Fibers Fiber Assembly | M5LCUD

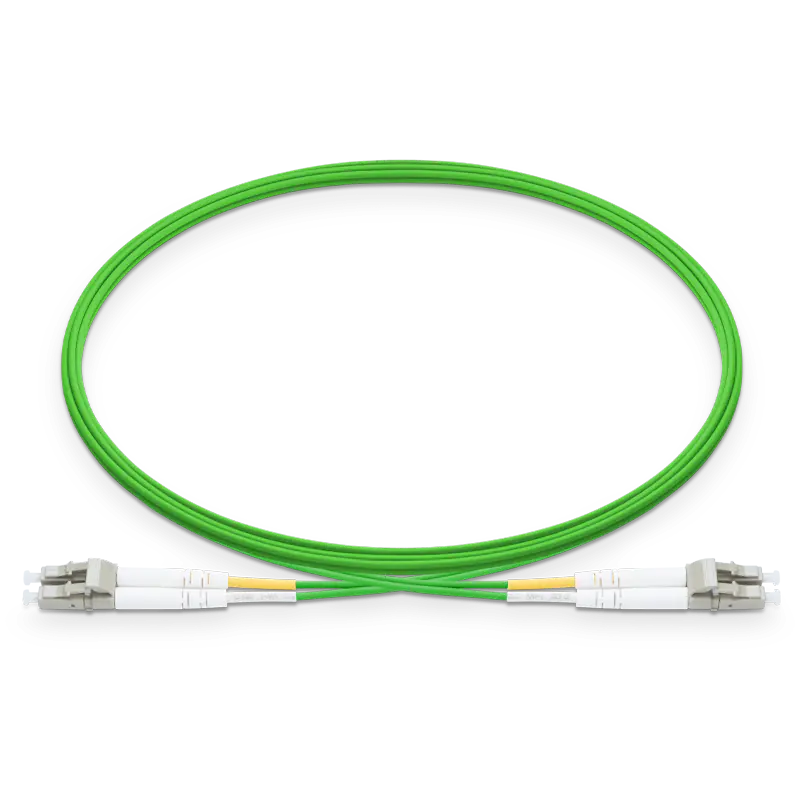

Catalog reference: 1m (3ft)LC UPC to LC UPC Duplex OM5 Multimode LSZH 2.0mm Fiber Optic Patch Cable
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
Durable single-mode and multimode LC/SC/FC/ST fiber patch cables are applicable to various high-density scenarios such as data center, cloud storage, communications rooms and server farms.
Family m5lcud-34986Model M5LCUD14 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 34987 - Model M5LCUD

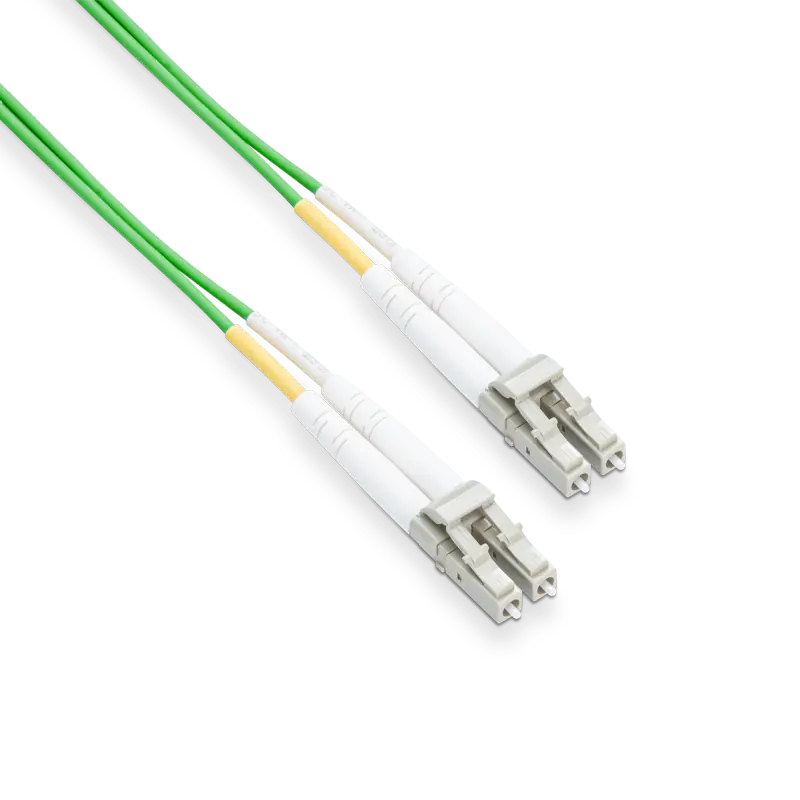

1m (3ft) OM5 LC UPC to LC UPC Duplex PVC (OFNR) 2.0mm Fiber Optic Patch Cable
Durable single-mode and multimode LC/SC/FC/ST fiber patch cables are applicable to various high-density scenarios such as data center, cloud storage, communications rooms and server farms.
BrandSUNFULL
Length1m (3ft)
Confirm passive fiber construction
- Connector Type
- LC UPC to LC UPC
- Fiber Count
- 2 Fibers
- Polarity
- A (Tx) to B (Rx)
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- LSZH Flame-retardant Jacket
- Bend Insensitive Fiber
- Compact connector maximizes panel density
- Low insertion loss and high return loss ensure stable optical performance transmission
- Push-pull locking mechanism for easy insertion/removal
- Widely compatible with various optical modules
- High-density cabling systems, such as data centers, racks, panels, backplanes, etc
- 3 Years Warranty, Lifetime After-sales Technical Support
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- LC UPC to LC UPC
- Fiber Grade
- Bend Insensitive
- Fiber Mode
- OM5 50/125μm
- Fiber Count
- 2 Fibers
- Wavelength
- 850/1300nm
- Cable Jacket/Flame Rating
- LSZH/OFNR
- Insertion Loss
- ≤0.25dB
- Return Loss
- ≥30dB
- Attenuation at 850 nm
- ≤3.5 dB/km
- Attenuation at 1300 nm
- ≤1.5dB/km
- Min. Bend Radius(Fiber Core)
- 7.5mm
- Min. Bend Radius(Fiber Cable)
- 20/10D (Dynamic/Static)
- Cable Diameter
- 2.0mm
- Polarity
- A (Tx) to B (Rx)
- Connector Durability
- ≥ 500 - 1000 times
- Operating Temperature
- 20~70°C
Technical detail
Construction and application notes for M5LCUD
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction
Polarity and routing
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
