800G OSFP to 4xOSFP 0.5–3m DAC | O4O112-800G-CU2H
Catalog reference: 2m (7ft) NVIDIA/Mellanox Coding Target MCP7Y50-N002 (980-9I46G-00N002) Compatible 800G DAC OSFP IHS/Finned Top 8x100G PAM4 to 4x200G OSFP RHS/Flat Top 2x100G PAM4 InfiniBand NDR Passive Direct Attach Copper Splitter Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA Coding Target MCP7Y50-N002 (980-9I46G-00N002) Compatible 2m IB OSFP to 4x OSFP for InfiniBand NDR network, which main used for Quantum-2 InfiniBand or Spectrum-4 Ethernet switch-to-four 200Gb/s ConnectX-7 OSFP adapters.
Family o4o112-800g-cu2h-101518Model O4O112-800G-CU2H5 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 101520 - Model O4O112-800G-CU2H

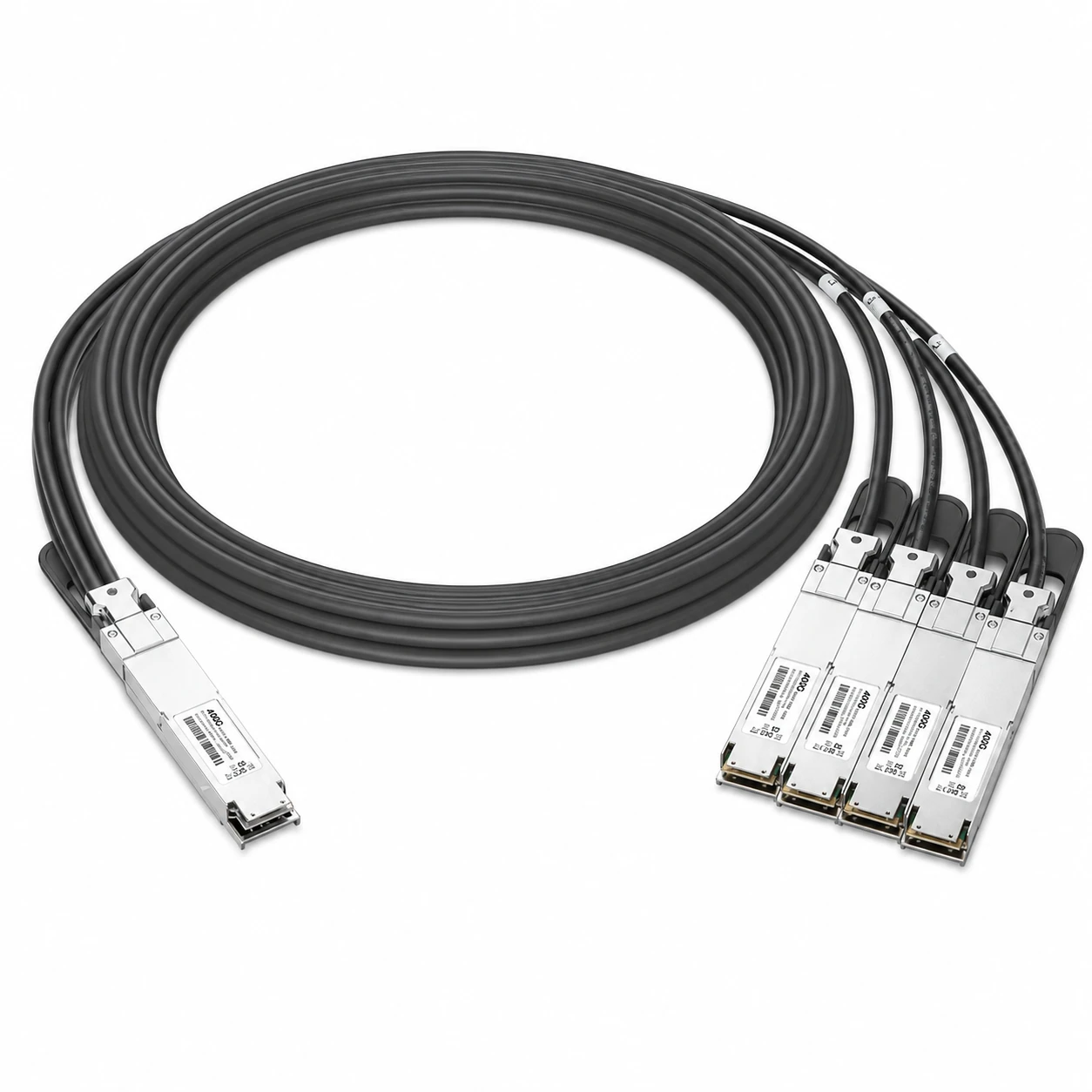

MCP7Y50-N002 Compatible 2m Infiniband NDR DAC Splitter Cable 800G(Finned Top) to 4x200G(Flat Top)
NVIDIA Coding Target MCP7Y50-N002 (980-9I46G-00N002) Compatible 2m IB OSFP to 4x OSFP for InfiniBand NDR network, which main used for Quantum-2 InfiniBand or Spectrum-4 Ethernet switch-to-four 200Gb/s ConnectX-7 OSFP adapters.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length2m (7ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Complies with OSFP MSA, CMIS 5.0, and RoHS protocols, providing a reliable and sustainable solution.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP to 4xOSFP
- Cable Length
- 0.5–3m (SKU-dependent)
- Wire AWG
- 26AWG~28AWG
- Commercial Temperature Range
- 0~70°C(32 to 158°F)
- Jacket Material
- PVC
- Power Consumption
- <0.1W
- Minimum Bend Radius
- 10x OD
- Application
- IB NDR,800G Ethernet Compliant
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
