NVIDIA/Mellanox Coding Target MCP4Y10-N001 Compatible DAC 1m (3ft) Twin-port 800Gb/s OSFP Finned Top to 800Gb/s OSFP...

RoCE Ethernet Interconnects

800G OSFP 0.5–3m DAC | OSFP-800G-CU1 / MCP4Y10-N001

Catalog reference: 1m (3ft) NVIDIA/Mellanox Coding Target MCP4Y10-N001 Compatible 800G DAC OSFP IHS/Finned Top 8x100G PAM4 to OSFP IHS/Finned Top 8x100G PAM4 Passive Direct Attach Copper Cable

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MCP4Y10-N001 800G Direct Attached Copper cable is an 800Gb/s twin-port OSFP (Octal Small Formfactor Pluggable) to 800Gb/s twin-port OSFP DAC. Cable solutions provide power-efficient connectivity enabling higher port bandwidth, density andconfigurability at a low cost and reduced power reguirement in the data centers.

Family osfp-800g-cu1-102260Model OSFP-800G-CU120 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MCP4Y10-N001

Part-number identifiers and aliases available for matching:

  • MCP4Y10-N001
  • MCP4Y10-N002
  • MCP4Y10-N00A
  • MCP4Y10-N01A

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102263 - Model OSFP-800G-CU1

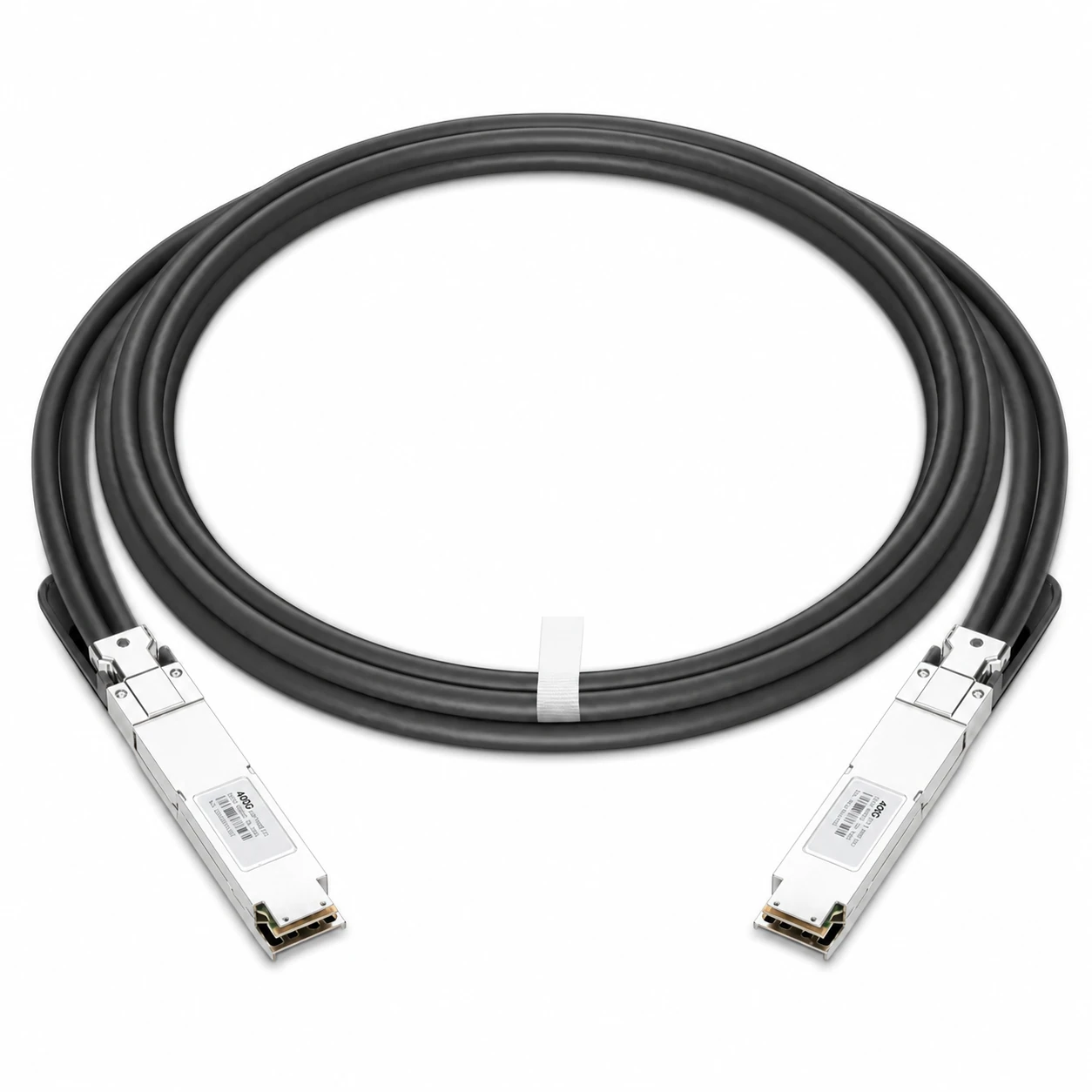

NVIDIA/Mellanox Coding Target MCP4Y10-N001 Compatible DAC 1m (3ft) Twin-port 800Gb/s OSFP Finned Top to 800Gb/s OSFP Finned Top Passive Copper Cable

NVIDIA/Mellanox Coding Target MCP4Y10-N001 800G Direct Attached Copper cable is an 800Gb/s twin-port OSFP (Octal Small Formfactor Pluggable) to 800Gb/s twin-port OSFP DAC. Cable solutions provide power-efficient connectivity enabling higher port bandwidth, density andconfigurability at a low cost and reduced power reguirement in the data centers.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Length1m (3ft)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Low-latency, Low-power, Higher port bandwidth, density and configurability, reduced power requirement in the data centers.
  • Complies with OSFP MSA, CMIS, and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP
Cable Length
0.5–3m (SKU-dependent)
Wire AWG
26AWG~30AWG
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Jacket Material
PVC
Power Consumption
<0.1W
Minimum Bend Radius
10x OD
Application
800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800G-CU1

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

NVIDIA/Mellanox Coding Target MCP4Y10-N001 Compatible DAC 1m (3ft) Twin-port 800Gb/s OSFP Finned Top to 800Gb/s OSFP... detail

Application and routing

In a 128-node AI cluster, the hybrid interconnection solution (single-mode optical modules + DAC) saves over 20% in deployment costs and ~21.6% in total power consumption vs. an multi-mode optical modules solution. It eases cooling pressure of switches, cuts data center power costs, and DAC’s near-zero power optimizes PUE—building green, sustainable computing infrastructure while meeting interconnection needs.

NVIDIA/Mellanox Coding Target MCP4Y10-N001 Compatible DAC 1m (3ft) Twin-port 800Gb/s OSFP Finned Top to 800Gb/s OSFP... detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G Dac Datasheet
