B-M4LCUD | LC UPC to LC UPC 2 Fibers Fiber Assembly
LC UPC to LC UPC 2 Fibers Fiber Assembly with 14 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
Fiber Cabling

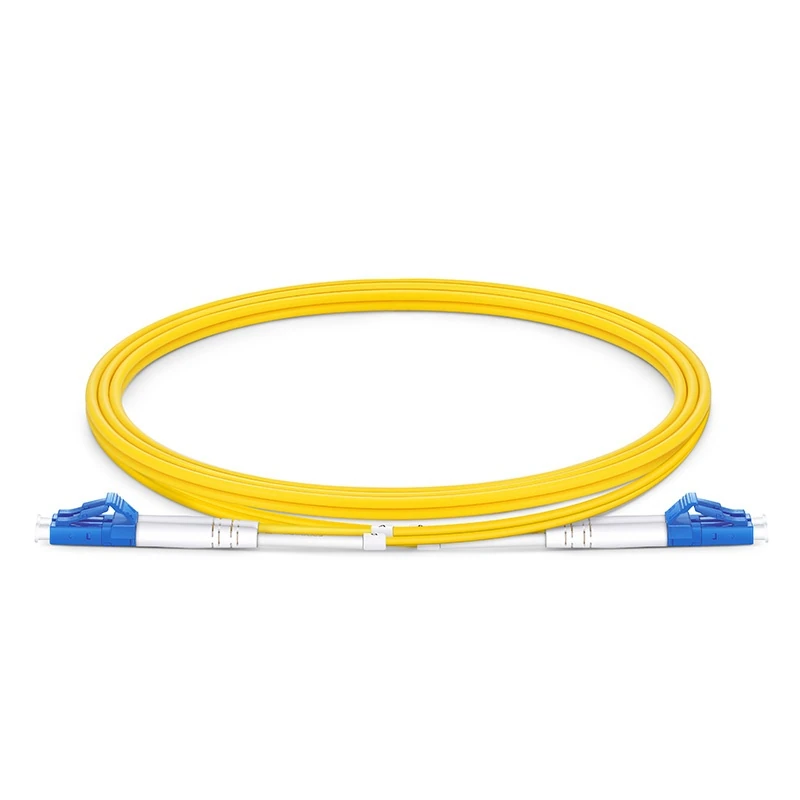

LC UPC to LC UPC Duplex Fiber Assembly | S2LCUD57
Catalog reference: 1m (3ft) LC UPC to LC UPC Duplex OS2 Single Mode LSZH 2.0mm G.657.A2 Fiber Optic Patch Cable
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
Durable single-mode and multimode LC/SC/FC/ST fiber patch cables are applicable to various high-density scenarios such as data center, cloud storage, communications rooms and server farms.
Family s2lcud57-35042Model S2LCUD5714 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 35043 - Model S2LCUD57
1m (3ft) OS2 LC UPC to LC UPC Duplex PVC (OFNR) 2.0mm G.657.A2 Fiber Optic Patch Cable
Durable single-mode and multimode LC/SC/FC/ST fiber patch cables are applicable to various high-density scenarios such as data center, cloud storage, communications rooms and server farms.
BrandSUNFULL
Length1m (3ft)
Confirm passive fiber construction
- Connector Type
- LC UPC to LC UPC
- Fiber Count
- Duplex
- Polarity
- A (Tx) to B (Rx)
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- LSZH Flame-retardant Jacket
- Grade A Precision Zirconia Ferrule Connectors Ensure Low Loss
- Easy Polarity Management with Duplex Clips
- G.657.A2 Bend Insensitive Fiber & 7.5mm Min. Bend Radius
- Optical Testing Ensures Network Performance
- Meet TIA-604 (FOCIS) Standard
- 3 Years Warranty, Lifetime After-sales Technical Support
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- LC UPC to LC UPC
- Fiber Grade
- G.657.A/G.652.D
- Fiber Mode
- OS2 9/125μm
- Wavelength
- 1310/1550nm
- Insertion Loss
- ≤0.3dB
- Return Loss
- ≥60dB
- Min. Bend Radius(Fiber Core)
- 10mm
- Min. Bend Radius(Fiber Cable)
- 10/5D (Dynamic/Static)
- Attenuation at 1310 nm
- 0.36 dB/km
- Attenuation at 1550 nm
- 0.22 dB/km
- Fiber Count
- Duplex
- Cable Diameter
- 2.0mm
- Cable Jacket
- LSZH/OFNR
- Polarity
- A (Tx) to B (Rx)
- Operating Temperature
- 20~70°C
- Storage Temperature
- 40~80°C
- Compliance
- TIA-617 (FOCIS)
Technical detail
Construction and application notes for S2LCUD57
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction
Polarity and routing
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
