10m (33ft) 2xMPO-8 APC Female to 2xMPO-8 APC Female OS2 Single Mode Type 2 Shuffle Breakout Cable (16 Fibers, LSZH)

Fiber Cabling

2x8F to 2x8F Type 2 Fiber Assembly | S2MPOA2x8F2

Catalog reference: 10m (33ft) MPO 2x2 Shuffle Breakout Cable, 16 Fibers, 2xMPO-8 APC (Female) to 2xMPO-8 APC (Female), Single Mode (OS2), Type 2, LSZH, 3.0mm, Max IL ≤ 0.35dB, Yellow

Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.

10m (33ft) MPO 2x2 shuffle breakout cable features 16 fibers with 2xMPO-8 APC female to 2xMPO-8 APC female connectors, OS2 Single Mode fiber, Type 2 polarity and LSZH jacket. It is used to connect plug-and-play modules or MPO connector panels, enabling multi-level connections and extension of pre-terminated trunk cables through MPO panels, while supporting site-specific optical routing to reduce installation and reconfiguration time in high-density data center networks.

Family s2mpoa2x8f2-103284Model S2MPOA2x8F216 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 103287 - Model S2MPOA2x8F2

10m (33ft) 2xMPO-8 APC Female to 2xMPO-8 APC Female OS2 Single Mode Type 2 Shuffle Breakout Cable (16 Fibers, LSZH)

BrandSUNFULL

Cable Jacket/Flame RatingLSZH

Length10m (33ft)

Confirm passive fiber construction

Connector Type: MPO Female to MPO Female
Fiber Count: 2x8F to 2x8F
Polarity: Type 2

Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.

Get Datasheet & Quote Construction Review WhatsApp Technical Documents

Ultra-low insertion loss and high return loss ensure link consistency
G.657.A1 fiber grade with 10mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
LSZH sheath, ensure safe indoor deployment and OFNP Fire Safety-Rated for use in Plenum Air Spaces
Preorganized Shuffle Assemblies reduce installation time, streamlining deployment in large-scale GPU clusters

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Connector Type: MPO Female to MPO Female
Return Loss: ≥60dB
Fiber Grade: G.657.A1 (Compatible with G.652.D)
Attenuation at 1310 nm: ≤0.35 dB/km
Polish Type: APC to APC
Attenuation at 1550 nm: ≤0.21dB/km
Polarity: Type 2
Min. Bend Radius: 10mm
Fiber Mode: OS2 9/125μm
Cable Diameter: 3.0mm
Fiber Count: 2x8F to 2x8F
Tensile Strength: 80/150N (Long/Short Term)
Wavelength: 1310/1550nm
Connector Durability: ≥ 500 - 1000 times
Cable Jacket/Flame Rating: LSZH / OFNP (SKU-dependent)
Operating Temperature: LSZH:-20~70°C OFNP:0~70°C
Insertion Loss: ≤0.35dB
Cable Structure: Single Jacket

Technical detail

Construction and application notes for S2MPOA2x8F2

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Connector and fiber construction

Single-Mode Shuffle Fiber Cables redefine high-speed AIDC connectivity. Engineered for extreme density and seamless deployment, they integrate precision 8° APC connectors to ensure Ultra-low insertion loss.

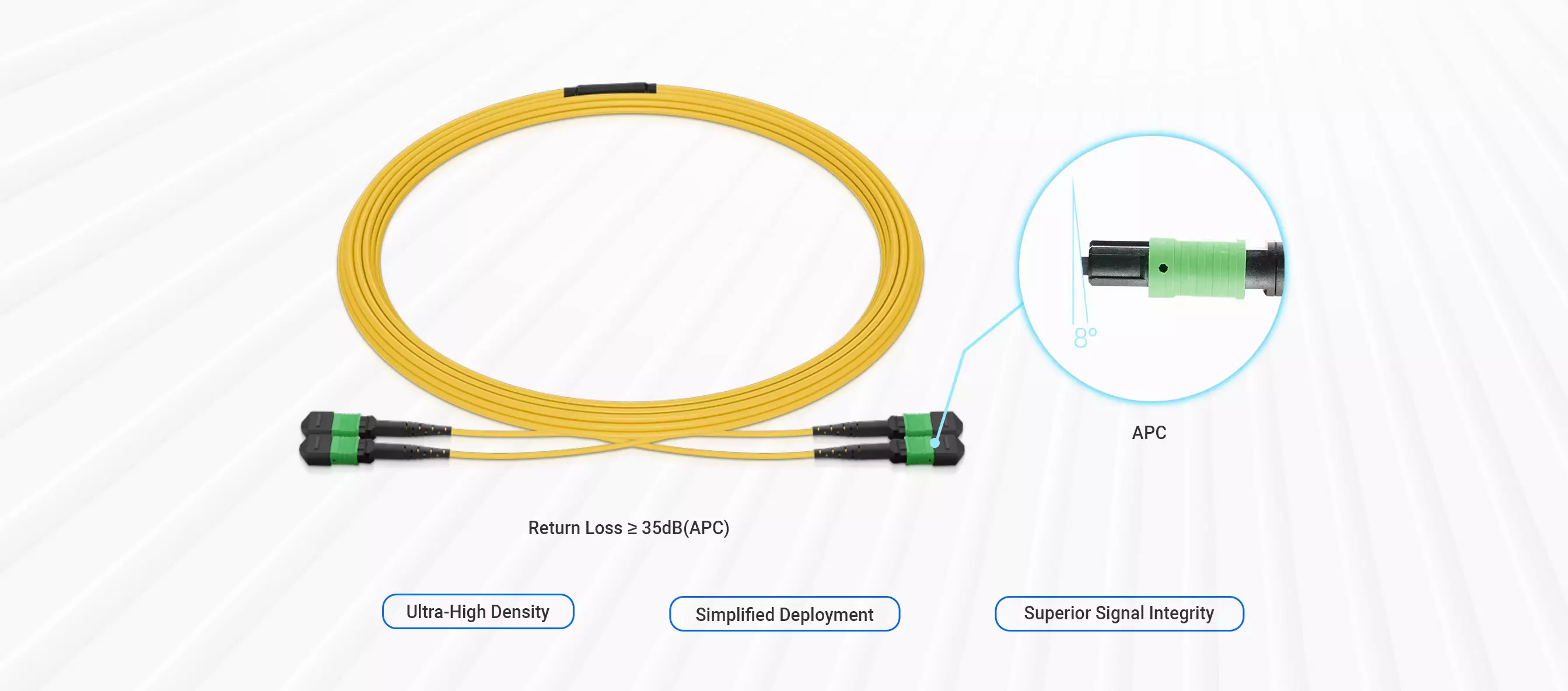

10m (33ft) 2xMPO-8 APC Female to 2xMPO-8 APC Female OS2 Single Mode Type 2 Shuffle Breakout Cable (16 Fibers, LSZH) detail

Polarity and routing

ConnectX-8 enables high-bandwidth ports to be divided into multiple independent channels, such as 2×400G or 4×200G, with each channel mapped to a separate network plane. Shuffle Cable provides precise optical lane redistribution at the physical layer, transforming breakout channels into predefined multi-plane connections. In NVIDIA GB300 NVL72 architectures, customized 2×2 Shuffle Cables enable significantly larger GPU domains compared with traditional direct-connect cabling, supporting flatter network topologies, higher scalability, and more efficient AI cluster expansion.

Inspection and installation

Shuffle Cables provide a structured way to redistribute NIC traffic across multiple switches and network planes, transforming traditionally complex cross-connections into organized, high-density fiber assemblies. In large-scale AI and HPC clusters, where multi-plane architectures multiply physical-layer complexity, Shuffle technology ensures that traffic flows remain balanced, scalable, and logically structured. By predefining fiber mappings and enabling multi-path connectivity, it reduces cabling disorder and operational risk while preserving high performance for latency-sensitive workloads
