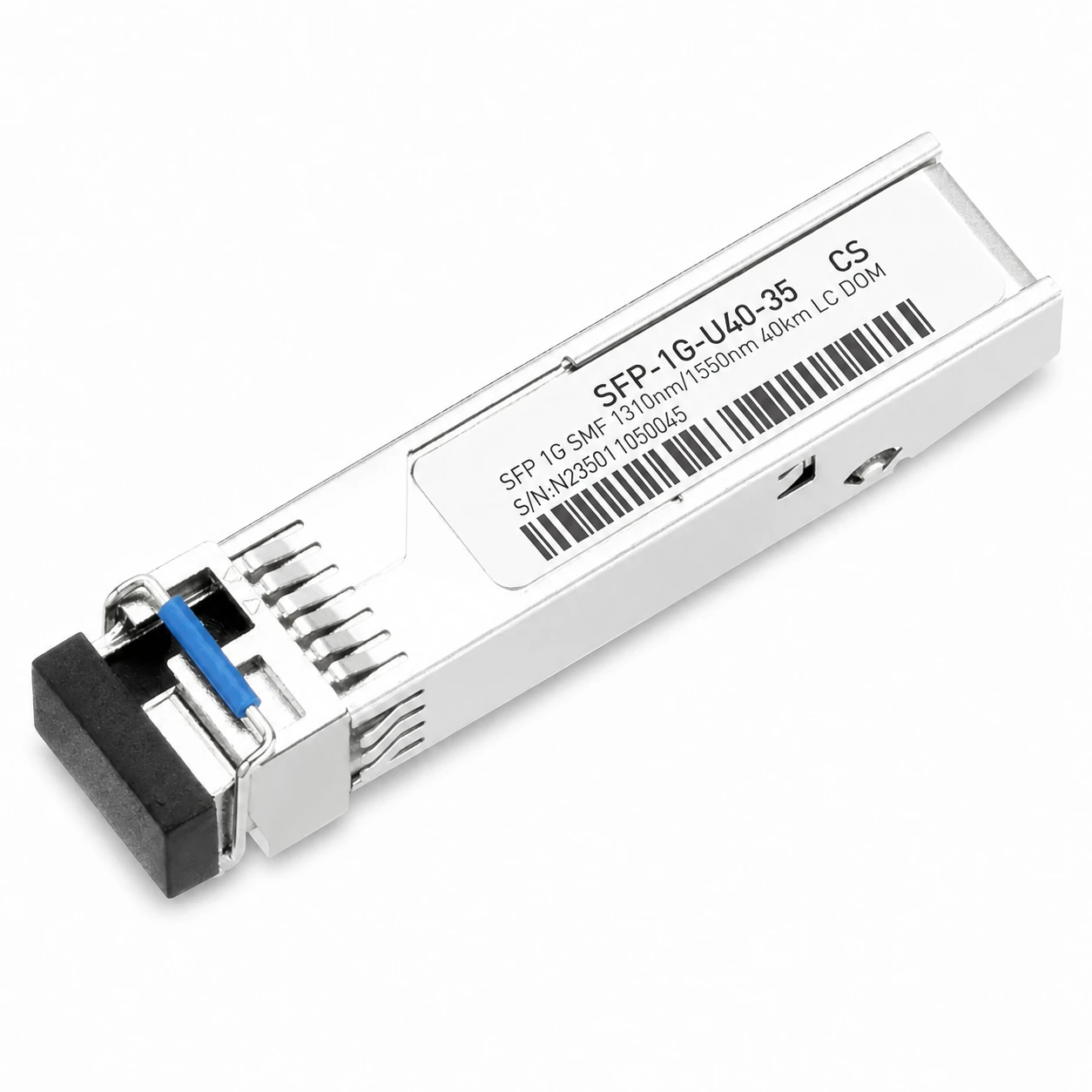

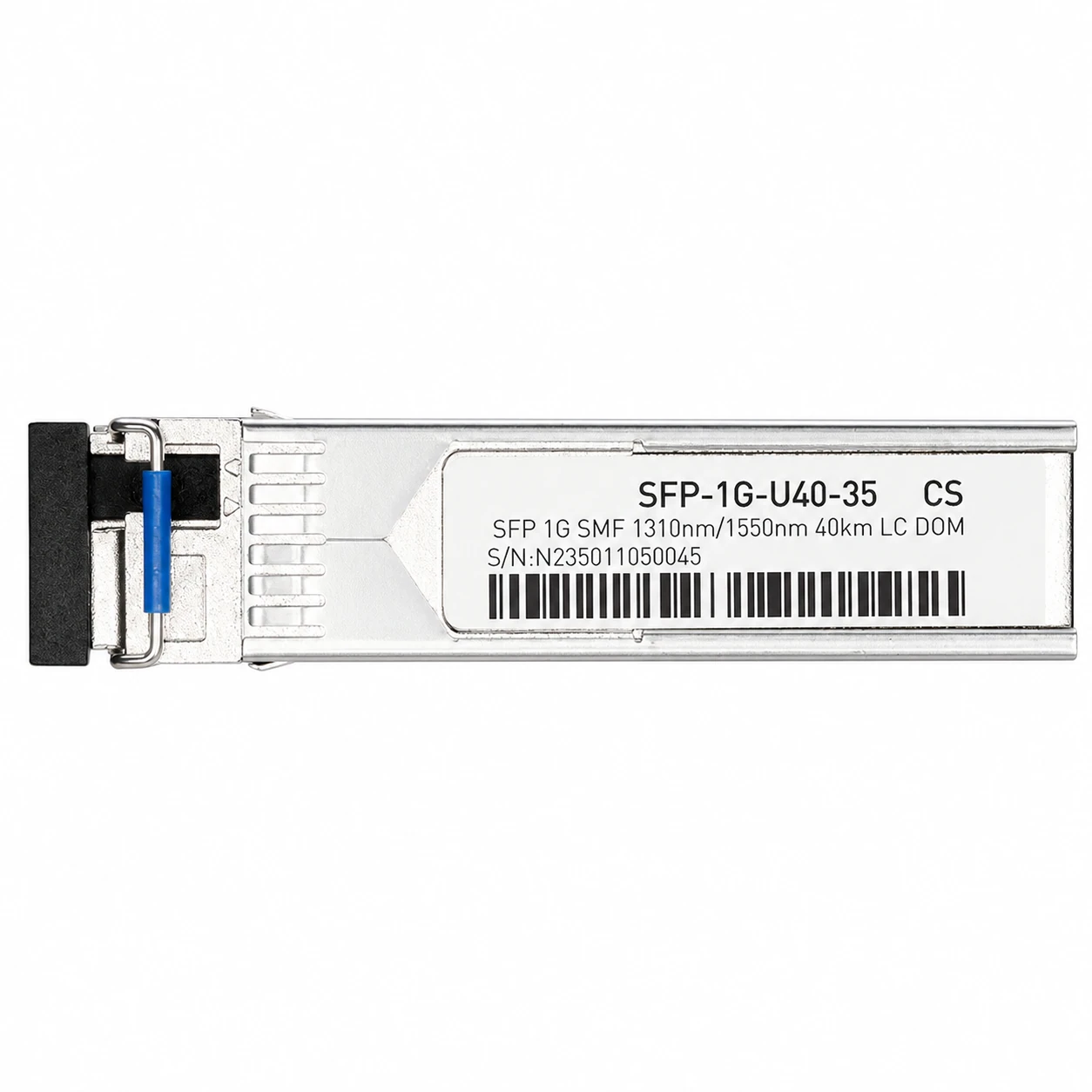

1G SFP 40km Transceiver | SFP-1G-U40-35
Catalog reference: Cisco Coding Target GLC-BX40-U Compatible 1000BASE-BX40-U SFP BiDi 1310/1550nm 40km SMF DOM LC Simplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
SFP-1G-U40-35 optical transceiver features low power consumption.
Family sfp-1g-u40-35-26603Model SFP-1G-U40-356 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 26603 - Model SFP-1G-U40-35
1000BASE-U40-35 SFP TX-1310nm/RX-1550nm 40km SMF Module for Cisco
SFP-1G-U40-35 optical transceiver features low power consumption.
BrandSUNFULL
Compatible brand / platformCisco
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤0.86W.
- Compliant with Hot Pluggable SFP MSA, IEEE802.3z Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Save Fiber Resources by Using Only One Fiber for Transmit and Receive.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- SFP
- Distance
- 40km
- Wavelength
- TX-1310nm/RX-1550nm
- Connector
- Simplex LC
- Power Consumption
- ≤0.86W
- Transmitter
- DFB
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 1.25Gb/s NRZ
- Modulation (Optical )
- 1.25Gb/s NRZ
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 1G Ethernet Compliant
Technical detail
Construction and application notes for SFP-1G-U40-35
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Optical interface and construction
1G/100M optical transceiver features low power consumption.
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
