1U 192F MPO Shuffle Box (48x8F, OS2) Type4 for Scalable AI Data Center Cabling

Fiber Cabling

192 Fibers Type 4 Fiber Panel | FEN-1US2MPO48x8M4

Catalog reference: 1U Shuffle Box Rack Mount Enclosure Loaded 48x8F MPO Adapter, Male-Male, 192 Fibers, Single Mode (OS2), Type 4, 0.35dB Max.

Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.

1U Rack Mount MPO Shuffle Box is equipped with high-density MPO adapters. It enables efficient fiber-optic interconnect cabling, simplifies on-site cable management, accelerated deployment speed and optimizes rack space utilization. Designed for structured cabling in large-scale AIDC multi-plane networks, it is an ideal solution for AI data centers and massive GPU cluster deployments.

Family fen-1us2mpo48x8m4-104558Model FEN-1US2MPO48x8M41 SKU option

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 104558 - Model FEN-1US2MPO48x8M4

1U 192F MPO Shuffle Box (48x8F, OS2) Type4 for Scalable AI Data Center Cabling

BrandSUNFULL

Confirm passive fiber construction

Fiber Count: 192 Fibers
Polarity: Type 4

Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.

Get Datasheet & Quote Construction Review WhatsApp Technical Documents

Suitable for large-scale AIDC multi-plane network structured cabling; addresses key challenges in expanding AI infrastructure by simplifying fiber cabling and optimizing deployment
0.35dB ultra-low loss MPO connectors ensure high-performance connections.
Featuring a fixed 1U design, this enclosure supports up to 192 fibers and mounts directly to standard EIA 19"rack rails
Base MPO-8 solution with 100% fiber utilization

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Fiber Count: 192 Fibers
Fiber Mode: OS2
Adapter Type: MPO APC (Pinned)
Fiber Grade: G.657.A1
Number of Rack Spaces: 1U
Number of Front MPO Port: 48 Ports
Insertion Loss: ≤0.35dB
Return Loss: ≥60dB
Polarity: Type 4
Dimensions (WxHxD): 19.00″x1.72″x6.30″ (482.6*43.6*160mm)
MPO Adapter: Key Up to Key Down
Material: 1.2mm Premium Cold Rolled Steel Sheet
Operating Temperature: 10 °C to +60 °C
Storage Temperature: 40 °C to +80 °C

Technical detail

Construction and application notes for FEN-1US2MPO48x8M4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Connector and fiber construction

High-Efficiency Fiber Routing Shuffle Box redefines structured cabling in high-density AI and HPC environments. Engineered for centralized fiber organization and redistribution within the rack, it eliminates installation errors and ensures precise mapping of high-density architectures.

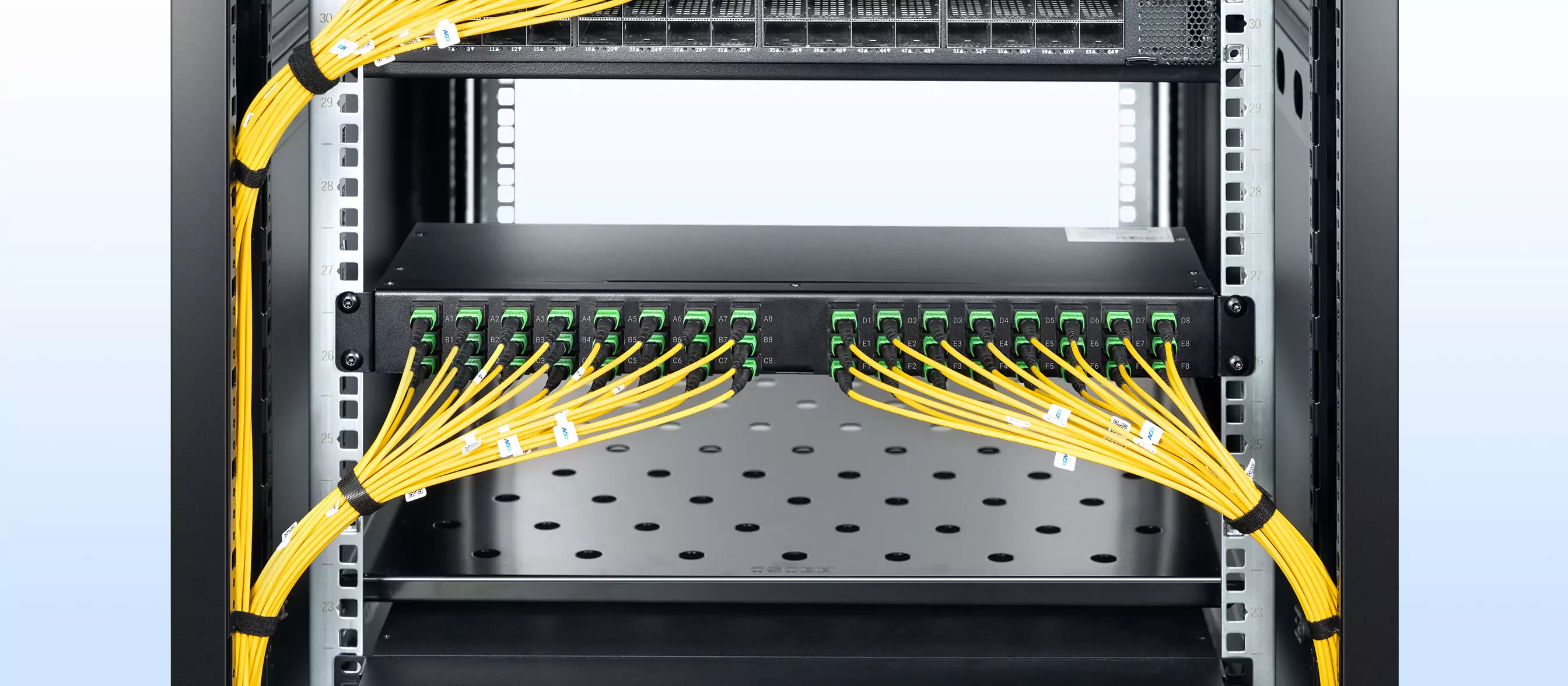

1U 192F MPO Shuffle Box (48x8F, OS2) Type4 for Scalable AI Data Center Cabling detail

Polarity and routing

Within AIDC multi-plane network structured cabling, Shuffle Box minimizes path congestion in high-density environments and optimizes rack space through standardized cabling strategies, freeing up space for power and cooling systems that are critical to AI workloads.
