MPO Female to Female 16F to 2x8F Type B Fiber Cable | M4MPOAA2x8F
Catalog reference: 5m (16ft) MPO-16 APC (Female) to 2xMPO-8 APC (Female) Multimode (OM4) Breakout, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
The MPO-16 to 2×MPO-8 OM4 breakout fiber cable splits a single 800G port into two independent 400G links. Featuring ultra-low insertion loss and a "plug-and-play" design, it significantly improves on-site deployment efficiency. It is widely compatible with various optical modules and suitable for high-density cabling systems, making it a key component for flexible bandwidth allocation and device interconnection in high-density data centers.
Family m4mpoaa2x8f-104304Model M4MPOAA2x8F18 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 104305 - Model M4MPOAA2x8F

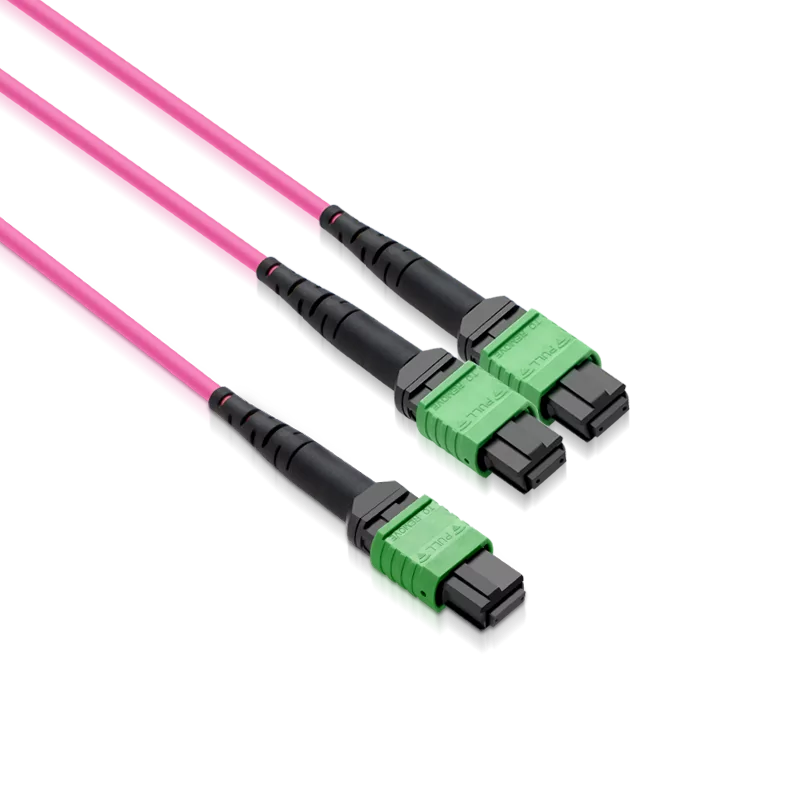

5m OM4 MPO-16 to 2x MPO-8 APC LSZH Breakout Fiber Cable for AI and storage clusters.
The MPO-16 to 2×MPO-8 OM4 breakout fiber cable splits a single 800G port into two independent 400G links. Featuring ultra-low insertion loss and a "plug-and-play" design, it significantly improves on-site deployment efficiency. It is widely compatible with various optical modules and suitable for high-density cabling systems, making it a key component for flexible bandwidth allocation and device interconnection in high-density data centers.
BrandSUNFULL
Cable Jacket/Flame RatingLSZH
Length5m (16ft)
Confirm passive fiber construction
- Connector Type
- MPO Female to Female
- Fiber Count
- 16F to 2x8F
- Polarity
- Type B
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- Convert from 16 to 8 Fibers for 100% Fiber Utilizations
- On-site "plug and play", fast installation, improve deployment efficiency
- Ultra-low insertion loss, achieve 100G/400G/800G performance
- LSZH/OFNR sheath, ensure safe indoor deployment
- Flexible adaptation to various network architectures
- Widely compatible with various optical modules
- Suitable for high-density wiring systems such as data centers, racks, panels, backplanes, etc
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- MPO Female to Female
- Fiber Grade
- Bend Insensitive
- Polish Type
- APC to APC
- Polarity
- Type B
- Fiber Mode
- OM4 50/125μm
- Fiber Count
- 16F to 2x8F
- Wavelength
- 850/1300nm
- Cable Jacket/Flame Rating
- LSZH / OFNP (SKU-dependent)
- Insertion Loss
- ≤0.35dB
- Return Loss
- ≥35dB
- Attenuation at 850 nm
- ≤2.3 dB/km
- Attenuation at 1300 nm
- ≤1.0 dB/km
- Min. Bend Radius(Fiber Core)
- 7.5mm
- Min. Bend Radius(Fiber Cable)
- 10/5D (Dynamic/Static)
- Cable Diameter
- 3.0mm
- Tensile Strength
- 80/150N (Long/Short Term)
- Connector Durability
- ≥ 500 - 1000 times
- Operating Temperature
- LSZH:-20~70°C OFNP:0~70°C
Technical detail
Construction and application notes for M4MPOAA2x8F
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction
MPO patch cords utilize highly flexible optical fiber, enabling smooth cabling even in high-density cabinet environments. This effectively reduces redundant cables and improves overall cable and space utilization. Low insertion loss ensures stable signal transmission, maintaining stable performance even when bent.
Polarity and routing
Featuring a high flame-retardant OFNP jacket, it effectively restricts flame spread within air-handling spaces, eliminating the need for additional metal conduit. Compliant with UL 910 standards, it meets the highest fire protection requirements for ventilation duct spaces, and is suitable for data center backbones with stringent fire safety regulations.LSZH material greatly reduces smoke density and toxic gas emissions, delivering a cost-effective safety solution for IDC high-density data centers.
Inspection and installation
The APC endface features an 8-degree polished angle, which effectively reduces back reflection and signal distortion, ensuring stable optical performance, while also being highly compatible with IB NDR transceivers.
