MPO Female to Female 12F Type B Fiber Cable | M4MPOU12FB
Catalog reference: 40m (131ft) MPO-12 UPC (Female) to MPO-12 UPC (Female) 12 Fibers Multimode (OM4) Jumper, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Magenta
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
MPO 12 fibers trunk cable is designed for DCI and HUPC.
Family m4mpou12fb-34602Model M4MPOU12FB36 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102327 - Model M4MPOU12FB
40m (131ft) MPO-12 UPC (Female) to MPO-12 UPC (Female) Magenta OM4 12 Fibers Type B LSZH Multimode Trunk Cable 3mm
MPO 12 fibers trunk cable is designed for DCI and HUPC.
BrandSUNFULL
Length40m (131ft)
Confirm passive fiber construction
- Connector Type
- MPO Female to Female
- Fiber Count
- 12F
- Polarity
- Type B
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- MPO Connector with Optimal 0.35dB Low IL
- Bend Insensitive Fiber with 7.5mm Min. Bend Radius
- LSZH/OFNR Rated Jacket With Low Smoke, Halogen Free andFire Safe Performance
- Supports End-to-End Fiber Solutions for Both Ethernet and InfiniBand
- Provide Scalable and Manageable Fiber Cabling in High-DensityAl Cluster Networks
- Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- MPO Female to Female
- Fiber Grade
- Bend Insensitive
- Polish Type
- UPC to UPC
- Polarity
- Type B
- Fiber Mode
- OM4 50/125μm
- Fiber Count
- 12F
- Wavelength
- 850/1300nm
- Cable Jacket/Flame Rating
- LSZH/OFNR
- Insertion Loss
- ≤0.35dB
- Return Loss
- ≥25dB
- Attenuation at 850 nm
- ≤2.3 dB/km
- Attenuation at 1300 nm
- ≤1.0dB/km
- Min. Bend Radius(Fiber Core)
- 7.5mm
- Min. Bend Radius(Fiber Cable)
- 10/5D (Dynamic/Static)
- Cable Diameter
- 3.0mm
- Tensile Strength
- 80/150N (Long/Short Term)
- Connector Durability
- ≥ 500 - 1000 times
- Operating Temperature
- 20~70°C
Technical detail
Construction and application notes for M4MPOU12FB
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction

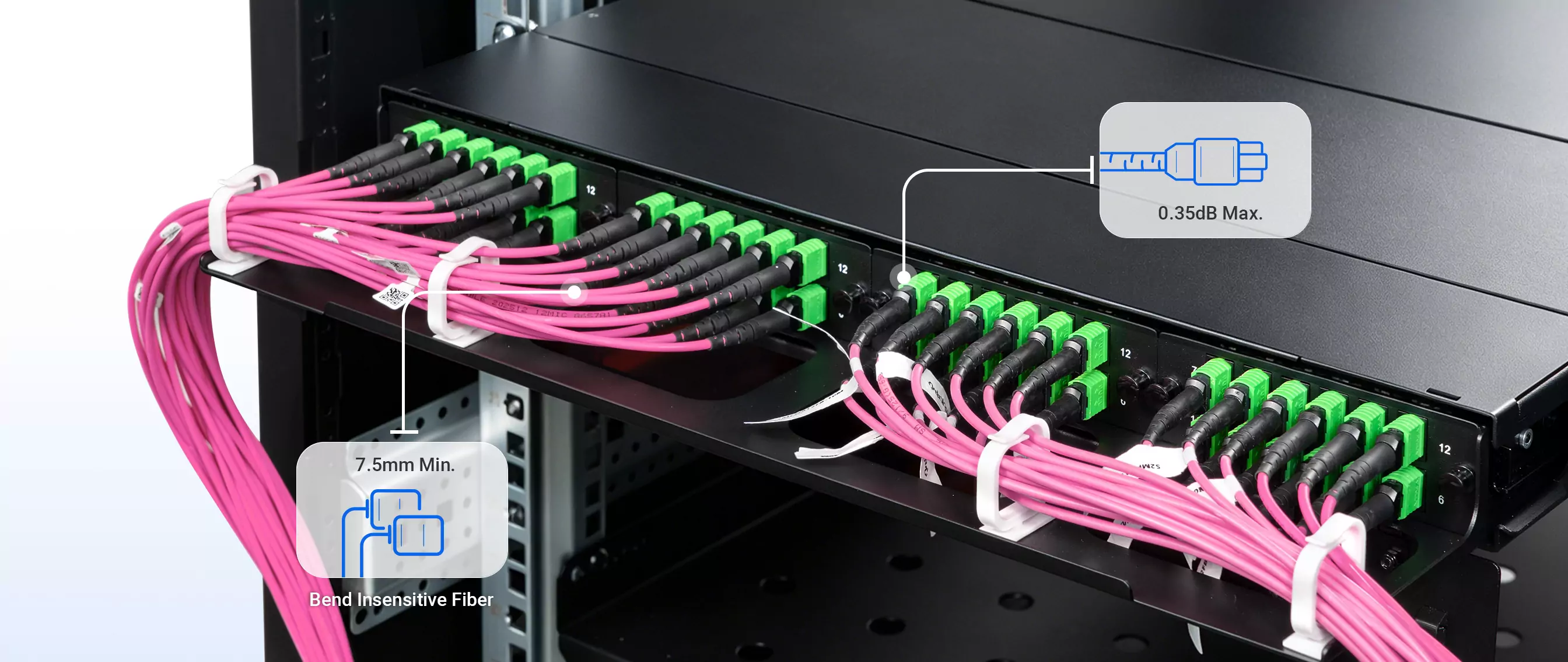

With a minimum bend radius of just 7.5 mm, this highly flexible MPO jumper routes effortlessly through congested high‑density cabinets — eliminating slack, freeing up space, and boosting overall cabling efficiency. Low insertion loss keeps signal transmission rock‑solid, even when the fiber is under tight bends.
Polarity and routing

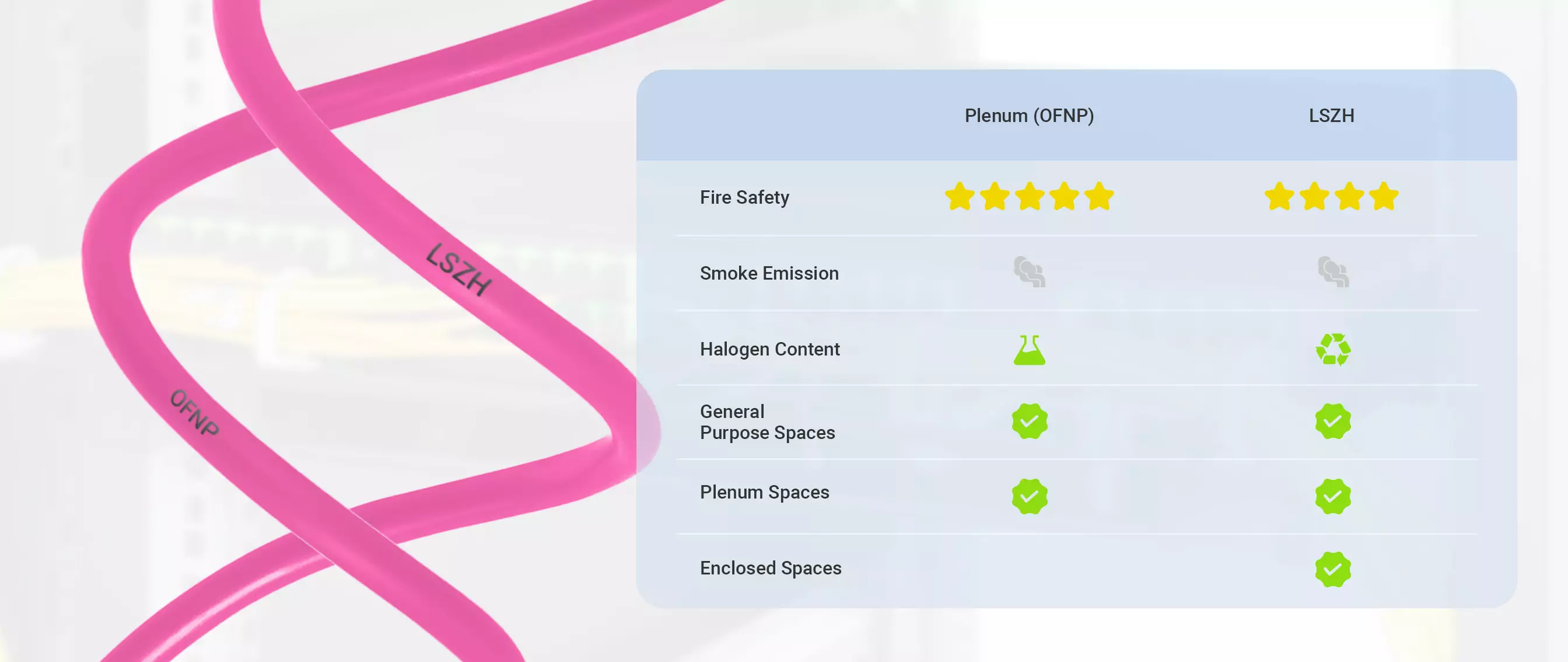

Featuring a plenum-rated OFNP jacket, the cable effectively limits flame propagation in air-handling spaces without requiring additional metal conduit. Compliant with UL 910 standards, it is designed for backbone cabling deployments in data centers with stringent fire safety requirements. The LSZH jacket further reduces smoke and toxic fume emissions, providing a safer and cost-effective solution for high-density IDC environments.
Inspection and installation

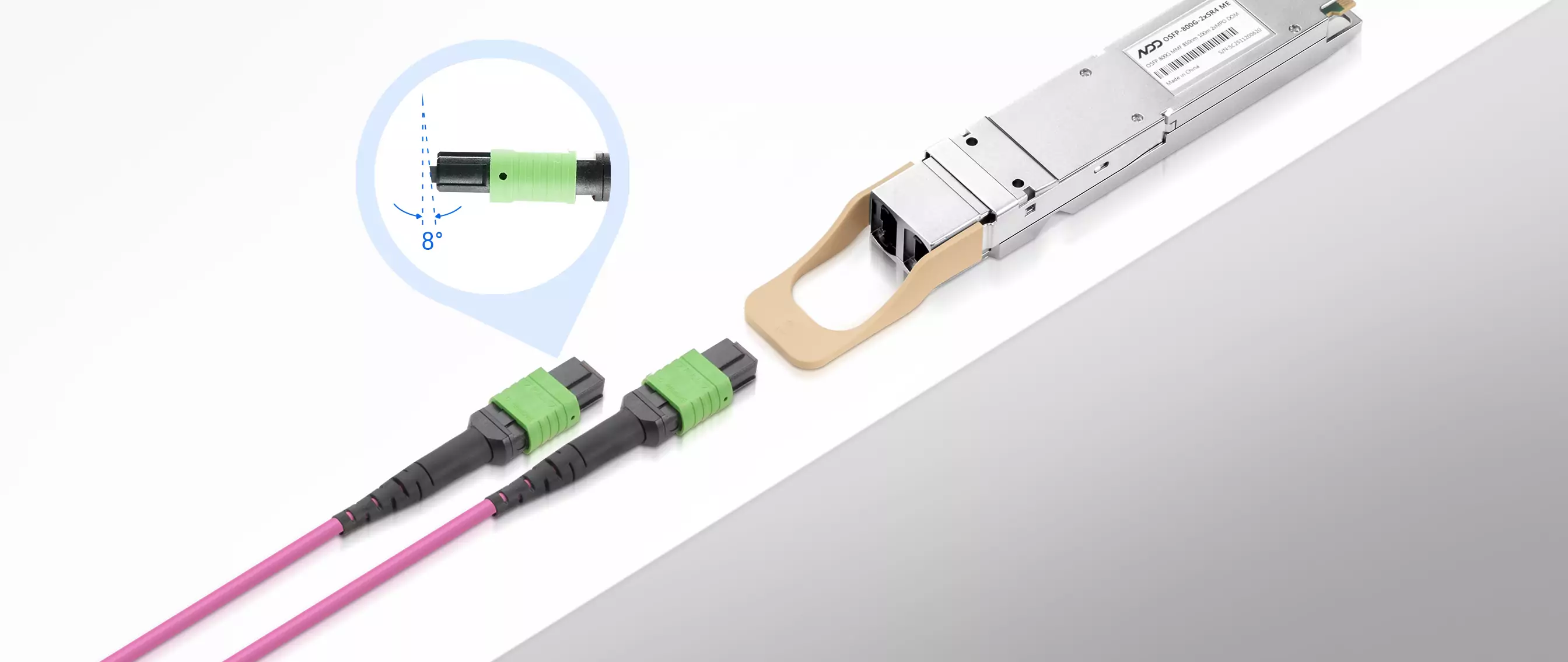

The APC endface features an 8° angled polish that significantly reduces back reflection and signal distortion, ensuring stable optical performance.
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
