16F to 8x2F Type B Fiber Cable | M4MTPALCU16F
Catalog reference: 1m (3ft) MTP-16 APC (Female) to 8x LC Duplex UPC Multimode (OM4) Harness Cable, Type B, LSZH, Magenta
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
MTP/MPO to LC breakout cables are designed for high-density 100G to 25G, 40G to 10G, 400G to 100G etc. breakout cabling environments in data centers, SAN, and communication rooms.
Family m4mtpalcu16f-34336Model M4MTPALCU16F14 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 34337 - Model M4MTPALCU16F
OM4 1m (3ft) MTP-16 APC Female to 8 LC UPC 16 Fibers Elite Breakout Cable
MTP/MPO to LC breakout cables are designed for high-density 100G to 25G, 40G to 10G, 400G to 100G etc. breakout cabling environments in data centers, SAN, and communication rooms.
BrandSUNFULL
Length1m (3ft)
Confirm passive fiber construction
- Connector Type
- US Conec MTP Female to LC Duplex
- Fiber Count
- 16F to 8x2F
- Polarity
- Type B
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- On-site "plug and play", fast installation, improve deployment efficiency
- Ultra-low insertion loss, achieve 100G/400G/800G performance
- LSZH/OFNR sheath, ensure safe indoor deployment
- Flexible adaptation to various network architectures
- Widely compatible with various optical modules

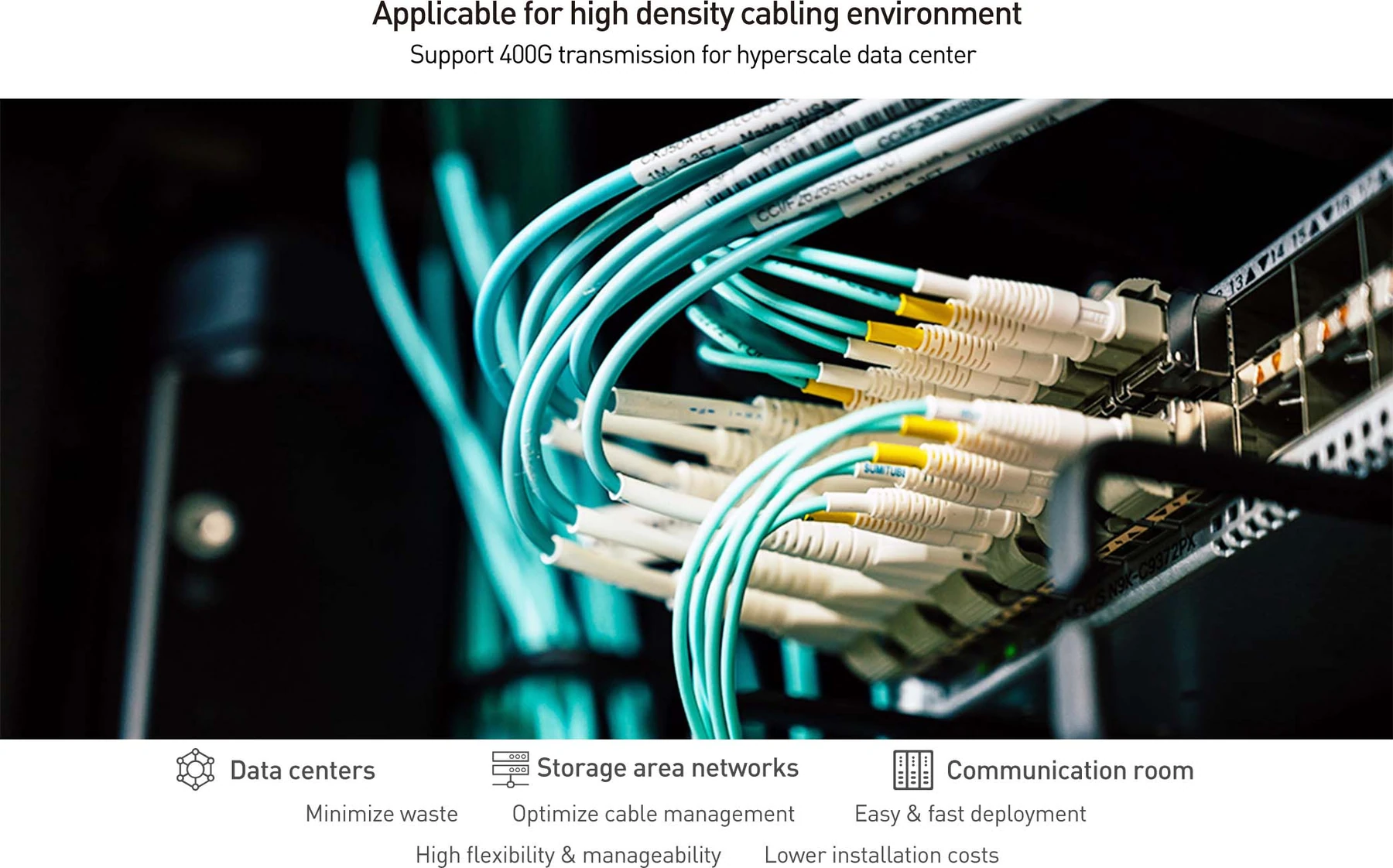

- Suitable for high-density wiring systems such as data centers, racks, panels, backplanes, etc.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- US Conec MTP Female to LC Duplex
- Fiber Grade
- Bend Insensitive
- Polish Type
- APC to UPC
- Polarity
- Type B
- Fiber Mode
- OM4 50/125μm
- Fiber Count
- 16F to 8x2F
- Wavelength
- 850/1300nm
- Cable Jacket/Flame Rating
- LSZH/OFNR
- Insertion Loss
- ≤0.35dB(MTP) ≤0.25dB(LC)
- Return Loss
- ≥35dB(MTP) ≥30dB(LC)
- Attenuation at 850 nm
- ≤2.3 dB/km(MTP) ≤3.5 dB/km(LC)
- Attenuation at 1300 nm
- ≤1.0dB/km(MTP) ≤1.5dB/km(LC)

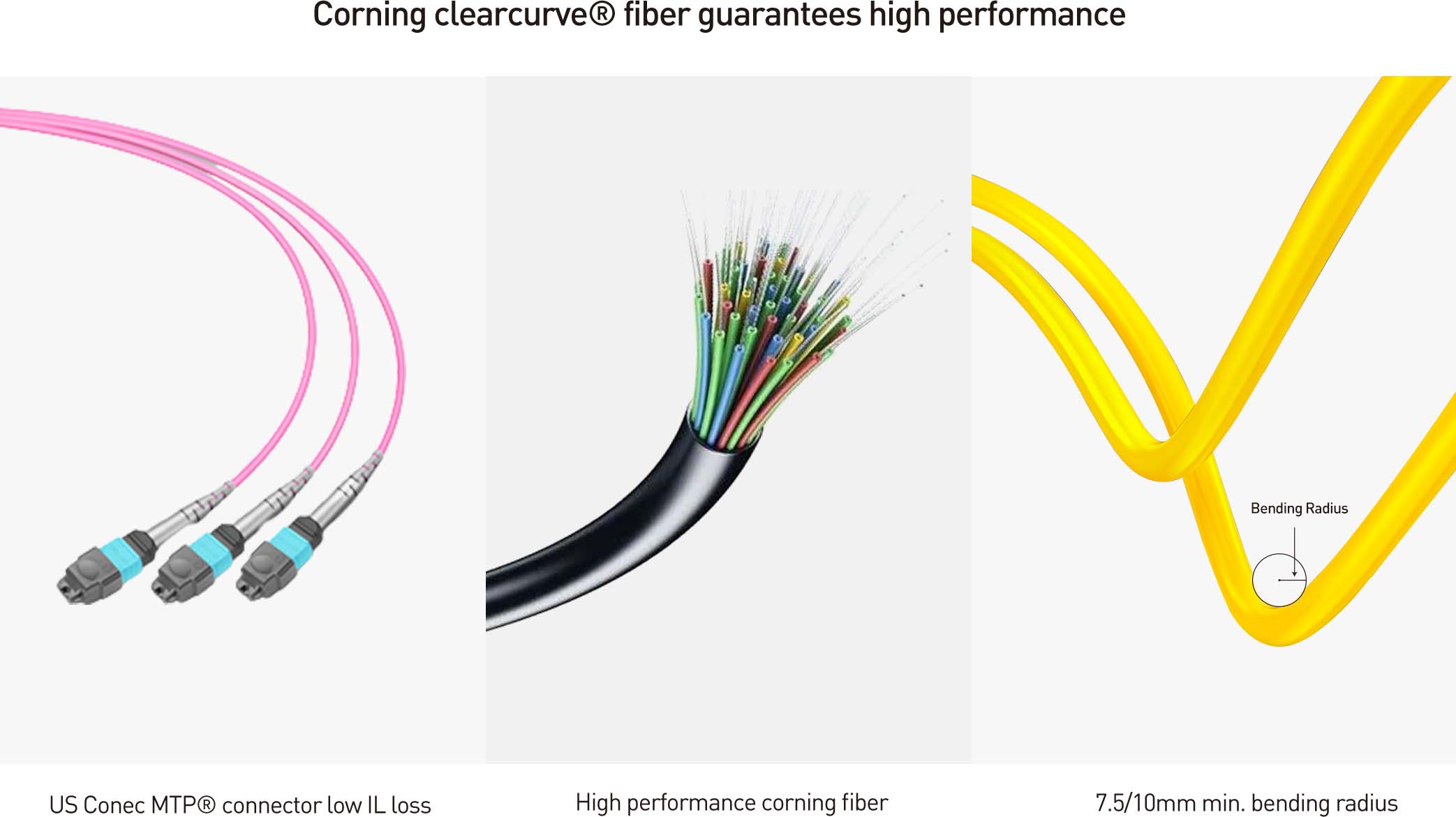

- Min. Bend Radius(Fiber Core)
- 7.5mm
- Min. Bend Radius(Fiber Cable)
- 20/10D (Dynamic/Static)
- Cable Diameter
- 3.0mm(Cable OD) 2.0mm(Breakout OD)
- Tensile Strength
- 80/150N (Long/Short Term)
- Connector Durability
- ≥ 500 - 1000 times
- Operating Temperature
- 20~70°C
Technical detail
Construction and application notes for M4MTPALCU16F
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction
Polarity and routing
Inspection and installation
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
