M4MPOA128M2 | MPO Male to MPO Male 16x8F to 16x8F Type 2 Fiber Cable
MPO Male to MPO Male 16x8F to 16x8F Type 2 Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
Fiber Cabling
MPO Male to Male Type B Fiber Cable | MF-S192MPOMAB
Catalog reference: 5m (16ft) Pre-terminated MPO Trunk Cable, 192 Fibers, 16 x MPO-12 APC (Male) to 16 x MPO-12 APC (Male) Single Mode (OS2) Type B, LSZH, 0.35dB Max, Breakout 80cm, Double Jacket, Yellow
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
192 Fiber OS2 5m (16ft) MPO Single Mode trunk cable with pre-terminated Type B polarity, connects to MPO adapter panels. Its durable LSZH dual-jacket design enhances tensile strength, designed for high-density data center cabling, offering low loss, fast deployment and scalable backbone connectivity.
Family mf-s192mpomab-103602Model MF-S192MPOMAB34 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103602 - Model MF-S192MPOMAB
192 Fiber OS2 MPO Trunk Cable, Pre-terminated Type B 5m (16ft) 16 x MPO-12 APC (Male) to 16 x MPO-12 APC (Male)
192 Fiber OS2 5m (16ft) MPO Single Mode trunk cable with pre-terminated Type B polarity, connects to MPO adapter panels. Its durable LSZH dual-jacket design enhances tensile strength, designed for high-density data center cabling, offering low loss, fast deployment and scalable backbone connectivity.
BrandSUNFULL
Cable Jacket/Flame RatingLSZH
Length5m (16ft)
Confirm passive fiber construction
- Connector Type
- MPO Male to Male
- Fiber Count
- 192 (16x12) Fibers
- Polarity
- Type B
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- Multi-core, high-density design reduces cable count and saves routing space
- On-site "plug and play", fast installation, improved deployment efficiency
- Ultra-low insertion loss and high return loss ensure link consistency
- LSZH sheath, ensure safe indoor deployment and OFNP fire safety-rated for use in plenum air spaces
- Flexible adaptation to various network architectures
- Suitable for high-density wiring systems such as data centers, racks, panels, backplanes, etc
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- MPO Male to Male
- Polish Type
- APC to APC
- Polarity
- Type B
- Fiber Mode
- OS2 9/125μm
- Fiber Count
- 192 (16x12) Fibers
- Wavelength
- 1310/1550nm
- Cable Jacket/Flame Rating
- LSZH / OFNP (SKU-dependent)
- Insertion Loss
- ≤0.35dB
- Return Loss
- ≥60dB
- Attenuation at 1310 nm
- ≤0.35 dB/km
- Attenuation at 1550 nm
- ≤0.21 dB/km
- Cable Outside Diameter (OD)
- 17.0-17.8mm
- Breakout Outside Diameter (OD)
- 3.0mm
- Tensile Strength
- 250/800N (Long/Short Term)
- Connector Durability
- ≥ 500 - 1000 times
- Breakout Length
- 0.8m
- Operating Temperature
- LSZH: -20~70°C OFNP: 0~70°C
Technical detail
Construction and application notes for MF-S192MPOMAB
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction

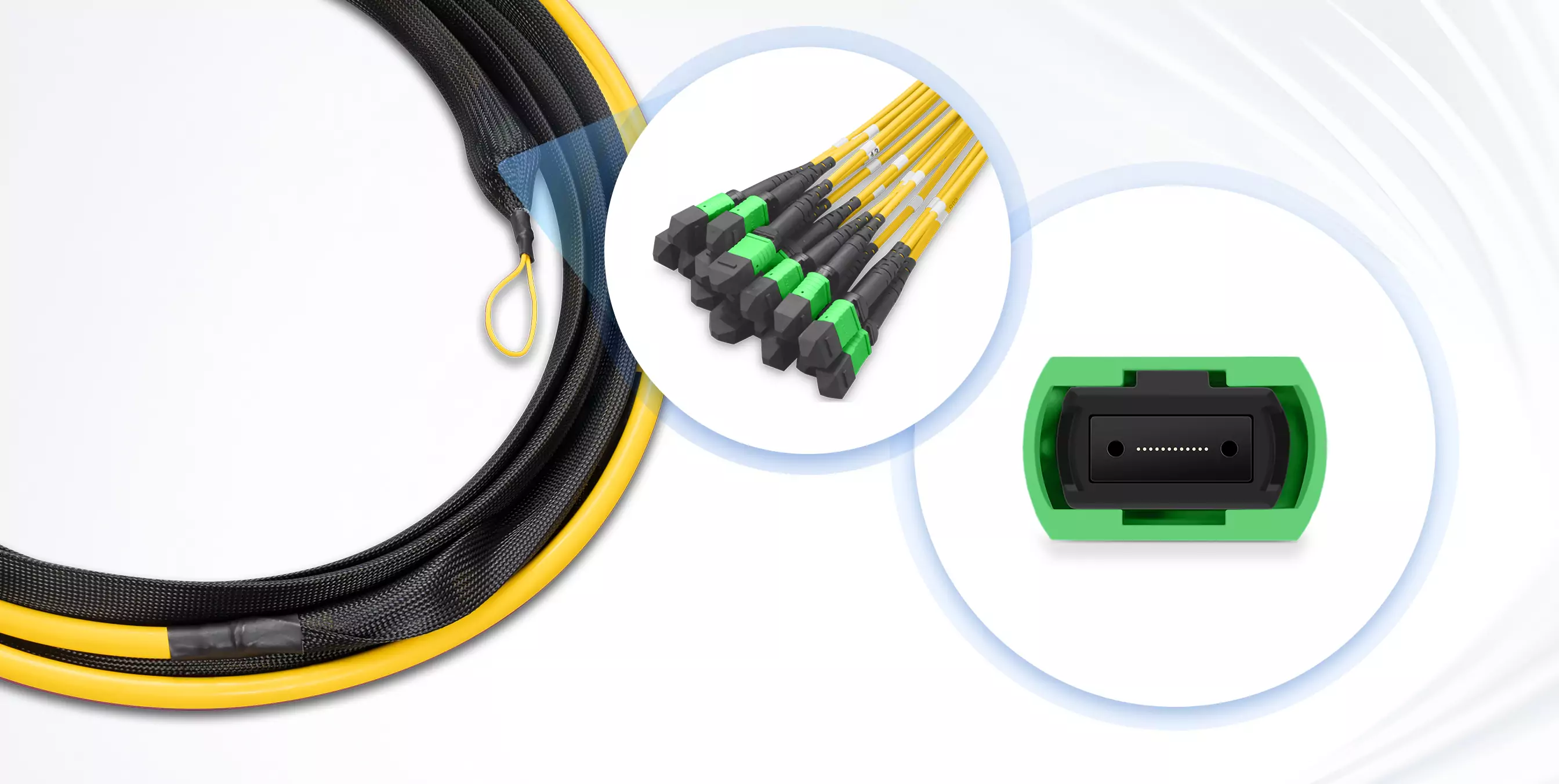

MPO trunk cables feature a double-sheath design to enhance tensile strength. They are pre-terminated and rigorously tested before leaving the factory, enabling true "plug and play" and quick installation. They are the best choice for high-density cabling scenarios, combining durability and stability.
Polarity and routing

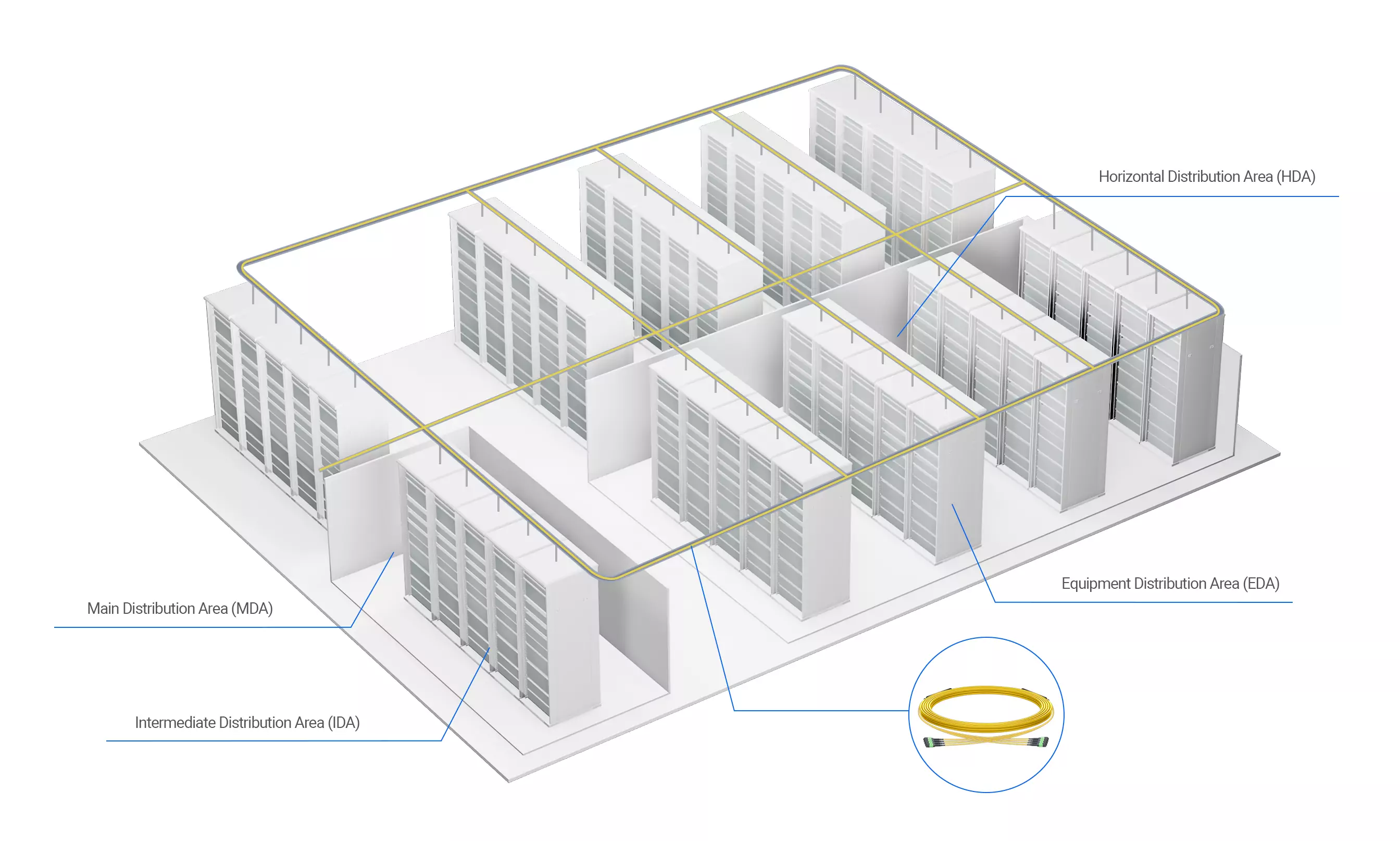

high-density MPO trunk cables are available in 48, 72, 96, and 192 fibers. They comply with TIA/EIA and IEC standards, delivering low insertion loss and high return loss to support 40G, 100G, 400G, and higher-speed transmission. Designed for backbone interconnections between MDA, IDA, and EDA in data centers, they simplify high-density cabling management and provide a reliable foundation for scalable infrastructure deployment.
