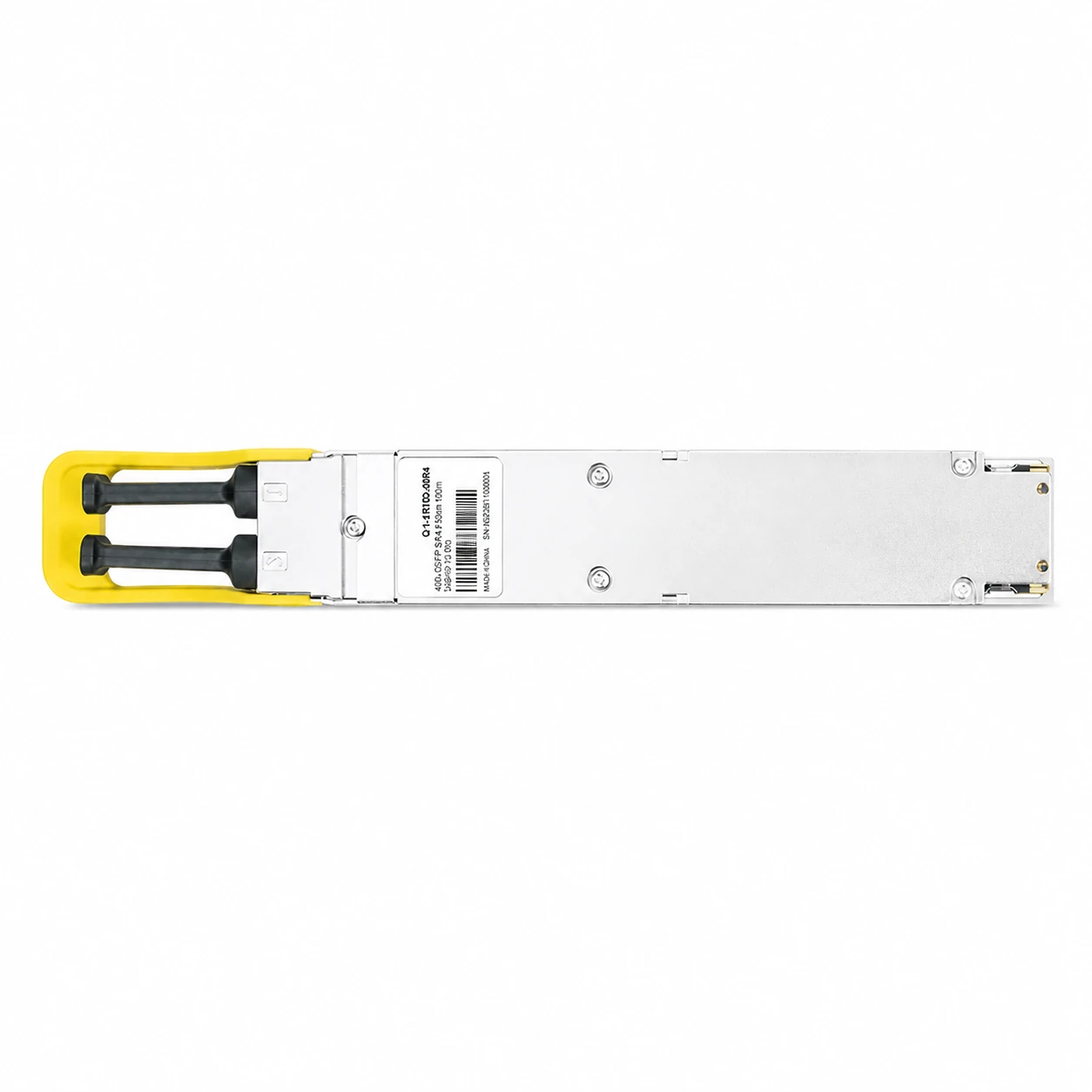

NVIDIA/Mellanox Compatible 1.6T OSFP224 2xDR4 1310nm 500m SMF PAM4 LRO Optical Transceiver

RoCE Ethernet Interconnects

1.6T OSFP224 2xDR4 500m Transceiver | O-1.6TLRO-2DR4 / NVIDIA/Mellanox

Catalog reference: NVIDIA/Mellanox Compatible 1.6TBASE-2xDR4 OSFP IHS/Finned Top 8x200G PAM4 1310nm 500m SMF DOM Dual MPO-12/APC Linear-drive Receive Optics (LRO) Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox compatible 1.6T OSFP224 LRO transceiver eliminates receive-side DSP to reduce power and latency, consuming ≤17W while lowering cooling requirements and maintaining reliable signal transmission with seamless interoperability. This enables more efficient and scalable next-generation 1.6T network deployments. Ideal for AI clusters, HPC systems, and 1.6T networking.

Family o-1-6tlro-2dr4-104563Model O-1.6TLRO-2DR42 SKU options

Requested part-number references

Requested coding target: NVIDIA/Mellanox
Primary reference identifier: Not provided in the source record

No OEM part-number alias was captured in the source record.

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 104563 - Model O-1.6TLRO-2DR4

NVIDIA/Mellanox Compatible 1.6T OSFP224 2xDR4 1310nm 500m SMF PAM4 LRO Optical Transceiver

BrandSUNFULL

Compatible brand / platformNVIDIA/Mellanox (Ethernet)

Select compatibility target

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents

Low power consumption ≤17W.
Linear Receive Optics (LRO) technology reduces power consumption while maintaining signal integrity.
Lower latency and improved energy efficiency compared to fully retimed optics.
Compliant with Hot Pluggable OSFP MSA Rev5.0, CMIS and IEEE 802.3df standards.
Class 1/1M laser safety certified and RoHS compliant (lead-free).
Supports DDM (Digital Diagnostic Monitoring).

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor: OSFP224
Distance: 500m
Wavelength: 1310nm
Connector: Dual MPO-12/APC
Power Consumption: ≤17W
Transmitter: 1310nm Laser
Receiver: PIN + TIA
Media: SMF
Modulation (electrical): 8x212Gb/s PAM4
Modulation (Optical): Two ports 4x212Gb/s PAM4
Case Temperature(℃): 15 to 70°C (59 to 158°F)
Protocol: 1.6T Ethernet Compliant

Technical detail

Construction and application notes for O-1.6TLRO-2DR4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

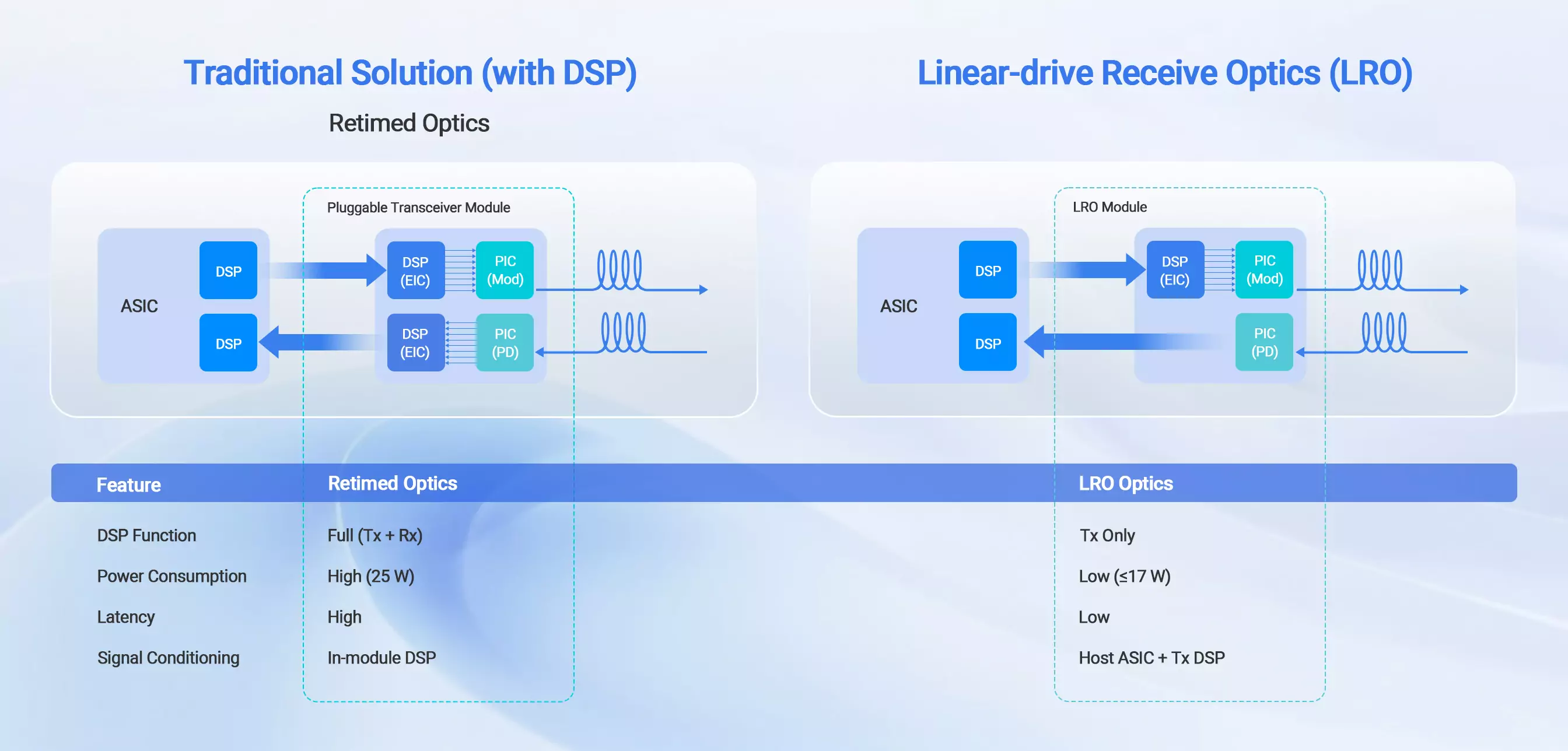

Unlike conventional retimed optics with full DSP (Tx+Rx), LRO eliminates the receive-side DSP. This reduces module power consumption to ≤17W from 25W, saving over 8W per module to improve energy efficiency and lower cooling costs. The linear receive architecture shortens signal processing paths for lower latency, while the retimed transmit path ensures robust link compatibility across diverse host platforms. Optimized for next-generation AI clusters, HPC systems, and 1.6T networking, LRO provides an ideal balance of power, latency, and interoperability for large-scale AI fabrics.
