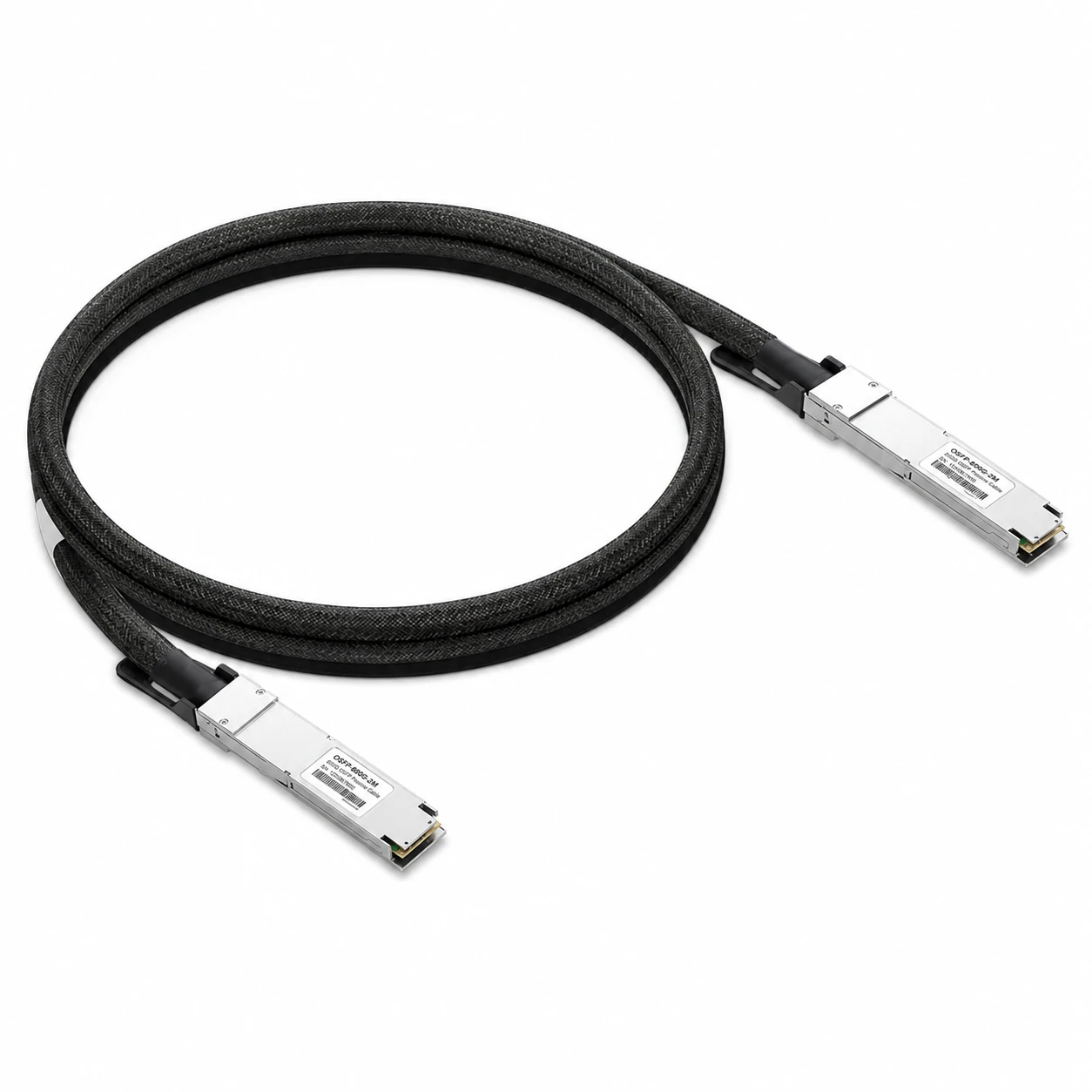

980-9IAM1-00X001 | OSFP-1.6T-AC11FH | DAC
1.6T OSFP224 1.1m (3.6ft) DAC with 1 exact SKU option. Confirm the host, port and firmware before quotation.
RoCE Ethernet Interconnects
1.6T OSFP224 1.1m (3.6ft) DAC | OSFP-1.6T-AC11F / MCA4K00-X001-RHS
Catalog reference: 1.1m (3.6ft) NVIDIA/Mellanox Coding Target MCA4K00-X001-RHS Compatible 1.6T ACC OSFP224 RHS/Flat Top 8x200G PAM4 to OSFP224 RHS/Flat Top 8x200G PAM4 Active Copper Cable for Liquid-Cooled Spectrum-6 SN6600-LD Switch
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
1.1m (3.6ft) twin port 1.6T to 2x800G active copper splitter cable with OSFP224 flat top to flat top connectors, NVIDIA/Mellanox compatible - ideal for AI data center connectivity.
Family osfp-1-6t-ac11f-103826Model OSFP-1.6T-AC11F2 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- MCA4K00-X001-RHS
Part-number identifiers and aliases available for matching:
- MCA4K00-X001-RHS
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103826 - Model OSFP-1.6T-AC11F

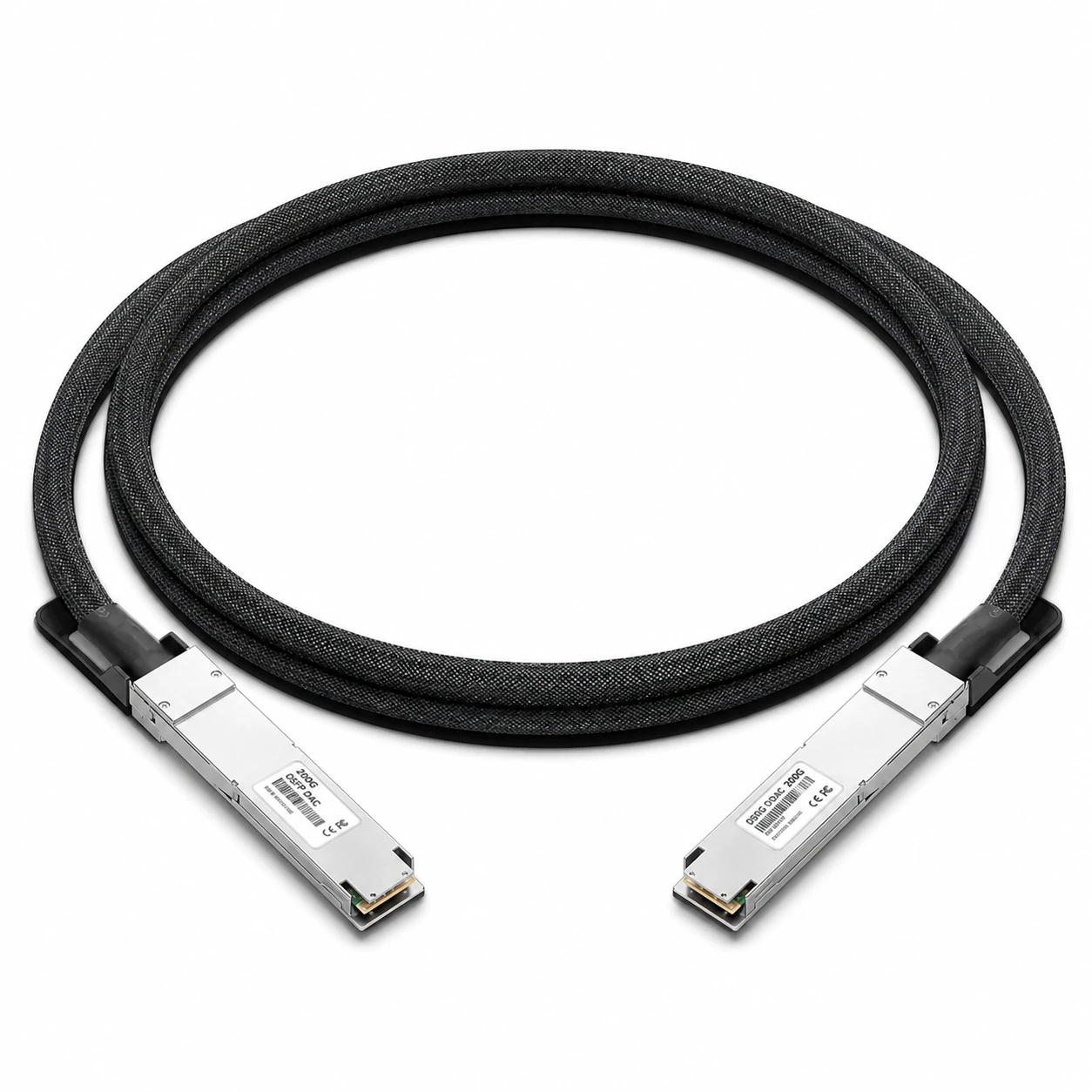

NVIDIA/Mellanox Compatible 1.1m (3.6ft) 1.6T OSFP224 RHS/Flat Top Active Direct Attach Copper Cable for Liquid-Cooled Spectrum-6 SN6600-LD Switch
1.1m (3.6ft) twin port 1.6T to 2x800G active copper splitter cable with OSFP224 flat top to flat top connectors, NVIDIA/Mellanox compatible - ideal for AI data center connectivity.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Length1.1m (3.6ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Maximum power consumption 2.5W.
- 8x 200G-PAM4 Electrical Modulation.
- Ultra-low insertion loss ensures no bandwidth bottlenecks in AI clusters.
- High-shielded copper structure ensures extreme crosstalk & EMI resistance.
- Compliant with OSFP MSA.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP224
- Cable Length
- 1.1m (3.6ft)
- Wire AWG
- 26 AWG
- Commercial Temperature Range
- 0~70°C (32 to 158°F)
- Jacket Material
- PET
- Power Consumption
- 2.5W
- Minimum Bend Radius
- 10xOD
- Application
- 1.6T Ethernet Compliant
