MCA4K00-X001-RHS | OSFP-1.6T-AC11F | DAC
1.6T OSFP224 1.1m (3.6ft) DAC with 2 exact SKU options. Confirm the host, port and firmware before quotation.
InfiniBand Interconnects
1.6T OSFP224 1.1m (3.6ft) DAC | OSFP-1.6T-AC11FH / 980-9IAM1-00X001
Catalog reference: 1.1m (3.6ft) NVIDIA/Mellanox Coding Target MCA4K00-X001-RHS (980-9IAM1-00X001/980-9IAM2-00X001) Compatible 1.6T ACC OSFP224 RHS/Flat Top 8x200G PAM4 to OSFP224 RHS/Flat Top 8x200G PAM4 InfiniBand XDR Active Copper Cable
Also requested as: 980-9IAM2-00X001
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
1.1m (3.6ft) InfiniBand twin port XDR 1.6T to 2x800G active copper splitter cable with OSFP224 flat top to flat top connectors, NVIDIA/Mellanox compatible - ideal for AI data center connectivity.
Family osfp-1-6t-ac11fh-102791Model OSFP-1.6T-AC11FH1 SKU option
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9IAM1-00X001
Part-number identifiers and aliases available for matching:
- 980-9IAM1-00X001
- 980-9IAM2-00X001
- MCA4K00-X001-RHS
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102791 - Model OSFP-1.6T-AC11FH

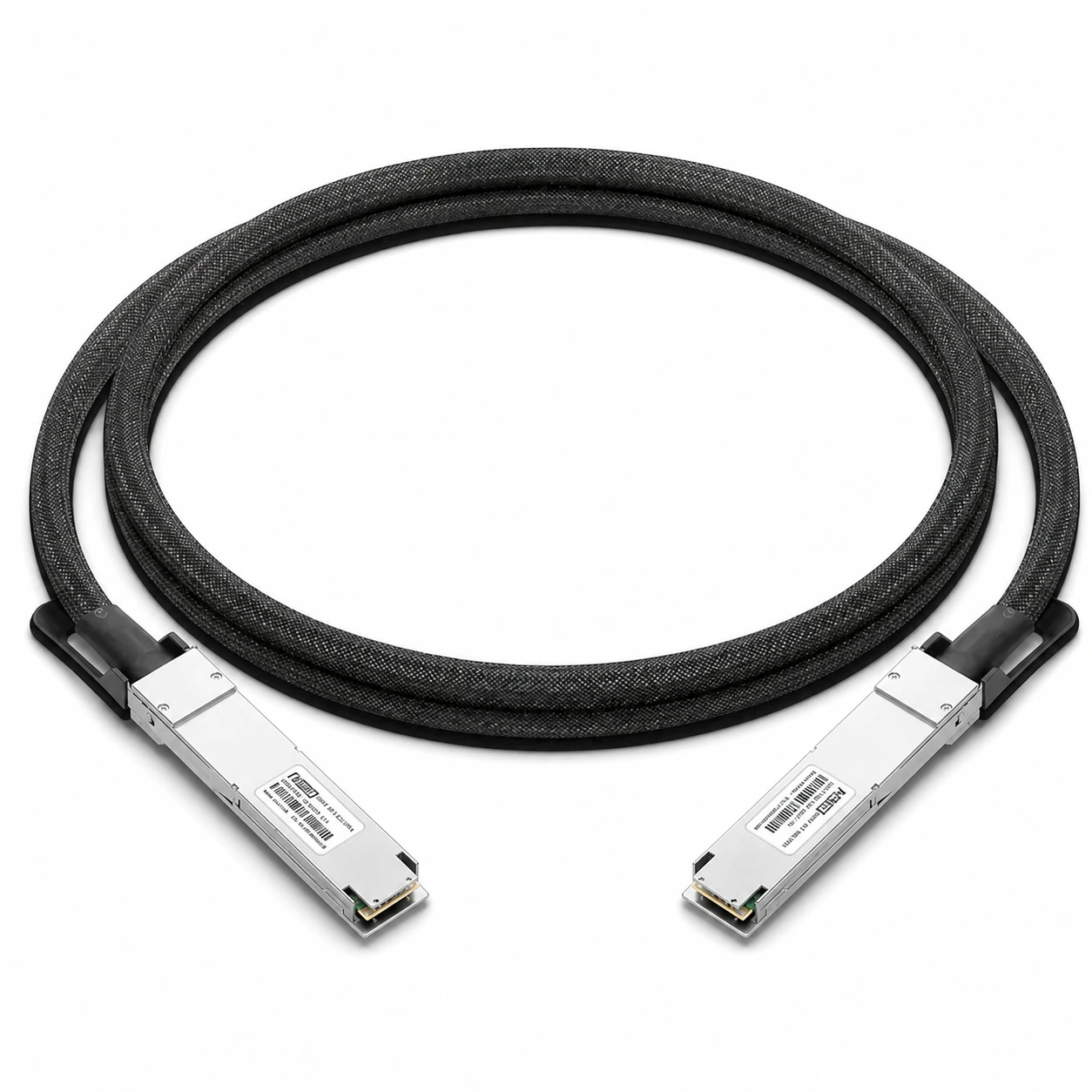

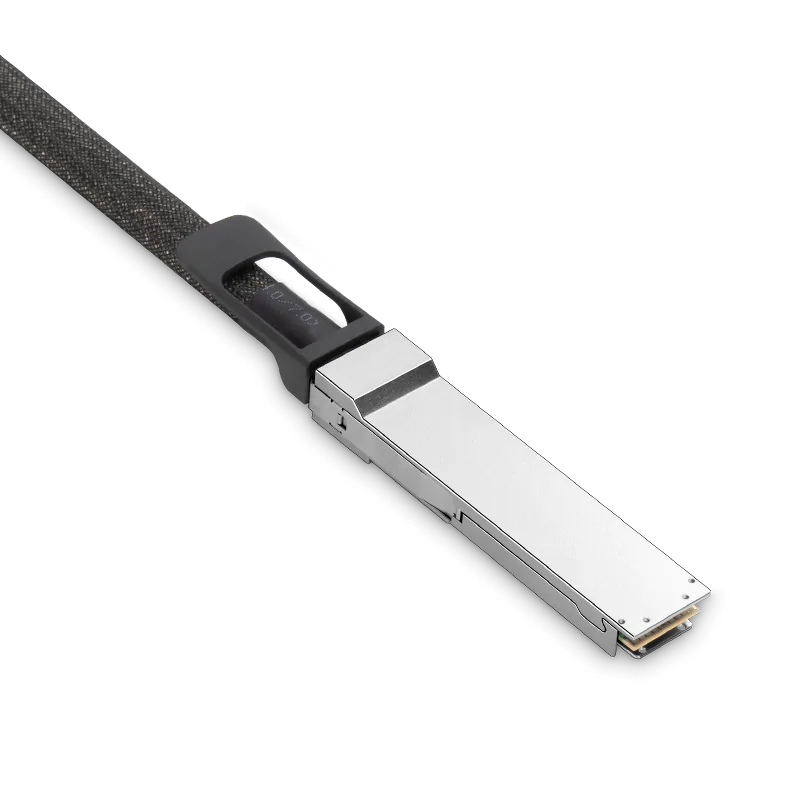

NVIDIA/Mellanox Compatible 1.6T OSFP224 RHS/Flat Top InfiniBand XDR Active Direct Attach Copper Cable
1.1m (3.6ft) InfiniBand twin port XDR 1.6T to 2x800G active copper splitter cable with OSFP224 flat top to flat top connectors, NVIDIA/Mellanox compatible - ideal for AI data center connectivity.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length1.1m (3.6ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Maximum power consumption 2.5W.
- 8x 200G-PAM4 Electrical Modulation.
- Ultra-low insertion loss ensures no bandwidth bottlenecks in AI clusters.
- High-shielded copper structure ensures extreme crosstalk & EMI resistance.
- Compliant with OSFP MSA.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP224
- Cable Length
- 1.1m (3.6ft)
- Wire AWG
- 26 AWG
- Commercial Temperature Range
- 0~70°C (32 to 158°F)
- Jacket Material
- PET
- Power Consumption
- 2.5W
- Minimum Bend Radius
- 10xOD
- Application
- IB XDR, 1.6T Ethernet Compliant
