NVIDIA/Mellanox Coding Target MCA4K50-X001 (980-9IAM5-00X001) Compatible 1.6T OSFP224 InfiniBand XDR Active Direct Attach...

InfiniBand Interconnects

1.6T OSFP224 1.1–3m DAC | OSFP-1.6T-AC11H / 980-9IAM3-00X002

Catalog reference: 1.1m (3.6ft) NVIDIA/Mellanox Coding Target MCA4K50-X001 (980-9IAM5-00X001) Compatible 1.6T ACC OSFP224 IHS/Closed Finned Top 8x200G PAM4 to OSFP224 IHS/Closed Finned Top 8x200G PAM4 InfiniBand XDR Active Copper Cable

Also requested as: 980-9IAM3-00X02A, 980-9IAM5-00X001, 980-9IAM5-00X01A

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

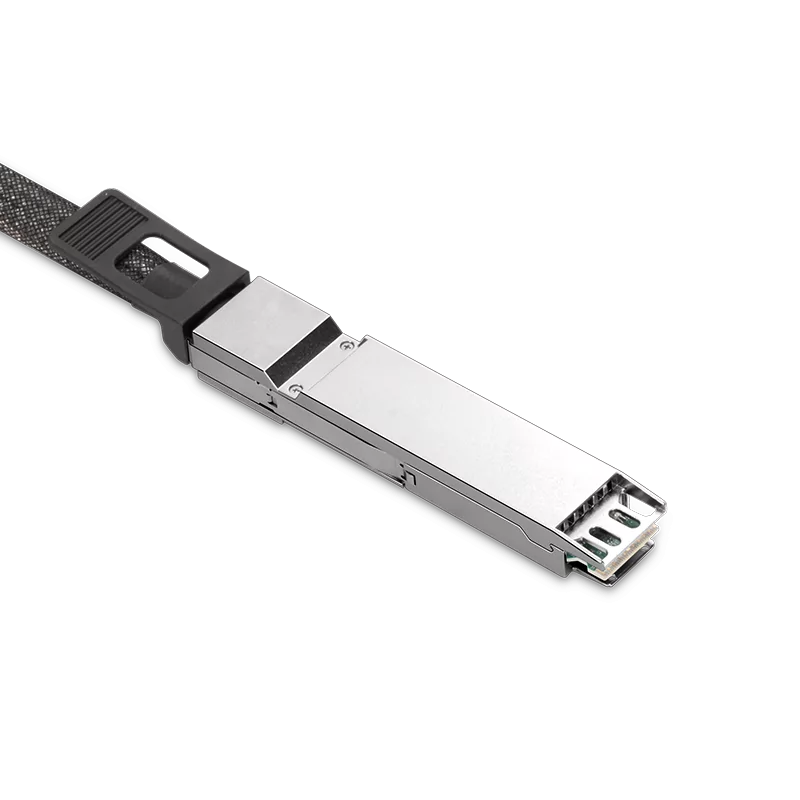

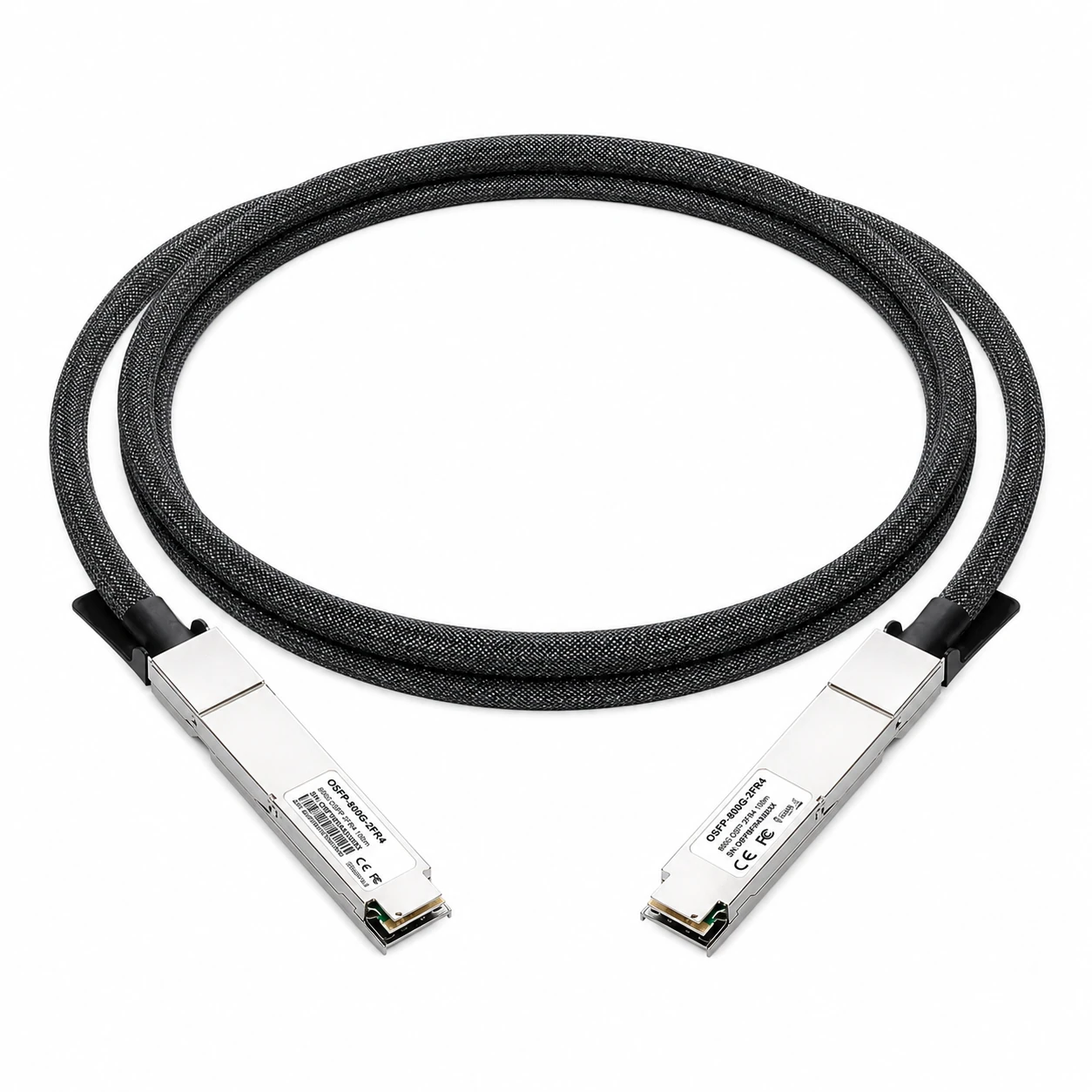

NVIDIA/Mellanox Coding Target MCA4K50-X001 (980-9IAM5-00X001) compatible 1.1m InfiniBand XDR 1.6T/s twin-port OSFP224-to-2x800Gb/s twin-port OSFP224 (Integrated Heat Sink to Integrated Heat Sink) active copper cable delivers low-latency connectivity tailored for AI data centers.

Family osfp-1-6t-ac11h-102716Model OSFP-1.6T-AC11H5 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9IAM3-00X002

Part-number identifiers and aliases available for matching:

  • 980-9IAM3-00X002
  • 980-9IAM3-00X02A
  • 980-9IAM5-00X001
  • 980-9IAM5-00X01A
  • MCA4K50-X001
  • MCA4K50-X002
  • MCA4K50-X01A
  • MCA4K50-X02A

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102834 - Model OSFP-1.6T-AC11H

NVIDIA/Mellanox Coding Target MCA4K50-X001 (980-9IAM5-00X001) Compatible 1.6T OSFP224 InfiniBand XDR Active Direct Attach Copper Cable, IHS to IHS

NVIDIA/Mellanox Coding Target MCA4K50-X001 (980-9IAM5-00X001) compatible 1.1m InfiniBand XDR 1.6T/s twin-port OSFP224-to-2x800Gb/s twin-port OSFP224 (Integrated Heat Sink to Integrated Heat Sink) active copper cable delivers low-latency connectivity tailored for AI data centers.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length1.1m (3.6ft)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Maximum power consumption 2.5W.
  • 8x 200G-PAM4 Electrical Modulation.
  • Ultra-low insertion loss ensures no bandwidth bottlenecks in AI clusters.
  • High-shielded copper structure ensures extreme crosstalk & EMI resistance.
  • Compliant with OSFP MSA.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP224
Cable Length
1.1–3m (SKU-dependent)
Wire AWG
26 AWG
Commercial Temperature Range
0~70°C (32 to 158°F)
Jacket Material
PET
Power Consumption
2.5W
Minimum Bend Radius
10xOD
Application
IB XDR, 1.6T Ethernet Compliant

Technical detail

Construction and application notes for OSFP-1.6T-AC11H

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

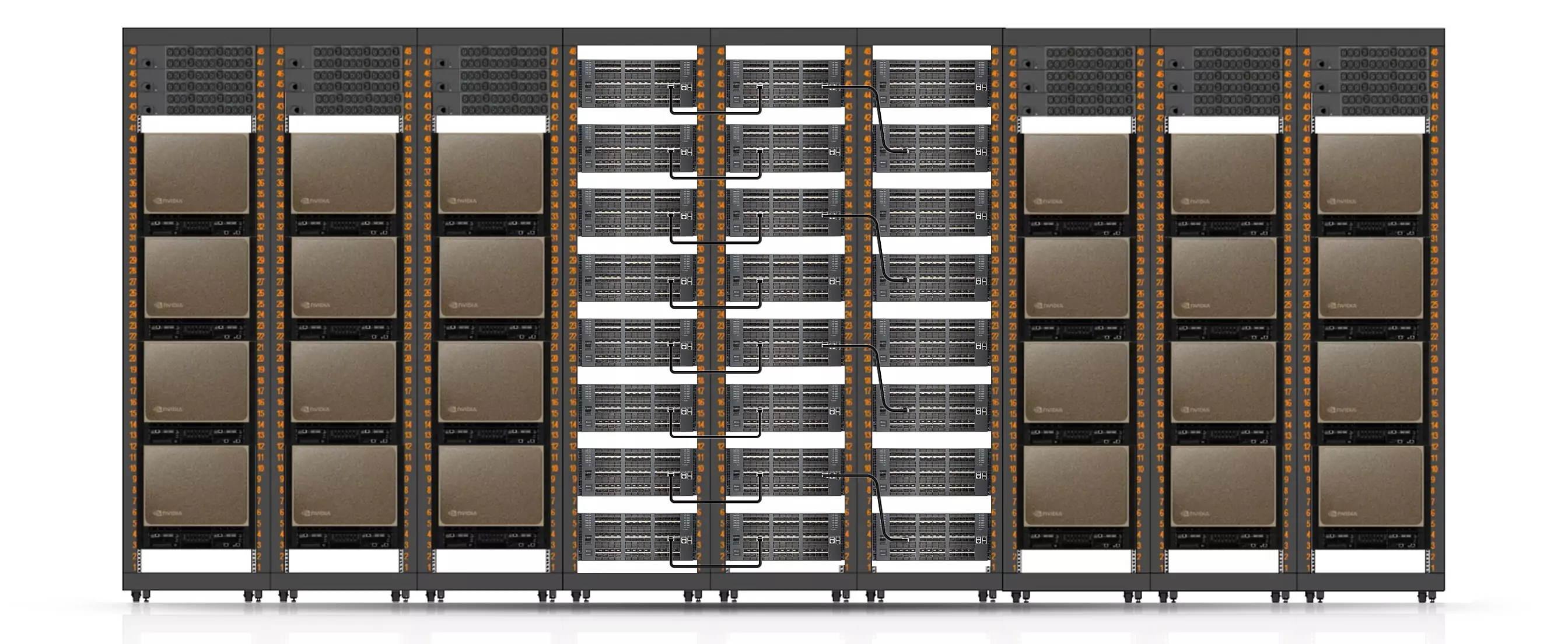

As B300 and GB300 GPU clusters continue to scale, growing rack-level interconnect density and connection counts are increasing deployment and cabling complexity, placing higher demands on interconnect reliability and deployment efficiency. Designed for such high-density GPU clusters, 1.6T ACC enables switch-to-switch interconnects within the same rack and between adjacent racks. Its integrated design reduces connection points, simplifies cabling, and eases deployment and maintenance. Built for high-speed, short-reach connectivity, it delivers reliable performance for large-scale GPU clusters.

NVIDIA/Mellanox Coding Target MCA4K50-X001 (980-9IAM5-00X001) Compatible 1.6T OSFP224 InfiniBand XDR Active Direct Attach... detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 1 6T Acch Datasheet
