MFS1S90-H003E | 2Q2Q56-200G-A3H | AOC
200G 2xQSFP56 to 2xQSFP56 3–30m AOC with 6 exact SKU options. Confirm the host, port and firmware before quotation.
InfiniBand Interconnects
200G OSFP 3m~100m AOC | O1Q56-200G-A3FH / NVIDIA/Mellanox
Catalog reference: 3m (10ft) NVIDIA/Mellanox Compatible 200G AOC OSFP RHS/Flat Top 4x50G PAM4 to 200G QSFP56 4x50G PAM4 InfiniBand HDR Active Optical Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target 3m (10ft) 200GBase-AOC OSFP to QSFP56 for InfiniBand HDR connectivity with QM8700 switches, delivering efficient short-reach links for AI training, HPC clusters, and data center workloads.
Family o1q56-200g-a3fh-103164Model O1Q56-200G-A3FH7 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103164 - Model O1Q56-200G-A3FH

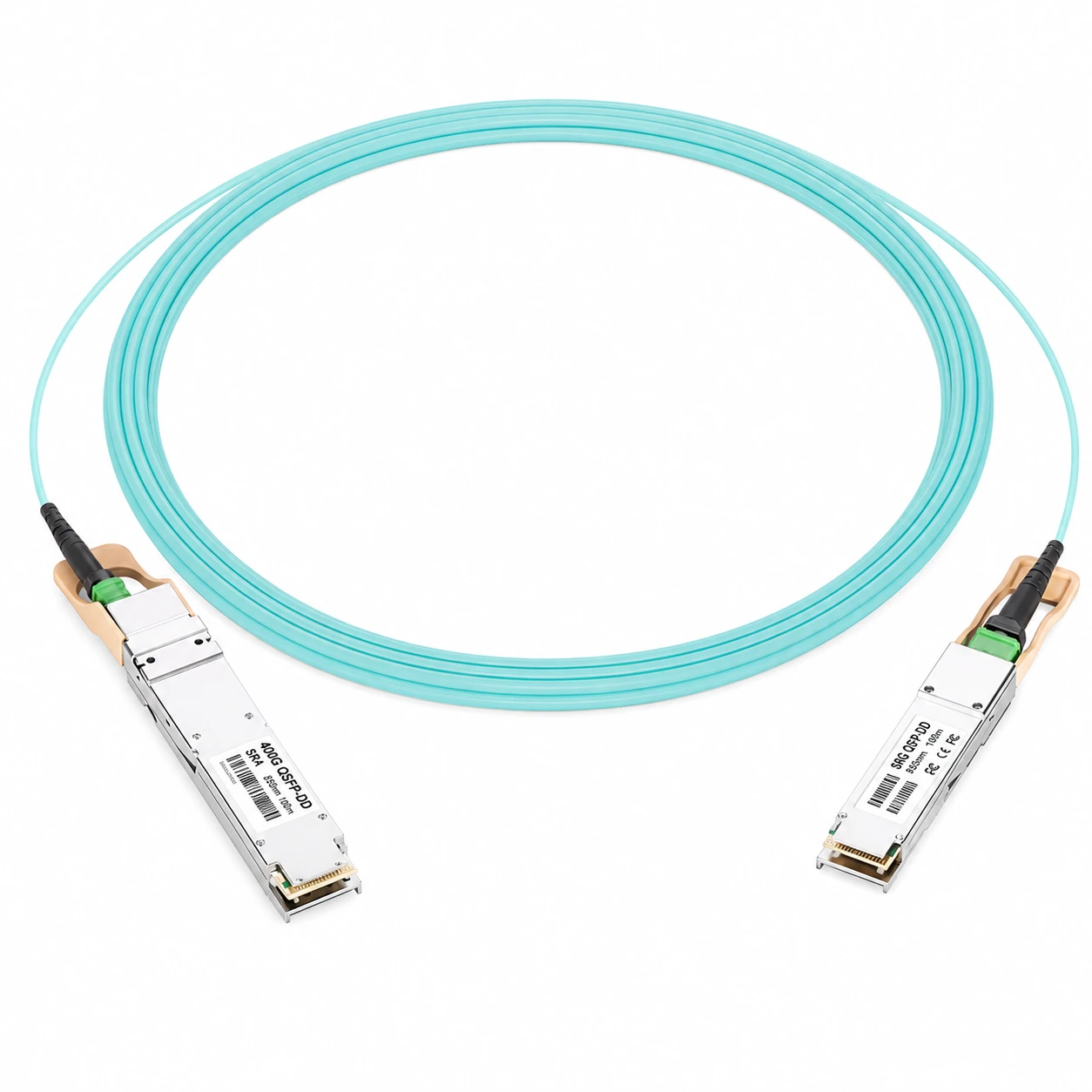

NVIDIA/Mellanox Coding Target InfiniBand HDR OSFP 200G(Flat Top) to QSFP56 200G(Flat Top) AOC Cable 3m
NVIDIA/Mellanox Coding Target 3m (10ft) 200GBase-AOC OSFP to QSFP56 for InfiniBand HDR connectivity with QM8700 switches, delivering efficient short-reach links for AI training, HPC clusters, and data center workloads.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox
Length3m (10ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP Flat Top to QSFP56
- Distance
- 3m~100m
- Commercial Temperature Range
- 0~70°C(32 to 158°F)
- Wavelength
- 850nm
- Jacket Material
- LSZH
- Power Consumption
- ≤10W（OSFP） ≤5W（QSFP56）
- Minimum Bend Radius
- 30mm
- Application
- IB HDR,200G Ethernet Compliant
