MMS1W50-HM | Q56-200G-FR4 | Transceiver
200G QSFP56 FR4 2km Transceiver with 5 exact SKU options. Confirm the host, port and firmware before quotation.
InfiniBand Interconnects
200G QSFP56 FR4H 2km Transceiver | Q56-200G-FR4H / 980-9I055-00H000
Catalog reference: NVIDIA/Mellanox Coding Target MMS1W50-HM (980-9I055-00H000) Compatible 200G FR4 QSFP56 4x50G PAM4 1310nm 2km SMF DOM LC Duplex InfiniBand HDR Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
Mellanox Coding Target MMS1W50-HM 200G FR4 1310nm 2km Transceiver for InfiniBand HDR QM8790, higher transmission efficiency for Cloud Computing, AI in HPC fields.
Family q56-200g-fr4h-32660Model Q56-200G-FR4H1 SKU option
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9I055-00H000
Part-number identifiers and aliases available for matching:
- 980-9I055-00H000
- MMS1W50-HM
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32660 - Model Q56-200G-FR4H

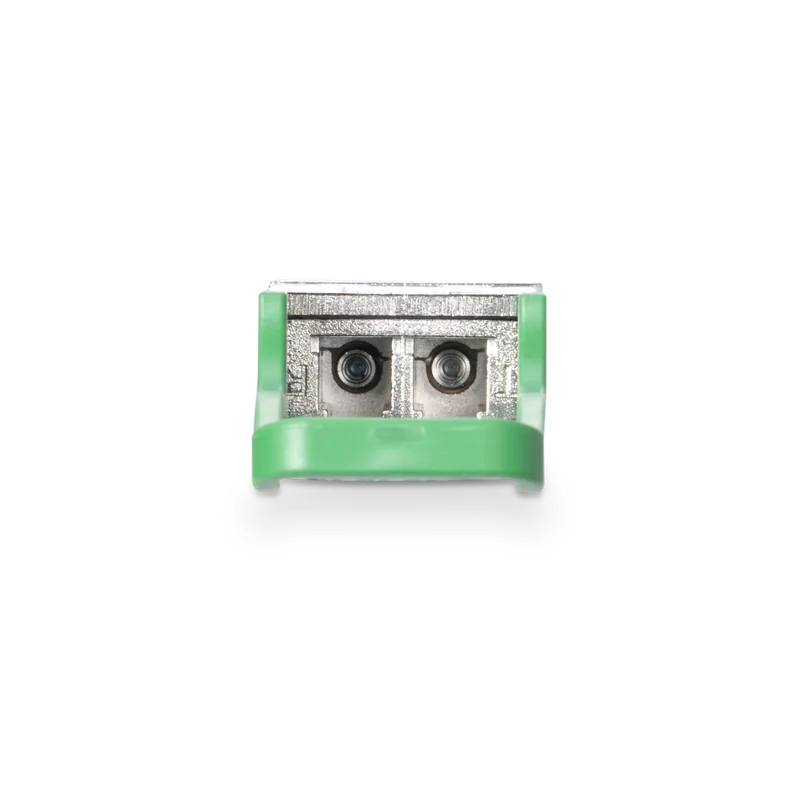

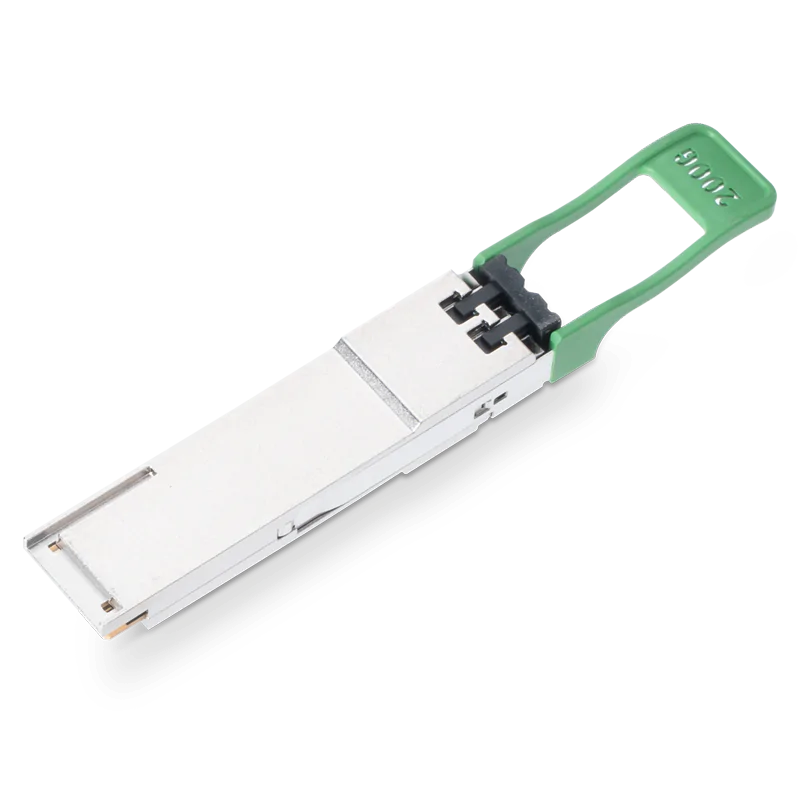

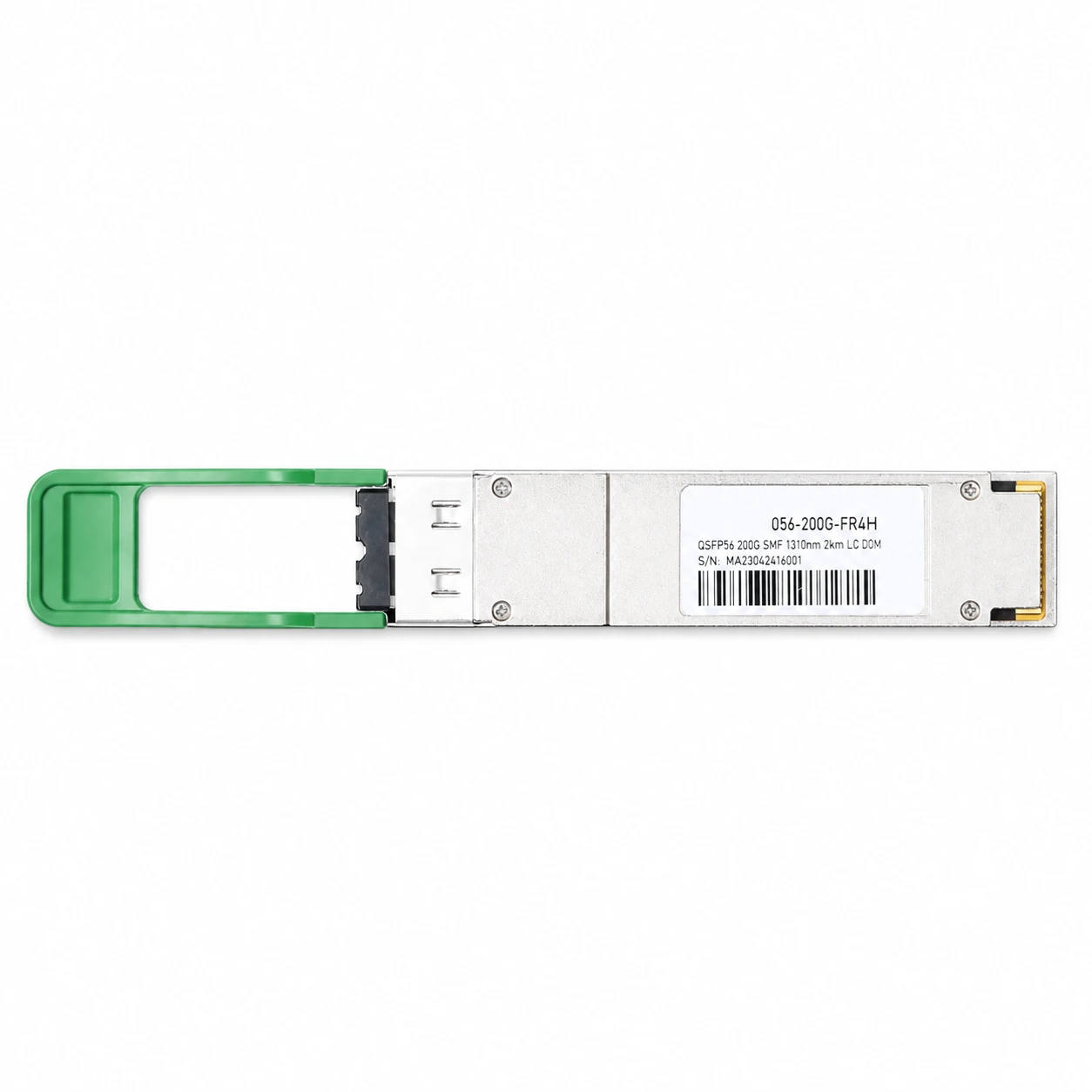

Mellanox Coding Target MMS1W50-HM IB HDR 200GBase FR4 2km QSFP56 Transceiver
Mellanox Coding Target MMS1W50-HM 200G FR4 1310nm 2km Transceiver for InfiniBand HDR QM8790, higher transmission efficiency for Cloud Computing, AI in HPC fields.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Complies with QSFP56 MSA and RoHS protocols, providing a reliable and sustainable solution.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP56
- Distance
- 2km
- Wavelength
- 1310nm
- Connector
- Duplex LC
- Power Consumption
- ≤6W
- Transmitter
- DML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical)
- 4x53.125Gb/s PAM4
- Modulation (Optical)
- 4x53.125Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- IB HDR,200G Ethernet Compliant
