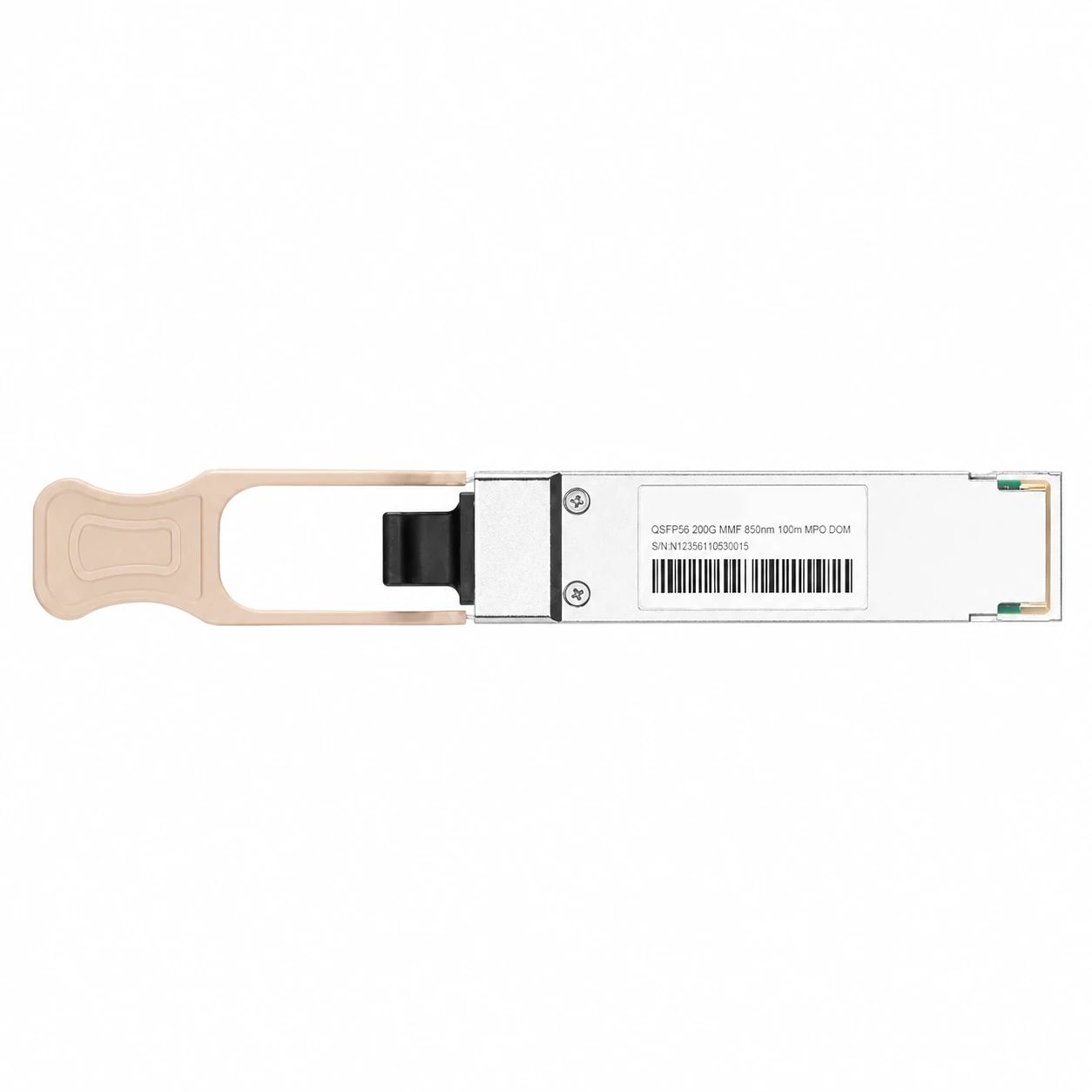

NVIDIA/Mellanox Coding Target MMA1T00-HS InfiniBand HDR 200GBase SR4 100m UPC QSFP56 Transceiver

InfiniBand Interconnects

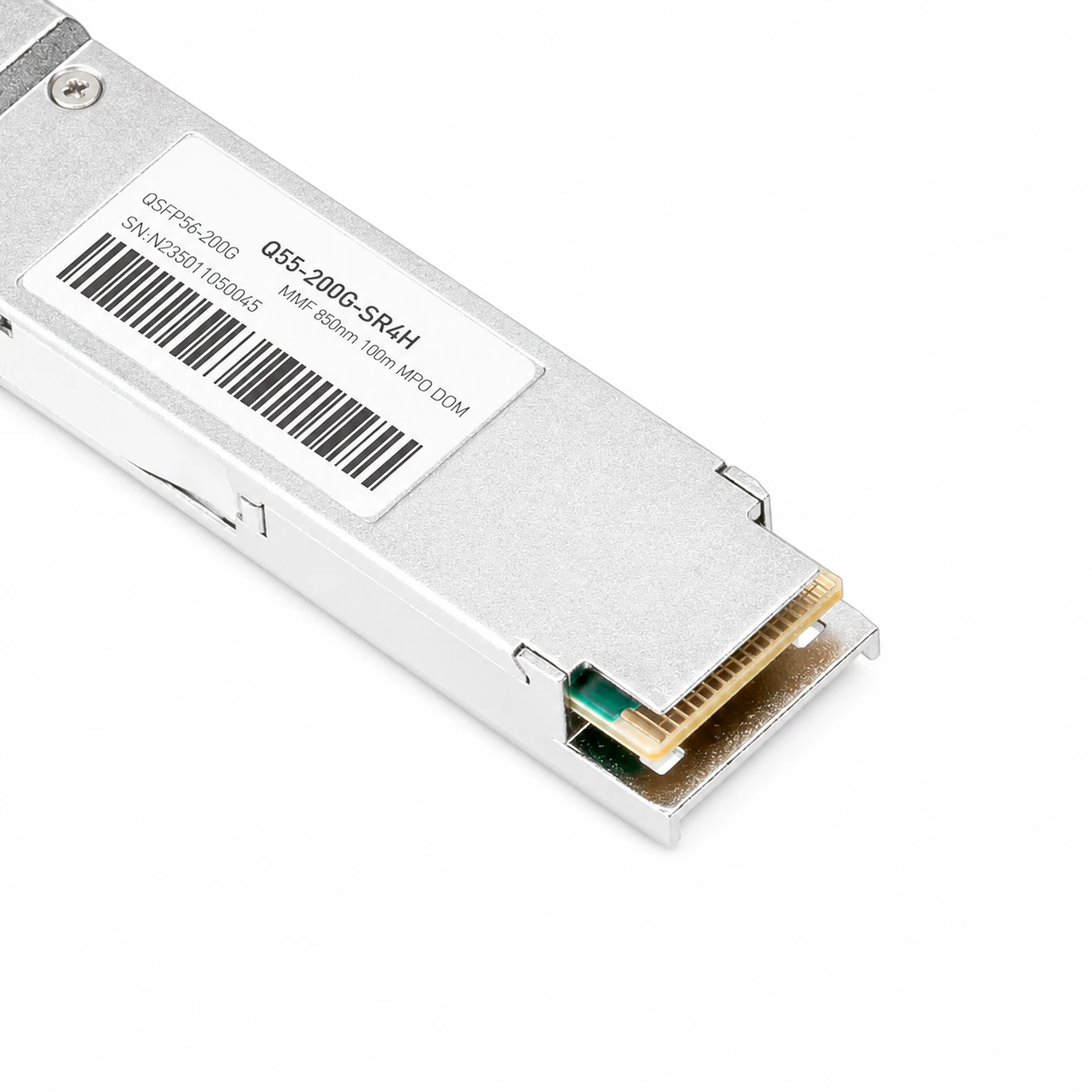

200G QSFP56 SR4H 100m Transceiver | Q56-200G-SR4H / 980-9I17S-00HS00

Catalog reference: NVIDIA/Mellanox Coding Target MMA1T00-HS (980-9I17S-00HS00) Compatible 200G SR4 QSFP56 4x50G PAM4 850nm 100m MMF DOM MPO-12/UPC InfiniBand HDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMA1T00-HS 200GBase SR4 850nm 100m UPC Transceiver for InfiniBand HDR QM8700, for cloud-computing, data-center and HPC links.

Family q56-200g-sr4h-32659Model Q56-200G-SR4H2 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I17S-00HS00

Part-number identifiers and aliases available for matching:

  • 980-9I17S-00HS00
  • MMA1T00-HS

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 32659 - Model Q56-200G-SR4H

NVIDIA/Mellanox Coding Target MMA1T00-HS InfiniBand HDR 200GBase SR4 100m UPC QSFP56 Transceiver

NVIDIA/Mellanox Coding Target MMA1T00-HS 200GBase SR4 850nm 100m UPC Transceiver for InfiniBand HDR QM8700, for cloud-computing, data-center and HPC links.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Polish TypesUPC

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Complies with QSFP56 MSA and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP56
Distance
100m
Wavelength
850nm
Connector
MTP/MPO-12 (UPC/APC)
Power Consumption
≤4.5W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical)
4x50.128Gb/s PAM4
Modulation (Optical )
4x50.128Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB HDR,200G Ethernet Compliant

Technical detail

Construction and application notes for Q56-200G-SR4H

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

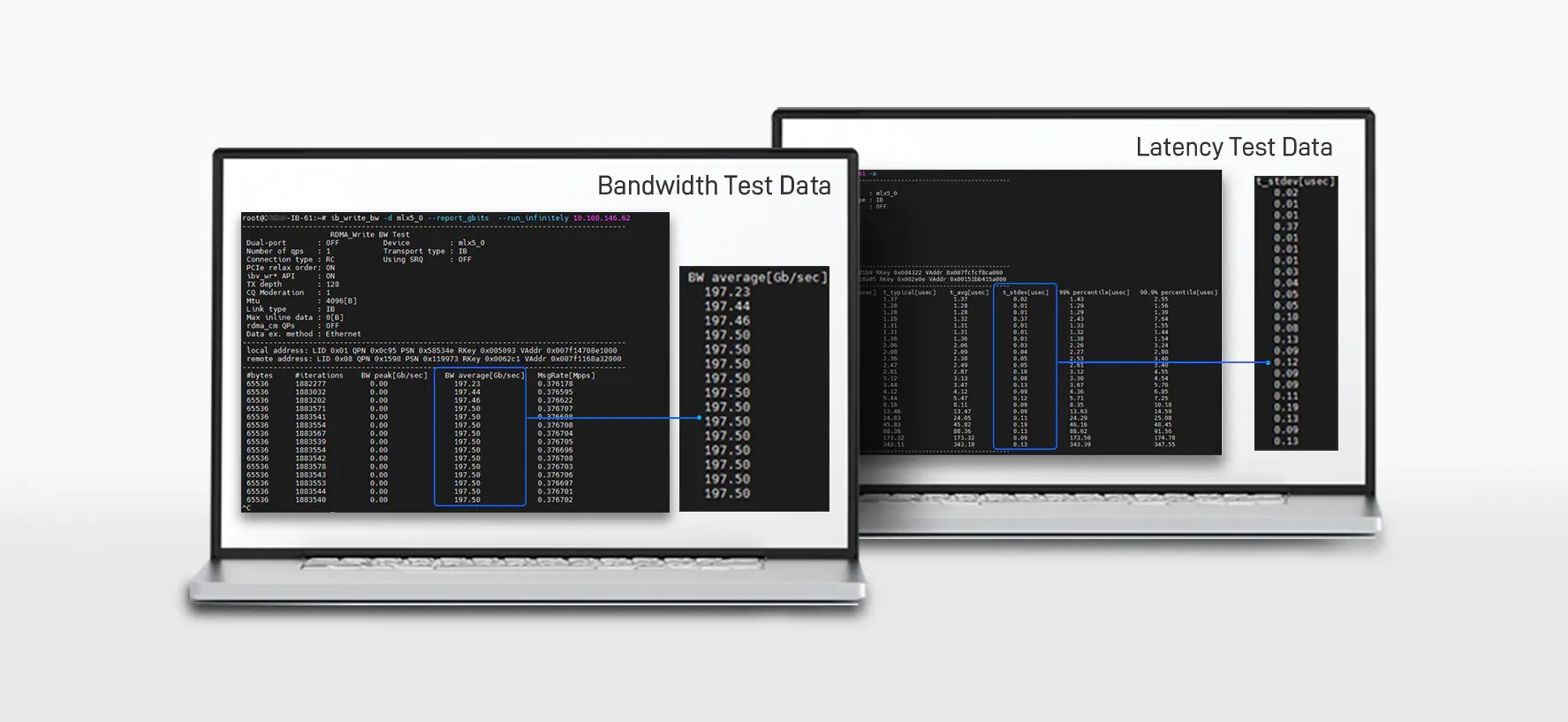

The Q56-200G-SR4H optical transceiver uses a unique chip to reduce power consumption while utilizing the InfiniBand protocol to minimize network latency for short-haul 200G applications up to 100m. The bandwidth and lantency test results in HDR network environment fully meet the requirements of low latency and high bandwidth for HPC network.

NVIDIA/Mellanox Coding Target MMA1T00-HS InfiniBand HDR 200GBase SR4 100m UPC QSFP56 Transceiver detail

Application and routing

optimizes PCB routing and case thermal conductivity to reduce EMI and supply voltage of functional circuits, ensuring optimal performance.

Installation and validation

has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.

NVIDIA/Mellanox Coding Target MMA1T00-HS InfiniBand HDR 200GBase SR4 100m UPC QSFP56 Transceiver detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Q56 200G Sr4H DatasheetQ56 200G Sr4H A Datasheet
