980-9I055-00H000 | Q56-200G-FR4H | Transceiver
200G QSFP56 FR4H 2km Transceiver with 1 exact SKU option. Confirm the host, port and firmware before quotation.
RoCE Ethernet Interconnects
200G QSFP56 FR4 2km Transceiver | Q56-200G-FR4 / MMS1W50-HM
Catalog reference: NVIDIA/Mellanox Coding Target MMS1W50-HM (980-9I055-00H000) Compatible 200GBASE-FR4 QSFP56 4x50G PAM4 1310nm 2km SMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

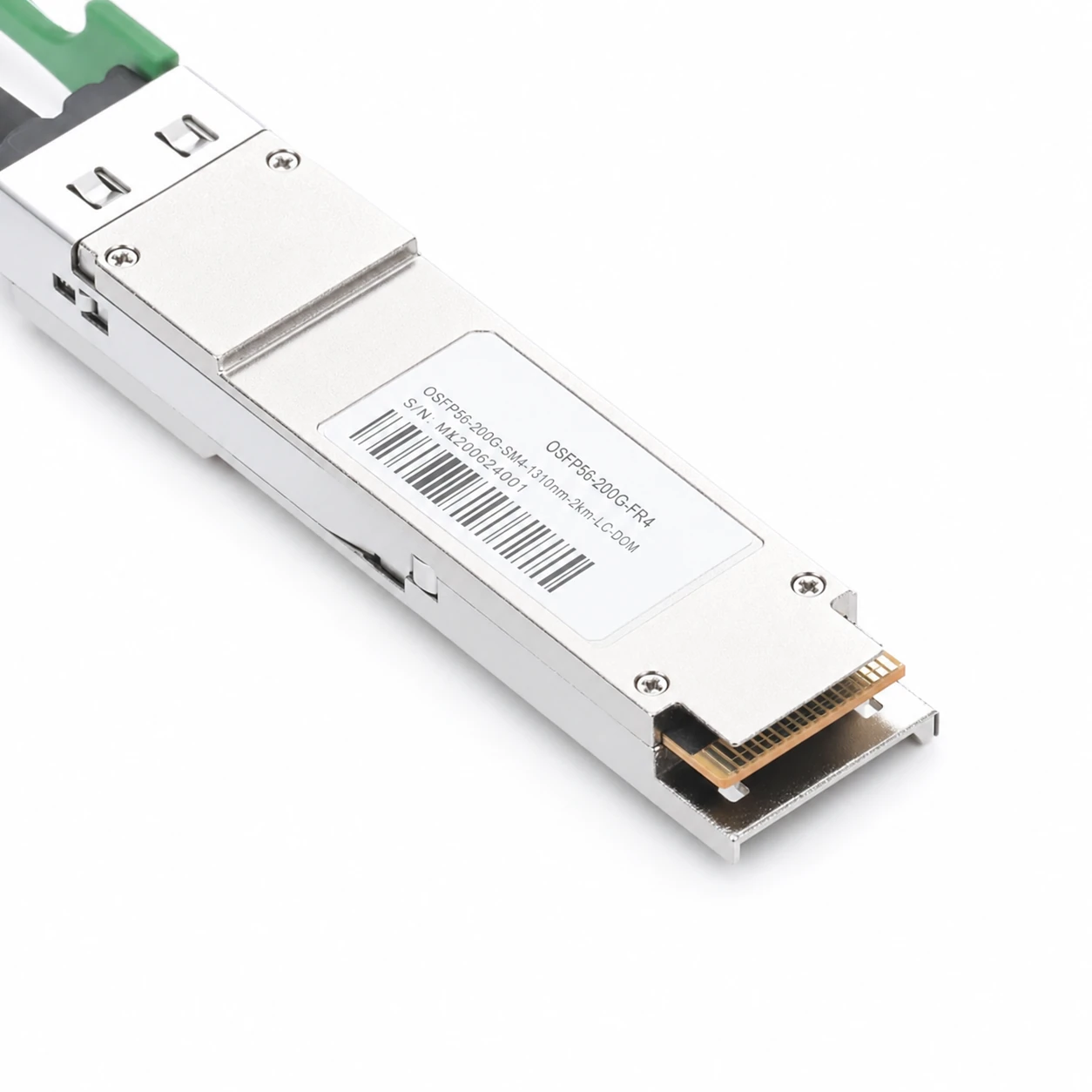

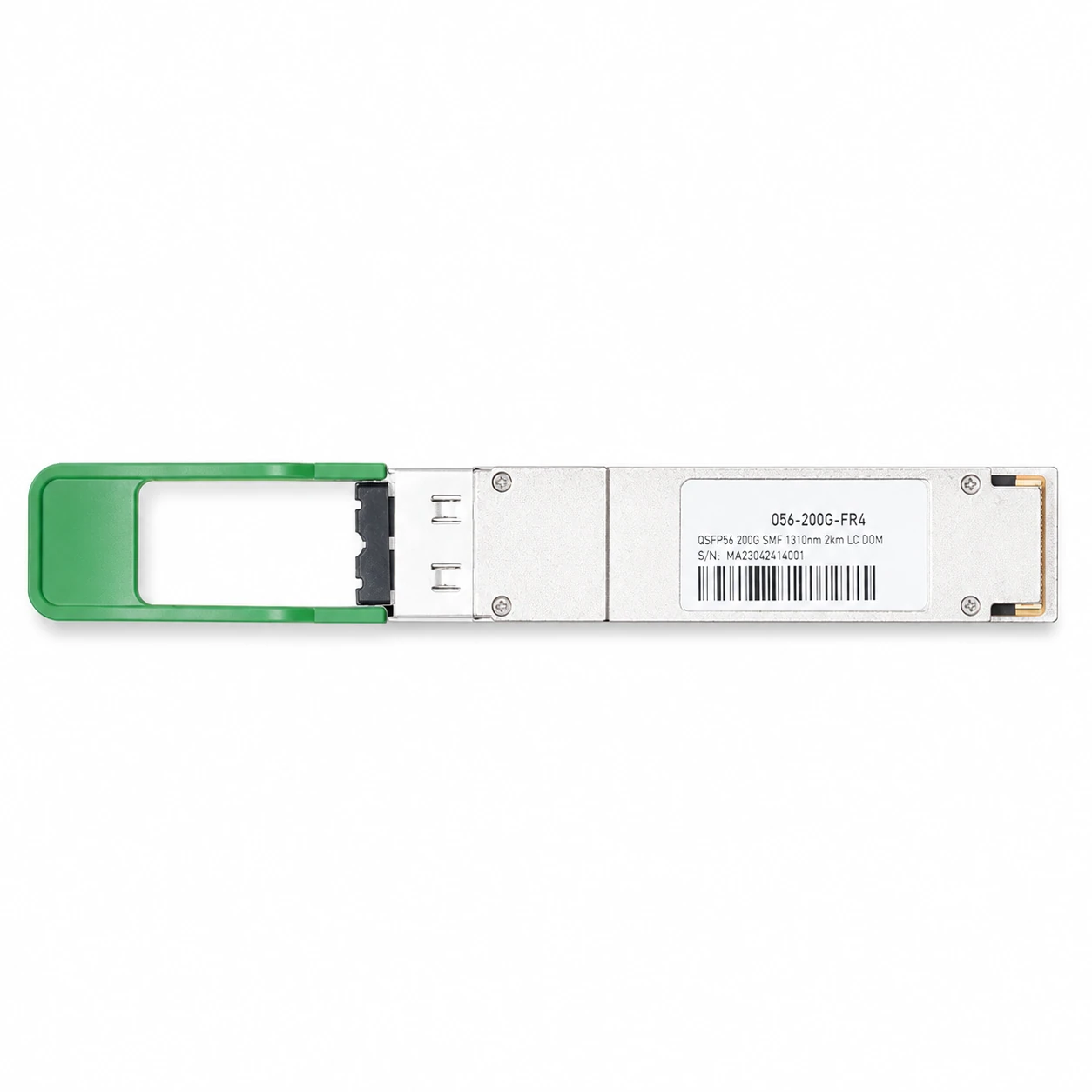

NVIDIA/Mellanox Coding Target MMS1W50-HM Compatible 200GBASE-FR4 QSFP56 transceiver is designed for 200G Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector.
Family q56-200g-fr4-14016Model Q56-200G-FR45 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- MMS1W50-HM
Part-number identifiers and aliases available for matching:
- MMS1W50-HM
- 980-9I055-00H000
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102165 - Model Q56-200G-FR4
NVIDIA/Mellanox Coding Target MMS1W50-HM Compatible 200GBASE-FR4 QSFP56 PAM4 2km Optical Transceiver
NVIDIA/Mellanox Coding Target MMS1W50-HM Compatible 200GBASE-FR4 QSFP56 transceiver is designed for 200G Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤5W
- Compliant with Hot-Pluggable QSFP56 MSA, IEEE 802.3bs Standard
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free)
- DDM(Digital Diagnostic Monitoring) Supported
- 1-Month Free-return, 3-Year Free-replacement, Lifetime After-sales Technical Support
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP56
- Distance
- 2km
- Wavelength
- 1310nm
- Connector
- Duplex LC
- Power Consumption
- ≤5W
- Transmitter
- EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 4x53.125Gb/s PAM4
- Modulation (Optical )
- 4x53.125Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 200G Ethernet Compliant
Technical detail
Construction and application notes for Q56-200G-FR4
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

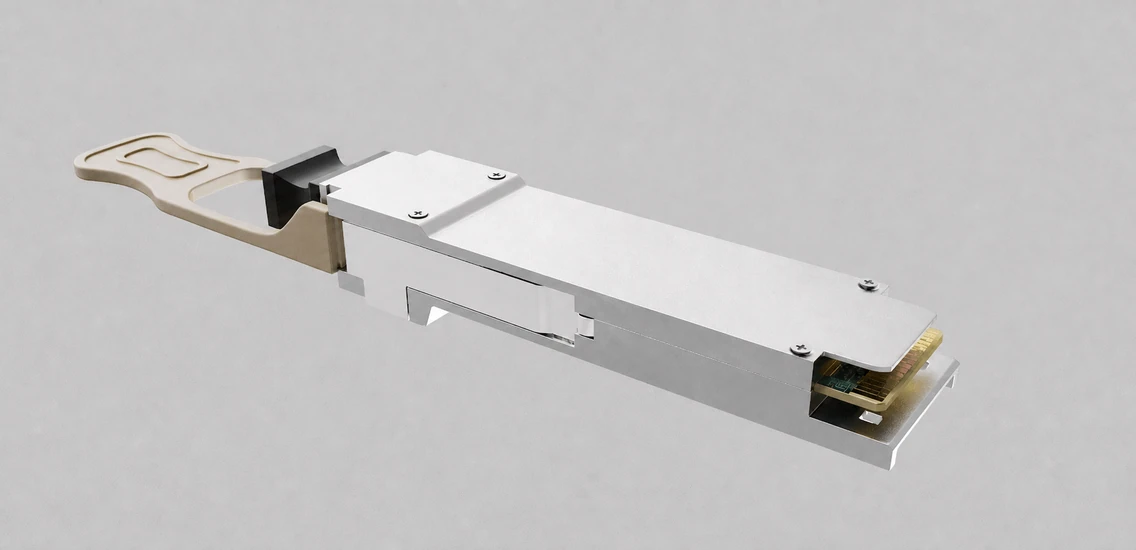

Interface and construction
optimizes PCB routing and case thermal conductivity to reduce EMI and supply voltage of functional circuits, ensuring optimal performance.
Application and routing

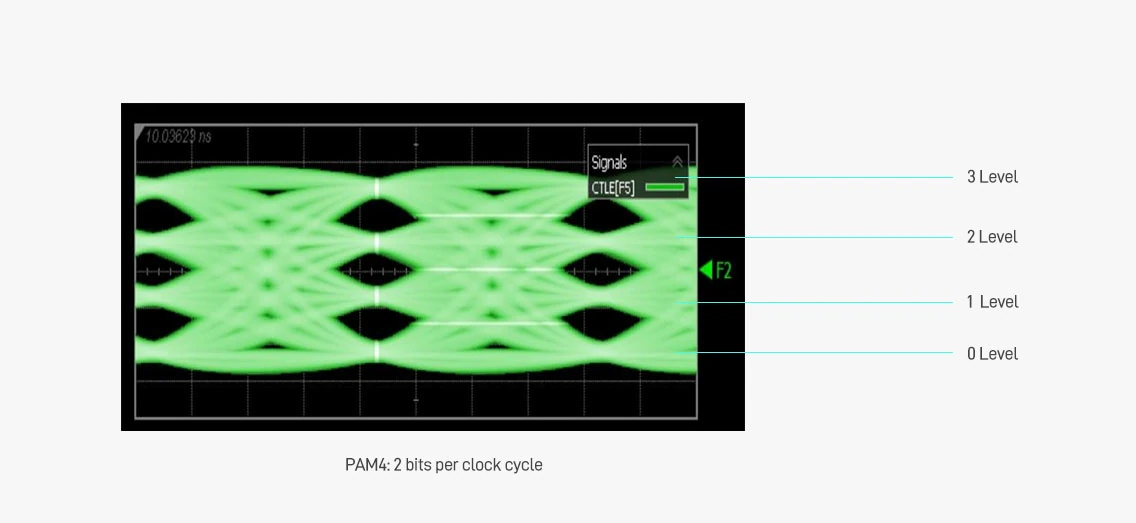

The 200G QSFP56 transceivers are suitable for ultra-large Data Center networks. It adopts PAM4 modulation cheme and total rate of transmission up to 212.5Gb/s. The signal bit rate is twice that of 200G QSFP-DD transceiver, which adopts "NRZ" modulation cheme. Meanwhile, PAM4 can increase network bandwidth without adding more fiber, while saving fiber cost.
Installation and validation
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Installation and validation
Standardized Service
