200G QSFP56 SR4 100m Transceiver | Q56-200G-SR4 / 980-9I20T-00V000
Catalog reference: NVIDIA/Mellanox Coding Target MMA1T00-VS (980-9I20T-00V000) Compatible 200GBASE-SR4 QSFP56 4x50G PAM4 850nm 100m MMF DOM MPO-12/UPC Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target MMA1T00-VS Compatible 200GbE SR4 QSFP56 transceiver is designed for use in 200GbE Ethernet applications, operating over a 4-lane parallel MMF via a standard MPO-12 UPC connector.
Family q56-200g-sr4-14015Model Q56-200G-SR48 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9I20T-00V000
Part-number identifiers and aliases available for matching:
- 980-9I20T-00V000
- MMA1T00-VS
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32681 - Model Q56-200G-SR4

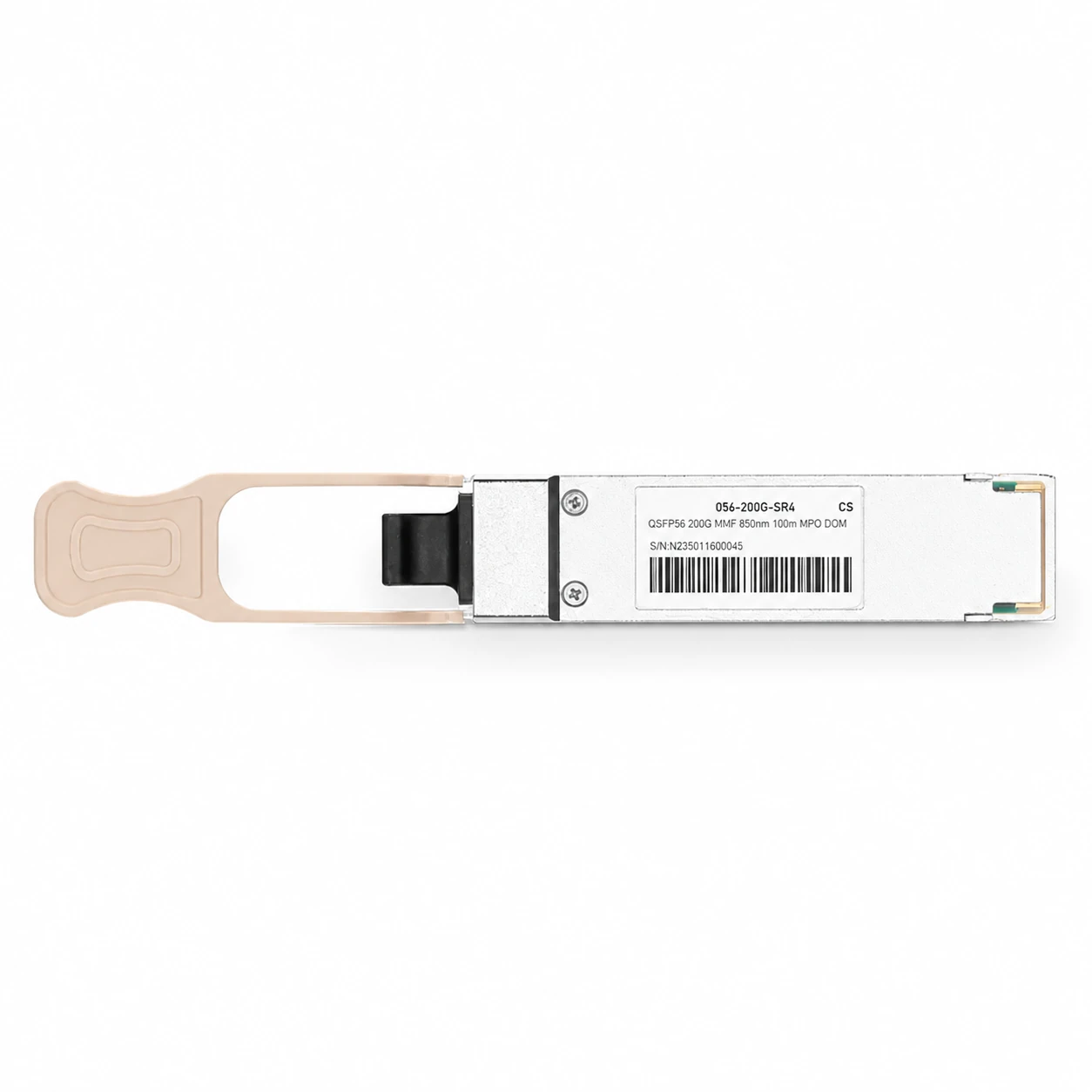

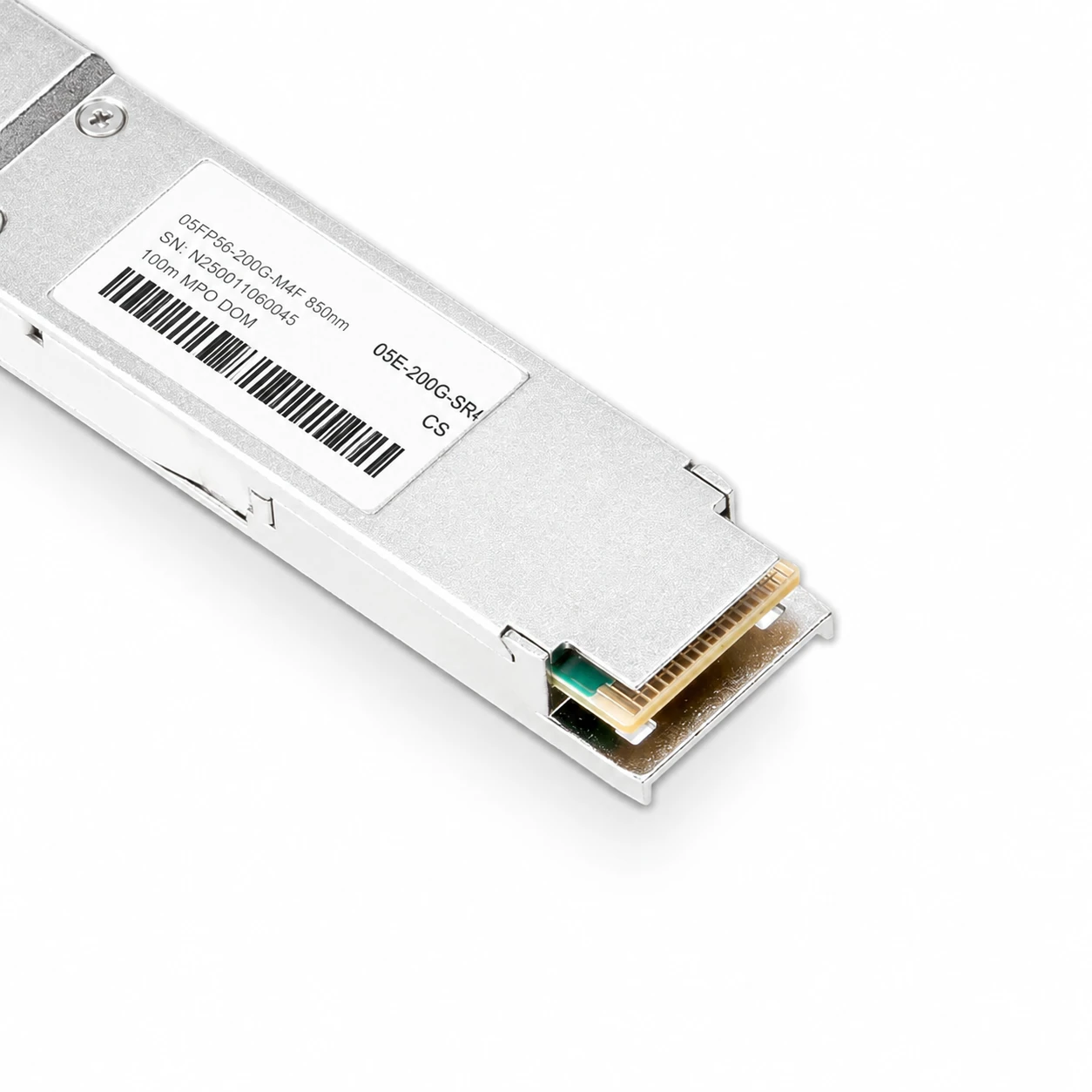

NVIDIA/Mellanox Coding Target MMA1T00-VS Compatible 200GbE SR4 QSFP56 PAM4 850nm 100m UPC Optical Transceiver
NVIDIA/Mellanox Coding Target MMA1T00-VS Compatible 200GbE SR4 QSFP56 transceiver is designed for use in 200GbE Ethernet applications, operating over a 4-lane parallel MMF via a standard MPO-12 UPC connector.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Polish TypesUPC
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤4.5W.
- Compliant with Hot Pluggable QSFP56 MSA, IEEE 802.3bs Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP56
- Distance
- 100m
- Wavelength
- 850nm
- Connector
- MTP/MPO-12 (UPC/APC)
- Power Consumption
- ≤4.5W
- Transmitter
- VCSEL
- Receiver
- PIN
- Media
- MMF
- Modulation (electrical )
- 4x53.125Gb/s PAM4
- Modulation (Optical )
- 4x53.125Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 200G Ethernet Compliant
Technical detail
Construction and application notes for Q56-200G-SR4
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction
optimizes PCB routing and case thermal conductivity to reduce EMI and supply voltage of functional circuits, ensuring optimal performance.
Application and routing
The 200G QSFP56 transceivers are suitable for ultra-large Data Center networks. It adopts PAM4 modulation cheme and total rate of transmission up to 212.5Gb/s. The signal bit rate is twice that of 200G QSFP-DD transceiver, which adopts "NRZ" modulation cheme. Meanwhile, PAM4 can increase network bandwidth without adding more fiber, while saving fiber cost.
Installation and validation
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Installation and validation
Standardized Service
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
