RoCE Ethernet Interconnects

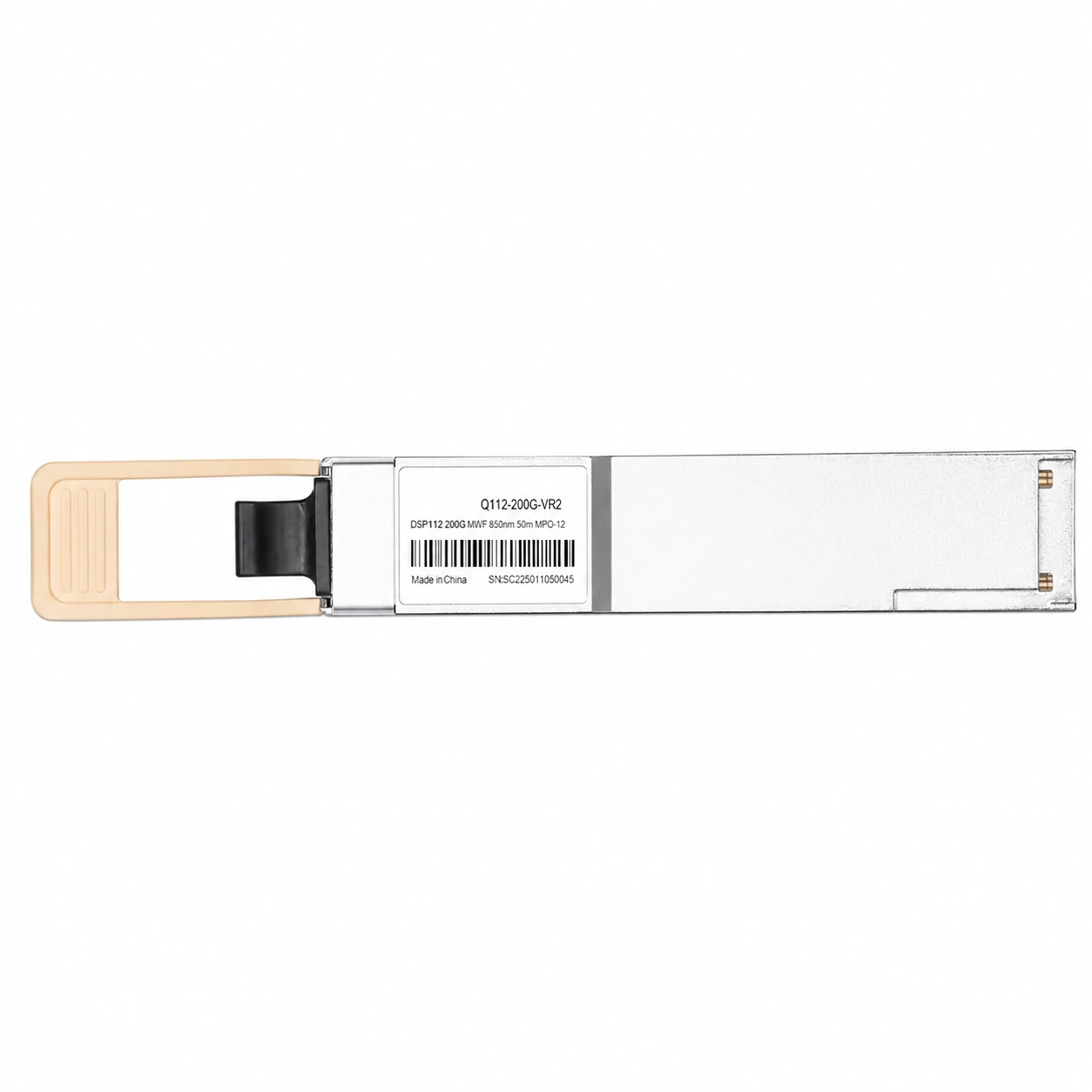

200G QSFP112 VR2 50m Transceiver | Q112-200G-VR2 / NVIDIA/Mellanox

Catalog reference: NVIDIA/Mellanox Compatible 200GBASE-VR2 QSFP112 2x100G PAM4 Broadcom DSP 850nm 50m MMF DOM MPO-12/APC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Compatible 200G QSFP112 VR2 is a 200G ethernet transceiver, using a single, 2-channel MPO-12/APC optical connector with a maximum fiber reach of 50 meters using OM4 multimode. The 200G QSFP112 VR2 is typically deployed with NVIDIA BlueField-3 DPUs or ConnectX-7 QSFP112 NICs, and can interconnect with QSFP112 400G VR4 or dual-port 800G (2x400G) OSFP transceivers.

Requested part-number references

Requested coding target

NVIDIA/Mellanox

Primary reference identifier

Not provided in the source record

No OEM part-number alias was captured in the source record.

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

104561 - NVIDIA/Mellanox Compatible 200GBASE-VR2 QSFP112 PAM4 Broadcom DSP 850nm 50m Optical Transceiver for ROCE networking104560 - Generic Compatible 200GBASE-VR2 QSFP112 PAM4 Broadcom DSP 850nm 50m Optical Transceiver for ROCE networking

SKU 104561 - Model Q112-200G-VR2

NVIDIA/Mellanox Compatible 200GBASE-VR2 QSFP112 PAM4 Broadcom DSP 850nm 50m Optical Transceiver for ROCE networking

NVIDIA/Mellanox Compatible 200G QSFP112 VR2 is a 200G ethernet transceiver, using a single, 2-channel MPO-12/APC optical connector with a maximum fiber reach of 50 meters using OM4 multimode. The 200G QSFP112 VR2 is typically deployed with NVIDIA BlueField-3 DPUs or ConnectX-7 QSFP112 NICs, and can interconnect with QSFP112 400G VR4 or dual-port 800G (2x400G) OSFP transceivers.

BrandSUNFULL

Compatible brand / platformNVIDIA/Mellanox (Ethernet)

Chip SolutionsBroadcom DSP

Select compatibility target Select host brand / coding targetNVIDIA / MellanoxCiscoAristaJuniperHPEDellHuaweiH3CLenovoBroadcomIntelGeneric OEM / custom codingOther / specify in Message

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
