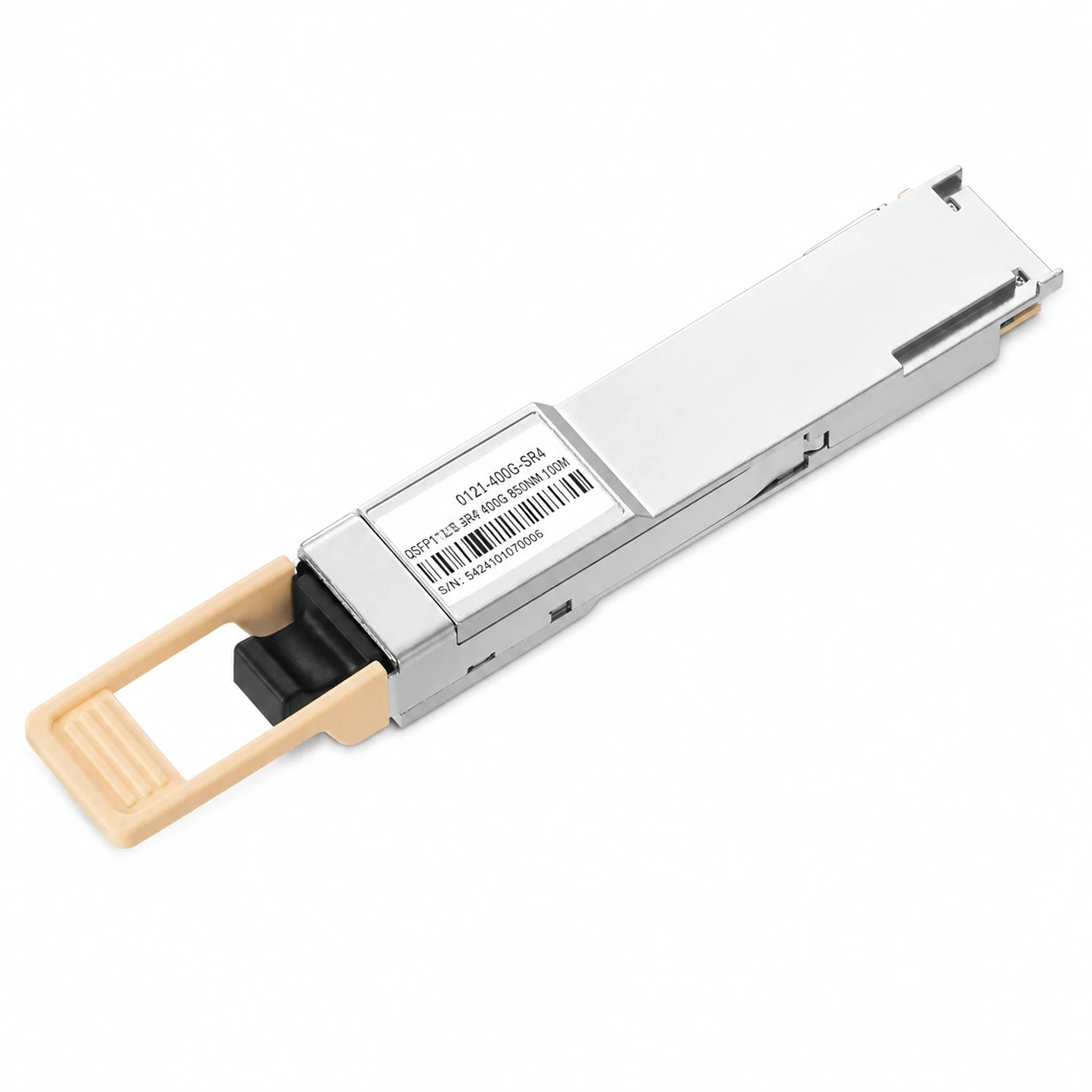

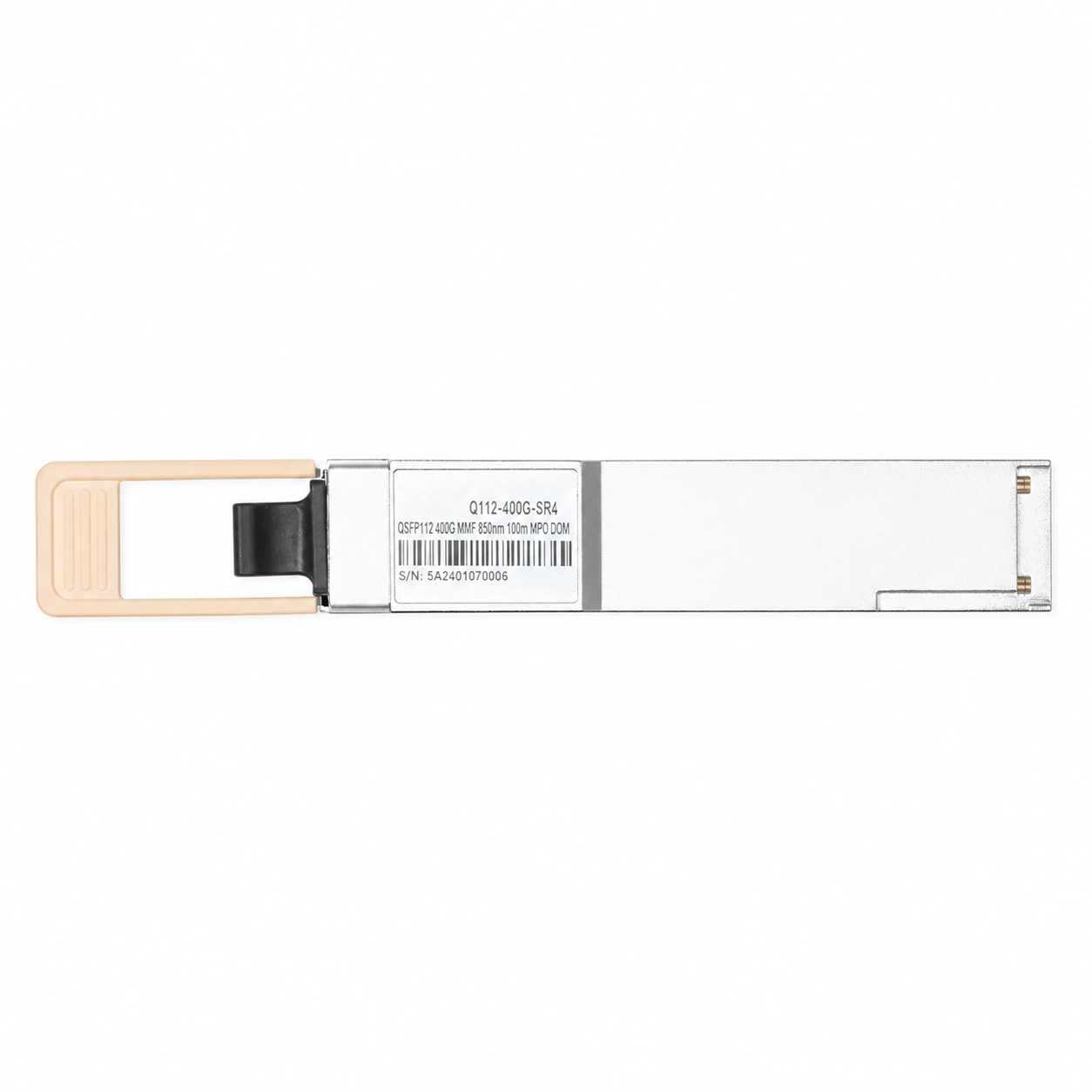

NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T Compatible Coherent VCSEL & Broadcom DSP 400GBASE-SR4 QSFP112 100m Optical...

RoCE Ethernet Interconnects

400G QSFP112 SR4 100m Transceiver | Q112-400G-SR4 / MMA1Z00-NS400-T

Catalog reference: NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T (980-9I693-F4NS00) Compatible 400GBASE-SR4 QSFP112 4x100G PAM4 Coherent VCSEL & Broadcom DSP 850nm 100m MMF DOM MPO-12/APC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T Compatible 400G QSFP112 SR4 transceiver is mainly used with a 400G and 200G BlueField-3/QSFP112 DPU or ConnectX-7/QSFP112 based PCIe bus network card.

Family q112-400g-sr4-101943Model Q112-400G-SR43 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MMA1Z00-NS400-T

Part-number identifiers and aliases available for matching:

  • MMA1Z00-NS400-T
  • 980-9I693-F4NS00

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101943 - Model Q112-400G-SR4

NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T Compatible Coherent VCSEL & Broadcom DSP 400GBASE-SR4 QSFP112 100m Optical Transceiver

NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T Compatible 400G QSFP112 SR4 transceiver is mainly used with a 400G and 200G BlueField-3/QSFP112 DPU or ConnectX-7/QSFP112 based PCIe bus network card.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Chip SolutionsCoherent VCSEL & Broadcom DSP

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Built-in Broadcom DSP & Coherent VCSEL, Max Power Consumption ≤9W.
  • Compliant with Hot Pluggable QSFP112 MSA, IEEE 802.3db, CMIS 4.0 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM (Digital Diagnostic Monitoring) Supported.
  • Supports AI Data Center (AIDC) and Data Center Network (DCN) Deployments.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP112
Distance
100m
Wavelength
850nm
Connector
MTP/MPO-12 APC
Power Consumption
≤9W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical)
4x106.25Gb/s PAM4
Modulation (Optical)
4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
400G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Q112 400G Sr4 Datasheet
