NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T Compatible Broadcom DSP 400GBASE-VR4 QSFP112 PAM4 850nm 50m Optical Transceiver

RoCE Ethernet Interconnects

400G QSFP112 VR4 50m Transceiver | Q112-400G-VR4 / 980-9I693-F4NS00

Catalog reference: NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T (980-9I693-F4NS00) Compatible 400GBASE-VR4 QSFP112 4x100G PAM4 Broadcom DSP 850nm 50m MMF DOM MPO-12/APC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

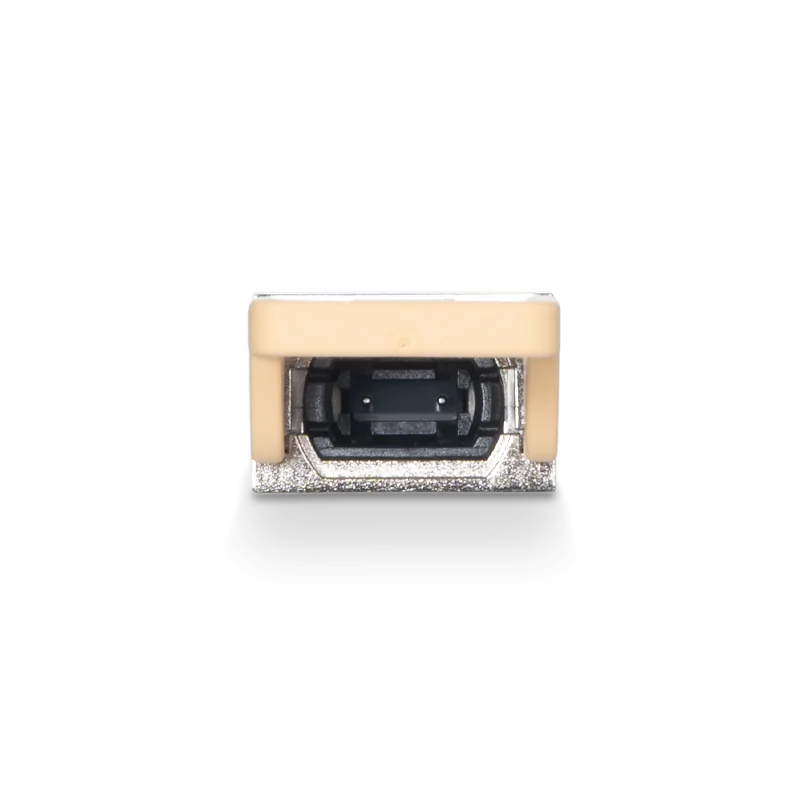

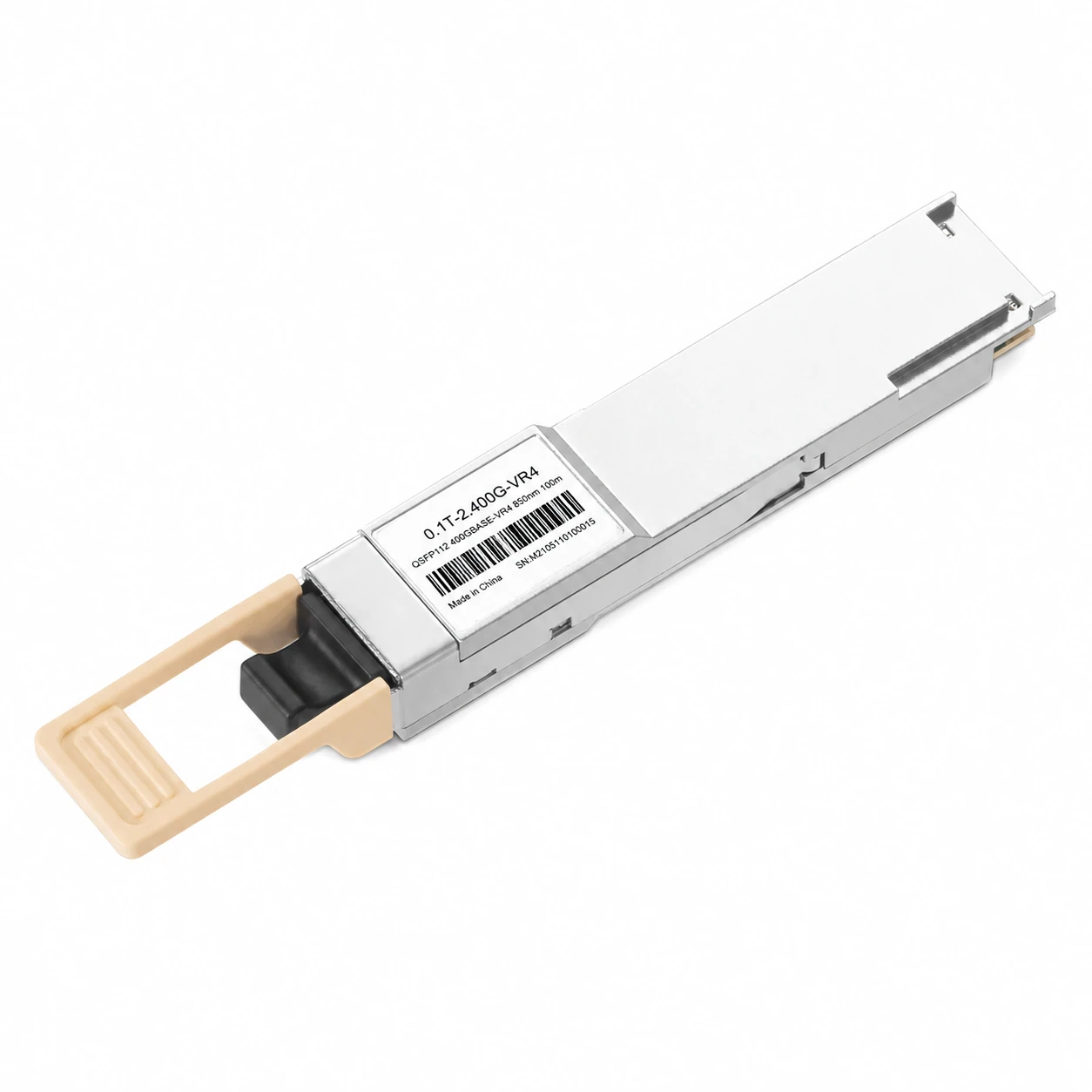

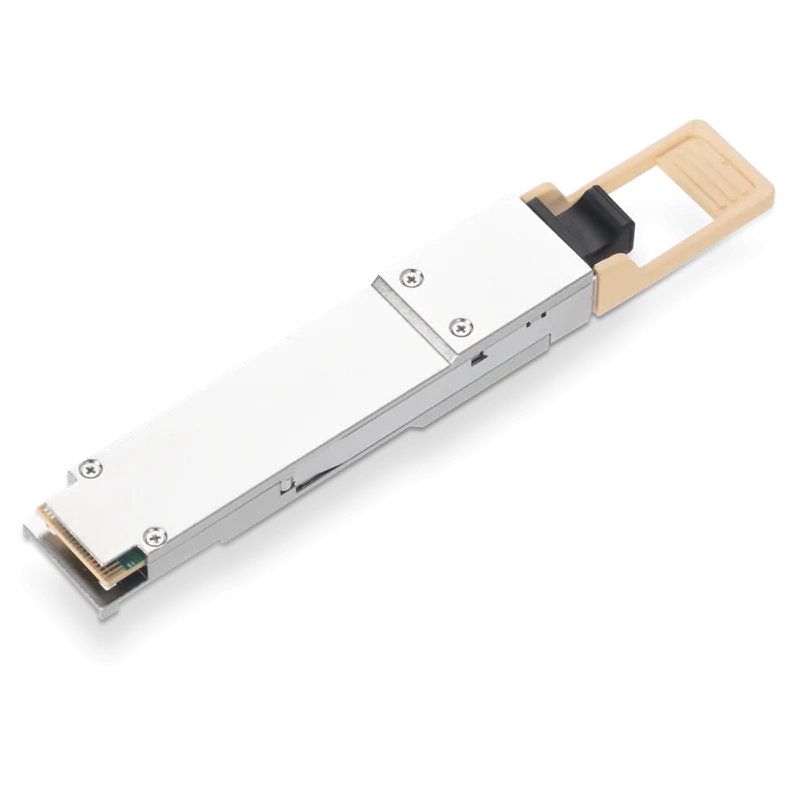

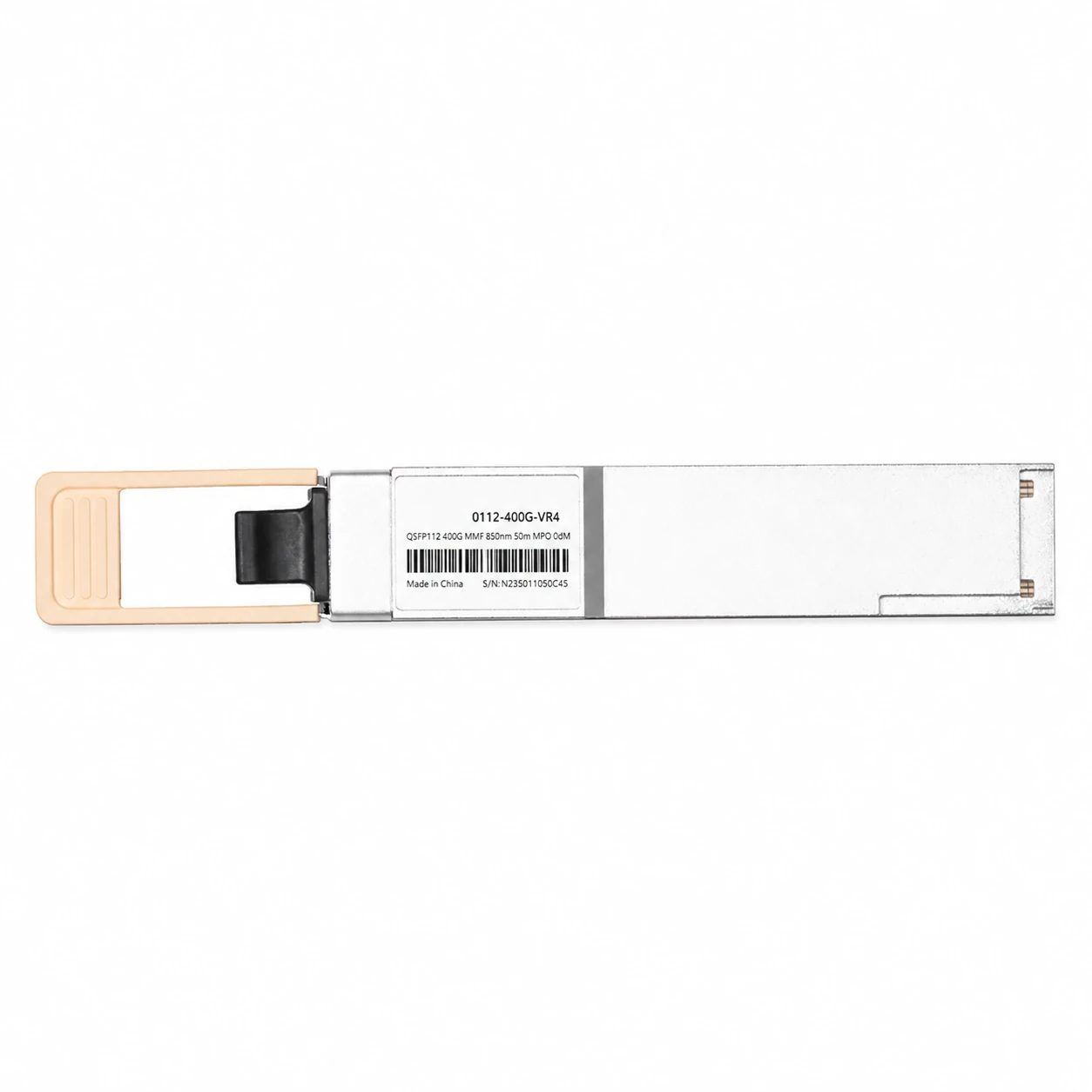

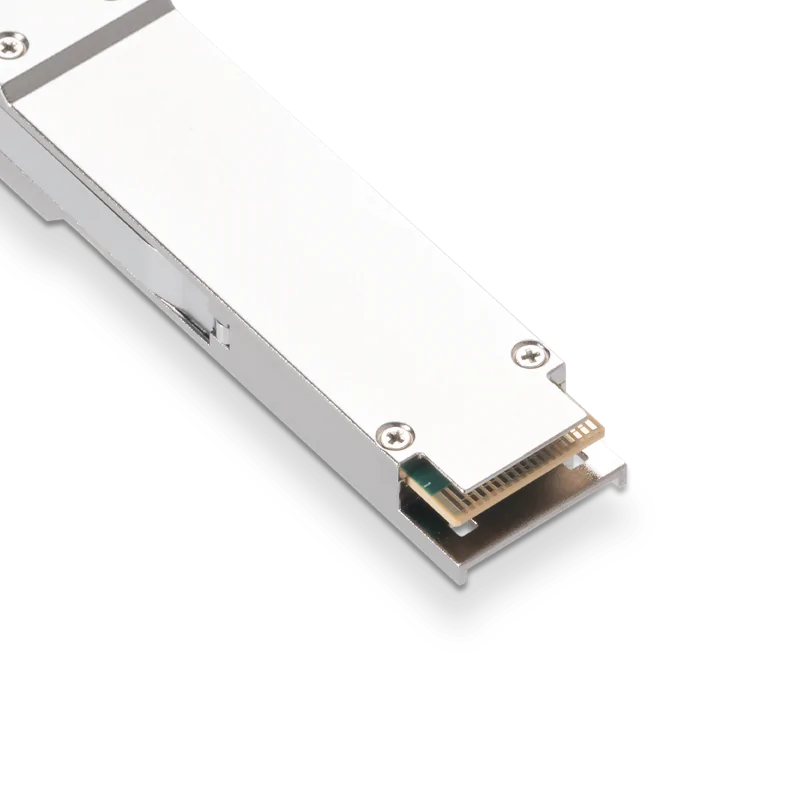

NVIDIA/Mellanox Compatible 400G QSFP112 VR4 is a 400G ethernet transceiver, using a single, 4-channel MPO-12/APC optical connector with a maximum fiber reach of 50 meters using OM4 multimode.

Family q112-400g-vr4-102156Model Q112-400G-VR43 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I693-F4NS00

Part-number identifiers and aliases available for matching:

  • 980-9I693-F4NS00
  • MMA1Z00-NS400-T

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102158 - Model Q112-400G-VR4

NVIDIA/Mellanox Coding Target MMA1Z00-NS400-T Compatible Broadcom DSP 400GBASE-VR4 QSFP112 PAM4 850nm 50m Optical Transceiver

NVIDIA/Mellanox Compatible 400G QSFP112 VR4 is a 400G ethernet transceiver, using a single, 4-channel MPO-12/APC optical connector with a maximum fiber reach of 50 meters using OM4 multimode.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Chip SolutionsBroadcom DSP

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Built-in Broadcom DSP, Max Power Consumption ≤9W.
  • Compliant with Hot Pluggable QSFP112 MSA, IEEE 802.3db, CMIS 4.0 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM (Digital Diagnostic Monitoring) Supported.
  • Supports AI Data Center (AIDC) and Data Center Network (DCN) Deployments.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP112
Distance
50m
Wavelength
850nm
Connector
MTP/MPO-12 APC
Power Consumption
≤9W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical)
4x106.25Gb/s PAM4
Modulation (Optical)
4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
400G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Q112 400G Vr4 Datasheet
