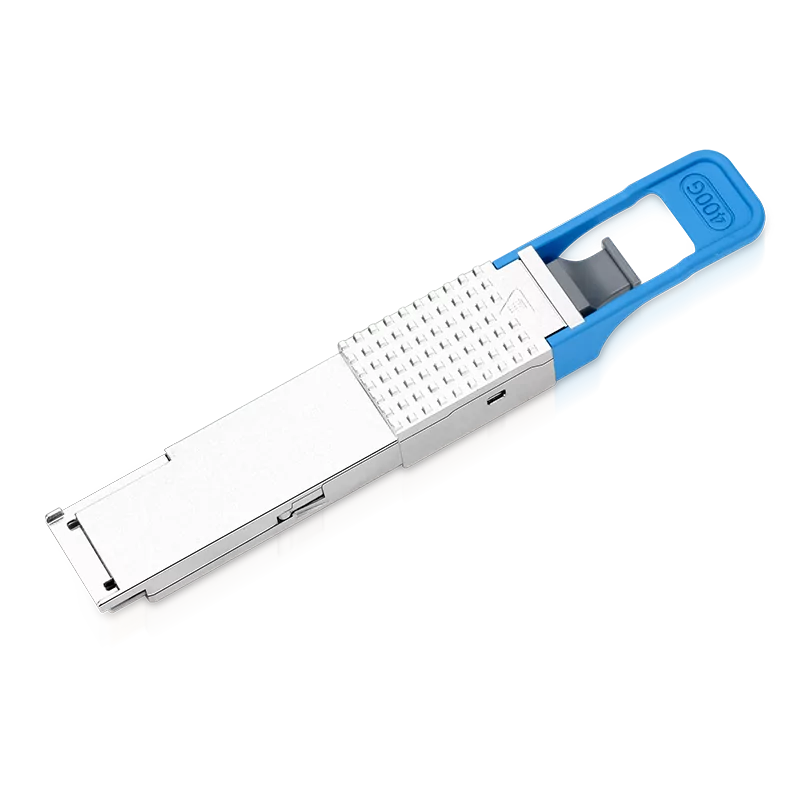

NVIDIA/Mellanox Coding Target MMS1X00-NS400 Compatible 400GBASE-DR4 QSFP112 PAM4 500m Optical Transceiver

RoCE Ethernet Interconnects

400G QSFP112 DR4 500m Transceiver | Q112-400G-DR4 / MMS1X00-NS400

Catalog reference: NVIDIA/Mellanox Coding Target MMS1X00-NS400 (980-9I068-00NM00) Compatible 400GBASE-DR4 QSFP112 4x100G PAM4 1310nm 500m SMF DOM MPO-12/APC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Compatible 400G QSFP112 DR4 transceiver transmits up to 500 meters over parallel single-mode fiber. It is suitable for AI Data Center (AIDC) and Data Center Network (DCN)

Family q112-400g-dr4-102150Model Q112-400G-DR43 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MMS1X00-NS400

Part-number identifiers and aliases available for matching:

  • MMS1X00-NS400
  • 980-9I068-00NM00

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102152 - Model Q112-400G-DR4

NVIDIA/Mellanox Coding Target MMS1X00-NS400 Compatible 400GBASE-DR4 QSFP112 PAM4 500m Optical Transceiver

NVIDIA/Mellanox Compatible 400G QSFP112 DR4 transceiver transmits up to 500 meters over parallel single-mode fiber. It is suitable for AI Data Center (AIDC) and Data Center Network (DCN)

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption ≤10W.
  • Compliant with Hot Pluggable QSFP112 MSA, IEEE 802.3ck, CMIS 5.0 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM (Digital Diagnostic Monitoring) Supported.
  • Supports AI Data Center (AIDC) and Data Center Network (DCN) Deployments.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP112
Distance
500m
Wavelength
1310nm

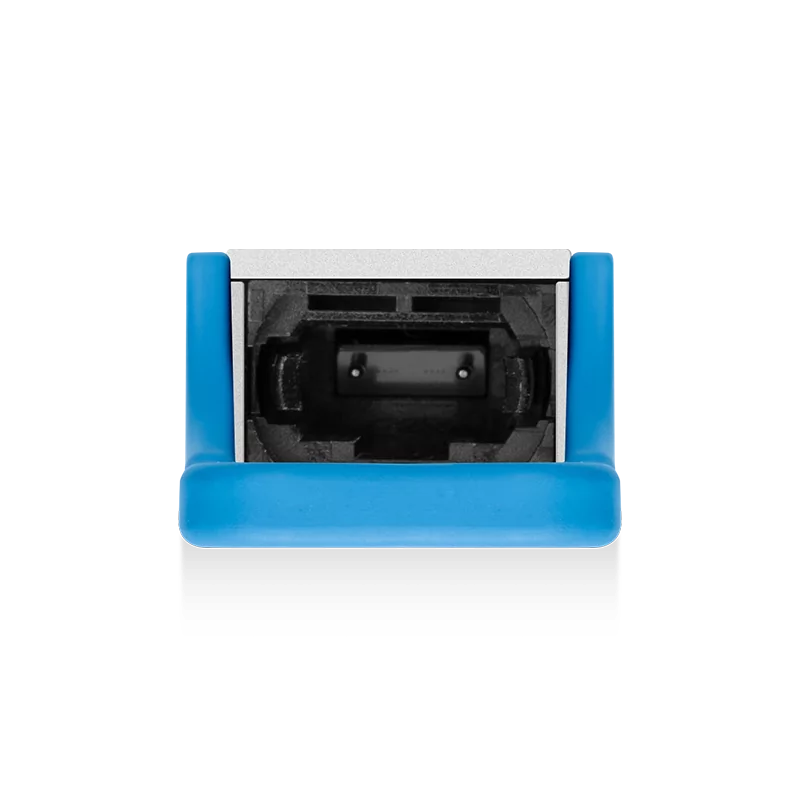

Connector
MTP/MPO-12 APC
Power Consumption
≤10W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical)
4x106.25Gb/s PAM4
Modulation (Optical)
4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
400G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Q112 400G Dr4 Datasheet
