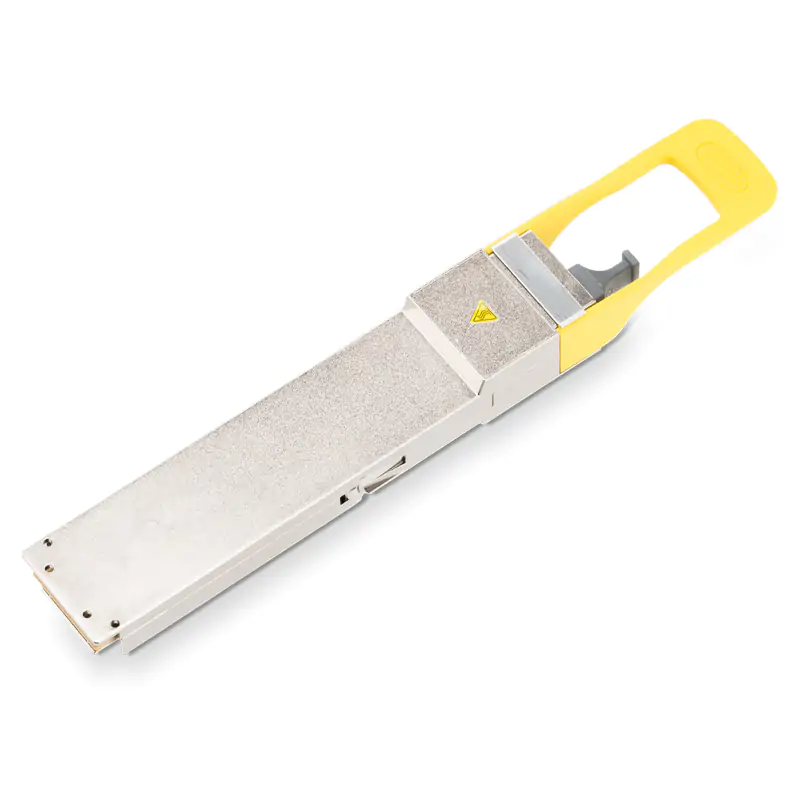

NVIDIA/Mellanox Coding Target MMS4X00-NS400 (980-9I31N-00NM00) Compatible OSFP-400G-DR4 PAM4 500m Optical Transceiver

RoCE Ethernet Interconnects

400G OSFP DR4 500m Transceiver | OSFP-400G-DR4 / MMS4X00-NS400

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NS400 (980-9I31N-00NM00) Compatible 400GBASE-DR4 OSFP RHS/Flat Top 4x100G PAM4 1310nm 500m SMF DOM MPO-12/APC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

Technical product family for NVIDIA/Mellanox Coding Target MMS4X00-NS400 (980-9I31N-00NM00) Compatible OSFP-400G-DR4 PAM4 500m Optical Transceiver. Review the specifications and exact SKU options below.

Family osfp-400g-dr4-102064Model OSFP-400G-DR44 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MMS4X00-NS400

Part-number identifiers and aliases available for matching:

  • MMS4X00-NS400
  • 980-9I31N-00NM00

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102065 - Model OSFP-400G-DR4

NVIDIA/Mellanox Coding Target MMS4X00-NS400 (980-9I31N-00NM00) Compatible OSFP-400G-DR4 PAM4 500m Optical Transceiver

Technical product family for NVIDIA/Mellanox Coding Target MMS4X00-NS400 (980-9I31N-00NM00) Compatible OSFP-400G-DR4 PAM4 500m Optical Transceiver. Review the specifications and exact SKU options below.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption ≤9W.
  • Compliant with Hot Pluggable OSFP MSA, IEEE 802.3ck, CMIS 5.2 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP
Distance
500m
Wavelength
1310nm
Connector
MTP/MPO-12 APC
Power Consumption
≤9W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical)
4x106.25Gb/s PAM4
Modulation (Optical)
4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
400G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 400G Dr4 Datasheet 1
