NVIDIA/Mellanox Coding Target MMA4Z00-NS400-T (980-9I51S-F4NS00400) Coherent VCSEL & Broadcom DSP Compatible OSFP-400G-SR4...

RoCE Ethernet Interconnects

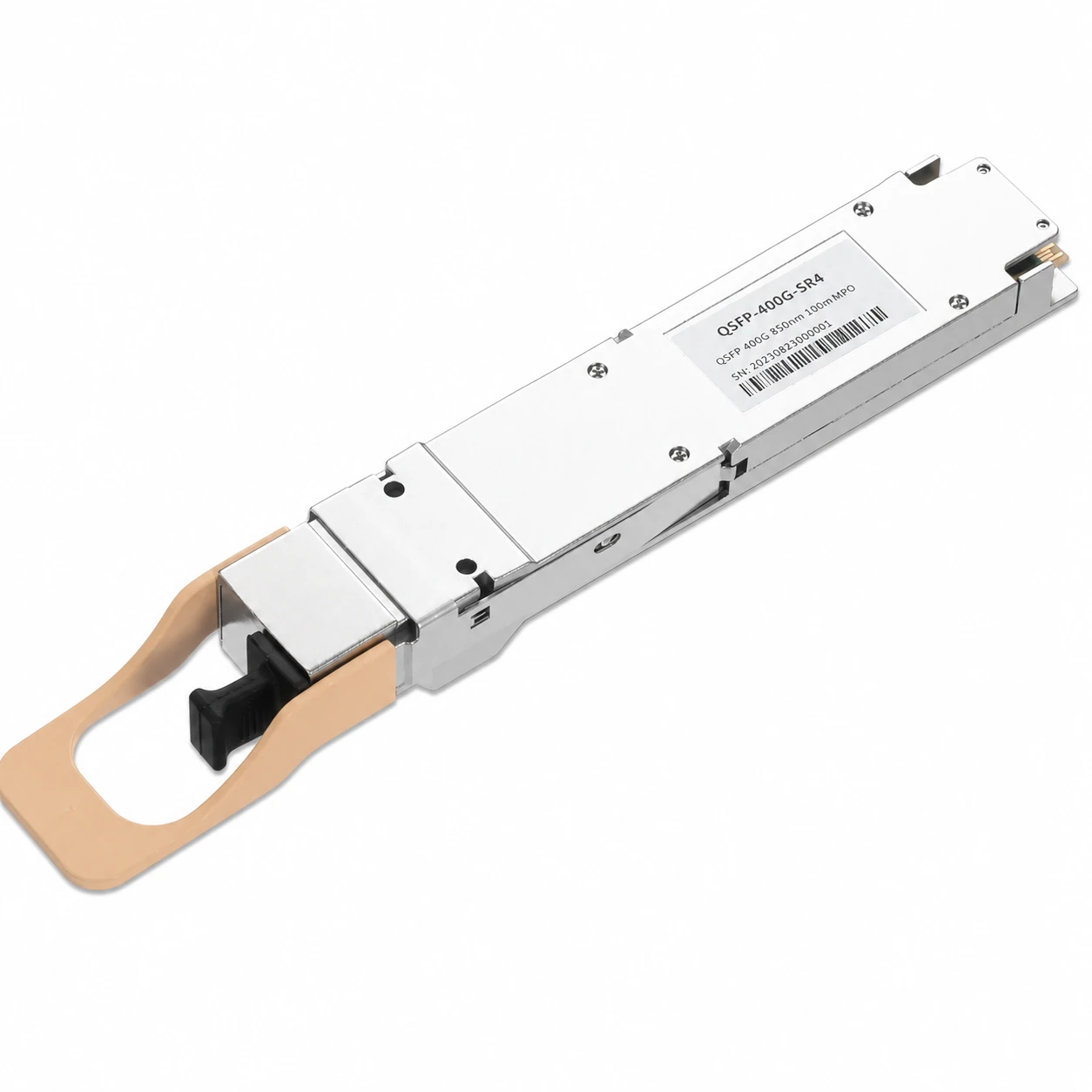

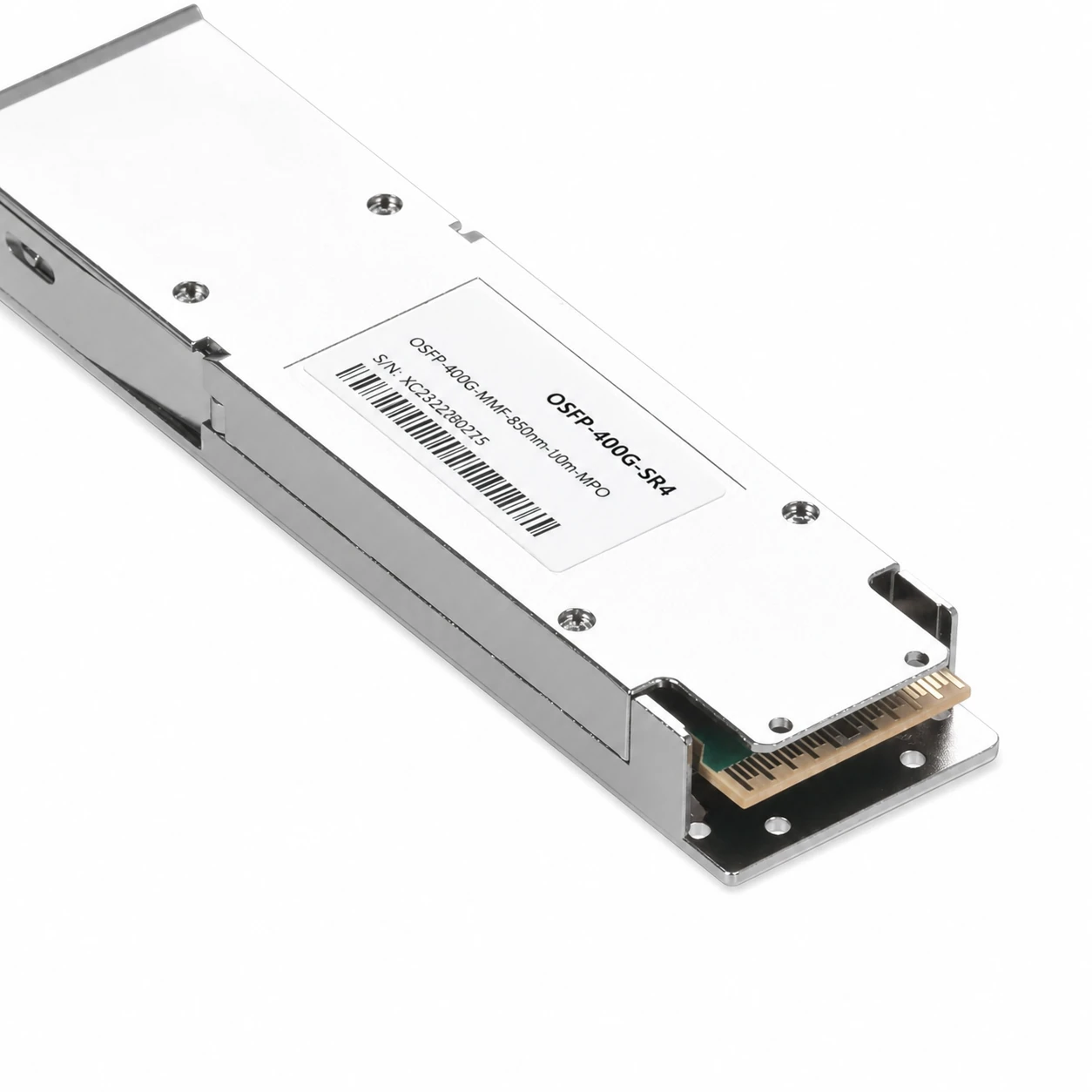

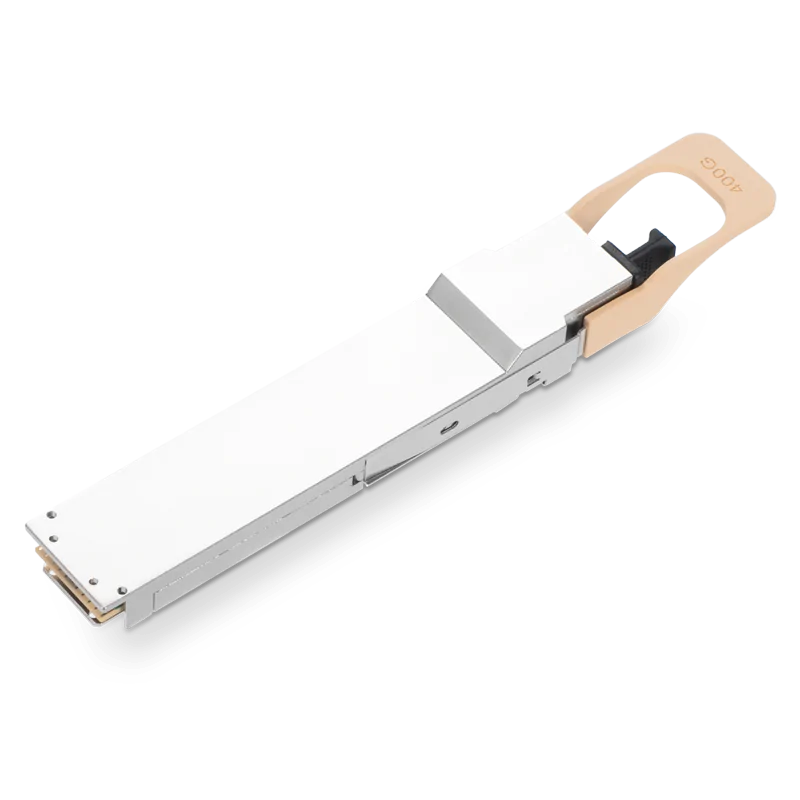

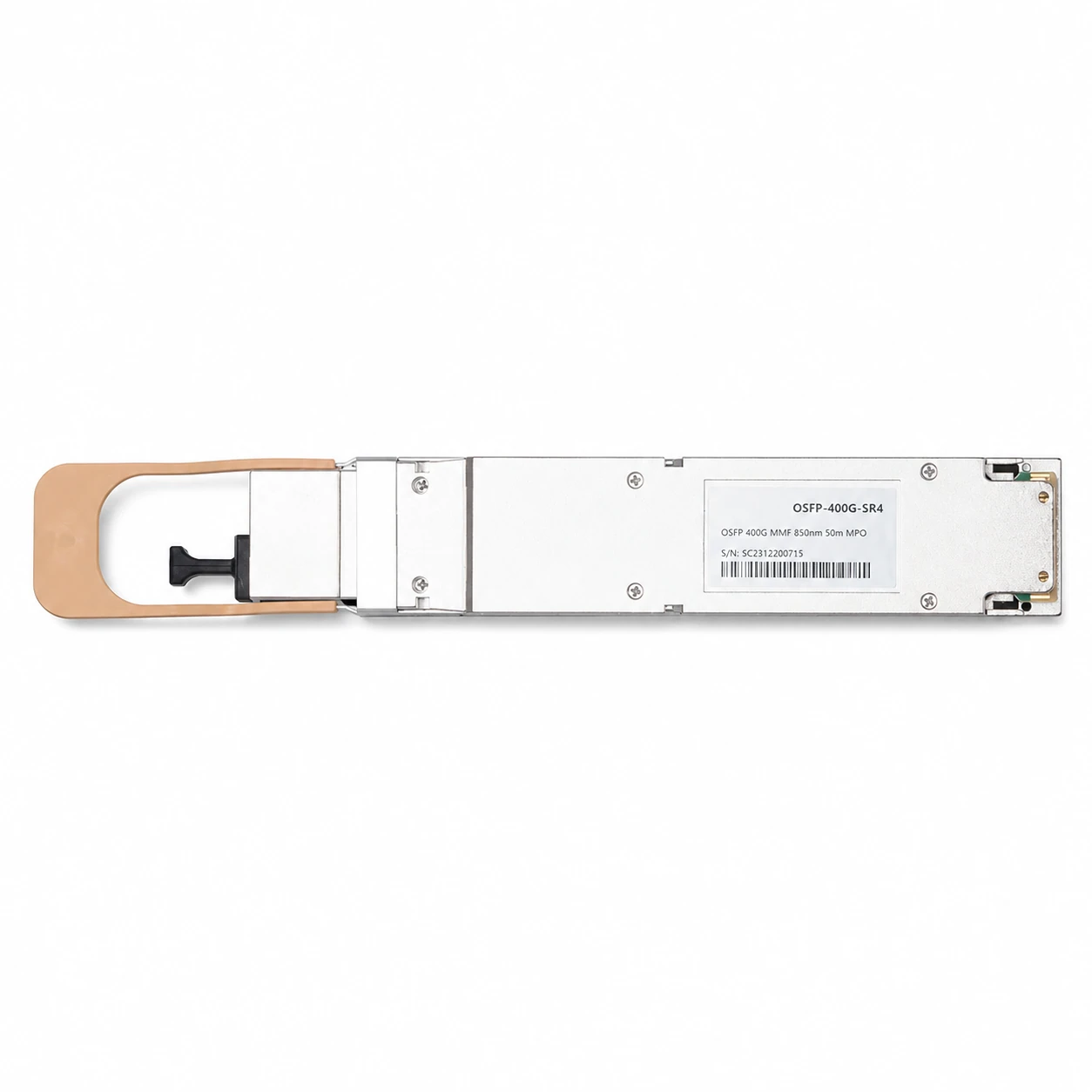

400G OSFP SR4 100m Transceiver | OSFP-400G-SR4 / 980-9I51S-F4NS00400

Catalog reference: NVIDIA/Mellanox Coding Target MMA4Z00-NS400-T (980-9I51S-F4NS00400) Compatible 400GBASE-SR4 OSFP RHS/Flat Top 4x100G PAM4 Coherent VCSEL & Broadcom DSP 850nm 100m MMF DOM MPO-12/APC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMA4Z00-NS400-T (980-9I51S-F4NS00400) Compatible OSFP-400G-SR4 is designed for 400G Ethernet applications, supporting up to 30m links over OM3 MMF or 100m over OM4 MMF.

Family osfp-400g-sr4-102066Model OSFP-400G-SR44 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I51S-F4NS00400

Part-number identifiers and aliases available for matching:

  • 980-9I51S-F4NS00400
  • MMA4Z00-NS400-T

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102067 - Model OSFP-400G-SR4

NVIDIA/Mellanox Coding Target MMA4Z00-NS400-T (980-9I51S-F4NS00400) Coherent VCSEL & Broadcom DSP Compatible OSFP-400G-SR4 PAM4 850nm 100m Optical Transceiver

NVIDIA/Mellanox Coding Target MMA4Z00-NS400-T (980-9I51S-F4NS00400) Compatible OSFP-400G-SR4 is designed for 400G Ethernet applications, supporting up to 30m links over OM3 MMF or 100m over OM4 MMF.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Chip SolutionsCoherent VCSEL & Broadcom DSP

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Built-in Broadcom DSP & Coherent VCSEL, Maximum Power Consumption ≤9W.
  • Compliant with Hot Pluggable OSFP MSA, IEEE 802.3ck, CMIS 4.0 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP
Distance
100m
Wavelength
850nm

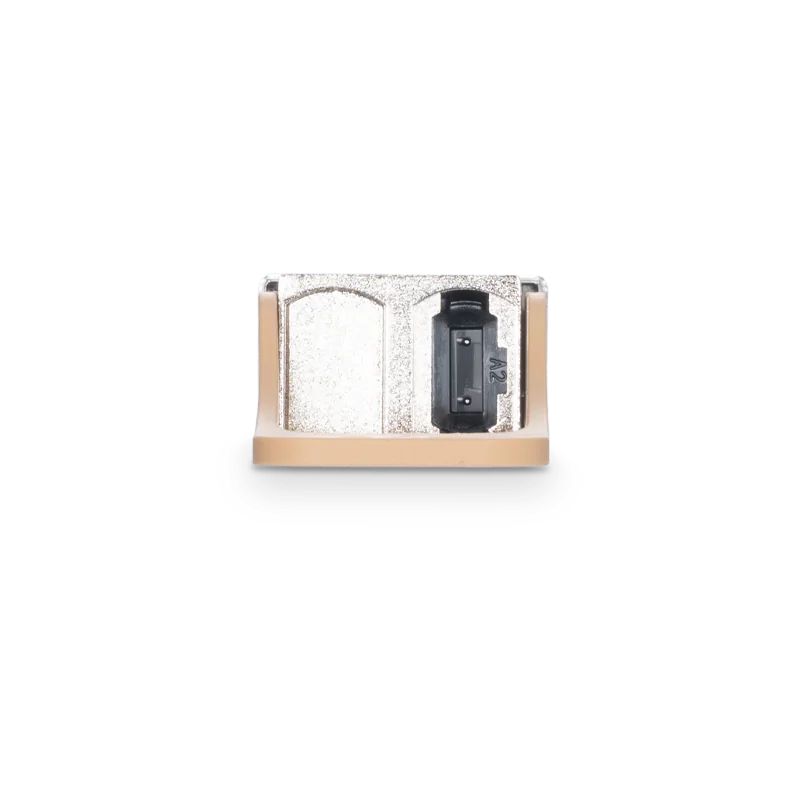

Connector
MTP/MPO-12 APC
Power Consumption
≤9W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical)
4x106.25Gb/s PAM4
Modulation (Optical )
4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
400G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 400G Sr4 Datasheet
