MMS4X00-NS400 | OSFP-400G-DR4 | Transceiver
400G OSFP DR4 500m Transceiver with 4 exact SKU options. Confirm the host, port and firmware before quotation.
RoCE Ethernet Interconnects
400G OSFP 2xSR4 Transceiver | OSFP-400G-2xSR4 / NVIDIA/Mellanox
Catalog reference: NVIDIA/Mellanox Compatible 400GBASE-2xSR4 OSFP IHS/Finned Top 8x50G PAM4 850nm 100m MMF DOM Dual MPO-12/APC Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
OSFP-400G-2xSR4 is a finned top optical transceiver for 400G Ethernet, short distance reaching up to 100m over OM4 MMF.
Family osfp-400g-2xsr4-102617Model OSFP-400G-2xSR45 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102620 - Model OSFP-400G-2xSR4

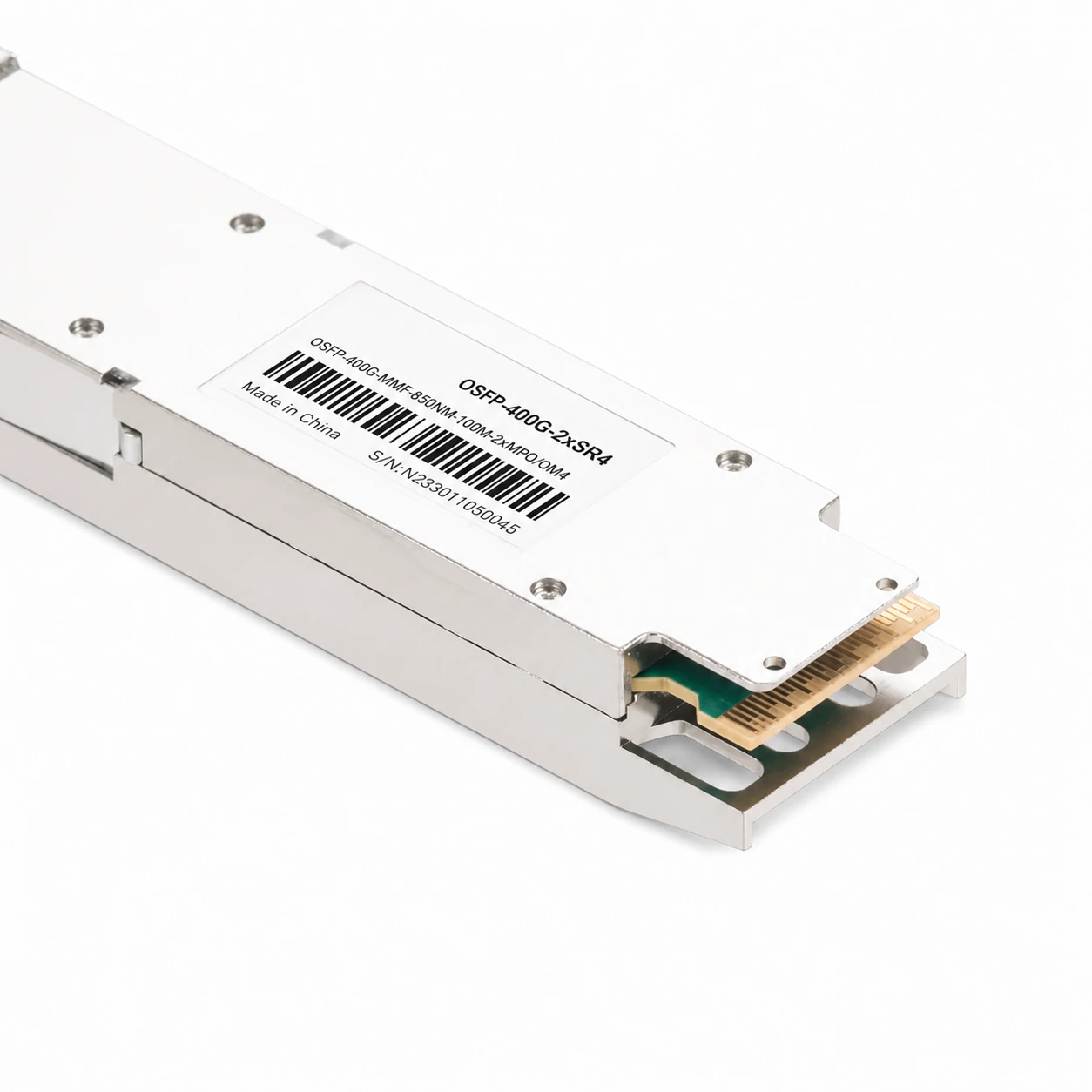

NVIDIA/Mellanox Compatible OSFP-400G-2xSR4 Finned Top Optical Transceiver
OSFP-400G-2xSR4 is a finned top optical transceiver for 400G Ethernet, short distance reaching up to 100m over OM4 MMF.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤14W.
- Compliant with Hot Pluggable OSFP MSA, IEEE 802.3cm, CMIS 5.2 Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Significantly Improve the Flexibility, Economy and Reliability of Networking.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP
- Distance
- 70m (OM3) /100m (OM4)
- Wavelength
- 850nm
- Connector
- Dual MTP/MPO-12 APC
- Power Consumption
- ≤14W
- Transmitter
- VCSEL
- Receiver
- PIN
- Media
- MMF
- Modulation (electrical)
- 8x50Gb/s PAM4
- Modulation (Optical)
- 8x50Gb/s PAM4
- Case Temperature(℃)
- 0~70°C(32 to 158°F)
- Protocol
- 400G Ethernet Compliant
