400G OSFP SR8 100m Transceiver | OSFP-400G-SR8 / NVIDIA/Mellanox

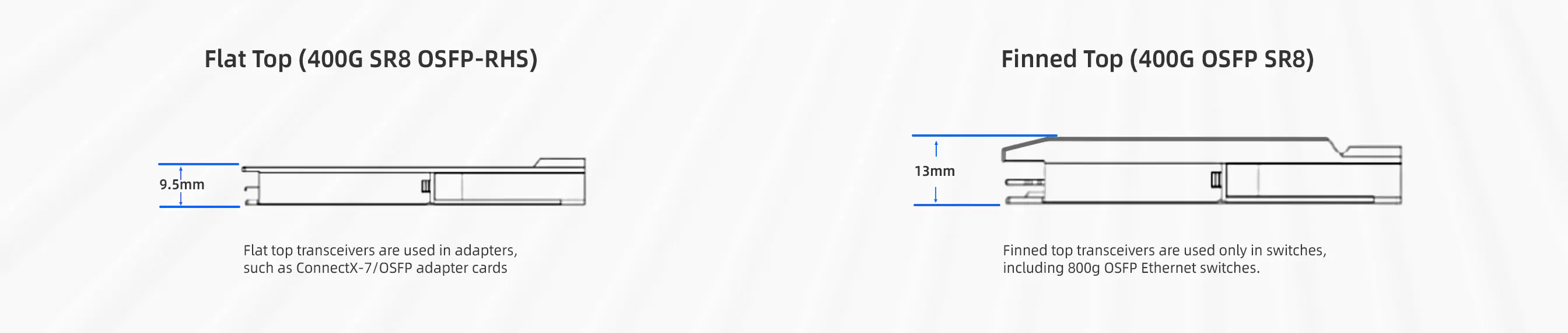

Catalog reference: NVIDIA/Mellanox Compatible 400GBASE-SR8 OSFP RHS/Flat Top 8x50G PAM4 850nm 100m MMF DOM MPO-16/APC Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Compatible 400GBASE-SR8 OSFP-RHS supports link lengths up to 100m over multimode fiber (MMF), supporting NICs-to-Switches connectivity. Commercial terms are confirmed by RFQ.
Family osfp-400g-sr8-102557Model OSFP-400G-SR84 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102557 - Model OSFP-400G-SR8

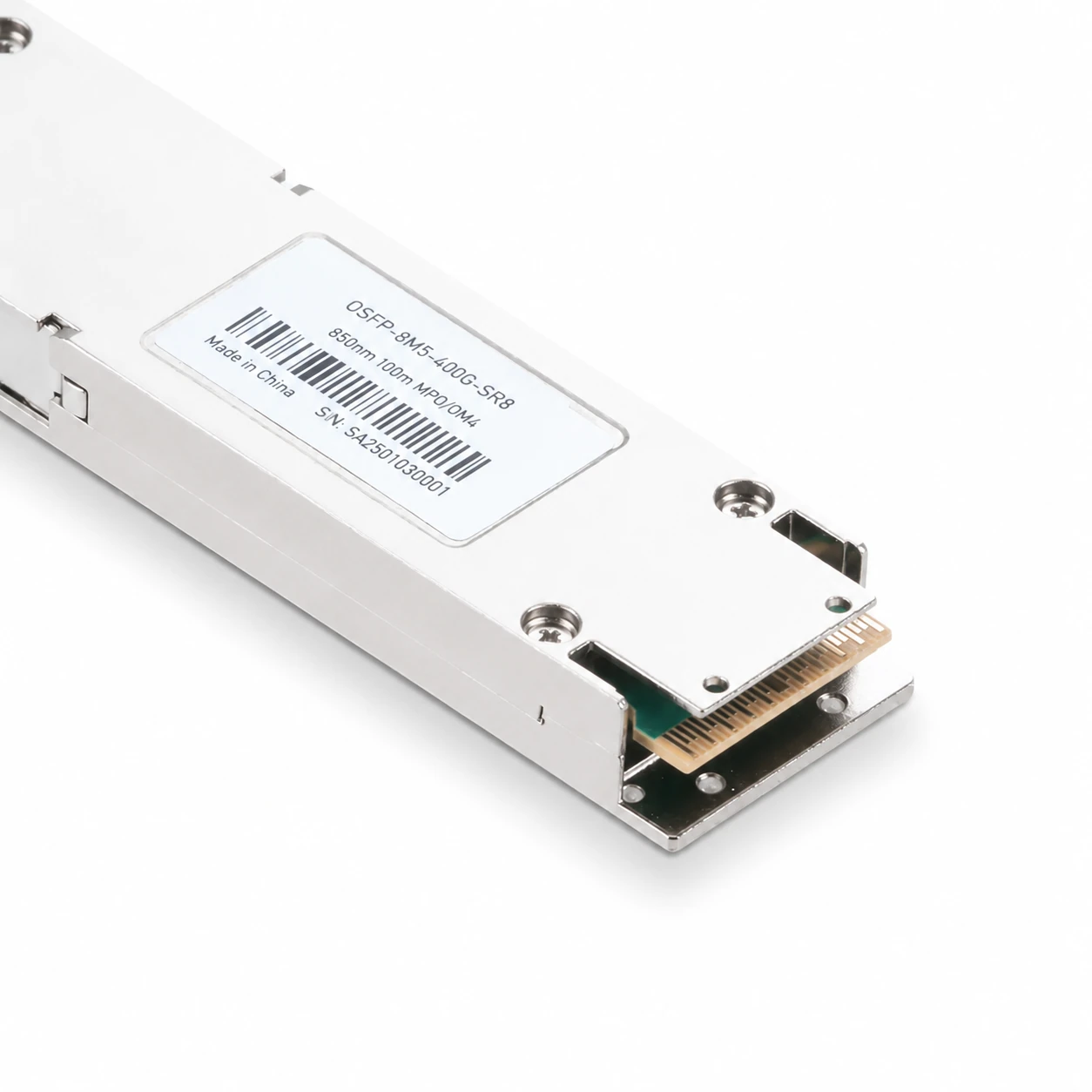

NVIDIA/Mellanox Compatible 400GBASE-SR8 OSFP-RHS PAM4 850nm 100m MMF Optcial Transceiver
NVIDIA/Mellanox Compatible 400GBASE-SR8 OSFP-RHS supports link lengths up to 100m over multimode fiber (MMF), supporting NICs-to-Switches connectivity. Commercial terms are confirmed by RFQ.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤12W.
- Compliant with Hot Pluggable OSFP MSA, IEEE 802.3bs Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).

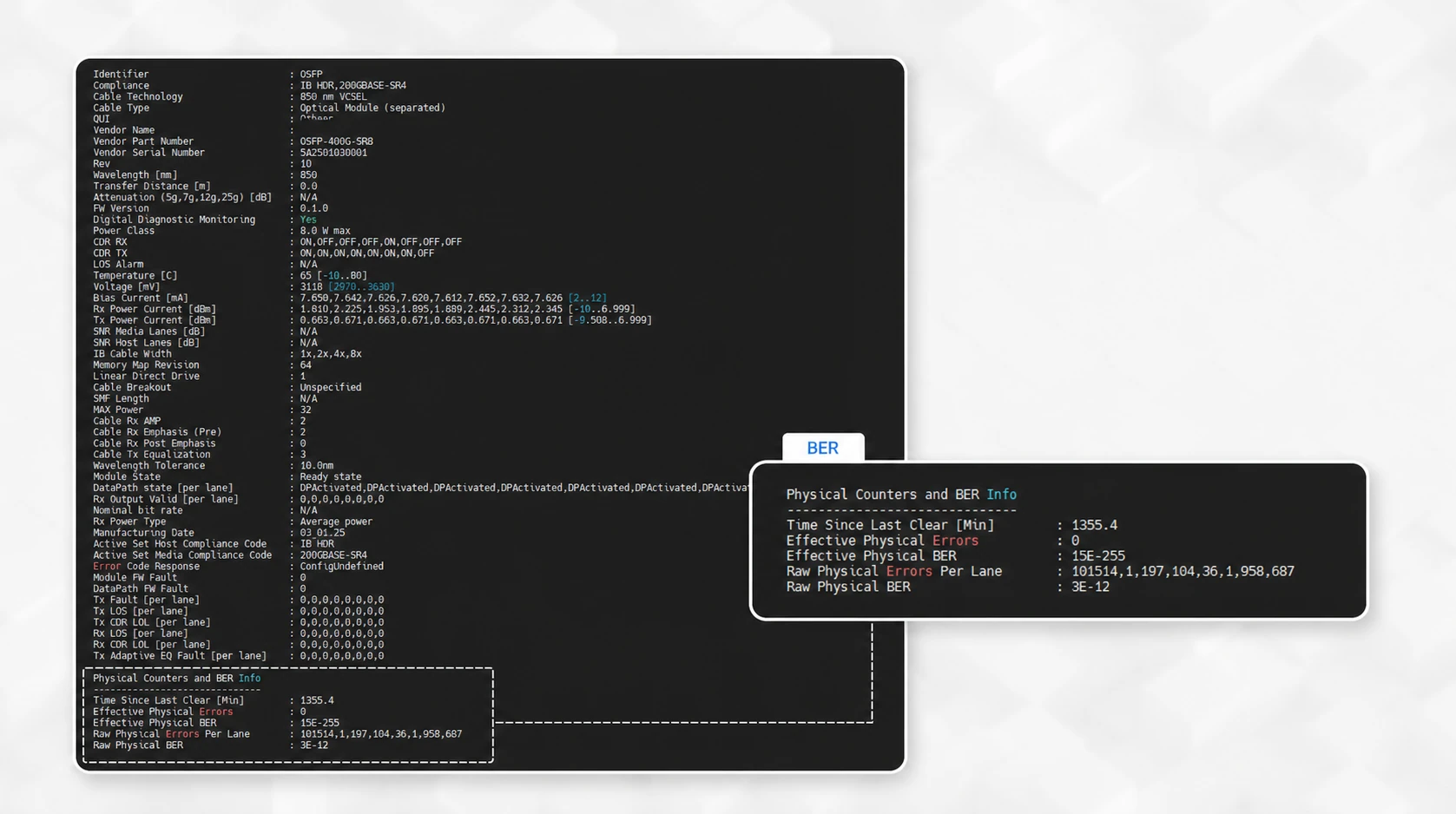

- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP
- Distance
- 100m
- Wavelength
- 850nm
- Connector
- MPO/MTP-16 APC
- Power Consumption
- ≤8W
- Transmitter
- VCSEL
- Receiver
- PIN
- Media
- MMF
- Modulation (electrical )
- 8x53.125Gb/s PAM4
- Modulation (Optical )
- 8x53.125Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 400G Ethernet Compliant
Technical detail
Construction and application notes for OSFP-400G-SR8
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction
Application and routing
Supplier material positions this product for medium- and long-distance links alongside copper and AOC options. Performance and commercial terms require model-specific validation and RFQ confirmation.
Installation and validation
OSFP SR8 adopts 8x50G-PAM4, while OSFP SR4 adopts 4x100G-PAM4, the rate of each channel of SR8 is reduced compared to SR4, to achieve the same rate, the stability of the signal transmission is enhanced, and the BER is reduced, which can achieve more accurate and reliable data transmission.
