NVIDIA/Mellanox Coding Target MMS4X00-NS400 400G OSFP DR4 InfiniBand NDR Transceiver

InfiniBand Interconnects

400G OSFP DR4H 100m Transceiver | OSFP-400G-DR4H / 980-9I31N-00NM00

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NS400 (980-9I31N-00NM00) Compatible 400G DR4 OSFP RHS/Flat Top 4x100G PAM4 1310nm 100m SMF DOM MPO-12/APC InfiniBand NDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA Coding Target MMS4X00-NS400 (980-9I31N-00NM00) compatible OSFP 400G DR4 SMF module, designed for stable 400G InfiniBand NDR and Ethernet connectivity, supporting up to 100m in HPC and AIDC.

Family osfp-400g-dr4h-101947Model OSFP-400G-DR4H1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I31N-00NM00

Part-number identifiers and aliases available for matching:

  • 980-9I31N-00NM00
  • MMS4X00-NS400

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101947 - Model OSFP-400G-DR4H

NVIDIA/Mellanox Coding Target MMS4X00-NS400 400G OSFP DR4 InfiniBand NDR Transceiver

NVIDIA Coding Target MMS4X00-NS400 (980-9I31N-00NM00) compatible OSFP 400G DR4 SMF module, designed for stable 400G InfiniBand NDR and Ethernet connectivity, supporting up to 100m in HPC and AIDC.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP
Distance
100m
Wavelength
1310nm
Connector
MPO-12/APC
Power Consumption
≤9W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical)
4x106.25Gb/s PAM4
Modulation (Optical )
4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB NDR, 400G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-400G-DR4H

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

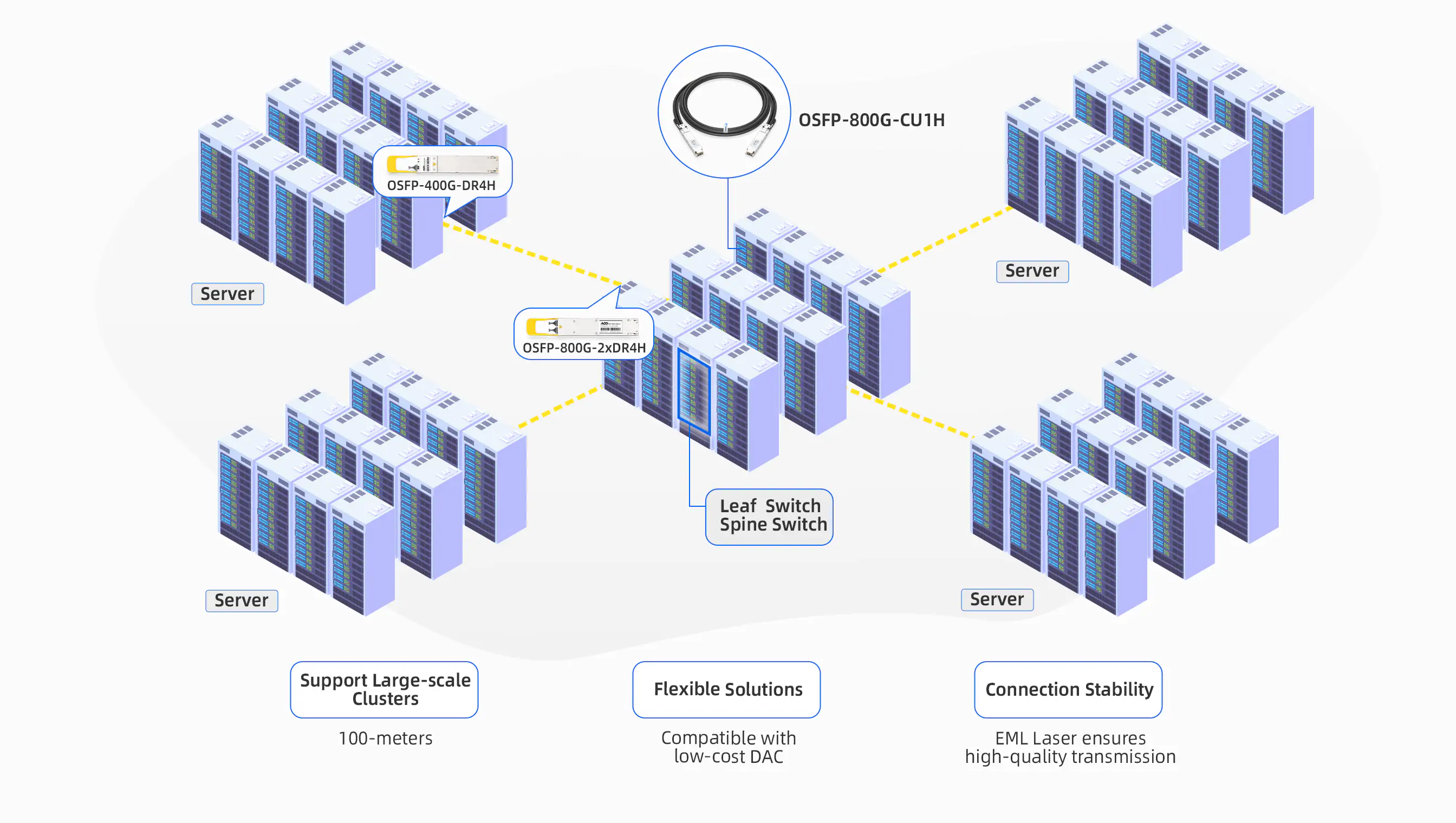

400G OSFP DR4 single-mode parallel transceivers use a single, 4-channel MPO-12/APC optical connector with a maximum fiber reach of 100 meters. It is highly compatible with OSFP NICs, enabling interconnection to 800G switches and flexible link configuration with adaptive 200G speed reduction for 800G to 2x400G and 800G to 4x200G connections.

NVIDIA/Mellanox Coding Target MMS4X00-NS400 400G OSFP DR4 InfiniBand NDR Transceiver detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 400G Dr4H Datasheet
